Introduction
The Dyson Airblade 9kJ hand dryer is engineered for fast, energy-efficient, and hygienic hand drying. This manual provides essential information for the safe and effective operation, installation, and maintenance of your device, ensuring optimal performance and longevity.
Коопсуздук маалыматы
Please read all safety instructions carefully before installing, operating, or performing maintenance on the Dyson Airblade 9kJ hand dryer. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure proper electrical installation is carried out by a qualified electrician in accordance with all local and national electrical codes.
- Электр зымы же сайгычы бузулуп калса, шайманды иштетпеңиз.
- Keep hands and foreign objects clear of the air outlets and inlets during operation.
- Бул шайман физикалык, сенсордук же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) тарабынан колдонууга арналбайт, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмө болбосо .
- Шайманды сууга же башка суюктуктарга батырбаңыз.
- Only use Dyson-approved replacement parts and accessories.
Кутуда эмне бар
Upon unpacking your Dyson Airblade 9kJ hand dryer, please verify that all components are present:
- Dyson Airblade 9kJ Hand Dryer (120V, Stainless Steel)
- Дубалга орнотуу шаблону
- Монтаждоочу жабдуулар (буроолор, анкерлер)
- Колдонуучунун Колдонмосу (бул документ)
Орнотуу жана орнотуу
The Dyson Airblade 9kJ hand dryer is designed for secure wall mounting. Professional installation is highly recommended to ensure safety and compliance with electrical codes.
Орнотууга чейинки текшерүү тизмеси
- Verify that the electrical supply is 120V and meets the product's power requirements.

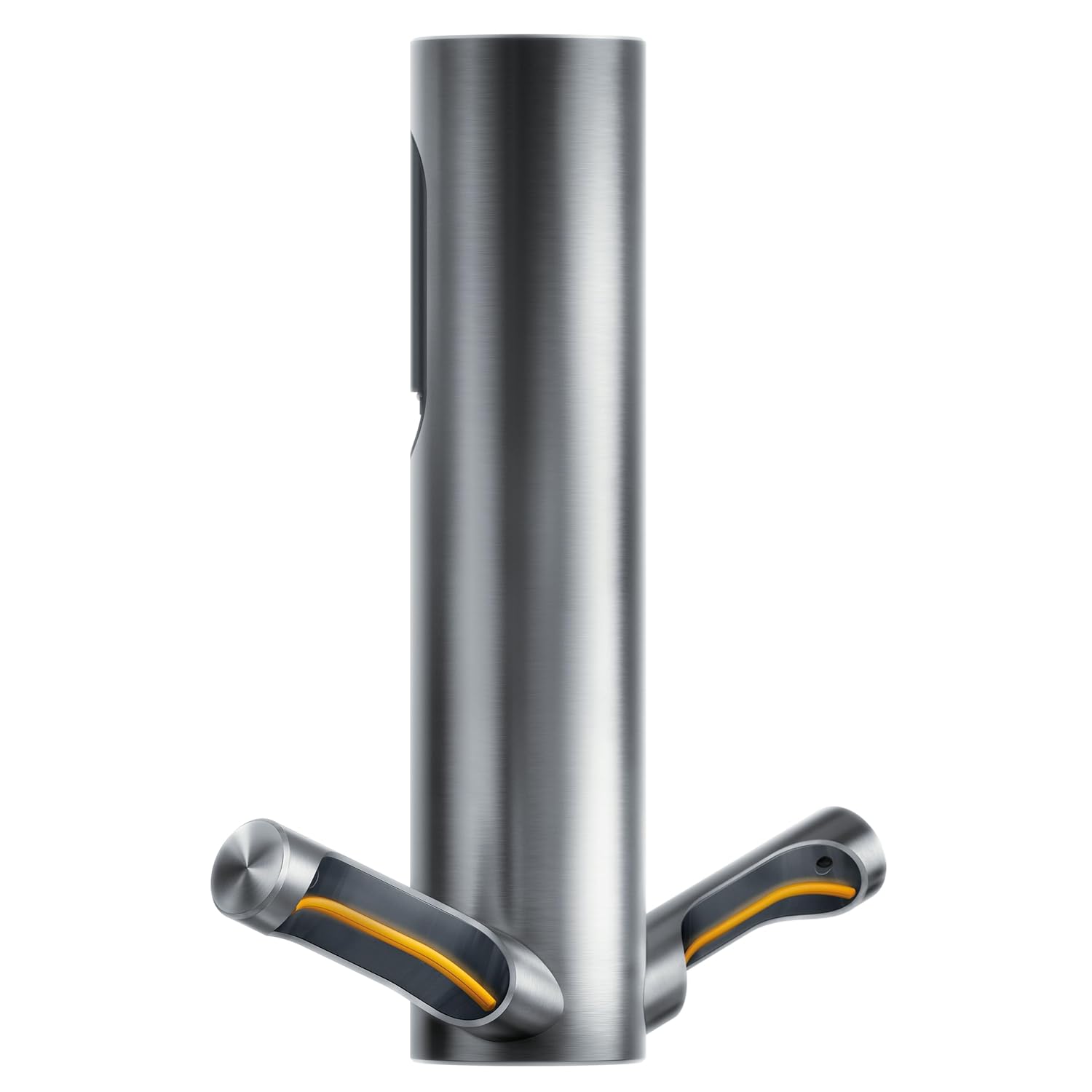

- Ensure adequate space for installation and operation, considering ADA compliance (the unit is 4 inches deep).
- Gather necessary tools: drill, level, screwdriver, measuring tape, pencil.
Монтаждоо нускамалары
- Select a suitable wall location that is structurally sound and can support the weight of the unit.
- Use the provided wall mounting template to accurately mark the drilling points on the wall.
- Drill holes at the marked points and insert appropriate wall anchors suitable for your wall material.
- Securely mount the hand dryer to the wall using the provided mounting hardware. Ensure it is level and firmly attached.
- Connect the electrical wiring according to local electrical codes and the wiring diagram provided in the full installation guide. This step must be performed by a qualified electrician.
Note: For detailed wiring instructions and specific mounting requirements, always consult a qualified electrician and refer to the comprehensive installation guide provided with your product.
Иштөө нускамалары
The Dyson Airblade 9kJ hand dryer features touch-free operation for hygienic use and offers two distinct drying modes.
Кол менен кургатуу процедурасы

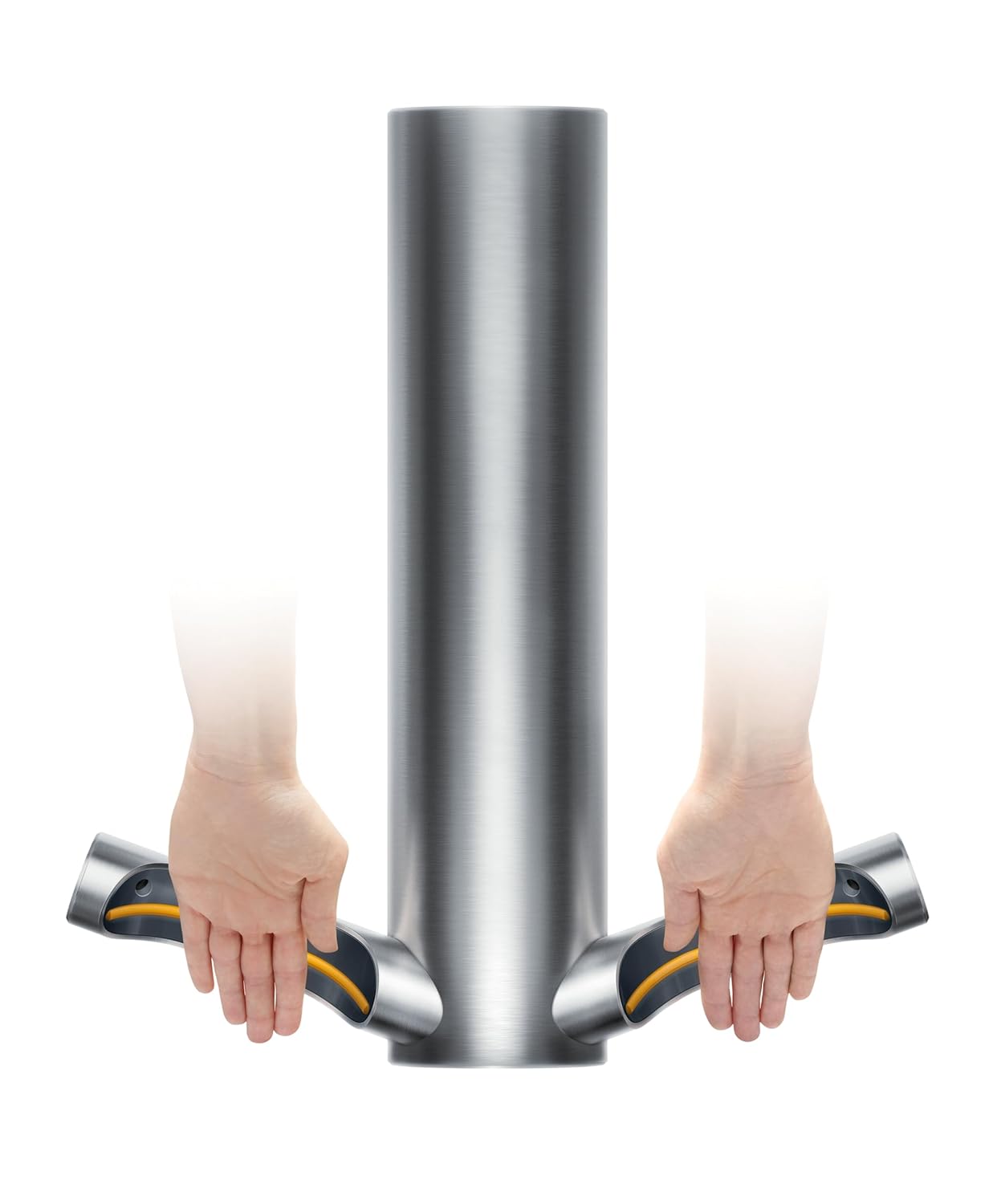

- Place your hands under the air outlets. The infrared sensor will automatically detect your hands and activate the airflow.
- Slowly draw your hands through the air stream from wrists to fingertips. The curved blade design directs powerful sheets of air to remove water efficiently.
- Repeat the motion several times, rotating your hands as needed, until your hands are completely dry. The typical dry time is 10-12 seconds in Max mode.
Иштөө режимдери
The Dyson Airblade 9kJ offers two modes to suit different needs:
- Макс режими: Provides the fastest drying experience (10-12 seconds) with maximum airflow. This mode is ideal for high-traffic areas where speed is paramount.
- Эко режими: Offers energy-efficient operation, reducing power consumption and annual running costs. While slightly longer, this mode is suitable for environments prioritizing energy savings.
Instructions on how to switch between Eco and Max modes are detailed in the comprehensive installation and operation guide.
Техникалык тейлөө
Regular cleaning and proper maintenance will ensure your Dyson Airblade 9kJ hand dryer continues to perform efficiently and hygienically.
Тазалоо
- Always disconnect the power supply to the unit before cleaning.
- Сырткы беттерин жумшак менен сүртүңүз, гamp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the stainless steel finish.
- Regularly clean the air inlets and outlets to prevent dust and debris buildup, which can impede airflow.
HEPA чыпкасы
The Dyson Airblade 9kJ is equipped with a HEPA filter that captures 99.97% of particles as small as 0.3 microns from the air used to dry hands. This filter is designed for long-term performance and typically does not require user replacement. If a filter warning indicator appears (if applicable) or you notice a significant reduction in performance, please contact Dyson customer support for assistance.
Проблемаларды чечүү
This section addresses common issues you might encounter with your Dyson Airblade 9kJ hand dryer. For problems not listed here, please contact Dyson customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Dryer does not activate when hands are placed underneath. | No power supply; Sensor obstructed or dirty; Unit in standby mode. | Check power connection and circuit breaker; Clean sensor area with a soft cloth; Ensure hands are placed correctly. |
| Weak or inconsistent airflow. | Air inlets/outlets obstructed; Filter needs service; Internal component issue. | Clear any visible obstructions from air inlets/outlets; If problem persists, contact Dyson support. |
| Иш учурунда адаттан тыш ызы-чуу. | Internal component malfunction; Foreign object inside. | Immediately disconnect power and contact Dyson support. Do not attempt to repair. |
Техникалык шарттар
Key technical specifications for the Dyson Airblade 9kJ Hand Dryer:
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | Airblade 9kJ |
| Тtage | 120V |
| Продукциянын өлчөмдөрү (L x W x Y) | 56 x 17.72 x 19.69 дюйм |
| Салмагы | 17 фунт |
| Кургак убакыт | 10-12 seconds (Max mode) |
| Фильтрация | HEPA filter (captures 99.97% of particles as small as 0.3 microns) |
| ADA менен шайкеш | Yes (Slim format, 4 inches deep, no recessing required) |
| Материал | Дат баспаган болот |
Кепилдик жана колдоо
The Dyson Airblade 9kJ Hand Dryer is backed by a comprehensive 5 жылдык кепилдик, covering parts and labor for defects in materials and workmanship under normal use.
For warranty claims, technical assistance, troubleshooting beyond this manual, or to purchase genuine Dyson replacement parts, please contact Dyson customer service directly.
You can find the most up-to-date contact information and support resources by visiting the official Dyson webсайт:
Please have your product model number (Airblade 9kJ) and purchase date available when contacting support.
