Argon Audio FORTE A5 Колдонуучунун колдонмосу

1. Киришүү

Welcome to the Argon Audio FORTE A5 powered speaker system. This manual provides essential information for setting up, operating, and maintaining your speakers to ensure optimal performance and longevity. Please read this manual thoroughly before using your speakers.

2. Коопсуздук нускамалары

To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not open the cabinet. Refer servicing to qualified personnel only.

• Вентиляция: Ensure adequate ventilation around the speakers. Do not block any ventilation openings.
• Кубат булагы: Connect the speakers only to the specified power supply.
• Суу жана ным: Do not expose the speakers to dripping or splashing water. Do not place objects filled with liquids, such as vases, on the speakers.
• Тазалоо: Кургак чүпүрөк менен гана тазалаңыз. суюк тазалагычтар же аэрозолдук тазалагычтар колдонгон жок.
• Жылуулук: Радиаторлор, жылуулук регистрлери, мештер же башка аппараттар (анын ичинде) сыяктуу жылуулук булактарынын жанына орнотпоңуз ampкөтөргүчтөр) жылуулукту пайда кылуучу.
• Жайгашкан жери: Place the speakers on a stable, level surface to prevent them from falling.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Argon Audio FORTE A5 Powered Speakers (1 pair)
• Special Speaker Cable (3 meters)
• Алыстан башкаруу
• Электр кабели
• Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

4.1 алдыңкы панели

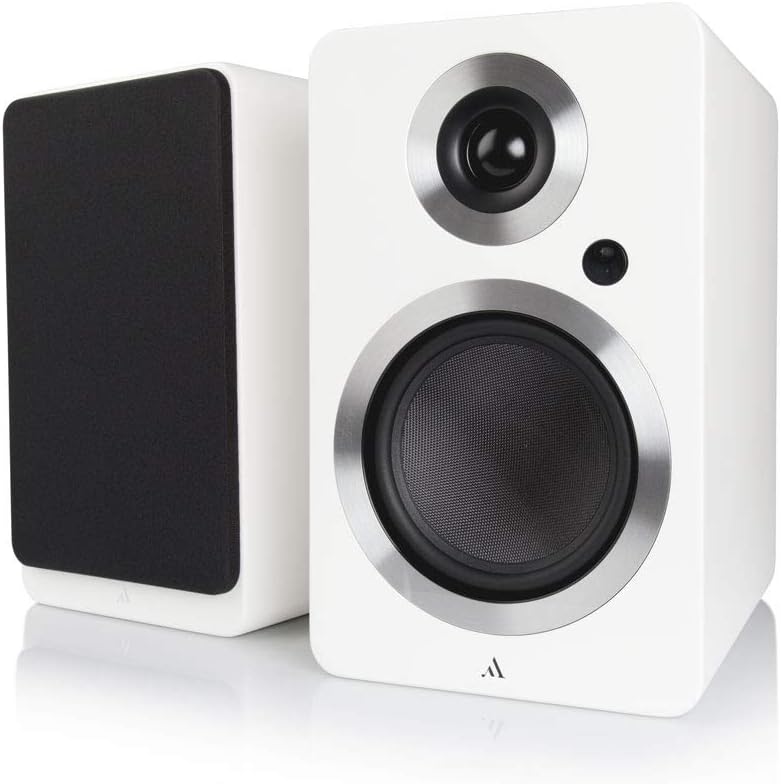

Сүрөт: алдыңкы view of the Argon Audio FORTE A5 speakers. The image displays two white bookshelf speakers with black speaker cones and metallic rings around the drivers. The left speaker is shown from the side, while the right speaker is shown from the front, highlighting its clean design.

• Твиттер: High-frequency driver.
• Mid/Bass Driver: Handles mid-range and bass frequencies.
• Статус LED: Indicates power status and selected input.

4.2 Арткы панель

Сүрөт: Арткы view of the Argon Audio FORTE A5 speakers. The image shows the back panel of the active speaker with various connection ports including RCA, optical, USB, and speaker terminals. The passive speaker's rear panel is also visible, showing only the speaker terminals.

• RCA Inputs (L/R): For connecting analog audio sources like CD players or turntables.
• Optical Inputs (OPT1, OPT2): For connecting digital audio sources like TVs or game consoles.
• Sub Out: Тышкы сабвуферди туташтыруу үчүн.
• USB Charge (5V/1A): Мобилдик түзмөктөрдү кубаттоо үчүн.
• Speaker Cable Output: Connects to the passive speaker.
• Кубат киргизүү: AC кубат булагына туташат.

5. Орнотуу

5.1 Орнотуу

Place the speakers on a stable surface, such as a bookshelf or speaker stands. For optimal stereo imaging, position the speakers equidistant from your listening position and angle them slightly towards you (toe-in). Ensure there is sufficient space behind the speakers for proper ventilation and cable connections.

5.2 Байланыштар

1. Динамиктерди туташтыруу: Use the provided speaker cable to connect the active speaker (with all the inputs) to the passive speaker. Ensure correct polarity (+ to + and - to -).
2. Аудио булактарын туташтыруу:
   • RCA: Connect your analog audio device (e.g., CD player, turntable with pre-amp) to the RCA inputs.
   • Оптикалык: Connect your digital audio device (e.g., TV, game console) to either OPT1 or OPT2.
   • Bluetooth: For wireless connection, see section 6.3.
3. Туташуу кубаты: Plug the power cable into the active speaker's power input, then plug the other end into a wall outlet.

6. Операция

6.1 Күйгүзүү/өчүрүү

The speakers will automatically enter standby mode when no audio signal is detected for a period. They will wake up automatically when an audio signal is received on the selected input. To manually power off, use the remote control or the power button on the active speaker (if available).

6.2 Киргизүүнү тандоо

Use the input selection buttons on the remote control or the active speaker to cycle through the available audio inputs (RCA, Optical 1, Optical 2, Bluetooth). The Status LED will change color to indicate the currently selected input.

6.3 Bluetooth жупташтыруу

1. Select the Bluetooth input on your speakers. The Status LED will blink, indicating pairing mode.
2. On your Bluetooth device (smartphone, tablet, laptop), enable Bluetooth and search for new devices.
3. Select "Argon Audio FORTE A5" from the list of available devices.
4. Once connected, the Status LED on the speaker will turn solid, and you can now play audio wirelessly.

6.4 Алыстан башкаруу функциялары

The included remote control allows you to:

• Adjust Volume (Up/Down)
• Үнсүз/Ачуу
• Киргизүү булагын тандаңыз
• Күйүү/өчүрүү (күтүү режиминде)

7. Техникалык тейлөө

To keep your Argon Audio FORTE A5 speakers in optimal condition:

• Тазалоо: Use a soft, dry, lint-free cloth to clean the cabinet surfaces. Do not use abrasive cleaners, waxes, or solvents.
• Торлор: The speaker grilles can be carefully removed for cleaning, but ensure they are reattached securely to protect the drivers.
• Чаң: Regularly dust the speakers to prevent accumulation, especially around the drivers and ventilation ports.

8. Кыйынчылыктарды

If you experience issues with your speakers, please refer to the following table:

If the problem persists, please contact Argon Audio customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

Argon Audio products are designed and manufactured to the highest quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Argon Audio website. For technical support or service inquiries, please contact your local dealer or Argon Audio customer service.

Webсайт: www.argonaudio.com
