1. Киришүү
Thank you for choosing the Shadowhawk X800 Tactical LED Flashlight. This powerful and durable flashlight is designed for a wide range of applications, from outdoor adventures to emergency situations. Please read this manual carefully to ensure proper use, maintenance, and to maximize the lifespan of your device.
2. Коопсуздук нускамалары
- LED жарыгы күйүп турганда аны түз карабаңыз, анткени ал көрүүнүн убактылуу начарлашына алып келиши мүмкүн.
- Балдар жетпеген жерде сактаңыз.
- Фонарьдын башын же корпусун бөлүп албаңыз, анткени бул түзмөккө зыян келтирип, кепилдикти жокко чыгарышы мүмкүн.
- Use only recommended batteries and chargers. Improper battery use can lead to fire, explosion, or injury.
- If the flashlight will not be used for an extended period, remove the battery to prevent leakage.
- Avoid dropping the flashlight from excessive heights, although it is designed to be robust.
3. Пакеттин мазмуну
Upon opening your Shadowhawk X800 package, please verify that all the following items are included:
- Shadowhawk X800 LED Flashlight
- 1x Rechargeable Lithium-ion Battery (3.7V 5000mAh)
- Battery Charger (USB compatible)
- AAA Battery Holder (for optional 3x AAA batteries, not included)
- Lanyard
- Сактоочу куту
Image: Shadowhawk X800 flashlight, rechargeable battery, charger, AAA battery holder, and storage case.
Сүрөт: деталдуу view of all components included in the Shadowhawk X800 kit, including the flashlight, battery, charger, AAA adapter, lanyard, and case.
4. Орнотуу
4.1 Батареяны орнотуу
The Shadowhawk X800 can be powered by either one 3.7V rechargeable Lithium-ion battery (included) or three AAA batteries (not included, requires AAA battery holder).
- Кол чырактын куйрук капкагын сааттын жебесине каршы буруп чечиңиз.
- Заряддалуучу батарея үчүн: Insert the included 3.7V rechargeable Lithium-ion battery with the positive (+) end facing towards the flashlight head.
- AAA батареялары үчүн: Place three AAA batteries into the provided AAA battery holder, ensuring correct polarity. Insert the holder into the flashlight with the positive (+) end of the holder facing towards the flashlight head.
- Куйруктун капкагын сааттын жебеси боюнча кайра бекем орнотулганга чейин бураңыз.
Image: Illustration showing the two battery options: one rechargeable 26650 battery (included) or three AAA batteries (not included) with an adapter.
4.2 Кайра заряддалуучу батареяны заряддоо
To charge the included rechargeable Lithium-ion battery:
- Кол чырактан кайра заряддалуучу батареяны алып салыңыз.
- Insert the battery into the provided charger, ensuring correct polarity.
- Connect the USB cable from the charger to a compatible USB power source (e.g., wall adapter, computer USB port).
- The indicator light on the charger will show кызыл when charging and turn жашыл толук заряддалганда.
- Once fully charged, disconnect the charger and remove the battery.
The charger features protection against overcurrent, overvoltage, overcharge, and short-circuits for safe and efficient charging.
Image: Diagram illustrating the fast charging process with the USB charger, showing red light for charging and green light for fully charged status.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү жана режимди тандоо
The Shadowhawk X800 features a single button for power control and mode cycling, located on the tail cap.
- Күйгүзүү/өчүрүү үчүн: Press the tail cap button firmly until you hear a click.
- Цикл режимдерине: With the flashlight on, lightly press the tail cap button (without clicking) to cycle through the 5 available modes:
- Күчтүү: Maximum brightness (6000 lumens).
- Орточо: Reduced brightness for extended battery life (approx. 8 hours).
- Төмөн: Minimal brightness for close-range tasks or extreme battery saving.
- Строб: Rapid flashing light for signaling or disorientation.
- SOS: International Morse code signal for emergencies.
5.2 Чоңойтуу функциясы
The flashlight features an adjustable zoom function to change the beam from a wide floodlight to a focused spotlight.
- To adjust the beam, gently slide the head of the flashlight forward (out) for a focused spotlight or backward (in) for a wider floodlight.
Image: The Shadowhawk X800 flashlight showing its zoom mechanism, allowing adjustment from a wide beam to a focused spotlight.
Image: Visual representation of the Shadowhawk X800's adjustable beam, showing both wide floodlight and narrow spotlight patterns.
5.3 Типтүү колдонмолор
The Shadowhawk X800 is suitable for various activities:
- Outdoor activities: Camping, hiking, fishing, hunting, running.
- Emergency situations: Power outages, car breakdowns, search and rescue.
- Daily use: Dog walking, home repairs, general illumination.
- Tactical use: Self-defense, security patrols.
Image: Collage showing the Shadowhawk X800 being used in various scenarios, including outdoor exploration, vehicle inspection, and general illumination.
6. Техникалык тейлөө
Proper maintenance will ensure the longevity and optimal performance of your Shadowhawk X800 flashlight.
- Тазалоо: Кол чырактын корпусун таза, жумшак чүпүрөк менен сүртүңүз. өжөр кир үчүн, бир аз гamp кездеме колдонсо болот. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Майлоо: Periodically apply a thin layer of silicone grease to the O-rings and screw threads to maintain water resistance and smooth operation.
- Батареяга кам көрүү:
- Store rechargeable batteries in a cool, dry place when not in use.
- If storing the flashlight for an extended period, remove the battery to prevent potential leakage or damage.
- Avoid fully discharging the rechargeable battery frequently, as this can reduce its lifespan.
- Суу каршылык: The flashlight is rated IP65 water-resistant, meaning it is protected against low-pressure water jets from any direction. It is not designed for submersion. Ensure the tail cap is tightly secured to maintain water resistance.
- Узактыгы: The flashlight features a military-grade aluminum alloy body designed to withstand impacts and compression.
Image: Demonstrates the IP65 water resistance of the Shadowhawk X800 with water droplets on its surface, and its compression resistance by being placed under a car tire.

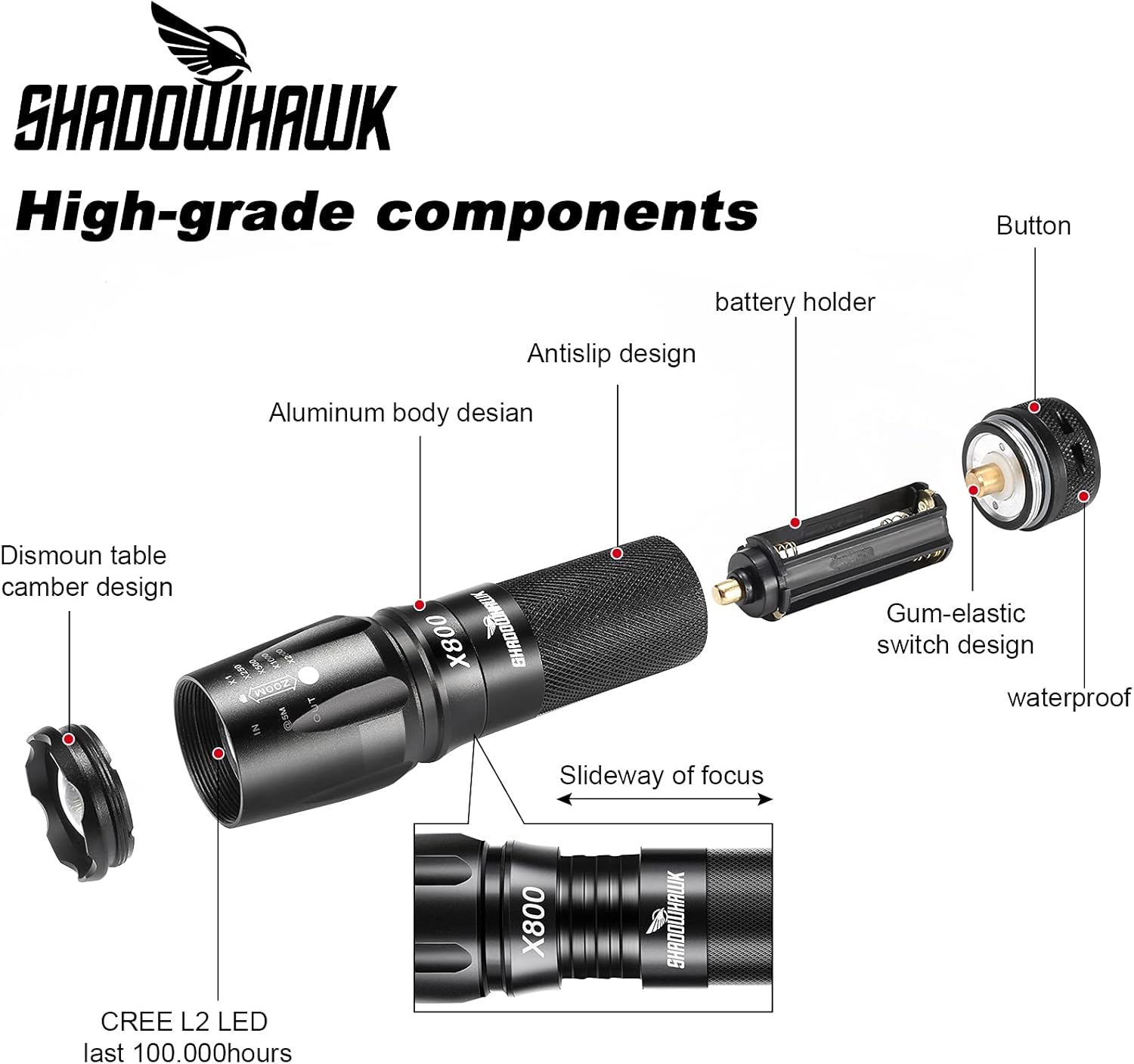

Image: An exploded diagram of the Shadowhawk X800 flashlight, showing its internal components such as the CREE L2 LED, aluminum body, battery holder, and tail cap button.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кол чырак күйбөйт. |
|
|
| Жарык күңүрт же бүлбүлдөп турат. |
|
|
| Режимдер аркылуу айлануу мүмкүн эмес. |
|
|
Бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, кардарларды колдоо менен байланышыңыз.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | SH-S900 |
| Жарык булагы | CREE L2 LED |
| Жарык агымы | 6000 люменге чейин |
| Beam Distance | Болжол менен 250 метр |
| Режимдер | Strong, Medium, Low, Strobe, SOS |
| Power Source | 1x 3.7V Rechargeable Lithium-ion Battery (included) OR 3x AAA Batteries (not included) |
| Battery Life (Medium Mode) | 8 саатка чейин |
| Материал | Аэрокосмостук класстагы алюминий эритмеси |
| Суу каршылык | IP65 (Сууга чыдамдуу) |
| Өлчөмдөрү (L x W x Y) | 19 x 12 x 5.4 см (болжол менен 7.5 x 4.7 x 2.1 дюйм) |
| Салмагы | 410 грамм (болжол менен 0.9 фунт) |
Image: Diagram showing the key dimensions of the Shadowhawk X800 flashlight, including its length and head diameter.
9. Кепилдик жана колдоо
Shadowhawk products are built with quality and durability in mind. For specific warranty details and customer support, please refer to the warranty card included in your product packaging or visit the official Shadowhawk webсайт.
If you encounter any issues or have questions regarding your Shadowhawk X800 flashlight, please do not hesitate to contact our customer support team. Provide your model number (SH-S900) and a detailed description of the issue for faster service.
