Dino-Lite AF4515ZT USB колго кармалуучу санарип микроскобу колдонуучунун колдонмосу

1. Киришүү

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Dino-Lite AF4515ZT USB Handheld Digital Microscope. The AF4515ZT is a versatile digital microscope designed for various applications, offering optical magnification from 20x to 220x, a 1.3-megapixel true image resolution, and advanced features like polarized light and Automatic Magnification Reading (AMR).

Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your experience.

Figure 1: Dino-Lite AF4515ZT USB Handheld Digital Microscope

2. Продукт бүтүп калдыview

The Dino-Lite AF4515ZT features a robust design with intuitive controls for precise observation and analysis. Understanding its components is essential for effective use.

Figure 2: Labeled diagram of the Dino-Lite AF4515ZT components. This image illustrates the various parts of the microscope, including the USB 2.0 cable for connectivity, the MicroTouch sensor for image capture and LED control, the scroll lock to fix magnification, the magnification dial for adjustment, the magnification power indicator, the adjustable polarizer to reduce glare, LED lighting with flexible control, and interchangeable caps for different viewмуктаждыктары.

Негизги компоненттер:

• Байланыш: USB 2.0 Cable for connection to a computer.
• МикроТач: A touch sensor trigger for various functions, including image capture and LED controls.
• Scroll Lock: Locks the current magnification power to prevent accidental changes.
• Magnification Dial: Used to adjust the optical magnification of the microscope.
• Magnification Power Indicator: Displays the current magnification level in use.
• Adjustable Polarizer: An integrated polarizer that can be adjusted to reduce or eliminate glare from reflective surfaces.
• LED жарыктандыруу: Features 8 LEDs with Flexible Light Control (FLC) for optimal illumination.
• Interchangeable Caps: Various cap designs are available (sold separately) to aid in providing the best possible image for specific applications.

Figure 3: Dino-Lite AF4515ZT dimensions and optional WiFi module. The image shows the microscope's dimensions (approximately 4.65 inches in length) and illustrates how it can be connected to an optional WiFi module (WF-20) for wireless operation, extending its length to approximately 5.5 inches. Accessories are sold separately.

3. Негизги өзгөчөлүктөрү

The Dino-Lite AF4515ZT is equipped with several advanced features to enhance your microscopy experience:

• Оптикалык чоңойтуу: Offers a variable optical magnification range from 20x to 220x.
• Сүрөттүн чечилиши: Captures images at 1280 x 1024 (1.3MP) true resolution.
• Видео кадр ылдамдыгы: Provides smooth video at 30 frames per second (FPS).
• Өлчөө мүмкүнчүлүктөрү: Perform various measurements including straight lines, circles, angles, arches, and grids in different units (inch/mil/mm/um).
• Polarization Control: The polarization feature can be switched on/off or adjusted to full or half polarization to effectively control glare on reflective surfaces.
• Automatic Magnification Reading (AMR): Displays the current magnification directly on the screen within the included software for Windows or Mac OS.
• Комплекстүү программалык камсыздоо: The included software offers rich features for saving, annotating, stitching, comparison, and analysis of captured images.
• Операциялык системанын шайкештиги: Supports Windows (XP/Vista/7/8/10), Mac OS 10.5 and above, Android, and iOS (requires WF-20 Wi-Fi adapter).

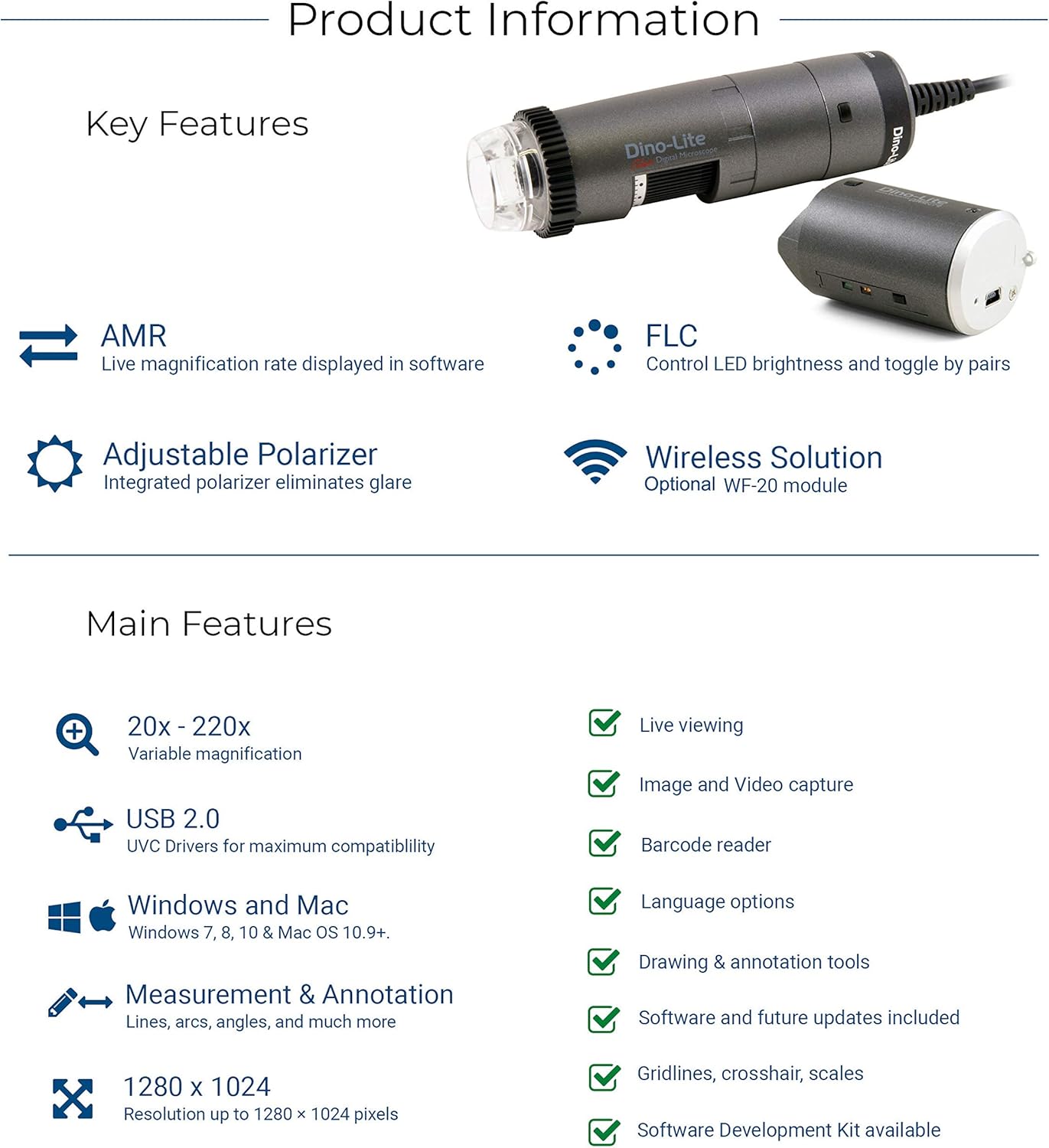

Figure 4: Summary of Dino-Lite AF4515ZT key features, including AMR, FLC, Adjustable Polarizer, Wireless Solution (optional), Variable Magnification (20x-220x), USB 2.0, Windows and Mac compatibility, Measurement & Annotation tools, 1280x1024 resolution, Live viewing, Image and Video capture, Barcode reader, Language options, Drawing & annotation tools, Software and future updates, Grids/crosshairs/scales, and Software Development Kit availability.

4. Орнотуу

Follow these steps to set up your Dino-Lite AF4515ZT microscope:

4.1. Пакеттин мазмунун текшерүү

Улантуудан мурун, пакетте бардык элементтер бар экенин текшериңиз:

• Dino-Lite AF4515ZT Digital Microscope
• Software CD (DinoCapture 2.0)
• Quick колдонмо
• Calibration Target
• Сактоочу баштык
• USB Cable Tie
• Interchangeable Caps (e.g., open cap, closed cap, diffuser cap)

Figure 5: Contents of the Dino-Lite AF4515ZT package, including the microscope, software CD, quick guide, calibration target, storage pouch, USB cable tie, and various interchangeable caps.

4.2. Программалык камсыздоону орнотуу

1. Insert the included software CD into your computer's optical drive.
2. Follow the on-screen instructions to install DinoCapture 2.0 (for Windows) or DinoXcope (for Mac OS).
3. Alternatively, the latest software version can be downloaded from the official Dino-Lite webсайт.
4. Ensure the software is fully installed before connecting the microscope.

4.3. Аппараттык туташуу

1. Connect the USB cable of the Dino-Lite microscope to an available USB 2.0 port on your computer.
2. The operating system should automatically detect the device and install necessary drivers.
3. Once connected, launch the DinoCapture 2.0 or DinoXcope software.

5. Иштөө нускамалары

This section details the basic operation of your Dino-Lite microscope.

5.1. Түз эфир Viewing

1. Place the microscope over the object you wish to observe.
2. Open the DinoCapture 2.0 (Windows) or DinoXcope (Mac OS) software. The live image from the microscope should appear on your screen.

5.2. Чоңойтууну жана фокусту тууралоо

1. айлантыңыз Чоңойтуу терүү on the microscope body to adjust the desired magnification level (20x to 220x).
2. Байкоо Magnification Power Indicator to see the current magnification.
3. To focus, gently move the microscope closer to or further from the object until the image on the screen is clear. For fine adjustment, use a compatible stand (sold separately).
4. If you wish to maintain a specific magnification, engage the Scroll Lock.

5.3. Using LED Lighting

The microscope features 8 built-in LEDs. The brightness can be adjusted through the software interface or by using the MicroTouch sensor (if configured for LED control).

5.4. Adjusting Polarization

For reflective surfaces, rotate the Жөнгө салынуучу поляризатор ring located at the front of the microscope. This will reduce or eliminate glare, improving image clarity. You can adjust it for full or half polarization.

5.5. Сүрөттөрдү жана видеолорду тартуу

To capture an image or record a video:

• басыңыз MicroTouch sensor on the microscope body once to capture a still image.
• Alternatively, use the capture buttons within the DinoCapture/DinoXcope software interface.
• For video recording, select the video recording option in the software and click to start/stop recording.

6. Software Features (DinoCapture 2.0 / DinoXcope)

The included software is a powerful tool for managing and analyzing your microscopic observations.

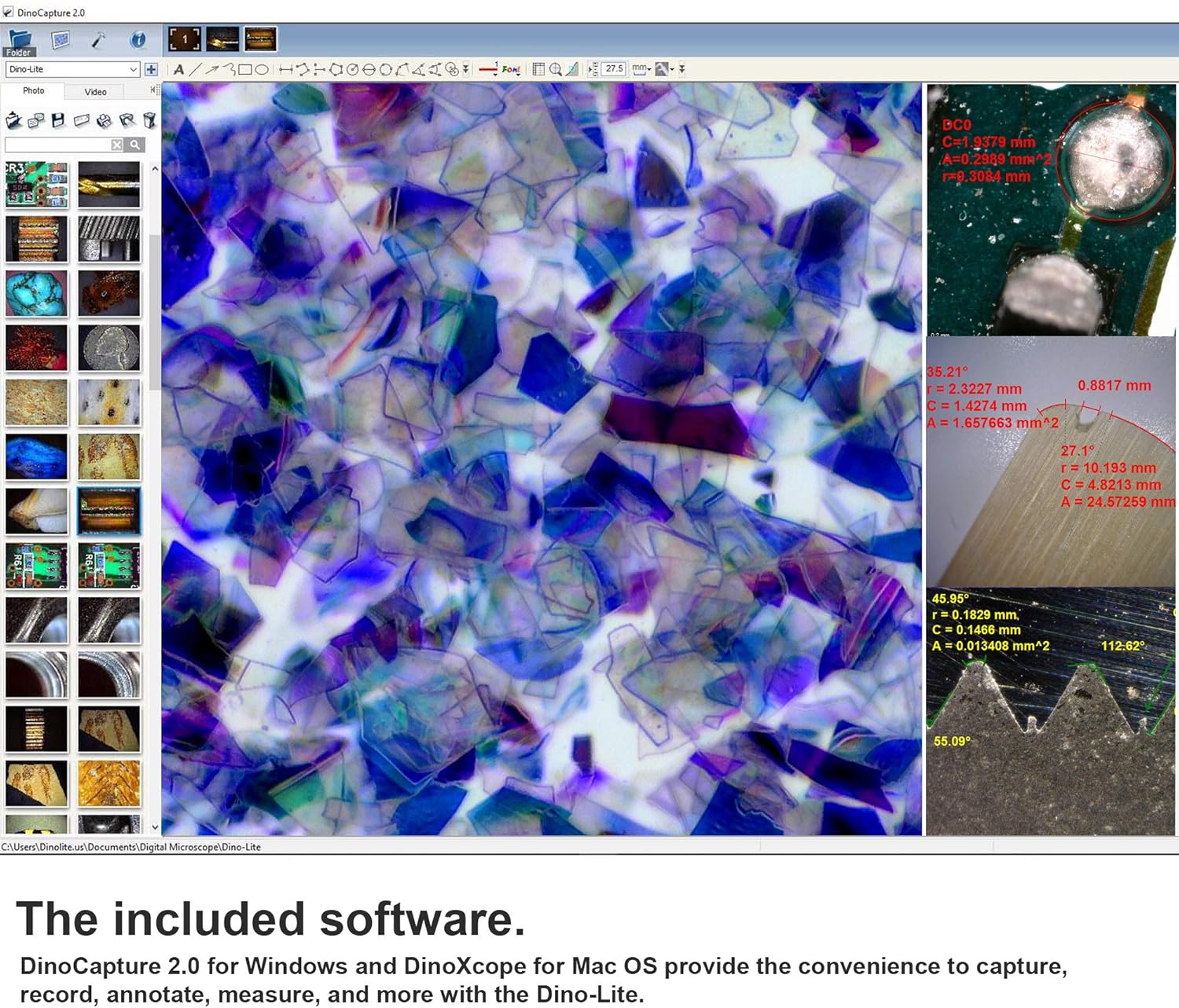

Figure 6: The DinoCapture 2.0 software interface, showing live view, captured images in a sidebar, and various measurement and annotation tools applied to an image. The software allows for detailed analysis and documentation.

Key Software Functions:

• Live Viewing: Real-time display of the microscope's feed.
• Сүрөт жана видео тартуу: Save still images and record video footage.
• Өлчөө куралдары: Perform precise measurements on captured images, including lines, circles, angles, and more.
• Аннотация: Add text, arrows, and shapes to images for documentation.
• Image Stitching: Combine multiple images to create a larger field of view.
• Салыштыруу: Compare multiple images side-by-side.
• Automatic Magnification Reading (AMR): Displays the current magnification on the screen.
• Flexible Light Control (FLC): Adjust LED brightness and toggle by pairs.
• Шайкештик: Supports Windows (XP/Vista/7/8/10) and Mac OS 10.5 and above.

7. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your Dino-Lite microscope.

7.1. Тазалоо

• Микроскоптун корпусу: Wipe the exterior with a soft, dry cloth. For stubborn dirt, use a slightly damp жумшак самын менен кездемени сүртүп, андан кийин жакшылап кургатыңыз. Катуу химиялык заттардан же абразивдүү тазалоочу каражаттардан алыс болуңуз.
• Объектив: Use a lens cleaning brush or a blower to remove dust. For smudges, use a specialized lens cleaning solution and a microfiber lens cloth. Do not touch the lens with your fingers.

7.2. Сактоо

• Store the microscope in its original packaging or the provided storage pouch when not in use.
• Түзмөктү салкын, кургак жерде, күндүн түз нурунан, өтө жогорку температурадан жана жогорку нымдуулуктан алыс сактаңыз.
• Чаңдуу чөйрөдө сактоодон алыс болуңуз.

8. Кыйынчылыктарды

If you encounter issues with your Dino-Lite AF4515ZT, refer to the following common problems and solutions:

9. Техникалык шарттар

Detailed technical specifications for the Dino-Lite AF4515ZT microscope:

10. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries regarding your Dino-Lite AF4515ZT microscope, please refer to the warranty card included with your product or visit the official Dino-Lite webсайты. Кардарларды колдоо боюнча байланыш маалыматы, адатта, өндүрүүчүнүн сайтында жеткиликтүү. webсайт.
