Ciglow Bluetooth 5.0 2-in-1 Transmitter Receiver Adapter User Manual

1. Киришүү

This manual provides instructions for the Ciglow Bluetooth 5.0 2-in-1 Transmitter Receiver Adapter. This versatile device allows you to add Bluetooth audio capabilities to non-Bluetooth devices, functioning as both a transmitter and a receiver. It is designed for use with various audio systems, including TVs, PCs, home stereos, and car sound systems.

2. Продукт бүтүп калдыview

The Ciglow Bluetooth adapter features a compact design with a USB connector for power and a 3.5mm audio jack for audio input/output. It supports Bluetooth 5.0 for stable and efficient wireless audio transmission.

Сүрөт 2.1: Алдыңкы view of the Ciglow Bluetooth 2-in-1 Transmitter Receiver Adapter, showing the USB connector and 3.5mm audio port.

Пакеттин мазмуну:

• 1 x Ciglow Bluetooth 2-in-1 Receiver/Transmitter
• 1 x 3.5 мм аудио кабель
• 1 х Колдонуучунун колдонмосу (бул документ)

3. Техникалык шарттар

4. Орнотуу жана иштетүү

The device features a 2-in-1 design, allowing it to function as either a transmitter (TX) or a receiver (RX). A single button on the device is used to switch between these two modes.

Image 4.1: The 2-in-1 design of the adapter, showing it connected to a laptop. One-button switching between modes is highlighted.

4.1. Өткөргүчтүн режими (TX)

In Transmitter mode, the adapter sends audio wirelessly from a non-Bluetooth device (like a TV or PC) to a Bluetooth-enabled audio device (like headphones or speakers).

1. Туташуу кубаты: Plug the USB end of the adapter into a USB power source (e.g., a USB port on your TV, PC, or a USB wall adapter).
2. Аудио туташтыруу: Use the provided 3.5mm audio cable to connect the adapter's 3.5mm port to the audio output port of your TV, PC, or other audio source.
3. TX режимине которулуу: Press the button on the adapter to ensure it is in Transmitter (TX) mode. A red LED light will typically indicate TX mode.
4. Жупташтыруу: Place your Bluetooth headphones or speaker into pairing mode. The adapter will automatically search for and connect to nearby Bluetooth audio devices. Once connected, the red LED may change its blinking pattern or become solid.

Image 4.2: Diagram illustrating the adapter in Transmitter (TX) mode, connected to a TV via a 3.5mm cable and powered by USB. A red LED indicates TX mode, and it wirelessly connects to headphones or speakers.

4.2. Алуучу режими (RX)

In Receiver mode, the adapter receives audio wirelessly from a Bluetooth-enabled device (like a smartphone or tablet) and outputs it to a non-Bluetooth audio system (like wired speakers or a car stereo).

1. Туташуу кубаты: Plug the USB end of the adapter into a USB power source (e.g., a USB port in your car, a USB wall adapter, or a power bank).
2. Аудио туташтыруу: Use the provided 3.5mm audio cable to connect the adapter's 3.5mm port to the audio input port (e.g., AUX-in) of your wired speakers, car stereo, or home sound system.
3. RX режимине которулуу: Press the button on the adapter to ensure it is in Receiver (RX) mode. A blue LED light will typically indicate RX mode.
4. Жупташтыруу: On your smartphone, tablet, or other Bluetooth audio source, search for Bluetooth devices and select the adapter (it may appear as 'B07ZRVS5TX' or similar). Once paired, the blue LED may change its blinking pattern or become solid.

Image 4.3: The adapter connected to a car's USB port for power and AUX input for audio, transforming the car stereo into a Bluetooth receiver.

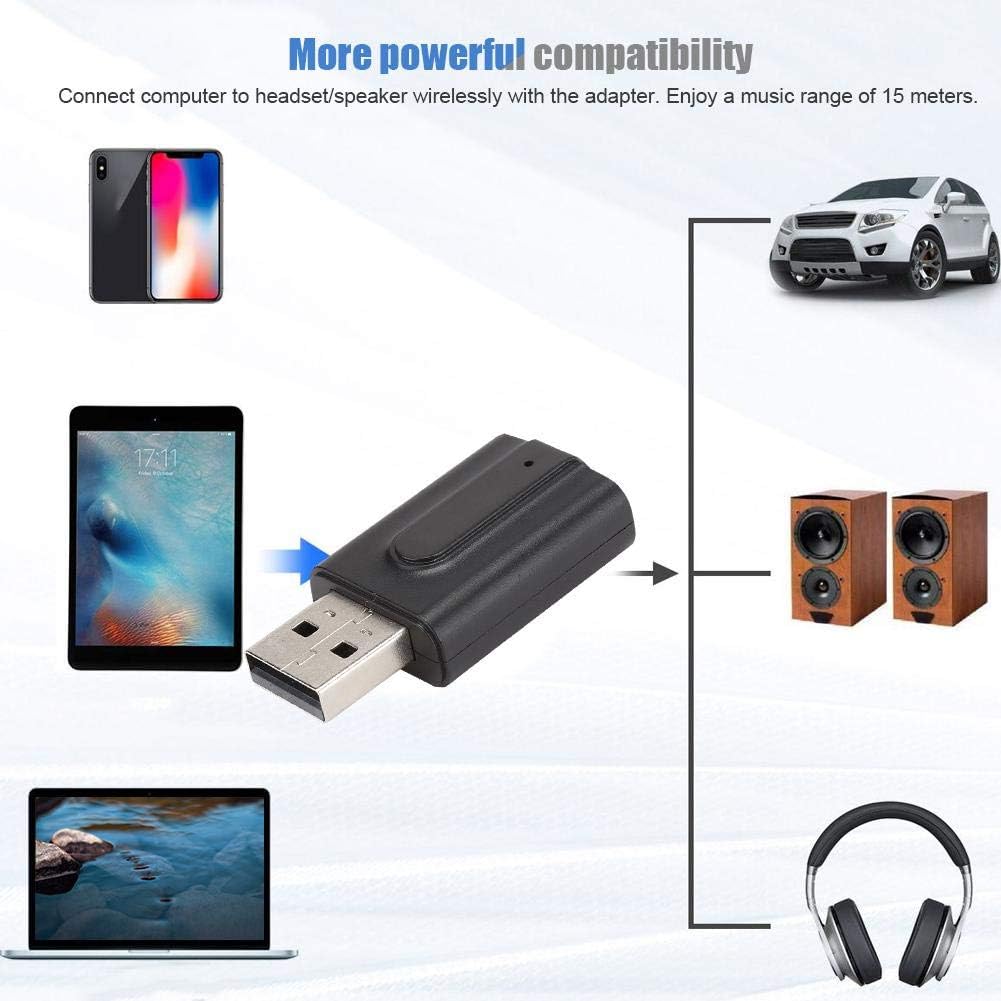

Image 4.4: Compatibility diagram illustrating the adapter's ability to connect various devices like smartphones, tablets, and laptops to speakers, headphones, or car audio systems.

5. Кыйынчылыктарды

If you encounter issues with your Ciglow Bluetooth adapter, please refer to the following common solutions:

• Түзмөк күйбөй жатат: Ensure the USB connector is securely plugged into a working 5V USB power source. Try a different USB port or power adapter.
• Түзмөк менен жупташтыруу мүмкүн эмес:
  • Confirm the adapter is in the correct mode (TX for transmitting, RX for receiving).
  • Ensure your target Bluetooth device (headphones, speaker, phone) is in pairing mode.
  • Move the devices closer to each other (within 15 meters).
  • Turn off and on both the adapter and the target Bluetooth device, then try pairing again.
• Аудио чыгаруу/киргизүү жок:
  • Check all 3.5mm audio cable connections to ensure they are secure.
  • Verify that the audio source (TV, PC, phone) is playing audio and its volume is turned up.
  • Ensure the volume on the receiving device (headphones, speakers) is also turned up.
  • In TX mode, ensure your TV/PC audio output is set to the correct port (e.g., headphone jack).
• Начар аудио сапаты же ажыратуулар:
  • Адаптер менен туташкан Bluetooth түзмөгүнүн ортосундагы аралыкты азайтыңыз.
  • Bluetooth сигналына тоскоол боло турган бардык тоскоолдуктарды (дубалдар, чоң металл буюмдар) алып салыңыз.
  • Башка электрондук аппараттардын күчтүү электромагниттик кийлигишүүсүн болтурбаңыз.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your Ciglow Bluetooth adapter, follow these maintenance guidelines:

• Тазалоо: Аппаратты тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалагычтарды же аэрозолдорду колдонбоңуз.
• Сактагыч: Аппаратты түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Колдонуу: Avoid dropping the device or subjecting it to strong impacts. Do not attempt to disassemble or modify the device, as this will void any potential warranty.
• Нымдуулук: Аппаратты суудан жана жогорку нымдуулуктан алыс кармаңыз.

7. Расмий продукт Video

For a visual guide on the product's features and usage, please watch the official video below.

8. Кепилдик жана колдоо

Кепилдик маалыматы жана кардарларды колдоо үчүн, сатып алуу учурунда берилген документтерди караңыз же сатуучуга кайрылыңыз. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
