VirtuFit Row450 Rowing Machine User Manual

1. Киришүү

Thank you for choosing the VirtuFit Row450 Rowing Machine. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and keep it for future reference.

The VirtuFit Row450 is designed for home use, featuring a silent magnetic resistance system and a foldable 'Space Saver' design for convenient storage. Its ergonomic design supports proper posture during workouts, and the integrated display tracks your progress.

2. Коопсуздук маалыматы

• Кандайдыр бир жаңы көнүгүү программасын баштоодон мурун дарыгер менен кеңешиңиз.
• Ар бир колдонуудан мурун бардык бөлүктөрү бекем орнотулганын жана бекемделгенин текшериңиз.
• Иш учурунда балдарды жана үй жаныбарларын жабдуулардан алыс кармаңыз.
• Как сүзүүчү машинаны тегерегинде жетиштүү боштук менен тегиз, туруктуу бетке коюңуз.
• ылайыктуу спорттук бут кийим жана кийим кийүү.
• Do not exceed the maximum user weight of 120 kg (264 lbs) or maximum user height of 190 cm (6 ft 3 in).
• Эгер алсырап, башыңыз айланса же ооруса, көнүгүүлөрдү дароо токтотуңуз.
• Жабдуулардын эскиргендигин жана бузулгандыгын үзгүлтүксүз текшерип туруңуз. Бузулган болсо, колдонбоңуз.

3. Продукт бүтүп калдыview жана компоненттер

The VirtuFit Row450 consists of several key components designed for effective and comfortable rowing.

1-сүрөт: VirtuFit Row450 Rowing Machine in its operational, unfolded state. This image shows the full length of the rail, the main body with the resistance mechanism, the foot pedals, and the handle.

• Негизги кадр: Sturdy metal construction supporting the entire unit.
• Орун: Ergonomically designed seat with PU wheels for smooth, quiet gliding along the rail.
• Бут педалдары: Non-slip surface with adjustable straps to secure your feet.
• Рул: Connected to the resistance system for pulling motion.
• Каршылык баскычы: Adjusts the magnetic resistance level.
• ЖК монитор: Displays workout data.
• Транспорт дөңгөлөктөрү: Located at the front for easy relocation.

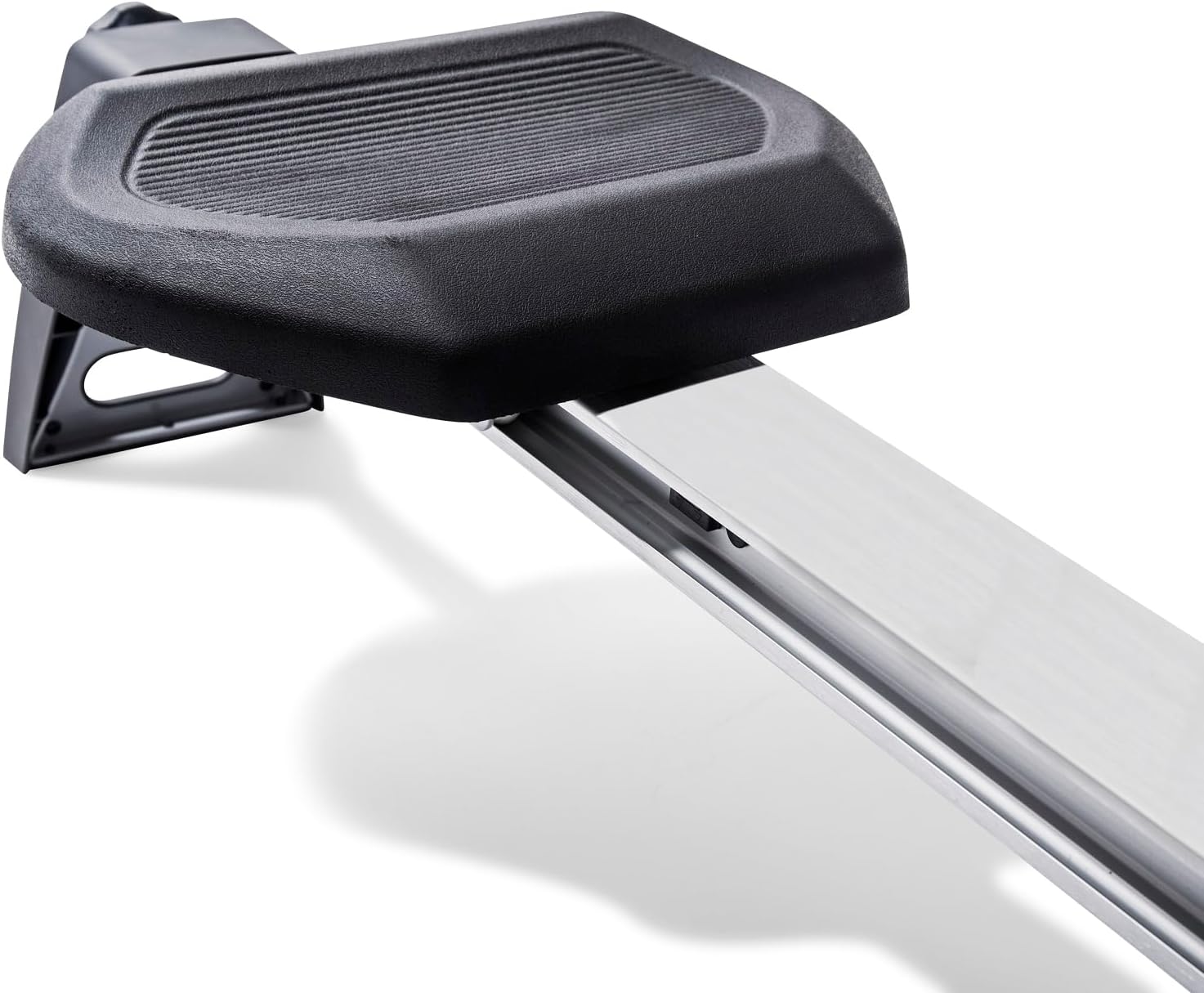

2-сүрөт: Жакын план view of the ergonomically designed seat on the VirtuFit Row450, highlighting its contoured shape for user comfort during exercise.

4. Орнотуу жана чогултуу

The VirtuFit Row450 features a 'Space Saver' design, allowing for compact storage. Initial setup primarily involves unfolding the unit and ensuring stability.

4.1 Кайык менен сүзүүчү тренажерду жайып салуу

1. Place the folded rowing machine on a clear, flat surface.
2. Carefully release the locking mechanism that holds the rail in the folded position.
3. Extend the rail until it is fully horizontal and the locking mechanism engages securely.
4. Ensure the machine is stable and does not wobble. An adjustable spirit level may be present for fine-tuning stability.

4.2 Installing Monitor Batteries

The LCD monitor requires 2 AA batteries (included). Locate the battery compartment on the back of the monitor, insert the batteries according to polarity markings, and close the cover.

4.3 Moving the Rowing Machine

3-сүрөт: A close-up image of one of the transport wheels located at the front base of the VirtuFit Row450, designed for easy movement of the machine.

To move the rowing machine, lift the rear end slightly and use the transport wheels located at the front base to roll it to your desired location. Ensure the path is clear of obstacles.

4-сүрөт: The VirtuFit Row450 Rowing Machine shown in its folded, upright position, demonstrating its compact 'Space Saver' design for storage.

5. Иштөө нускамалары

5.1 Каршылыкты жөндөө

The Row450 features a magnetic resistance system with 10 adjustable levels. To change the resistance, turn the resistance knob located on the main body of the machine. Turn clockwise for higher resistance and counter-clockwise for lower resistance.

5-сүрөт: А деталдуу view of the foot pedals with adjustable straps and the resistance adjustment knob on the VirtuFit Row450, showing the numbered resistance levels.

5.2 Калак менен сүзүүнүн туура ыкмасы

• Буттун жайгашуусу: Place your feet on the non-slip pedals and secure them with the adjustable straps.
• Баштапкы позициясы: Sit on the seat with your knees bent, shins vertical, and arms extended forward to grasp the handlebar.
• Drive: Push off with your legs, then lean back slightly from your hips, and finally pull the handlebar towards your abdomen. Maintain a straight back throughout the movement.
• Калыбына келтирүү: Extend your arms forward, then lean forward from your hips, and finally bend your knees to slide the seat back to the starting position.

5.3 ЖК мониторду колдонуу

6-сүрөт: A close-up of the LCD monitor and the handlebar of the VirtuFit Row450, displaying workout metrics and control buttons.

The LCD monitor displays various workout metrics to help you track your performance:

• Убакыт: Машыгуунун узактыгы.
• Аралык: Симуляцияланган аралык басып өтүлдү.
• Калориялар: Болжолдуу күйгөн калория.
• Ылдамдыгы: Учурдагы кайык ылдамдыгы.
• Жүрөктүн кагышы: Measured via hand sensors (if applicable and used).

Refer to the monitor's specific instructions for details on cycling through display modes and resetting values.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your VirtuFit Row450.

• Тазалоо: Жарнама менен машинаны өчүрүңүзamp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтардан алыс болуңуз.
• Майлоо: Periodically check the seat wheels and rail for smooth operation. If necessary, apply a small amount of silicone-based lubricant to the rail.
• Текшерүүлөр: Бардык болттордун, гайкалардын жана кыймылдуу бөлүктөрүнүн бекемдигин жана эскиргендигин үзгүлтүксүз текшерип туруңуз. Бош бекиткичтерди бекемдеңиз.
• Сактагыч: When not in use, fold the rowing machine using the 'Space Saver' system and store it in a dry, cool place away from direct sunlight.
• Батареяны алмаштыруу: Replace the monitor batteries (2 AA) when the display becomes dim or stops functioning.

7. Кыйынчылыктарды

If you encounter issues with your VirtuFit Row450, refer to the following common problems and solutions:

• Монитор көрсөтпөй жатат: Check if batteries are correctly installed or need replacement. Ensure all connections are secure.
• Каршылык ыраатсыз сезилет: Verify the resistance knob is properly engaged and not loose. Inspect the magnetic resistance mechanism for any obstructions.
• Seat not gliding smoothly: Clean the rail and seat wheels. Apply lubricant if necessary. Check for any debris on the rail.
• Иш учурунда адаттан тыш үндөр: Inspect all moving parts for loose connections or wear. Tighten any loose bolts. If the noise persists, discontinue use and contact customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation provided with your purchase or contact VirtuFit customer service directly. Keep your proof of purchase for any warranty claims.
