DENALI Horn Mount HMT.07.10800 Installation Manual

1. Киришүү

This manual provides detailed instructions for the proper installation and maintenance of the DENALI Horn Mount, Model HMT.07.10800. This mount is specifically designed for BMW F850GS and F750GS motorcycles manufactured between 2019 and 2022. Please read all instructions carefully before beginning the installation process to ensure correct fitment and safe operation.

Note: This mount is not compatible with the BMW F850GS Adventure model.

2. Коопсуздук маалыматы

• Always ensure the motorcycle is turned off and the ignition key is removed before starting any installation.
• Disconnect the motorcycle's battery to prevent electrical shorts or damage during installation.
• Кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргоочу шаймандарды кийиңиз.
• If you are unsure about any step of the installation, consult a qualified motorcycle technician.
• Ensure all fasteners are tightened to the manufacturer's recommended torque specifications. Overtightening or undertightening can lead to component failure.

3. Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• DENALI SoundBomb Compact Horn Mounting Bracket
• Associated mounting hardware (bolts, washers, nuts)

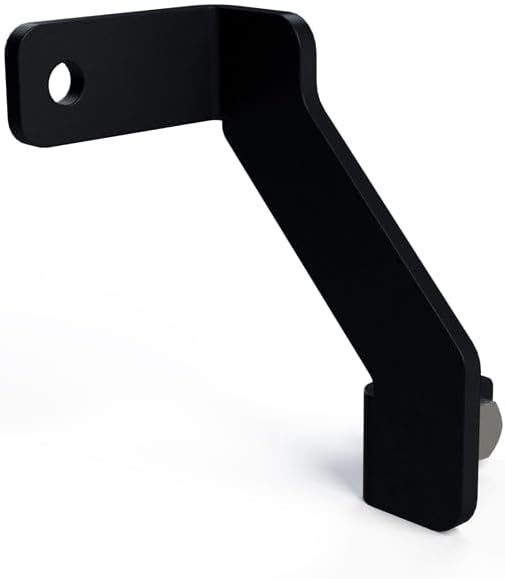

Image: The DENALI horn mount bracket, a black L-shaped metal component with a mounting hole.

4. Керектүү куралдар

Орнотуу үчүн, адатта, төмөнкү шаймандар талап кылынат:

• Metric Hex ачкыч топтому
• Метрикалык ачкыч топтому
• Момент ачкычы (бекиткичти туура бекемдөө үчүн сунушталат)
• Blue Threadlocker (optional, for added security on fasteners)

5. Орнотуу жана орнотуу

Follow these steps to install the DENALI Horn Mount on your BMW F850GS or F750GS motorcycle:

1. Мотоциклди даярдоо: Park the motorcycle on a level surface using its center stand or a suitable paddock stand. Ensure the engine is cool. Turn off the ignition and remove the key. Disconnect the negative terminal of the motorcycle battery.
2. Монтаждоо пунктун табыңыз: The horn mount is designed to attach to an existing point on the left side of the engine, typically near the exhaust headers. Refer to the images for the exact location.

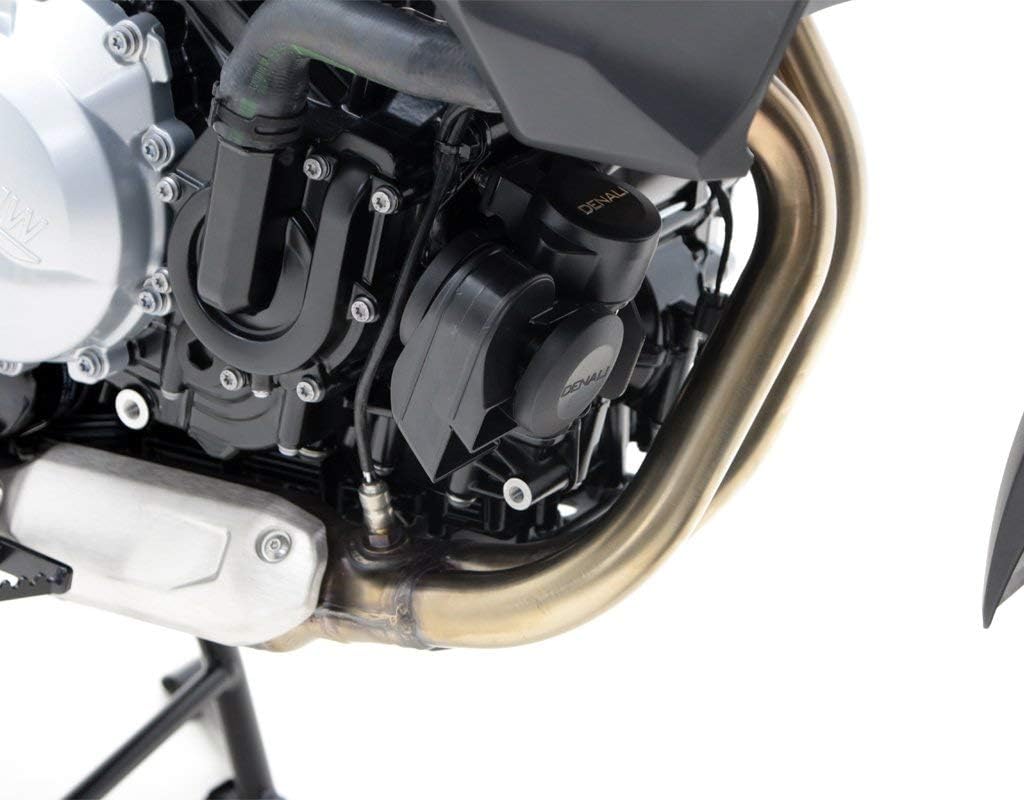

Сүрөт: View of the motorcycle engine area, indicating the general location where the horn mount will be installed.

3. Кронштейнди тиркөө: Secure the DENALI horn mount bracket to the designated mounting point on the motorcycle using the provided hardware. Ensure the bracket is oriented correctly as shown in the product images. Hand-tighten fasteners initially.


Image: The DENALI horn mount bracket securely attached to the motorcycle engine, ready for horn installation.

4. Мүйүздү минүү: Attach your DENALI SoundBomb Compact Horn (sold separately) to the newly installed mounting bracket using the horn's own mounting hardware. Ensure the horn is positioned to avoid interference with other motorcycle components and to allow for optimal sound projection.

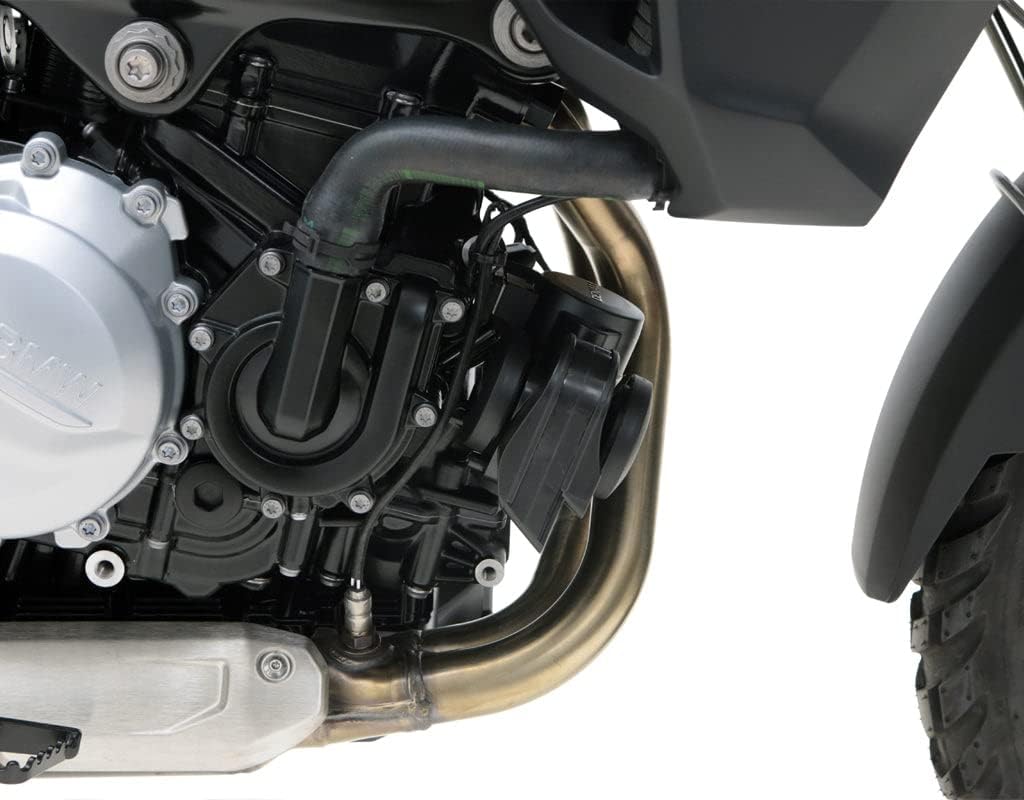

Image: A DENALI SoundBomb horn mounted onto the DENALI bracket on the motorcycle.
5. Акыркы бекемдөө: Once the bracket and horn are correctly positioned, tighten all fasteners securely. Refer to your motorcycle's service manual or the horn's instructions for specific torque values if available. Apply blue threadlocker to critical fasteners for added security.
6. Батареяны кайра туташтыруу жана сыноо: Reconnect the negative terminal of the motorcycle battery. Turn on the ignition and test the horn's functionality. Ensure there are no loose connections or obstructions.

6. Иштөө

This product is a mounting bracket. Its operation is passive, providing a secure location for an aftermarket horn. Ensure the horn itself is correctly wired and functioning according to its own manufacturer's instructions.

7. Техникалык тейлөө

• Periodically inspect the horn mount and its fasteners for any signs of loosening, corrosion, or damage.
• Tighten any loose fasteners to prevent vibration-induced wear or detachment.
• Clean the bracket with a mild soap and water solution, avoiding harsh chemicals that could damage the finish.

8. Кыйынчылыктарды

If the horn does not function after installation:

• Зымдарды текшерүү: Ensure all electrical connections to the horn are secure and correctly wired according to the horn's instructions.
• Сактагычты текшерүү: Verify that the horn's fuse (if applicable) is intact and not blown.
• Horn Functionality: Test the horn directly by connecting it to a 12V power source to confirm it is operational.
• Коопсуздукту орнотуу: Ensure the horn mount itself is not interfering with any electrical components or causing a short circuit.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information or technical support regarding your DENALI Horn Mount, please refer to the official DENALI webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
