Introduction
Welcome to the instruction manual for your new BWE Shower System. This manual provides essential information for the proper setup, operation, and maintenance of your shower system. Please read it thoroughly before installation and keep it for future reference.
Коопсуздук маалыматы
- Кесиптик орнотуу сунушталат: For optimal performance and safety, professional plumbing installation is highly recommended.
- Суу менен камсыздоо: Ар кандай орнотууну же тейлөөнү баштоодон мурун ар дайым негизги суу менен камсыздоону өчүрүңүз.
- Этияттык менен мамиле кылуу: Components are made of brass; handle with care to avoid damage.
- Тазалоочу агенттер: Do not use abrasive cleaners, harsh chemicals, or scouring pads on the finish, as this may damage the surface.
- Температураны көзөмөлдөө: The pressure balance valve is designed to protect against scalding from sudden changes in water pressure. Ensure proper calibration during installation.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Rain Shower Head (10 Inch Square)
- Душ колу
- Кол душ
- Кол кармагыч
- Handheld Hose (59-inch)
- Pressure Balance Valve Body (Rough-in Valve)
- Control Panel and Handles
- Декоративдүү капкактар
- Installation Hardware (screws, anchors, plumber's tape, gloves, Allen wrenches)
Орнотуу жана орнотуу
Орнотууга чейинки текшерүү тизмеси
- Негизги суу менен камсыздоо өчүрүлгөнүн текшериңиз.
- Confirm that your plumbing connections are standard NPT 1/2 inch. No adapters are required for standard American plumbing.
- Gather necessary tools: adjustable wrench, pipe sealant tape, drill, level, measuring tape.
Орнотуу кадамдары
- Дубалды даярдоо: Ensure the wall where the shower system will be mounted is clean, dry, and structurally sound. Mark the desired positions for the rough-in valve, shower arm, and handheld holder.
- Install Rough-in Valve: Install the brass pressure balance valve body into the wall, ensuring it is level and at the correct depth (Total Embedded Depth 80mm / 3.15 inches). Connect the hot and cold water lines to the clearly marked inlets (H for Hot, C for Cold).
- Connect Shower Arm: Securely install the shower arm into the wall, ensuring it is firmly connected to the fixed shower head connector on the valve.

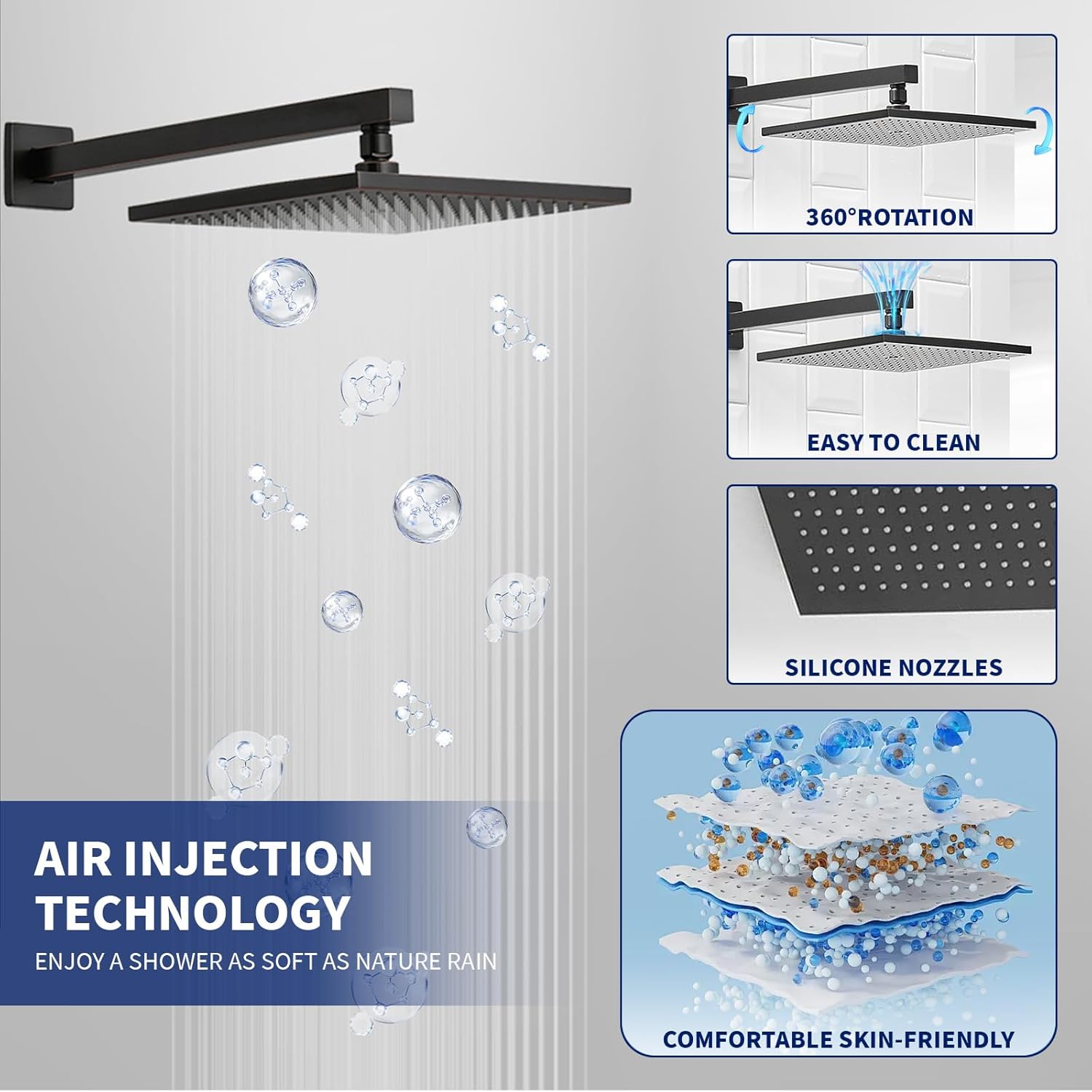

- Mount Shower Head: Attach the 10-inch square rain shower head to the shower arm. Ensure a tight, leak-free connection. The shower head features air injection technology for a soft, natural rain experience.
- Install Handheld Shower Components: Mount the handheld holder to the wall at a convenient height. Connect the 59-inch handheld hose to the handheld shower and then to the corresponding outlet on the rough-in valve.
- Башкаруу панелин тиркөө: Once all internal connections are secure and tested for leaks, attach the main control panel and handles to the rough-in valve.
- Акыркы текшерүү: Turn on the main water supply and check all connections for leaks. Test both the rain shower and handheld functions, as well as temperature control.
Орнотуу боюнча видео көрсөтмө
Иштөө нускамалары
Температураны көзөмөлдөө
The single handle on the control panel is used to adjust the water temperature. Rotate the handle towards 'H' for hotter water and towards 'C' for colder water. The pressure balance valve cartridge monitors water pressure to maintain a consistent temperature, protecting against sudden changes.
Функция тандоо
The small handwheel (diverter) on the control panel allows you to switch between the two shower functions:
- Жамгыр: Turn the handwheel to activate the overhead rain shower head for a luxurious, full-body spray.
- Колго спрей: Turn the handwheel to activate the handheld shower for targeted rinsing or cleaning.
Operation Video Guide
Техникалык тейлөө жана кам көрүү
Тазалоо
To maintain the finish of your shower system, clean regularly with a soft, damp cloth and mild soap. Rinse thoroughly with warm water and dry with a soft cloth. Avoid using abrasive cleaners, ammonia-based products, or harsh chemicals, as these can damage the oil rubbed bronze finish.
Жалпы көйгөйлөрдү чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу басымы | Clogged shower head nozzles or debris in the valve. | Clean silicone nozzles on the shower head by gently rubbing them. Check for debris in the valve or supply lines. |
| алсыз | Loose connections or damaged O-rings/cartridge. | Tighten all connections. If leaking persists, inspect O-rings and the valve cartridge for damage. Contact manufacturer for replacement parts if necessary. |
| Суунун ыраатсыз температурасы | Issue with the pressure balance valve cartridge. | Ensure the pressure balance valve is correctly installed and calibrated. If the issue continues, the cartridge may need replacement. (Note: Some users have reported issues with cartridge failure and difficulty obtaining replacements. Contact BWE customer support.) |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | BWE |
| Модель номери | 5010-ORB |
| Түс | Мунай сүртүлгөн коло |
| Материал | Жез |
| Аяктоо түрү | Май сүртүлгөн |
| Туткалардын саны | 1 |
| Монтаж түрү | Дубалга орнотуу |
| Элемент Салмагы | 12.92 фунт (5.87 килограмм) |
| Продукциянын өлчөмдөрү | 17.72 x 13.62 x 4.72 дюйм |
| UPC | 810148590321 |
| Келип чыккан өлкө | Кытай |
Кепилдик жана колдоо
Specific warranty details for the BWE Shower System are not provided in the available product information. For warranty claims, technical support, or replacement parts, please contact the manufacturer, BWE, directly through their official channels. It is advisable to retain your proof of purchase for any warranty-related inquiries.
