SpeaKa Professional HDMI туташуу кабели SP-7870508 колдонуучу колдонмосу

1. Продукт бүтүп калдыview

The SpeaKa Professional SP-7870508 is a high-quality HDMI connection cable designed for reliable audio and video transmission. This cable features gold-plated connectors for optimal signal integrity and supports advanced functionalities such as Audio Return Channel (ARC) and HDMI Ethernet Channel. Its compact 0.3-meter length and angled connector design make it suitable for installations where space is limited or a specific cable routing is required.

Негизги өзгөчөлүктөрү:

• Angled HDMI Connector: One connector is angled at 90 degrees for convenient installation in tight spaces.
• HDMI Ethernet каналы (HEC): Allows for network data transmission over the HDMI cable.
• 3D колдоо: 3D видео форматтары менен шайкеш келет.
• 4K2K Resolution: Supports resolutions up to 4K2K (3840 x 2160) at 30Hz.
• Аудио кайтаруу каналы (ARC): Enables audio to be sent from a TV to an audio receiver via a single HDMI cable.
• Алтын жалатылган туташтыргычтар: Ensures corrosion resistance and enhanced signal transfer.

Figure 1: The SpeaKa Professional HDMI cable, featuring a 90-degree angled connector on one end and a straight connector on the other, both gold-plated. The cable is black and approximately 30 cm long.

2. Орнотуу нускамалары

This section details the steps for connecting your SpeaKa Professional HDMI cable to your devices.

2.1 Кабелди туташтыруу

1. HDMI портторун аныктоо: Locate the HDMI output port on your source device (e.g., Blu-ray player, game console, computer) and the HDMI input port on your display device (e.g., TV, monitor, projector). Ensure both devices are powered off before connecting.
2. Түзмөктү туташтыруу: Insert one end of the SpeaKa Professional HDMI cable into the HDMI output port of your source device. The angled connector can be particularly useful for devices mounted close to a wall or in tight spaces.
3. Connect Display Device: Insert the other end of the HDMI cable into the HDMI input port of your display device.
4. Коопсуз туташуу: Ensure both connectors are fully seated in their respective ports to establish a stable connection. Do not force the connectors.

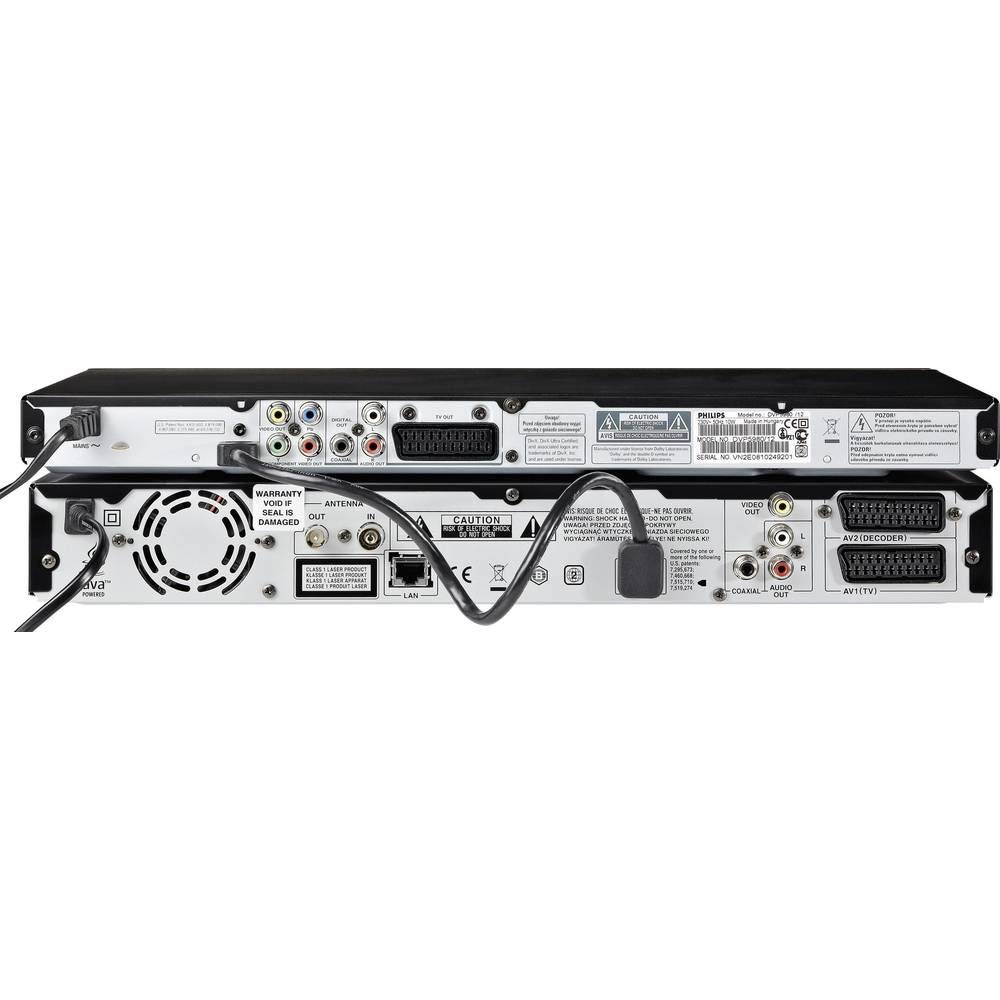

2-сүрөт: Мисample of HDMI cable connections on the rear panel of electronic devices. The image shows various ports, including HDMI, with cables properly inserted, illustrating a typical setup configuration.

2.2 Баштапкы кубаттуулук

1. Түзмөктөрдү күйгүзүү: Turn on your display device first, then your source device.
2. Киргизүүнү тандоо: On your display device, select the correct HDMI input source using your remote control or device menu.
3. Сигналдын текшерүүсү: Confirm that the audio and video signal from your source device is displayed correctly on your screen.

3. Иштөө нускамалары

Once connected, the SpeaKa Professional HDMI cable facilitates the transmission of high-definition audio and video signals. No specific operational steps are required for the cable itself, as it functions passively to transmit data between compatible devices.

3.1 Аудио кайтаруу каналы (ARC)

If your TV and audio receiver both support ARC, connect the HDMI cable to the designated "HDMI ARC" port on both devices. This allows audio from your TV's internal tuner or smart apps to be sent back to your audio receiver without needing a separate optical audio cable.

3.2 HDMI Ethernet Channel (HEC)

For devices that support HEC, this cable can share an internet connection among multiple HDMI-connected devices without the need for a separate Ethernet cable. Ensure both connected devices are HEC-compatible and configured correctly in their respective settings.

4. Техникалык тейлөө жана кам көрүү

Proper care of your HDMI cable will ensure its longevity and consistent performance.

• Колдонуу: Always grasp the connector housing when plugging or unplugging the cable. Avoid pulling directly on the cable itself, as this can damage the internal wires or connectors.
• Тазалоо: If connectors become dusty, gently wipe them with a dry, lint-free cloth. Do not use liquid cleaners directly on the connectors.
• Сактагыч: When not in use, store the cable loosely coiled in a dry, cool place. Avoid sharp bends or kinks, which can damage the cable's internal structure.
• Курчап турган чөйрө: Кабелди экстремалдык температурадан, тике күн нурунан жана нымдуулуктан алыс кармаңыз.

5. Кыйынчылыктарды

If you encounter issues with your HDMI connection, refer to the following common troubleshooting steps:

• Сүрөт/үн жок:
  • Эки түзмөк тең күйгүзүлгөнүн текшериңиз.
  • Verify that the HDMI cable is securely connected to both the source and display devices.
  • Дисплей түзмөгүңүздө туура HDMI кириши тандалганын текшериңиз.
  • Мүмкүн болсо, кабелди дисплей түзмөгүңүздөгү башка HDMI портуна туташтырууга аракет кылыңыз.
  • Test the cable with another set of devices, if possible, to rule out a faulty cable or device.
• Үзүлгүс сигнал:
  • Ensure the cable is not bent sharply or kinked.
  • Кабелге же туташтыргычтарга физикалык зыяндын бар-жоктугун текшериңиз.
  • Minimize interference by keeping the HDMI cable away from power cables or other electronic devices.
• Poor Picture Quality (Flickering, Artifacts):
  • Ensure your source device is outputting a resolution supported by your display device.
  • Check the display settings on both your source and display devices.
• ARC/HEC Not Working:
  • Confirm that both your TV and audio device support ARC/HEC and that the cable is connected to the designated ARC-enabled HDMI ports.
  • Enable ARC/HEC in the settings menus of both your TV and audio device.

6. Техникалык шарттар

Below are the detailed technical specifications for the SpeaKa Professional HDMI Connection Cable SP-7870508.

Figure 3: Technical drawing illustrating the dimensions of the HDMI connector, including measurements for width, height, and pin configuration. This diagram provides precise details for compatibility and design.

7. Кепилдик жана колдоо

For information regarding warranty coverage and technical support for your SpeaKa Professional HDMI Connection Cable, please refer to the documentation provided with your purchase or visit the official SpeaKa Professional webсайт. Кардарларды тейлөө кызматынын байланыш маалыматтары, адатта, өндүрүүчүнүн сайтында жеткиликтүү. webсайт.

Өндүрүүчү: SpeaKa адиси

Биринчи жеткиликтүү болгон күнү: 23-октябрь, 2020-жыл
