1. Киришүү
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the OSRAM OPTOTRONIC OTi 50/120-277/1A4 DIM-1 L G2 LED Driver. This device is a 50-watt, 120/277 volt, 50-60Hz, dimmable, constant current LED driver designed for various lighting applications.
Please note that as of November 16, 2021, Acuity Brands announced the transition of OPTOTRONIC LED driver product families to the eldoLED brand. Product labels, specification sheets, and datasheets now incorporate the eldoLED logo.
Сүрөт 1: An overview of ten OSRAM OPTOTRONIC OTi 50/120-277/1A4 DIM-1 L G2 LED drivers, showcasing their linear form factor.
2. Өзгөчөлүктөрү
- OPTOTRONIC Linear Programmable LED Driver
- Constant Current, 0-10V Dimmable LED Driver
- Киргизүү көлөмүtage: 120-277VAC 50/60 Hz
- Output Power (Pout): 50W
- Output Voltage (Vout): 10-55VDC
- Output Current (Iout): 400-1400mA
- UL Class 2 output for safe operation, Class P
- Кургак жана D үчүн ылайыктууamp Жайгашкан жерлер
- Slim Form Factor: 11 x 1.15 x 1 inches; 8.7 ounces
- Architectural Dimming Features: Synchronize ON/OFF Timing and Dimming Controls, True 1% Dimming, Dim-to-OFF, Dimming Interface Protection

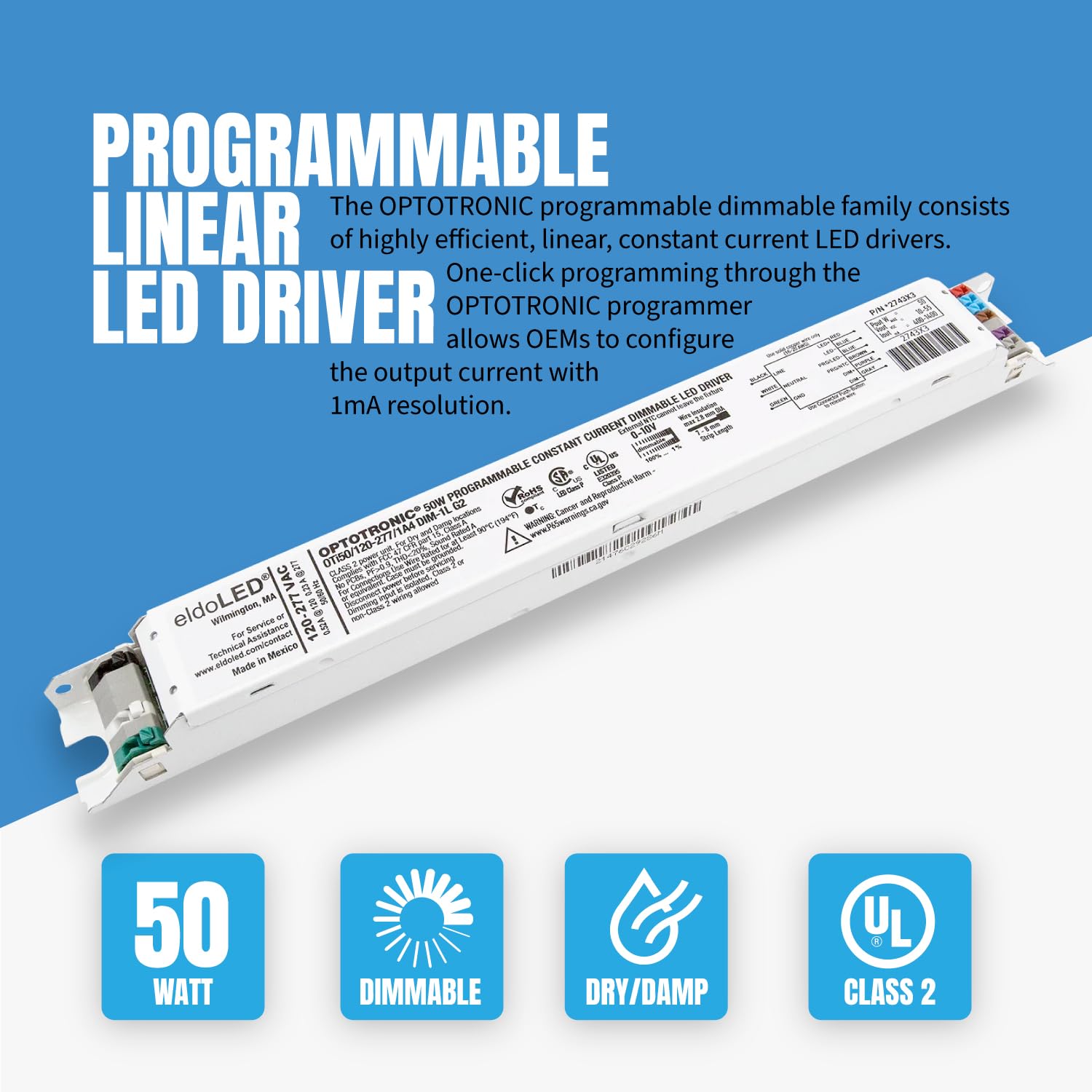

2-сүрөт: деталдуу view of the OSRAM OPTOTRONIC LED driver highlighting its programmable linear constant current dimmable capabilities, 50-watt output, dimmable function, suitability for dry/damp locations, and UL Class 2 certification. The model number OTi50/120-277/1A4/DIM-1/L G2 is visible.

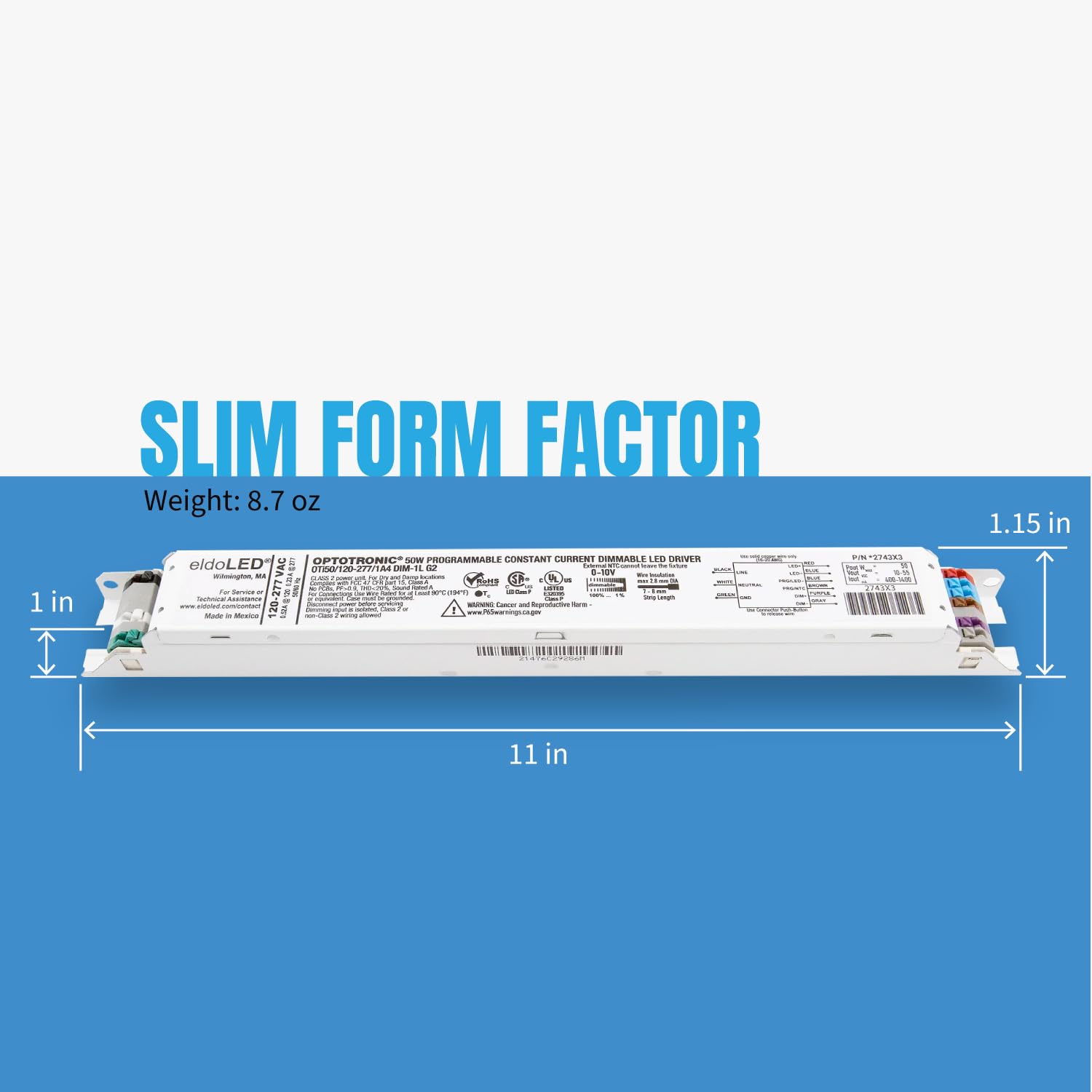

Figure 3: The OSRAM OPTOTRONIC LED driver illustrating its slim form factor with dimensions: 11 inches length, 1.15 inches width, and 1 inch height. The weight is approximately 8.7 oz. Part Number P/N 2743X3 is visible.
3. Орнотуу
Installation of the OSRAM OPTOTRONIC LED Driver should be performed by a qualified electrician in accordance with all national and local electrical codes. Ensure power is disconnected before beginning any installation or wiring procedures.
- Монтаждоо: Securely mount the LED driver in a suitable enclosure or fixture. Ensure adequate ventilation to prevent overheating. The driver is suitable for dry and damp жерлер.
- Киргизүү зымдары: Connect the AC input (120-277VAC, 50/60Hz) to the designated input terminals. Observe correct line, neutral, and ground connections.
- Чыгуу зымдары: Connect the LED load to the DC output terminals. Ensure the LED load's voltage and current requirements are within the driver's specifications (10-55VDC, 400-1400mA).
- Dimming Control Wiring: For 0-10V dimming functionality, connect the dimming control wires to the dedicated dimming terminals. Refer to the specific wiring diagram provided with the product for detailed connections.
- Текшерүү: After all connections are made, double-check all wiring for correctness and security before restoring power.
4. Иштөө нускамалары
The OSRAM OPTOTRONIC LED Driver operates as a constant current source, providing stable power to your LED luminaires. Its dimmable feature allows for adjustable light output.
- Күйгүзүү: Once correctly installed and wired, apply power to the driver. The connected LED luminaires should illuminate.
- алсыздатуу: Utilize a compatible 0-10V dimming control system to adjust the light output. The driver supports true 1% dimming and dim-to-off functionality, allowing for precise control over light levels.
- Программалоо мүмкүнчүлүгү: This driver is programmable, allowing OEMs to configure the output current with 1mA resolution using an OPTOTRONIC programmer. This feature enables customization for specific LED loads.
Figure 4: The OSRAM OPTOTRONIC LED driver shown in an architectural lighting environment, emphasizing its dimming features including synchronization of ON/OFF timing and dimming controls, true 1% dimming, dim-to-off functionality, and dimming interface protection. Part Number P/N 2743X3 is visible.
5. Техникалык тейлөө
The OSRAM OPTOTRONIC LED Driver is designed for long-term, reliable operation with minimal maintenance. Regular inspection can help ensure optimal performance.
- Тазалоо: Periodically inspect the driver for dust or debris accumulation. If necessary, gently clean the exterior with a dry, soft cloth. Do not use liquid cleaners or solvents.
- Текшерүү: Annually inspect wiring connections for tightness and signs of wear or damage. Ensure the driver is free from physical damage.
- Курчап турган чөйрө: Ensure the operating environment remains within the specified temperature and humidity ranges. The driver is rated for dry and damp жерлер.
6. Кыйынчылыктарды
If you encounter issues with your LED driver, consider the following troubleshooting steps:
- Жарык чыгаруусу жок:
- Verify that the AC input power is supplied to the driver.
- Check all wiring connections for proper contact and polarity.
- Ensure the LED load is correctly connected and not faulty.
- Жаркыроо же туруксуз жарык:
- Киргизилген томду ырастаңызtage is stable and within the specified range (120-277VAC).
- Check dimming control wiring for loose connections or interference.
- Ensure the LED load is compatible with a constant current dimmable driver.
- Dimming Malfunction:
- Verify the 0-10V dimming control is functioning correctly and connected properly.
- Ensure the dimming control is compatible with 0-10V dimming protocols.
- Ашыкча ысып кетүү:
- Ensure the driver is installed with adequate ventilation and not in an enclosed space that traps heat.
- Verify the ambient temperature is within the driver's operating limits.
If problems persist after performing these checks, contact technical support.
7. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Продукциянын өлчөмдөрү | 11 x 1.14 x 1 дюйм |
| Салмагы | 8.6 унция |
| Элемент моделинин номери | OPTOTRONIC OTi 50/120-277/1A4 DIM-1 L G2 |
| Өндүрүүчү | OSRAM |
| Жарык түрү | LED |
| Өзгөчө өзгөчөлүк | Dimmable |
| Ватtage | 50 ватт |
| Киргизүү көлөмүtage | 120-277VAC |
| Жыштык | 50/60 Гц |
| Output Voltage | 10-55VDC |
| Output Current | 400-1400мА |
| UL классификациясы | Class 2 output, Class P |
| Жайгашкан жердин рейтинги | Кургак жана Д.amp Жайгашкан жерлер |
8. Тиркемелер
The OSRAM OPTOTRONIC LED Driver is versatile and suitable for a range of lighting applications, including:
- Indirect/direct lighting installations
- Linear lighting fixtures
- Recessed troffer lighting systems
Figure 5: The OSRAM OPTOTRONIC LED driver displayed with a list of common applications: indirect/direct lighting, linear lighting, and recessed troffer installations.
9. Кепилдик жана колдоо
For specific warranty information regarding the OSRAM OPTOTRONIC LED Driver, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. Warranty terms may vary based on region and distributor.
For technical assistance, product information, or support, please contact OSRAM or eldoLED customer service. Relevant product information and documentation may be available on the following webсайттар:
Figure 6: An official letter from Acuity Brands dated November 10, 2021, announcing the transition of OPTOTRONIC LED driver product families to the eldoLED brand, effective November 16, 2021. It also mentions product information availability on osram.us/ds, eldoled.com, and quicktronic.com.
Figure 7: A close-up of the product box label for the OPTOTRONIC 50W Constant Current Dimmable LED Driver. It shows 'MADE IN MEXICO', P/N 2743X3, RoHS compliant, MFG Date 21476, and a barcode with number 01452214761.
