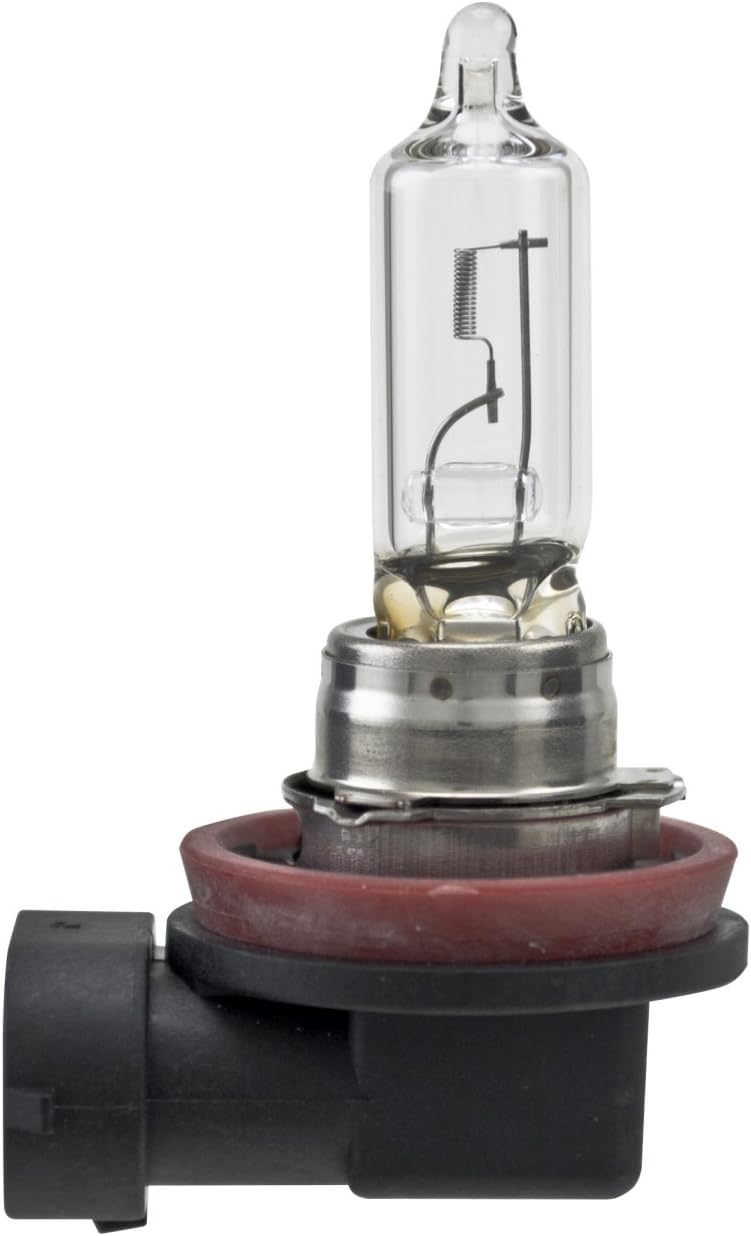

1. Продукт бүтүп калдыview
This manual provides essential information for the safe and effective installation, operation, and maintenance of your HELLA STANDARD H9 Halogen Bulb. Designed for automotive headlight applications, this bulb delivers reliable illumination with a 3200K color temperature and features UV resistant glass for durability.
Негизги өзгөчөлүктөрү:
- 65W power rating for bright and reliable illumination.
- Durable PGJ19-5 T4 base ensures secure fitting and stability.
- High-performance 12V H9 halogen for excellent night visibility.
- Longer lasting performance.
- Performs higher and more consistently than standard bulbs.
- High quality quartz crystal with UV resistant coating.
- Meets DOT, ECE, and INMETRO standards.
2. Коопсуздук маалыматы
Please read and understand all safety warnings before handling or installing the bulb.
- Абайлаңыз: Галогендик лампалар жогорку температурада иштейт. Колдонуудан мурун лампаны толугу менен муздатыңыз.
- Эскертүү: Do not touch the quartz glass of the bulb with bare hands. Oils from your skin can create hot spots, leading to premature failure. Use clean gloves or a cloth when handling.
- Маанилүү: HELLA does not recommend installing LED or Xenon bulbs in headlight assemblies designed for halogen bulbs. This can alter the correct light output, potentially dazzling other drivers and pedestrians, and may not illuminate the road effectively.
- Always disconnect the vehicle's battery or turn off the ignition before attempting any electrical work.
- Эски лампаларды жергиликтүү эрежелерге ылайык жоопкерчилик менен жок кылыңыз.
3. Орнотуу жана орнотуу
Installation of headlight bulbs can vary significantly between vehicle models. Always consult your vehicle's owner's manual for specific instructions and safety precautions before proceeding.
Жалпы орнотуу кадамдары:
- Ensure the vehicle's ignition is off and the headlights are cool.
- Locate the headlight assembly in your vehicle. Access may require removing other components (e.g., battery, air intake, or fender liner).
- Disconnect the electrical connector from the back of the old bulb.
- Remove any retaining clips, springs, or covers securing the old bulb.
- Carefully remove the old bulb from its housing.
- Wearing clean gloves or using a clean cloth, insert the new HELLA H9 bulb into the headlight housing, ensuring it is seated correctly and securely. Do not force the bulb.
- Re-secure any retaining clips, springs, or covers.
- Жаңы лампага электр туташтыргычын кайра туташтырыңыз.
- Test the headlights to ensure proper function and alignment.
Сунуш: HELLA recommends changing both headlight bulbs at the same time, even if only one has failed. Halogen bulbs have similar lifespans, and replacing both ensures consistent light output and avoids another replacement soon after.
4. Операция
The HELLA STANDARD H9 Halogen Bulb functions as a light source for your vehicle's headlight system. Once properly installed and connected, it will illuminate when the vehicle's headlight switch is activated. The bulb provides a light with a color temperature of 3200°K, offering clear visibility under various driving conditions.
5. Техникалык тейлөө
Halogen bulbs have a finite lifespan. While HELLA bulbs are designed for durability and consistent performance, they will eventually require replacement. The lifespan of halogen bulbs is generally similar, which is why replacing both bulbs simultaneously is recommended.
No specific maintenance is required for the bulb itself beyond proper installation and replacement when it reaches the end of its service life or fails. Regularly check your vehicle's headlight function to ensure both bulbs are operating correctly.
6. Кыйынчылыктарды
If your HELLA H9 Halogen Bulb is not functioning as expected, consider the following:
- Лампочка күйбөйт:
- Check the electrical connection to the bulb to ensure it is secure.
- Унаанын фарасынын сактагыч кутучасында күйүп кеткен сактагыч бар-жогун текшериңиз.
- Verify that the bulb is correctly seated in its housing.
- If only one bulb is out, the bulb itself may have failed and requires replacement.
- Күңүрт же бүлбүлдөгөн жарык:
- This could indicate a loose connection or a failing bulb.
- Check the vehicle's charging system if both headlights are dim.
- Improper Beam Pattern:
- Ensure the bulb is fully and correctly seated in the headlight assembly. An improperly seated bulb can cause an incorrect light pattern.
- Verify that the correct bulb type (H9) is installed for your vehicle's headlight design.
Эгерде көйгөйдү чечүү кадамдары маселени чечпесе, квалификациялуу автотехникке кайрылуу сунушталат.
7. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Бренд | Хелла |
| Модел | STANDARD H9 Bulb |
| Элемент моделинин номери | 211738511 |
| Өндүрүүчү бөлүгүнүн номери | H9 |
| Түс температурасы | 3200°К |
| Power Rating | 65 Вт |
| Тtage | 12V |
| Негизги түрү | PGJ19-5 T4 |
| Элемент Салмагы | 0.96 унция |
| Пакеттин өлчөмдөрү | 3.98 x 2.36 x 1.77 дюйм |
| Fit түрү | Universal Fit |
| Өзгөчөлүктөр | UV Resistant Glass, Optimal balance between performance and service life, Original Equipment Quality, SAE/ECE Approval - INMETRO |
8. Кепилдик жана колдоо
HELLA STANDARD H9 Halogen Bulbs are manufactured to Original Equipment Quality standards and meet international approvals such as SAE/ECE and INMETRO, ensuring reliability and performance.
Specific warranty details and customer support contact information are not provided within this manual. For warranty claims or technical assistance, please refer to the HELLA official webсайтына кириңиз же продукт сатып алынган сатуучуга кайрылыңыз.
