Introduction
Image: The SVS SB-2000 Pro subwoofer, showcasing its sleek Piano Gloss Black finish and front-firing 12-inch driver.
The SVS SB-2000 Pro DSP Controlled 12" Sealed Subwoofer is engineered to deliver reference-level deep bass extension and powerful output with exceptional musicality. This model features a Sledge STA-550D DSP amplifier and a newly designed 12-inch high-excursion SVS driver, all housed within an optimized sealed cabinet. It is designed to integrate seamlessly into both audiophile music systems and home theater surround sound setups, providing precise and impactful low-frequency performance.
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your SB-2000 Pro subwoofer. Please read it thoroughly before use to ensure optimal performance and longevity of your product.
Жайгашуу
1. таңгактан чыгаруу
Carefully remove the subwoofer from its packaging. Inspect the unit for any signs of damage during transit. Retain the original packaging for future transport or service needs.
2. Жайгаштыруу
The SVS SB-2000 Pro is designed as a floor-standing subwoofer. Optimal placement can significantly impact bass performance. Consider the following:
- Бурчту жайгаштыруу: Often provides the most output, but can sometimes lead to boomy bass.
- Бөлмөнүн алдына жайгаштыруу: Near the front speakers, often results in the best blend with the main speakers.
- Орто дубалга жайгаштыруу: Can offer a good balance of output and accuracy.
- Бир нече сабвуферлер: If using more than one subwoofer, strategic placement can smooth out bass response across the listening area.
Image: The SVS SB-2000 Pro subwoofer positioned in a typical home environment, demonstrating its compact size and aesthetic integration.

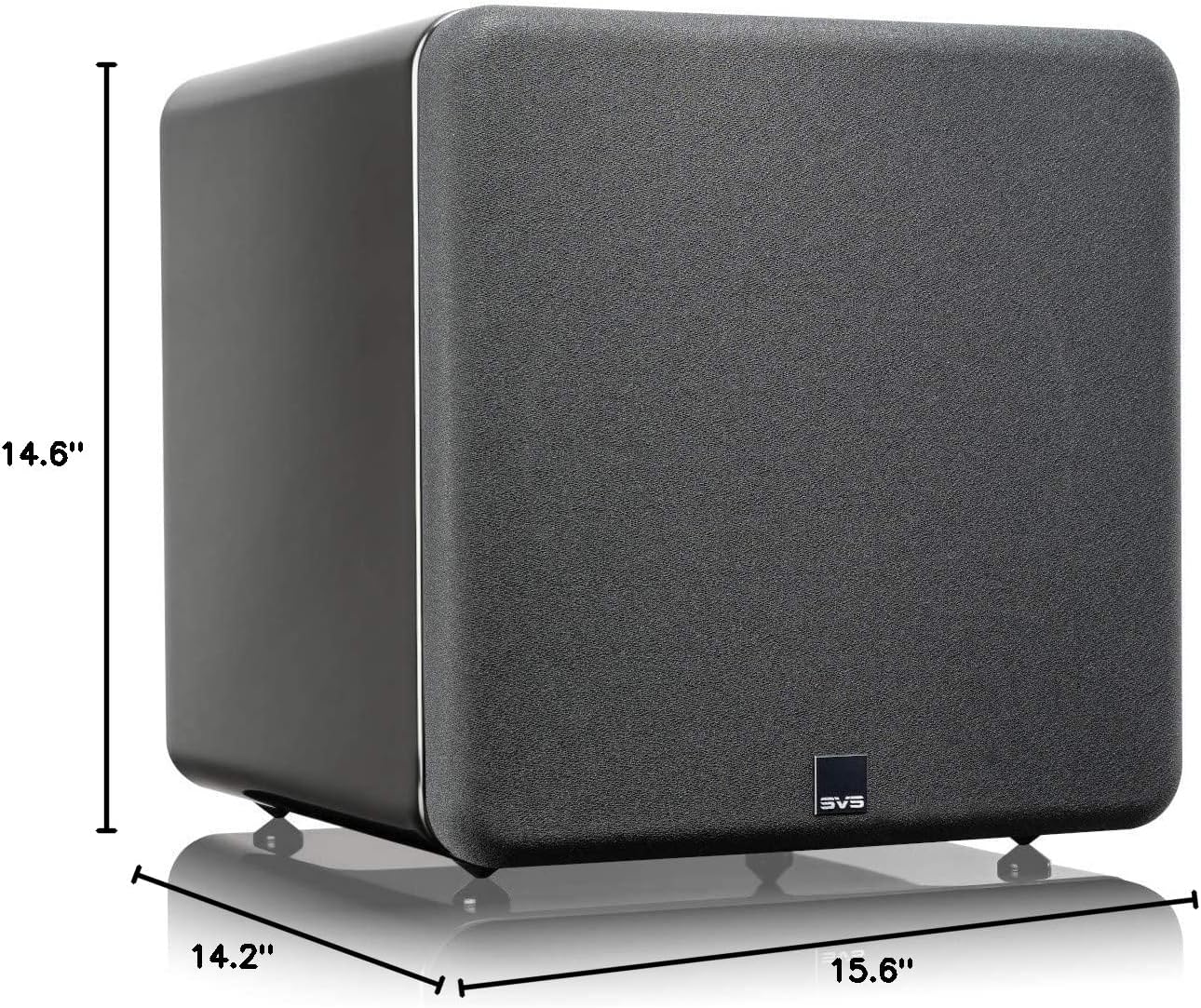

Image: Detailed dimensions of the SVS SB-2000 Pro subwoofer, indicating its compact form factor suitable for various room placements.
3. Байланыштар
The SB-2000 Pro connects to your audio system via wired RCA connections. Ensure your receiver or pre-processor has a dedicated Subwoofer/LFE output.
- Power Off All Equipment: Before making any connections, ensure your receiver/amplifier and the subwoofer are powered off.
- Connect LFE Cable: Connect a single RCA cable from the LFE output of your AV receiver/pre-processor to the LFE input on the SB-2000 Pro. For stereo systems, use both left and right RCA inputs.
- Кубат кабели: Connect the provided power cable to the subwoofer's power inlet and then to a grounded AC outlet.
Image: The rear panel of the SVS SB-2000 Pro, highlighting the RCA input/output ports, power switch, and various control options for connectivity.
4. Баштапкы күйгүзүү
Once all connections are secure, switch on the power to your AV receiver/pre-processor first, then turn on the SVS SB-2000 Pro subwoofer using the power switch on the rear panel. The subwoofer will enter standby mode if no audio signal is detected for a period.
Иштеп жатат
1. SVS Subwoofer DSP Smartphone App
The SVS SB-2000 Pro features advanced control via the SVS subwoofer DSP smartphone app, available for Apple, Android, and Amazon devices. This app connects via Bluetooth and offers comprehensive control over your subwoofer's settings.
- Үндү көзөмөлдөө: Adjust the output level of the subwoofer.
- Төмөн өтүү чыпкасы: Сабвуферди негизги динамиктер менен аралаштыруу үчүн кроссовер жыштыгын коюңуз.
- Фазаны көзөмөлдөө: Adjust the phase to ensure bass waves from the subwoofer align with those from your main speakers.
- Полярдуулук: Invert the electrical polarity of the subwoofer's output.
- Parametric EQ (PEQ): Бөлмөнүн акустикасын компенсациялоо үчүн жыштык жообун жакшылап коюңуз.
- Бөлмөнү алуу үчүн компенсация: Кичинекей бөлмөлөрдө ашыкча басс чыгарууну тууралаңыз.
- Колдонуучунун алдын ала орнотуулары: Save custom settings for different listening modes (e.g., Music, Movies, Gaming).
- Системанын жөндөөлөрү: Access auto standby, factory reset, and other system configurations.
Download the SVS app from your device's app store and follow the in-app instructions to connect to your SB-2000 Pro.
2. Негизги операция
After initial setup and configuration via the app, the subwoofer will typically operate automatically. It will power on when an audio signal is detected and enter standby when no signal is present for a period. You can manually power the unit on or off using the rear panel switch if desired.
Техникалык тейлөө
1. Тазалоо
To clean the cabinet of your SVS SB-2000 Pro, use a soft, lint-free cloth. For piano gloss finishes, a microfiber cloth is recommended to avoid scratches. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
2. Кам көрүү жана колдонуу
- Avoid placing the subwoofer in direct sunlight or near heat sources.
- айланасында жетиштүү желдетүүнү камсыз кылуу ampкуткаруучу табак.
- Do not place objects on top of the subwoofer that could block ventilation or scratch the finish.
- If moving the subwoofer, lift it carefully and avoid dragging it to prevent damage to the feet or cabinet.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сабвуферден үн жок |
|
|
| Бурмаланган же буми бас |
|
|
| Subwoofer Not Responding to App |
|
|
For more detailed troubleshooting or persistent issues, please refer to the SVS website or contact SVS customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | SB-2000 Pro |
| Динамик түрү | Сабвуфер |
| Монтаж түрү | Кабат туруктуу |
| Сабвуфердин диаметри | 12 дюйм |
| Continuous (RMS) Power | 550 Ватт |
| Чоку күч | 1500 Ватт |
| Frequency Response | 19Hz to 240Hz (±3dB) |
| Продукциянын өлчөмдөрү (D x W x Y) | 14.2" x 15.6" x 14.6" |
| Элемент Салмагы | 47.1 фунт |
| Controller Type | Колдонмо башкаруу |
| Байланыш технологиясы | Wired (RCA), Bluetooth, Wi-Fi |
| Түс | Piano Gloss Black |
| Өндүрүүчү | SVS |
| Элемент моделинин номери | SB-2000PRO-PIANOGLOSS |
| UPC | 856677007732 |
Кепилдик маалымат
The SVS SB-2000 Pro subwoofer comes with a standard manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms and conditions, please refer to the official SVS webсайтка же продуктуңузга кошулган кепилдик картасы. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Колдоо
For additional support, frequently asked questions (FAQs), product registration, or to contact customer service, please visit the official SVS webсайт:
SVS is dedicated to providing excellent customer service and technical assistance to ensure you get the best experience from your subwoofer.
