1. Киришүү
This instruction manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your Einhell GC-PM 56/2 S HW gasoline lawn mower. Please read this manual thoroughly before using the product for the first time and keep it for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your lawn mower.
Figure 1: Einhell GC-PM 56/2 S HW Gasoline Lawn Mower. This image shows the complete lawn mower with its red and black housing, engine, handle, and grass collection bag.
2. Коопсуздук нускамалары
Кырсыктарды болтурбоо жана коопсуз эксплуатациялоону камсыз кылуу үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Колдонмону окуу: Familiarize yourself with all controls and proper use of the machine before starting.
- Жеке коргонуу каражаттары: Always wear sturdy footwear, long trousers, and eye protection. Avoid loose clothing that could get caught in moving parts.
- Аймакты тазалоо: Before mowing, clear the area of stones, sticks, wires, and other debris that could be thrown by the blades.
- Байкоочуларды алыс кармаңыз: Ensure children, pets, and other people are kept at a safe distance (at least 15 meters) from the mowing area.
- Күйүүчү май иштетүү: Refuel outdoors only, with the engine off and cool. Do not smoke while refueling. Store fuel in approved containers.
- Бөөдө операция: Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Avoid excessively steep slopes.
- Кыймылдаткыч өчүрүлгөн: Always turn off the engine and disconnect the spark plug cap before cleaning, adjusting, or performing maintenance.
- Бычактын коопсуздугу: Blades are sharp. Wear heavy-duty gloves when handling or inspecting them.
- Never Lift or Tilt: Do not lift or tilt the machine while the engine is running.
- Зыянды текшерүү: Regularly inspect the machine for damaged or worn parts. Replace them immediately.
3. Продукт бүтүп калдыview
The Einhell GC-PM 56/2 S HW is a powerful gasoline lawn mower designed for efficient lawn care. Key features include:
- Powerful OHV Engine: Provides reliable performance for demanding tasks.
- Switchable Rear-Wheel Drive: Facilitates effortless mowing on various terrains.
- Einhell Quick Start System: Ensures easy engine starting.
- Vortex Technology Deck: Optimizes airflow for precise cutting and mulching.
- 5-ин-1 Функциясы: Mowing, mulching, side discharge, rear discharge, and grass collection.
- 6-Level Central Cutting Height Adjustment: Easy adjustment for desired grass length.
- Large Ball-Bearing Wheels: Ensures smooth operation on any terrain.
- 80-Liter Grass Collection Bag: With level indicator and two handles for easy emptying.
- Einhell Handle System: 3-level height adjustment, cleaning position, and storage position.
2-сүрөт: Каптал view of the lawn mower, highlighting the powerful OHV engine and robust chassis.
Figure 3: Detail showing the GT General Transmissions branding, indicating a quality drive system.
4. Орнотуу жана чогултуу
4.1 Пакеттен чыгаруу
Carefully remove all components from the packaging. Ensure all parts are present and undamaged. Keep packaging materials until assembly is complete.
4.2 Иштетүү тутуму
Attach the upper and lower handle bars using the provided fasteners. Adjust the handle height to a comfortable working position using the 3-level adjustment system.
Figure 4: Illustration of the adjustable handle system, allowing for ergonomic customization and compact storage.
4.3 Adding Oil and Fuel
Before first use, fill the engine with the recommended engine oil (refer to engine manual for type and quantity). Fill the fuel tank with fresh, unleaded gasoline. Do not overfill. Always ensure the engine is off and cool before adding fuel or oil.
4.4 Чөп кармагычтын жыйындысы
Assemble the grass collection bag according to the instructions. Attach it securely to the rear discharge opening of the lawn mower.
Figure 5: The large 80-liter grass collection bag attached to the lawn mower, ready for use.
4.5 Кесүү бийиктигин тууралоо
The lawn mower features a 6-level central cutting height adjustment. Use the lever to select the desired cutting height. Ensure all wheels are at the same height setting for an even cut.
Figure 6: Visual representation of the 6-level central cutting height adjustment mechanism.
5. Иштөө нускамалары
5.1 Моторду ишке киргизүү
Ensure the spark plug cap is securely attached. Prime the engine if necessary (refer to engine manual). Pull the starter cord firmly and smoothly until the engine starts. The Einhell Quick Start system facilitates easy ignition.
5.2 Mowing Techniques (5-in-1 Function)
Your lawn mower offers versatile mowing options:
- Mowing with Collection: Attach the grass catcher. This collects clippings for disposal.
- Мульчирование: Remove the grass catcher and insert the mulching plug (if included). This finely chops grass clippings and returns them to the lawn as natural fertilizer.
- Капталдан разряд: Attach the side discharge chute. This expels clippings to the side, useful for very tall grass or areas where collection is not needed.
- Арткы разряд: Without the grass catcher or mulching plug, clippings are discharged directly behind the mower.

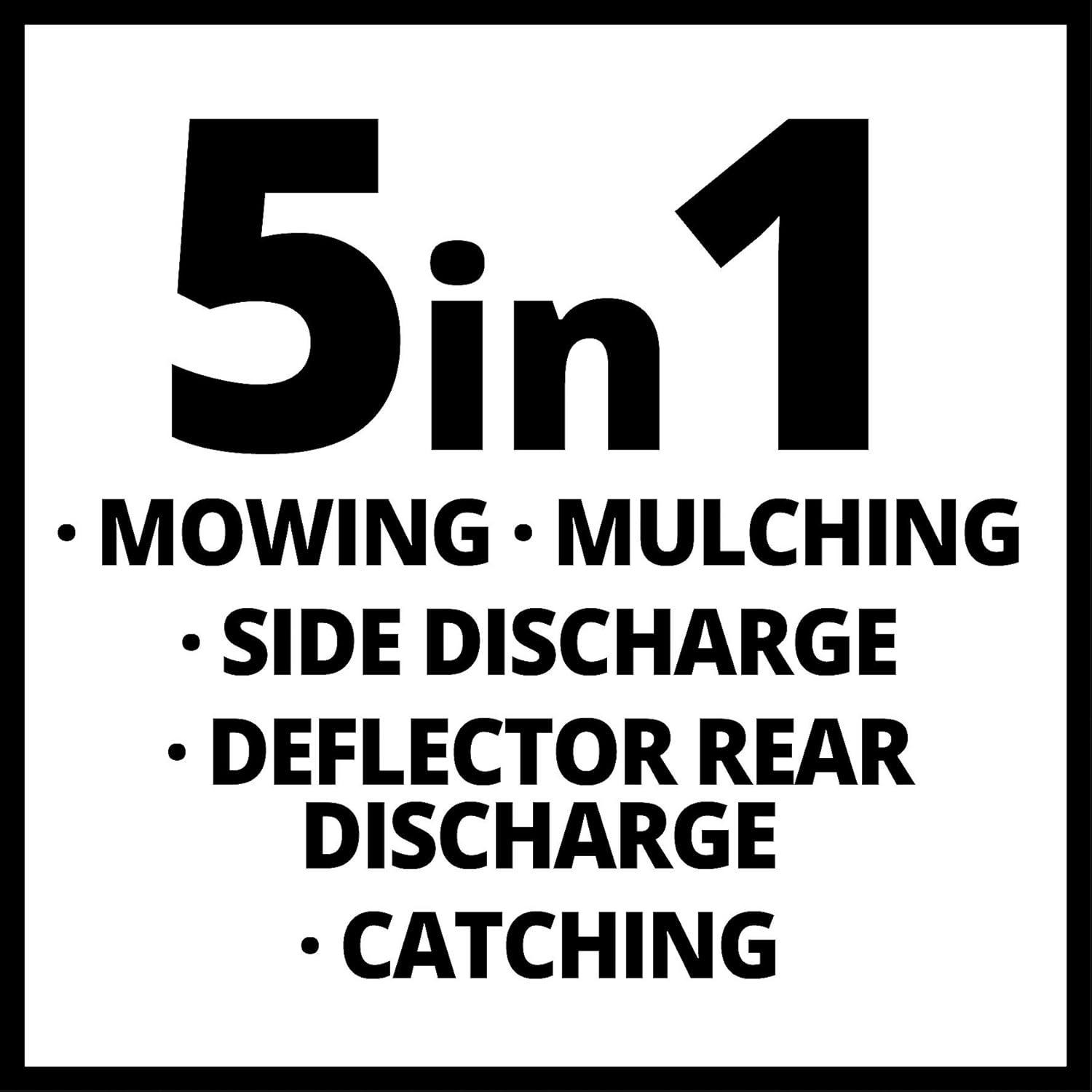

Figure 7: Diagram showing the five different operational modes of the lawn mower.
5.3 Using the Rear-Wheel Drive
Engage the rear-wheel drive lever on the handle to activate the self-propulsion. This reduces effort, especially on uneven terrain or slopes. Disengage the drive when turning or maneuvering in tight spaces.
Figure 8: Detail of the rear wheel and drive system, which provides propulsion for easier mowing.
5.4 Моторду токтотуу
Release the engine brake lever on the handle to stop the engine. For emergency stops, simply release this lever. Always allow the engine to cool down before storage or maintenance.
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө газон чапкычыңыздын узак мөөнөттүү жана коопсуз иштешин камсыз кылат.
6.1 Тазалоо
After each use, clean the cutting deck and exterior of the mower. The Einhell handle system includes a cleaning position where the mower can be tilted vertically for easy access to the underside.
Figure 9: A user demonstrating the cleaning position, allowing for easy access to the cutting deck for debris removal.
10-сүрөт: View of the mower's underside, showcasing the blade and the Vortex Technology deck designed for optimal airflow.
6.2 Blade Inspection and Sharpening
Regularly inspect the cutting blade for sharpness and damage. A dull or unbalanced blade can lead to an uneven cut and increased engine strain. For sharpening or replacement, it is recommended to consult a qualified service technician.
6.3 Кыймылдаткычты тейлөө
Refer to the separate engine manual for detailed maintenance schedules, including:
- Oil changes.
- Air filter cleaning/replacement.
- Spark plug inspection/replacement.
6.4 Сактоо
When not in use, clean the mower thoroughly. The handle can be folded down to reduce storage space. Store the mower in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
7. Кыйынчылыктарды
Бул бөлүмдө чөп чапкыч менен кездешүүчү кеңири таралган көйгөйлөр каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор иштебейт | No fuel; old fuel; spark plug faulty; engine brake not engaged; low oil level. | Check fuel level; use fresh fuel; clean/replace spark plug; ensure engine brake is held; check/add oil. |
| Мотор бир калыпта эмес иштейт | Dirty air filter; spark plug faulty; carburetor issues. | Clean/replace air filter; clean/replace spark plug; consult service for carburetor. |
| Тегиз эмес кесүү натыйжасы | Dull blade; incorrect cutting height setting; debris under deck. | Sharpen/replace blade; adjust cutting height evenly; clean cutting deck. |
| Ашыкча термелүү | Ийилген же тең салмактуу эмес бычак; бош компоненттери. | Inspect blade for damage, replace if necessary; tighten all fasteners. |
| Rear-wheel drive not engaging | Drive cable loose or damaged; transmission issue. | Check drive cable tension; consult service for transmission repair. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Einhell customer service or an authorized service center.
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 3404860 |
| Мотор түрү | OHV Gasoline Engine |
| Power Source | Бензин менен иштейт |
| Кесүү туурасы | 56 см |
| Кесүү бийиктигин тууралоо | 6-level, Central |
| Мин. Кесүү бийиктиги | 11.67 см |
| Макс. Кесүү бийиктиги | 6 см |
| Чөп баштык сыйымдуулугу | 80 литр |
| Сунушталган аймак | 2200 м² чейин |
| Продукциянын өлчөмдөрү (L x W x Y) | 165 x 58 x 102.5 см |
| Элемент Салмагы | 38.3 килограмм |
| Материал | Металл |
Figure 11: The recommended maximum mowing area for this model is 2200 m².
Figure 12: The cutting width of the lawn mower is 56 cm.
Figure 13: The grass collection bag has a capacity of 80 liters.
9. Кепилдик жана колдоо
Your Einhell GC-PM 56/2 S HW lawn mower comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage.
For technical support, spare parts, or service inquiries, please contact Einhell customer service or visit the official Einhell website. When contacting support, please have your model number (GC-PM 56/2 S HW) and serial number (if applicable) ready.
