1. Киришүү
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Fanimation Wrap Custom Ceiling Fan. Please read this manual thoroughly before beginning installation and retain it for future reference. The Fanimation Wrap Custom is a versatile ceiling fan designed for both indoor and outdoor (damp rated) use, offering various motor and blade finish combinations. This model includes fanSync Bluetooth for control.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Өрт, электр шок же жеке жаракат алуу коркунучун азайтуу үчүн ар дайым төмөнкү негизги сактык чараларын аткарыңыз:
- Вентиляторду орнотуудан мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
- Орнотуу жери желдеткичтин салмагына жана өлчөмүнө ылайыктуу экенин текшериңиз.
- Бардык зымдар улуттук жана жергиликтүү электр эрежелерине ылайык болушу керек. Эгерде сиз зымдарды жакшы билбесеңиз, квалификациялуу электрикке кайрылыңыз.
- Орнотуудан же тейлөөдөн мурун негизги өчүргүчтөн электр кубатын өчүрүңүз.
- Желдеткичти электр шнурунун же сайгычтын бузулушу менен иштетпеңиз.
- Желдетүүчү лопаткалардын жолуна объекттерди коюудан алыс болуңуз.
- Do not attempt to repair or replace any part of the fan unless specifically instructed in this manual.
3. Кутуда эмне бар
Upon opening the package, verify that all components are present and undamaged. The Fanimation Wrap Custom Ceiling Fan package includes:
- Алыстан башкаруу
- Вентилятордун мотору
- Blades (Dark Walnut)
- Монтаждоочу жабдык
- Instruction Manual
Note: Light kit, if desired, is sold separately.
4. Орнотуу жана орнотуу
Before beginning installation, ensure the power is turned off at the circuit breaker. It is recommended to have two people for installation.

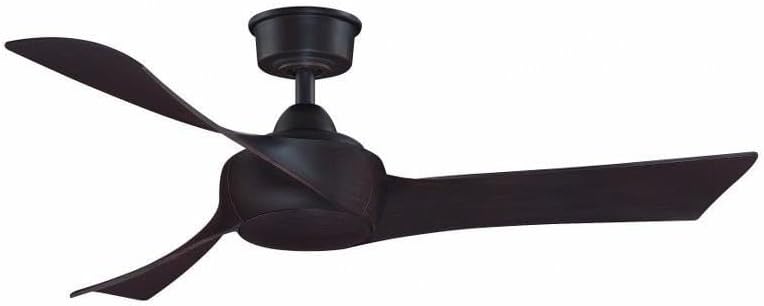

Image: The Fanimation Wrap Custom Ceiling Fan, featuring a dark bronze finish on the motor housing and a sleek, curved dark walnut blade design. The fan is shown fully assembled, ready for installation.
4.1 Желдеткичти орнотуу
- Secure the mounting bracket to the ceiling outlet box. The outlet box must be securely fastened to the building structure and capable of supporting the fan's weight (14.99 lbs).
- Attach the downrod to the motor assembly, ensuring all screws are tightened.
- Желдетүүчү түзүлүштү кылдаттык менен көтөрүп, аны монтаждык кронштейнден илип коюңуз.
4.2 Электр зымдары
- Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring guide (if applicable) or standard electrical practices (Black to Black, White to White, Green/Bare to Ground).
- Ensure all wire connections are secure using wire nuts.
- Tuck the wires neatly into the outlet box.
4.3 Attaching the Blades
- Attach each blade to the blade arms using the provided screws.
- Secure the blade assemblies to the motor housing. Ensure all screws are firmly tightened to prevent wobbling.
5. Иштөө нускамалары
The Fanimation Wrap Custom Ceiling Fan can be controlled via the included remote control or an optional wall control (sold separately). It features 3 power levels for fan speed.
5.1 Алыстан башкаруунун иштеши
The remote control allows for convenient operation of your ceiling fan from anywhere in the room. Ensure batteries are installed correctly.
- Желдеткич КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Желдеткичти күйгүзүү же өчүрүү үчүн кубат баскычын басыңыз.
- Ылдамдыкты көзөмөлдөө: Use the speed buttons to cycle through the 3 available fan speeds (Low, Medium, High).
- Тескери функция: (If applicable) Press the reverse button to change the direction of the fan blades for summer (downward airflow) or winter (upward airflow) operation.
- Жарыкты башкаруу: (If optional light kit is installed) Use the light button to turn the light on/off or dim.
5.2 Wall Control Operation (Optional)
If you have installed the optional wall control, refer to its specific instruction manual for detailed operation. Generally, wall controls offer similar functions to the remote control, including fan speed and light control.
6. Техникалык тейлөө
Regular cleaning and maintenance will ensure the longevity and optimal performance of your ceiling fan.
- Тазалоо: Вентиляторду тазалоо үчүн, жумшак, d менен сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз, анткени алар финишке зыян келтириши мүмкүн.
- Бычакты тазалоо: Чаңдын пайда болушуна жол бербөө үчүн бычактарды үзгүлтүксүз чаң сүртүп туруңуз, бул солкулдап кетиши мүмкүн.
- Катуу бурамалар: Periodically check all screws on the fan and mounting hardware to ensure they are tight. Loose screws can cause noise or wobbling.
- Майлоонун кереги жок: Желдетүүчү мотор туруктуу майлануучу жана майлоону талап кылбайт.
7. Кыйынчылыктарды
If you experience issues with your Fanimation Wrap Custom Ceiling Fan, consult the table below for common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күйөрман иштебейт | желдеткичке кубат жок Бошоң зым байланыштары Алыстан башкаруунун батареясы аз | Автоматтык өчүргүчтү/ сақтандыргычты текшериңиз Verify all wire connections are secure Алыстан башкаруунун батареяларын алмаштырыңыз |
| Күйөрман солкулдайт | Бошогон бычактын бурамалары Теңдешсиз бычактар Бошоң монтаждык кронштейн | Бардык бычак бурамаларын бекемдеңиз Ensure blades are installed evenly; use balancing kit if necessary Verify mounting bracket is securely fastened to ceiling |
| Ызы-чуу операция | Бошогон бурамалар Motor hum Blades hitting an obstruction | Бардык бурамаларды текшерип, бекемдеп коюңуз Some motor hum is normal; ensure fan is properly grounded Ensure nothing is in the path of the blades |
8. Техникалык шарттар
Detailed technical specifications for the Fanimation Wrap Custom Ceiling Fan (Model: FPD8530DZ-48DWA):
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Фанимация |
| Модель аты | FPD8530DZ-48DWA |
| Түс | Dark Bronze |
| Электр желдеткич дизайн | Шып күйөрманы |
| Power Source | Электр зымдары |
| Стиль | Ыңгайлаштырылган |
| Продукциянын өлчөмдөрү | 48"D x 48"W x 12.46"H |
| Өзгөчө өзгөчөлүк | Wall Control, Remote Control |
| Аяктоо түрү | Бронза |
| Тtage | 120 вольт |
| Элемент Салмагы | 14.99 фунт |
| Камтылган компоненттер | Алыстан |
| Ички/тышкы колдонуу | Ички (Дamp Рейтинг) |
| Башкаруу ыкмасы | Алыстан |
| Бычактын материалы | Пластик |
| Натыйжалуулук | Energy Star тастыкталган |
| Кубат деңгээли саны | 3 |
| UPC | 840506091979 |
9. Кепилдик жана колдоо
Fanimation products are manufactured to the highest quality standards. For specific warranty information regarding your Fanimation Wrap Custom Ceiling Fan, please refer to the warranty card included with your purchase or visit the official Fanimation website. For technical support, replacement parts, or service inquiries, please contact Fanimation Customer Service directly. Keep your purchase receipt as proof of purchase for warranty claims.
