Introduction
This manual provides essential information for the installation, operation, and maintenance of your Genius 6.5" 2-Way Component Speaker Set, model GS-M652-COM. This speaker kit is designed to enhance your vehicle's audio system by improving sound efficiency and fidelity. It includes a mid-range speaker and a tweeter, managed by a passive crossover network to ensure optimal sound reproduction.
Image: The complete Genius 6.5" 2-Way Component Speaker Set, including two 6.5-inch woofers, two tweeters, and two passive crossover networks.
Продукт бүттүview
The Genius GS-M652-COM component set consists of high-quality audio components engineered for superior sound performance in automotive environments. Key features include:
- 6.5-inch Mid-Range Speakers: Designed for clear mid-bass and vocal reproduction.
- ¾-inch Neodymium Dome Tweeters: For crisp and detailed high-frequency sound.
- Passive Crossover Networks: To correctly distribute audio frequencies to the respective speakers, protecting the tweeters and optimizing sound.
- Туруктуу курулуш: Featuring paper cones, rubber surrounds, and robust magnet structures.
Сүрөт: деталдуу view of the 6.5-inch speaker, highlighting its components such as the paper cone, steel basket, ferrite magnet, and 1-inch voice coil. A neodymium dome tweeter is also shown.

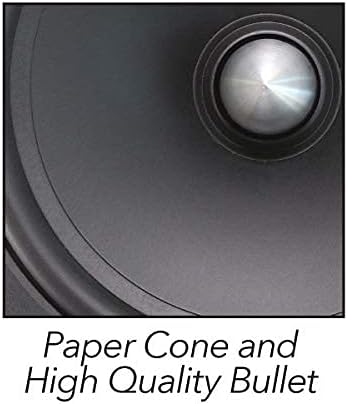

Image: Close-up of the speaker's paper cone and high-quality bullet, indicating material and design for sound reproduction.
Коопсуздук маалыматы
Please read and understand all safety instructions before installing or operating this product. Failure to do so may result in injury or damage to the product or vehicle.
- Always disconnect the vehicle's battery before beginning any electrical installation.
- Кыска туташуулардын жана бузулуулардын алдын алуу үчүн бардык зымдар туура изоляцияланганын жана бекемделгенин текшериңиз.
- Do not install speakers in locations that obstruct vehicle operation or safety features (e.g., airbags).
- Орнотуу учурунда тиешелүү коопсуздук шаймандарын, анын ичинде көздү коргоону кийиңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, профессионал орнотуучу менен кеңешиңиз.
Орнотуу жана орнотуу
Proper installation is crucial for optimal performance. This section outlines general steps for installing the component set. Specific vehicle requirements may vary.
Компоненттер камтылган:
- Two 6.5-inch Mid-Range Speakers
- Two ¾-inch Tweeters
- Two Passive Crossover Networks
- Mounting Hardware (e.g., screws, tweeter mounts)
Орнотуу кадамдары:
- Пландоо: Determine the optimal mounting locations for the 6.5-inch speakers, tweeters, and crossover networks within your vehicle. Ensure adequate clearance and secure mounting surfaces.
- Динамик орнотуу:
- Mount the 6.5-inch mid-range speakers securely in their designated locations (e.g., door panels).
- Динамиктин зымдарын өзүңүздөн туташтырыңыз amplifier or head unit to the input terminals of the passive crossover network.
- Tweeter орнотуу:
- Choose the appropriate tweeter mounting base (e.g., flush mount, surface mount) for your desired location.
- Mount the tweeters securely. The tweeters are orientable for optimal sound direction.
- Connect the tweeter wires from the tweeter to the designated tweeter output terminals on the passive crossover network.
Image: The passive crossover network with input and output terminals, alongside two types of tweeter installation mounts (Mount Base A and Mount Base B).
Image: A close-up of the orientable tweeter, showing its design for adjustable sound direction.
- Crossover Network Connection:
- Connect the 6.5-inch speaker to the "WF" (woofer) output terminals on the crossover.
- Connect the tweeter to the "TW" (tweeter) output terminals on the crossover.
- Бардык туташуулар үчүн туура полярдуулукту (+ дан + га жана - дан - га) текшериңиз.
- Сыноо: Before reassembling vehicle panels, test the audio system to ensure all speakers are functioning correctly and sound is balanced.
Зымдар диаграммасы: Refer to the diagram below for typical wiring connections. (Note: A specific diagram is not provided in the source data, but this placeholder indicates where one would be.)
Image: The product packaging for the Genius 6.5" 2-Way Component Speaker System, showing the included components and some key specifications.
Иштөө нускамалары
Once installed, your Genius component set operates as part of your vehicle's audio system. Follow these guidelines for optimal performance:
- Баштапкы ойнотуу: Begin with a low volume setting and gradually increase it to assess sound quality and ensure all components are working.
- Үн деңгээли: Avoid prolonged listening at extremely high volumes, which can cause hearing damage and potentially damage the speakers.
- Аудио жөндөөлөрү: Adjust your head unit's equalizer and balance/fader settings to fine-tune the sound to your preference. The passive crossovers are designed to optimize the frequency distribution between the woofer and tweeter.
- Тыныгуу мезгили: Allow a short break-in period (e.g., 10-20 hours of normal use) for the speaker components to loosen up and achieve their full sound potential.
Техникалык тейлөө
The Genius GS-M652-COM component set requires minimal maintenance to ensure long-lasting performance.
- Тазалоо: Чаңды кетирүү үчүн динамиктин торчолорун жана айланасын жумшак, кургак чүпүрөк менен акырын сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонуудан алыс болуңуз.
- Текшерүү: Динамиктердин бекиткичтерин жана зымдардын туташууларын бекем кармап туруу үчүн мезгил-мезгили менен текшерип туруңуз.
- Экологиялык факторлор: Автоунаа үчүн иштелип чыкканы менен, динамиктерди ашыкча нымдуулукка же кадимки унаанын иштөө шарттарынан тышкары өтө жогорку температурага дуушар кылбаңыз.
Проблемаларды чечүү
If you encounter issues with your speaker set, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Бир же бир нече динамиктен үн чыкпайт | Loose or incorrect wiring connection; faulty speaker or crossover; ampкөтөргүч маселеси. | Check all wiring connections for security and correct polarity. Test speakers individually if possible. Verify ampкөтөргүч кубаттуу жана иштеп жатат. |
| Бурмаланган үн | Үн өтө катуу; amplifier clipping; incorrect audio settings; damaged speaker. | Үндү азайтыңыз. Текшериңиз amplifier gain settings. Adjust head unit equalizer. Inspect speaker cones for physical damage. |
| Начар же тең салмаксыз үн | Incorrect balance/fader settings; phase issue; improper crossover connection. | Adjust balance/fader. Ensure all speakers are wired with correct polarity. Confirm crossover connections are correct. |
| No high frequencies (tweeters) | Tweeter not connected; faulty tweeter; crossover issue. | Check tweeter wiring to crossover. Ensure crossover is functioning. |
If problems persist after troubleshooting, contact Genius customer support or a qualified audio technician.
Техникалык шарттар
Below are the technical specifications for the Genius GS-M652-COM 6.5" 2-Way Component Speaker Set:
Image: A 6.5-inch speaker with an overlay of its key specifications, including 300W Max Power, 150W Musical, 45W RMS, 4 Ohms impedance, 89dB sensitivity, and 70Hz-20KHz frequency response.
- Модел: GS-M652-COM
- Динамик түрү: 2-Way Component Set
- Динамик өлчөмү: 6.5 inches (Mid-Range Woofer)
- Твиттердин көлөмү: ¾ inch Neodymium Dome
- Максималдуу кубаттуулукту иштетүү: 300 Ватт МАКС
- RMS кубаттуулугун башкаруу: 45 Watts RMS (per speaker)
- Импеданс: 4 Ом
- Сезимталдуулук: 89 дБ
- Жыштык жообу: 70 Гц - 20 КГц
- Үн катушкасы: 1.0 inch Kapton (Mid-Range Woofer)
- Кроссовер: 12 dB Passive Crossover Network
- Конус материалы: Кагаз конус
- Курчап турган материал: Резина Айлана
- Магнит структурасы: Y35 Super Strontium Ferrite Magnet (Mid-Range Woofer)
- Продукциянын өлчөмдөрү: 36.83 x 18.54 x 8.89 см (болжолдуу таңгак өлчөмдөрү)
- Продукт Салмагы: 2.52 кг (болжолдуу пакеттин салмагы)

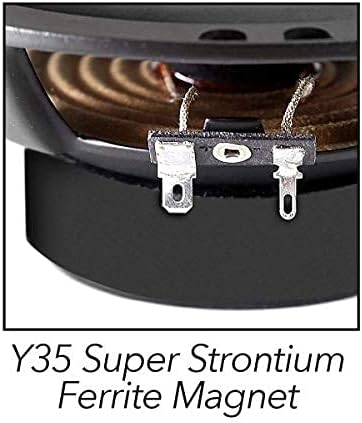

Сүрөт: жакын план view of the Y35 Super Strontium Ferrite Magnet, highlighting its material and construction.
Кепилдик маалымат
Genius products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Genius Audio webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
Колдоо
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Genius GS-M652-COM component set, please contact Genius customer support through their official webсайт же продукт документациясында берилген байланыш маалыматы.
Онлайн ресурстар: Visit the official Genius Audio webкошумча продукт маалыматы, көп берилүүчү суроолор жана колдоо булактары үчүн сайт.
