MXL 770 Vintage White Condenser Microphone Instruction Manual

1. Киришүү

Thank you for choosing the MXL 770 Vintage White Condenser Microphone. This microphone is designed to deliver detailed sound reproduction with a balanced bass response and high-end clarity, making it suitable for a variety of applications including podcasting, singing, home studio recording, gaming, and streaming. Its cardioid polar pattern ensures focused recording, minimizing background noise.

Image 1.1: The MXL 770 Vintage White Condenser Microphone with its included shock mount.

2. Кутуда эмне бар

Your MXL 770 Vintage White Condenser Microphone package includes the following items:

• MXL 770 Vintage White Condenser Microphone
• Шок тоо
• Бекем ташуучу куту

Image 2.1: Contents of the MXL 770 package, including the microphone, shock mount, and carrying case.

3. Орнотуу

Follow these steps to set up your MXL 770 microphone:

1. Микрофонду орнотуу: Secure the MXL 770 microphone into the provided shock mount. The shock mount helps to isolate the microphone from vibrations and handling noise.
2. Connecting to an Audio Interface: The MXL 770 uses an XLR-F connector. Connect one end of an XLR cable (not included) to the microphone and the other end to an audio interface or mixer that provides 48V phantom power.
3. Phantom Power: The MXL 770 is a condenser microphone and requires 48V phantom power to operate. Ensure that phantom power is enabled on your audio interface or mixer before use. Refer to your audio interface's manual for instructions on enabling phantom power.
4. Позициялоо: Position the microphone appropriately for your recording needs. For vocals or instruments, aim the front of the microphone (where the MXL logo is visible) towards the sound source.

Image 3.1: The included microphone stand mount, which attaches to a standard microphone stand.

4. Микрофонду иштетүү

The MXL 770 features controls to optimize your recording quality:

• Low-Frequency Roll-Off Switch: This switch (often labeled as a high-pass filter) reduces unwanted low-frequency rumble and noise, such as air conditioning hum or foot traffic. Engage this switch when recording vocals or instruments where deep bass frequencies are not desired.
• -10дБ Pad которгучу: The -10dB pad attenuates the input signal by 10 decibels. Use this switch when recording very loud sound sources (e.g., loud vocals, guitar amplifiers, drums) to prevent signal clipping and distortion at the microphone's input stage.

Image 4.1: Detail of the MXL 770 showing the -10dB pad switch.

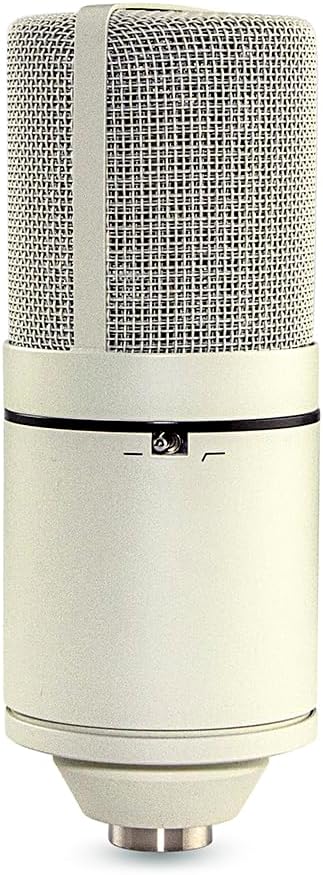

Image 4.2: Detail of the MXL 770 showing the low-frequency roll-off switch.

Полярдык үлгү: Кардиоид

The MXL 770 features a cardioid polar pattern. This means it is most sensitive to sounds coming from the front of the microphone and rejects sounds from the sides and rear. This characteristic is ideal for:

• Үн жаздыруу: Isolating the vocalist's voice from room reflections or other instruments.
• Аспапты жаздыруу: Focusing on a specific instrument while minimizing bleed from others.
• Жандуу үн: Reducing feedback when used with monitors.

5. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your microphone:

• Тазалоо: Микрофондун корпусун сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалоочу каражаттарды же эриткичтерди колдонуудан алыс болуңуз, анткени алар микрофондун сырткы көрүнүшүнө же ички компоненттерине зыян келтириши мүмкүн.
• Сактагыч: When not in use, store the microphone in its rugged carrying case to protect it from dust, moisture, and physical damage.
• Колдонуу: Микрофонду ар дайым этияттык менен кармаңыз. Аны түшүрүп албаңыз же өтө жогорку температурага же нымдуулукка дуушар кылбаңыз.

6. Кыйынчылыктарды

If you encounter issues with your MXL 770 microphone, refer to the following common problems and solutions:

• Үн чыгышы жок:
  • Аудио интерфейсиңизде же миксериңизде 48V фантом кубаты иштетилгенин текшериңиз.
  • Check all XLR cable connections for proper seating.
  • Verify that the input gain on your audio interface is set appropriately.
  • Кабелдин иштебей калышын жокко чыгаруу үчүн башка XLR кабели менен сынап көрүңүз.
• Бурмаланган үн:
  • Engage the -10dB pad switch if recording very loud sound sources.
  • Аудио интерфейсиңиздеги киргизүү күчөтүүсүн азайтыңыз.
  • Ensure the microphone is not positioned too close to the sound source.
• Excessive Background Noise/Hum:
  • Engage the low-frequency roll-off switch to reduce rumble.
  • Ensure all cables are properly shielded and away from power sources or other electronics that might cause interference.
  • Verify that the microphone is correctly positioned to utilize its cardioid pattern for maximum sound rejection from unwanted directions.

7. Техникалык шарттар

8. Кепилдик маалыматы

For specific warranty details, please refer to the warranty card included with your product or visit the official MXL website. MXL provides a limited warranty against defects in materials and workmanship under normal use.

9. Колдоо

If you require further assistance or have questions not covered in this manual, please contact MXL customer support through their official webсайт же продукт таңгагында көрсөтүлгөн байланыш маалыматы. Сиз да зыярат кылсаңыз болот MXL Store on Amazon кошумча продукт маалымат жана ресурстар үчүн.
