Pyle PLMRB38B.5 Bluetooth Marine Receiver Stereo User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Pyle PLMRB38B.5 Bluetooth Marine Receiver Stereo. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage. Keep this manual for future reference.

Коопсуздук маалыматы

  • Ensure proper wiring connections to prevent short circuits and electrical damage.
  • Агрегатты ажыратууга же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарып, зыян келтириши мүмкүн.
  • Аппаратты экстремалдык температурага, түз күн нуруна узак убакытка же ашыкча нымдуулукка дуушар кылуудан алыс болуңуз.
  • Always operate your vessel safely. Adjust audio settings only when it is safe to do so.
  • Көрсөтүлгөн кубат булагын гана колдонуңуз (12V DC).

Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

  • Pyle PLMRB38B.5 Marine Stereo Receiver
  • Алыстан башкаруу

Продукт бүттүview

Familiarize yourself with the front panel controls and rear connections of your marine receiver.

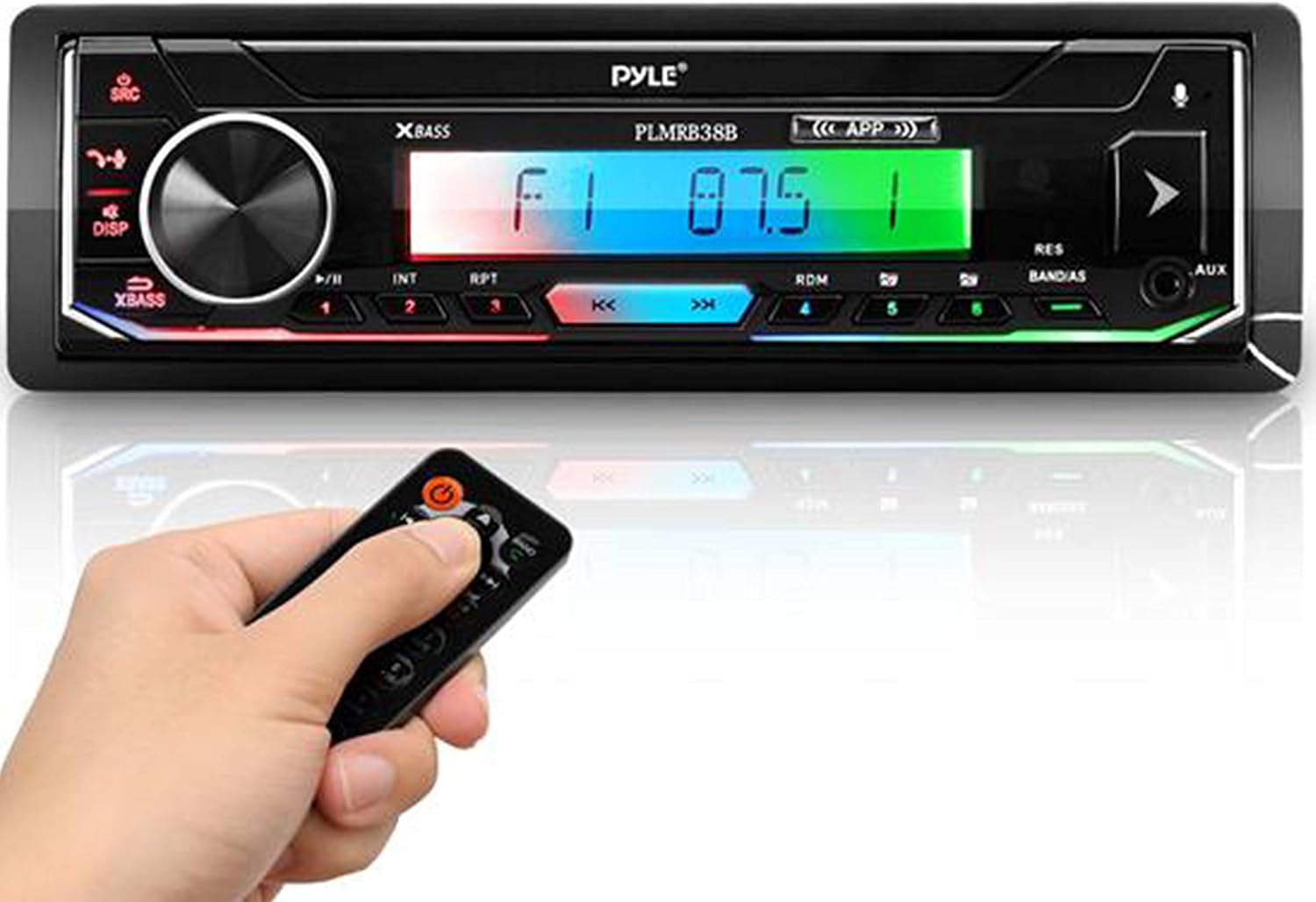

Фронт view of Pyle PLMRB38B.5 marine receiver with remote control

Сүрөт: алдыңкы view of the Pyle PLMRB38B.5 marine receiver, showcasing the digital LCD display, control buttons, and a remote control for convenient operation.

Алдыңкы жана арткы views of Pyle PLMRB38B.5 marine receiver

Сүрөт: алдыңкы жана арткы views of the Pyle PLMRB38B.5 marine receiver. The front panel displays the LCD and controls, while the rear panel shows the wiring harness and RCA output connections.

Алдыңкы панелдин башкаруу элементтери:

  • Кубат / режим баскычы: Turns the unit on/off and switches between input modes (AM/FM, Bluetooth, USB, SD, AUX).
  • Үн баскычы: Adjusts the audio output level. Press to access audio settings (EQ, Balance, Fader).
  • Дисплей (DISP) баскычы: Toggles display information.
  • XBass баскычы: Activates or deactivates the XBass feature for enhanced low frequencies.
  • Play/Pause/Preset Buttons: Control media playback and select radio presets.
  • Өткөрүп жиберүү/Түздөө баскычтары: Navigate tracks or tune radio frequencies.
  • AUX киргизүү: Тышкы аудио түзүлүштөрдү туташтыруу үчүн 3.5 мм уяча.
  • USB/SD уячасы: For media playback from USB flash drives and SD memory cards.
  • Микрофон: Үнсүз чалуу үчүн орнотулган.

Арткы панелдин туташуулары:

  • Электр өткөргүчтөрү: For power, ground, and speaker connections.
  • RCA чыгаруу: 1 pair RCA output + 2x Subwoofer for connecting external ampаман калгандар.

Жайгашуу

Орнотуу

Pyle PLMRB38B.5 marine receiver installed in a boat dashboard

Image: The Pyle PLMRB38B.5 marine receiver seamlessly integrated into a boat's dashboard, demonstrating its universal Single DIN installation compatibility.

The PLMRB38B.5 features a universal Single DIN size design for easy installation into most marine vehicle dashboards. Consult a professional installer if you are unsure about the installation process.

Зымдар диаграммасы

Refer to the wiring diagram provided with your unit for specific connections. General connections include:

  • Сары зым: Туруктуу 12V (батарея)
  • Кызыл зым: Кошумча 12V (Тутандыруу)
  • Кара зым: Жер
  • Динамиктердин зымдары: Connect to your boat's speakers (typically 4 pairs for front/rear, left/right).
  • Антенна: Connect your marine antenna.

Ensure all connections are secure and insulated to prevent electrical issues.

Иштөө нускамалары

Негизги операция

  • Күйгүзүү/өчүрүү: Press the Power/Mode button to turn the unit on. Press and hold to turn off.
  • Режим тандоо: Press the Power/Mode button repeatedly to cycle through available modes: AM/FM Radio, Bluetooth, USB, SD, AUX.
  • Үндү көзөмөлдөө: Rotate the volume knob to increase or decrease the audio level.

AM/FM радиосу

  • тюнинг: In AM/FM mode, press the Skip/Tune buttons to manually tune frequencies. Press and hold for automatic seek tuning.
  • Алдын ала коюлган станциялар: The unit supports 30 station memory. To save a station, tune to the desired frequency, then press and hold one of the numbered preset buttons (1-6). To recall a saved station, press the corresponding preset button.
  • Store/Scan Mode: Use the Band/AS button to automatically scan and store strong stations.

Bluetooth байланышы

Pyle PLMRB38B.5 displaying 'UNKOWN ARTIST' and 'Unknown Artist - Track 01' with a smartphone

Image: The receiver's display showing ID3 tag information ('UNKOWN ARTIST', 'Unknown Artist - Track 01') during Bluetooth wireless streaming, with a smartphone in the foreground.

The PLMRB38B.5 features Bluetooth Wireless Audio Ability (BT Version 4.2) for streaming music from compatible devices.

  1. Ensure Bluetooth is enabled on your mobile device (e.g., iPhone, Android smartphone, tablet).
  2. Select Bluetooth mode on the receiver. The unit will enter pairing mode.
  3. On your device, search for available Bluetooth devices and select 'Pyle Audio' or similar.
  4. Once paired, you can stream audio from your device to the receiver. The LCD panel will display ID3 Tag Song Readout for artist name and song title.

Hands-Free Чалуу

Pyle PLMRB38B.5 with microphone icon and sound waves, indicating hands-free calling

Image: The Pyle PLMRB38B.5 receiver highlighting its hands-free calling feature with a microphone icon and sound wave graphics, indicating compatibility with XBass, Siri Dialing, and Android/iOS apps.

With the built-in microphone, you can make and receive calls hands-free when connected via Bluetooth.

  • Чалууларга жооп берүү: When a call comes in, the telephone number will be displayed on the LCD panel. Press the call answer button (usually the green phone icon) to accept the call.
  • Аяктаган чалуулар: Press the call end button (usually the red phone icon) to terminate a call.
  • Кайра терүү: Some units support redialing the last dialed number. Refer to the specific button layout.

USB/SD карта ойнотуу

  • Insert a USB flash drive or SD memory card into the respective slot. The unit will automatically switch to USB/SD mode and begin playing MP3 digital audio files.
  • Тректердин ортосунда багыт алуу үчүн Өткөрүп жиберүү/Күүлөө баскычтарын колдонуңуз.
  • Ойноону башкаруу үчүн Ойнотуу/Тыным баскычын колдонуңуз.
  • Features include Memory/Repeat/Random/Intro Play functions.

AUX киргизүү

  • Connect an external audio device (e.g., MP3 player, smartphone) to the 3.5mm AUX input connector jack on the front panel.
  • Select AUX mode using the Power/Mode button. Audio from the connected device will play through the receiver.

Аудио жөндөөлөрү

  • Press the volume knob to access audio settings. Rotate the knob to adjust:
  • Эквалайзер (EQ): Select from preset EQ curves or customize.
  • Баланс: Adjust audio distribution between left and right speakers.
  • Фейдер: Adjust audio distribution between front and rear speakers.
  • XBass: Enhance bass frequencies.

Техникалык тейлөө

  • Тазалоо: Агрегаттын бетин тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
  • Байланыштары: Periodically check all wiring connections to ensure they are secure and free from corrosion, especially in a marine environment.
  • Сактагыч: If storing the vessel for an extended period, ensure the unit is powered off and protected from extreme conditions.

Проблемаларды чечүү

КөйгөйМүмкүн себепЧечим
Күч жокТуура эмес зымдар; Сактагыч күйүп кеткен; Унаанын аккумулятору азCheck power and ground connections; Replace fuse; Charge/check vehicle battery
Үн жокVolume too low; Mute activated; Speaker wires disconnected; Incorrect input modeIncrease volume; Deactivate mute; Check speaker connections; Select correct input mode
Bluetooth туташпай жататBluetooth not enabled on device; Unit not in pairing mode; Device already paired to another unitEnable Bluetooth on device; Ensure receiver is in Bluetooth mode; Disconnect from other devices and retry pairing
USB/SD ойнобой жататКолдоого алынбайт file format; Corrupted media; Incorrect mode selectedкамсыз кылуу files are MP3; Try different USB/SD card; Select USB/SD mode
Пульт иштебей жататBattery depleted; Obstruction between remote and unit; Remote sensor blockedReplace remote battery; Remove obstructions; Ensure clear line of sight to sensor

Техникалык шарттар

Dimensions of Pyle PLMRB38B.5 marine receiver: 7.1 inches wide, 1.97 inches high, 4.5 inches deep

Image: Diagram illustrating the dimensions of the Pyle PLMRB38B.5 marine receiver, measuring 7.1 inches in width, 1.97 inches in height, and 4.5 inches in depth, with a weight of 1.44 lbs.

ӨзгөчөлүкСпецификация
Модель номериPLMRB38B.5
Power Output100 Watt (25W x 4) Peak, 75 Watts RMS
Bluetooth версиясы4.2 (A2DP)
БайланышBluetooth, USB, SD Card, AUX (3.5mm), RCA
ДисплейСанарип LCD
Радио тюнерAM/FM Stereo, 30 Station Memory
Аудио File ОйнотууMP3
Эквалайзер10EQ, Balance, Fader, XBass
Hands-Free ЧалууКамтылган микрофон
Чыгуу режимиСтерео
Продукциянын өлчөмдөрү8.5 x 3.25 x 6.75 inches (Overall), 7.1" (W) x 1.97" (H) x 4.5" (D) (Chassis)
Элемент Салмагы1.34 фунт
Электр камсыздоо12V DC

Кепилдик жана колдоо

Pyle products are designed for reliability and performance. For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Pyle webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
