Festool ETS 125 REQ-Plus кокустук орбиталык шлифовкалоочу машинанын колдонуучу нускамасы

Introduction

The Festool ETS 125 REQ-Plus is a versatile random orbital sander designed for achieving maximum surface quality during finishing or pre-sanding tasks. Its compact size and lightweight design make it suitable for extended use, including vertical and overhead applications. This tool incorporates features such as a sanding pad brake and Vibration-stop balancing for enhanced performance and user comfort.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Эргономикалык дизайн узак убакытка колдонууда ыңгайлуу иштөө үчүн.
• Step-less variable speed control for adapting to various applications.
• Balanced Vibration-stop (VS) design for smooth operation and superior finish results.
• Jetstream design for efficient dust removal, contributing to cleaner air, better finishes, and extended abrasive and pad life.
• Supplied in a new SysGen3 Systainer for organized storage and transport.

Жалпы коопсуздук маалыматы

Always observe general power tool safety guidelines to prevent electric shock, fire, and serious injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and a dust mask. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Продукт бүттүview жана компоненттер

The Festool ETS 125 REQ-Plus Random Orbital Sander comes with several components designed for optimal performance and convenience.

Figure 1: Complete Festool ETS 125 REQ-Plus kit, showing the sander, Systainer, dust bag, power cord, and a sanding disc.

Камтылган компоненттер:

• ETS 125 REQ Random Orbital Sander
• StickFix Soft Sander Backing Pad (D125)
• Longlife Dust Bag
• Festool PROTECTOR
• SYSGEN3 Systainer Case

Жайгашуу

1. Attaching the Sanding Pad and Abrasive

Ensure the sander is disconnected from the power supply before attaching or changing the sanding pad or abrasive. The ETS 125 REQ-Plus uses a StickFix sanding pad system for quick and secure abrasive changes.

1. Align the holes on the abrasive disc with the holes on the StickFix sanding pad.
2. Press the abrasive disc firmly onto the pad to ensure a secure attachment.

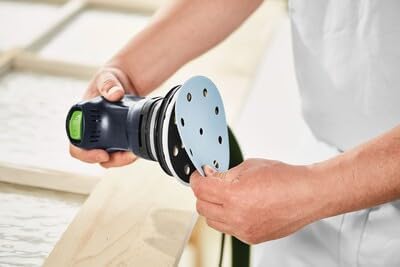

Figure 2: Attaching a sanding disc to the sander's StickFix pad.

2. Чаң чыгарууну туташтыруу

Effective dust extraction is crucial for a clean work environment, better finish quality, and extended abrasive life. The ETS 125 REQ-Plus can be used with the included longlife dust bag or connected to an external dust extractor.

• Using the Longlife Dust Bag: Attach the dust bag securely to the dust port at the rear of the sander. Ensure it clicks into place.
• Connecting to an External Dust Extractor: Connect the hose of your Festool dust extractor to the sander's dust port. The Jetstream design works optimally with Festool extractors for highly efficient dust removal.

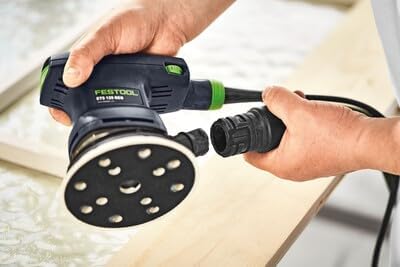

Figure 3: Connecting a dust extraction hose to the sander.

Figure 4: The sander connected to a dust extraction hose.

Иштөө нускамалары

1. Күйгүзүү жана өчүрүү

Connect the sander to a suitable power outlet. The power switch is typically located on the top of the tool. Press the switch to turn the sander on, and press it again to turn it off.

2. Ылдамдыкты жөндөө

The ETS 125 REQ-Plus features step-less variable speed control. Use the speed adjustment dial to select the appropriate sanding speed for your material and application. Lower speeds are generally suitable for delicate work or heat-sensitive materials, while higher speeds are for aggressive material removal.

3. Тегиздөө ыкмасы

For best results, hold the sander firmly with both hands (if applicable) or one hand for lighter tasks, ensuring even pressure. Move the sander smoothly and consistently across the workpiece. Avoid applying excessive pressure, as this can reduce sanding efficiency and potentially damage the surface or the tool. The balanced vibration stop design minimizes fatigue and improves finish quality.

Figure 5: Proper technique for operating the sander on a workpiece.

Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Festool sander. Always disconnect the tool from the power supply before performing any maintenance.

1. Cleaning the Sander

• Шлифовкалоочу машинанын сыртын таза, d менен сүртүңүзamp кездеме. Катуу химиялык заттарды же эриткичтерди колдонбоңуз.
• Use compressed air to clear dust from ventilation openings and the motor housing.

2. Dust Bag Maintenance

• Empty the longlife dust bag regularly to maintain effective dust collection.
• Inspect the dust bag for any tears or damage and replace if necessary.

3. Sanding Pad Inspection

• Periodically inspect the StickFix sanding pad for wear, damage, or reduced adhesion. A worn pad can lead to poor sanding results and premature abrasive wear.
• Replace the sanding pad if it shows signs of significant wear or damage.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Festool stands behind its products with comprehensive support and warranty programs. For detailed information, please refer to the official Festool webсайтка же кардарларды тейлөөгө кайрылыңыз.

• 30 күндүк акчаны кайтарып берүү кепилдиги: Эгерде сиз толугу менен канааттанбасаңыз, товарды 30 күндүн ичинде кайтарып бере аласыз.
• 3 жылдык канааттануу кепилдиги: Festool offers a 3-year warranty covering defects in material and workmanship.
• Атайын эксперттик колдоо: Access to expert assistance for product inquiries, technical support, and service.

Кошумча жардам алуу үчүн, баш багыңыз Amazon'догу Festool дүкөнү or the official Festool webсайт.
