Introduction
This manual provides essential information for the safe and effective operation, setup, and maintenance of your Dremel 4300-DR-RT Rotary Tool. Please read these instructions carefully before using the tool.

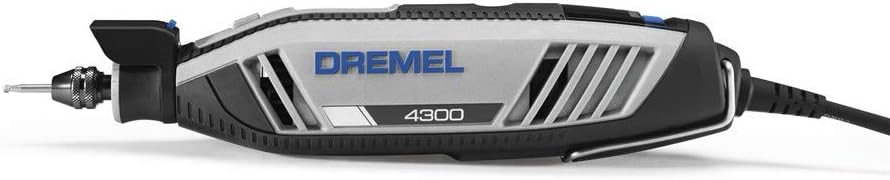

Image: The Dremel 4300-DR-RT Rotary Tool, showcasing its ergonomic design and integrated chuck.
Коопсуздук маалыматы
Always wear appropriate personal protective equipment, such as safety glasses, gloves, and hearing protection, when operating the rotary tool. Ensure your work area is well-lit and clear of obstructions. Disconnect the tool from the power source before changing accessories or performing maintenance.
- Колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Колдорду жана кенен кийимдерди айлануучу бөлүктөрдөн алыс кармаңыз.
- Secure workpiece before operating.
- г менен операция жасабагылаamp же нымдуу шарттар.
- Use only Dremel-approved accessories.
Орнотуу жана чогултуу
Accessory Installation (Three-Jaw Chuck)
The Dremel 4300-DR-RT features a tool-less, glue-less three-jaw chuck for quick accessory changes.
- Курал кубат булагынан ажыратылганын текшериңиз.
- Press the shaft lock button to secure the shaft.
- Жаактарды ачуу үчүн патронду сааттын жебесине каршы айландырыңыз.
- Insert the accessory shank fully into the chuck.
- Rotate the chuck clockwise to tighten the jaws securely around the accessory. Release the shaft lock button.
Adjusting the Pivot Light
The integrated pivot light can be rotated to direct illumination precisely where needed on your workpiece, improving visibility and accuracy. Simply adjust the light housing to the desired angle.
Иштөө нускамалары
Күйгүзүү/өчүрүү жана ылдамдыкты көзөмөлдөө
The tool features a separate on/off switch and a variable speed control dial.
- To turn on: Slide the ON/OFF switch to the 'ON' position.
- To adjust speed: Rotate the variable speed dial to select the desired RPM. The tool provides electronic feedback for consistent performance under load.
- To turn off: Slide the ON/OFF switch to the 'OFF' position.
Эргономикалык кармагыч
The slim, ergonomic body design offers a comfortable 360-degree grip zone, allowing for greater ease of use and control during various applications.
Типтүү колдонмолор

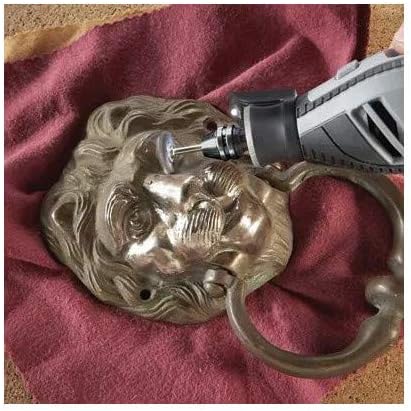

Image: Polishing a metal object. The Dremel 4300-DR-RT can be used for restoring shine to various materials.
Image: Carving intricate designs into wood. The tool's precision allows for detailed work.

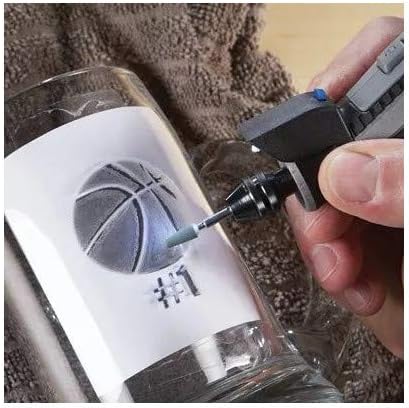

Image: Engraving a design onto a glass surface. Ideal for personalizing items.
Image: Routing a groove in wood. The Dremel 4300-DR-RT can be used with routing attachments for precise cuts.
Image: Sanding and shaping a wooden piece. The tool is effective for fine finishing and material removal.

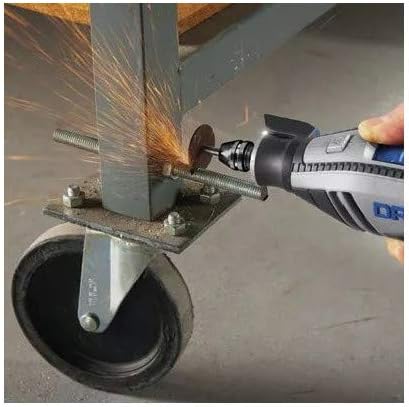

Image: Cutting a metal bolt. With appropriate cutting wheels, the Dremel 4300-DR-RT can cut various metals.
Техникалык тейлөө
Мотор щеткасын алмаштыруу
The Dremel 4300-DR-RT features replaceable motor brushes, which contribute to extending the tool's lifespan. Refer to the full service manual for detailed instructions on how to inspect and replace motor brushes. This procedure typically involves removing brush caps and inserting new brushes.
Airflow System Cleaning
The redesigned airflow system helps the tool run cool and smooth. Regularly inspect the air vents for dust and debris accumulation. Use compressed air to clear any blockages, ensuring optimal cooling and performance.
Жалпы тазалоо
After each use, wipe down the tool's exterior with a clean, dry cloth. Do not use harsh chemicals or abrasive cleaners.
Проблемаларды чечүү
If you encounter issues with your Dremel 4300-DR-RT, consider the following basic troubleshooting steps:
- Курал башталбай жатат: Ensure the power cord is securely plugged into a functional outlet and the ON/OFF switch is in the 'ON' position.
- Loss of Power/Stalling: Check that the accessory is properly secured in the chuck. Reduce pressure on the workpiece. Ensure the speed setting is appropriate for the task.
- Ашыкча ысык: Verify that the air vents are clear of debris. Allow the tool to cool down if it feels excessively hot.
- Адаттан тыш ызы-чуу/титирөө: Disconnect power and inspect the accessory for damage or improper installation. Ensure the chuck is tightened correctly.
For persistent issues, contact Dremel customer support or an authorized service center.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Dremel |
| Модель номери | 4300-DR-RT |
| Өзгөчө өзгөчөлүк | Өзгөрмө ылдамдык |
| Элемент Салмагы | 4.75 фунт |
| Максималдуу айлануу ылдамдыгы | 3450 RPM |
| Продукциянын өлчөмдөрү (L x W x Y) | 16 x 11.6 x 4.4 дюйм |
| UPC | 080596040475 |
| Өндүрүүчү | Dremel |
Эскертүү: Техникалык мүнөздөмөлөр эскертүүсүз өзгөртүлүшү мүмкүн.
Кепилдик жана колдоо
Кепилдик маалымат
This Dremel 4300-DR-RT is a renewed product and is backed by a 90 күндүк кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For technical assistance, warranty service, or questions regarding your Dremel tool, please contact Dremel customer support through their official webсайт же продукт сатылып алынган чекене сатуучу.
