Alienware Aurora R10 Gaming Desktop колдонуучусунун колдонмосу

1. Introduction and Overview

The Alienware Aurora R10 Gaming Desktop is engineered to deliver exceptional performance for gaming and demanding applications. Featuring an AMD Ryzen 7 3700X processor, AMD Radeon RX 5700 XT graphics, and a robust storage configuration, this system provides a powerful computing experience. Its innovative design prioritizes efficient airflow and ease of access for upgrades.

Сүрөт 1: Алдыңкы view Alienware Aurora R10 Gaming Desktop'тун, көрсөтүүasing its distinctive design and front panel ports.

2. Орнотуу колдонмосу

Follow these steps to set up your Alienware Aurora R10 Gaming Desktop:

1. Пакеттен чыгаруу: Carefully remove the desktop from its packaging. Ensure all accessories, including the keyboard and mouse, are present.
2. Жайгашкан жери: Place the desktop on a stable, flat surface with adequate ventilation around all sides. Avoid placing it in enclosed spaces or near heat sources.
3. Перифериялык түзүлүштөрдү туташтыруу:
   • Connect your monitor(s) to the appropriate display ports on the graphics card (DisplayPort, HDMI).
   • Берилген клавиатураны жана чычканды жеткиликтүү USB портторуна туташтырыңыз.
   • Динамиктер, гарнитуралар же тышкы дисктер сыяктуу башка перифериялык түзүлүштөрдү туташтырыңыз.
4. Кубат туташуу: Connect the power cable to the power port on the rear of the desktop and then to a grounded electrical outlet.
5. Баштапкы күйгүзүү: Press the power button located on the front of the desktop. The system will boot into Windows 10 Home. Follow the on-screen instructions for initial setup.

2-сүрөт: Арткы view of the Alienware Aurora R10, illustrating the various connectivity ports for peripherals and power.

3. Иштөө нускамалары

Your Alienware Aurora R10 comes pre-installed with Windows 10 Home, providing a familiar and intuitive operating environment. For optimal performance, ensure your system drivers and Windows updates are kept current.

3.1 Электр энергиясын башкаруу

• Күйгүзүү: Press the Alienware head icon on the front panel.
• Өчүрүү: Click the Start button in Windows, then Power > Shut down.
• Кайра баштоо: Click the Start button in Windows, then Power > Restart.
• Уйку режими: Click the Start button in Windows, then Power > Sleep.

3.2 AlienFX Lighting Control

The Alienware Aurora R10 features customizable AlienFX lighting. You can personalize the lighting zones on the front panel using the Alienware Command Center software, which is pre-installed on your system. This software allows you to choose from a wide range of colors and effects to match your setup or mood.

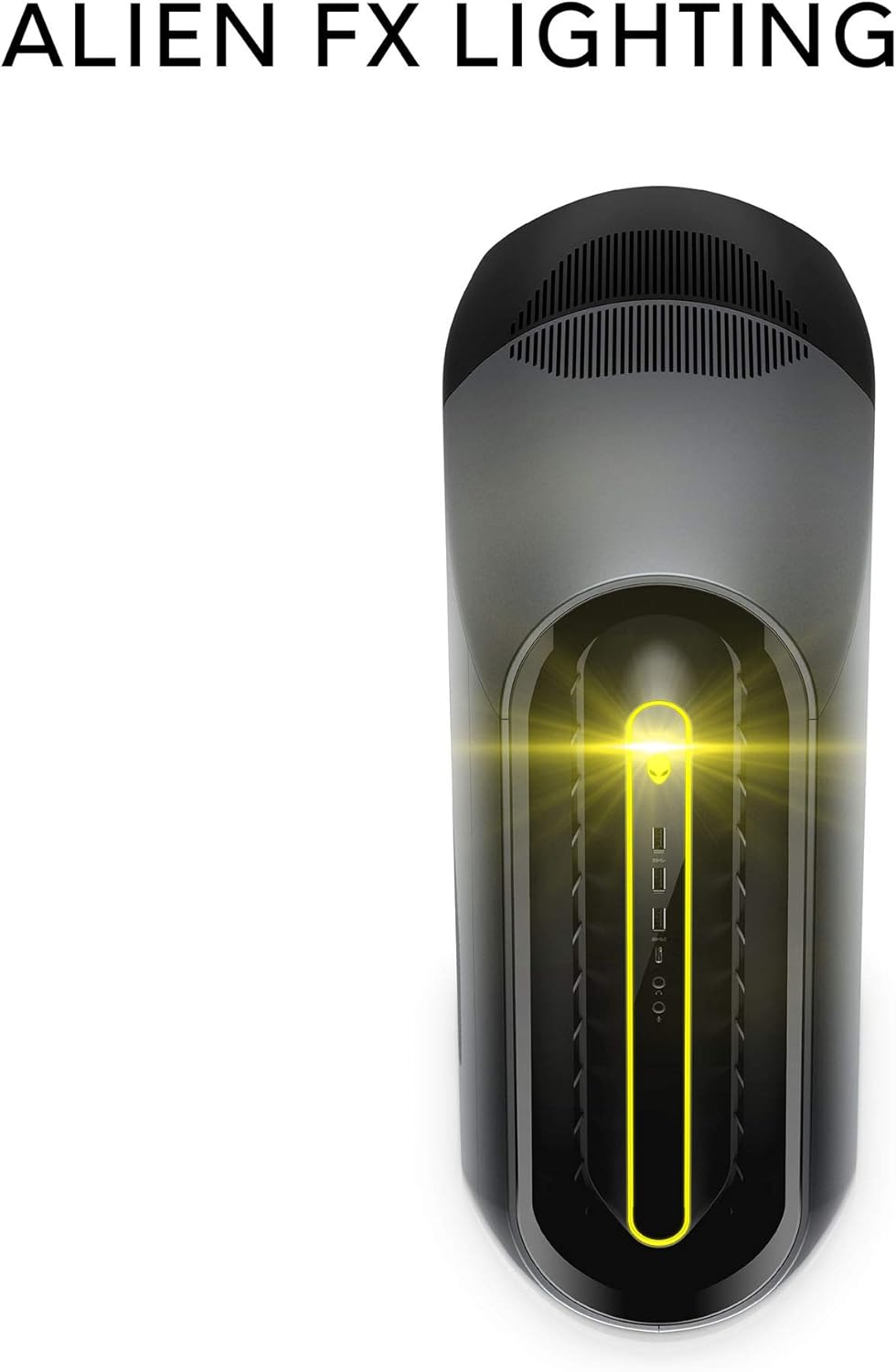

Figure 3: The AlienFX lighting system on the front of the desktop, offering personalized illumination.

3.3 Performance Optimization

The Alienware Command Center also provides tools for performance monitoring and optimization, including fan speed control and overclocking options for advanced users. Refer to the software's built-in help for detailed instructions on these features.

4. Негизги өзгөчөлүктөрү

The Alienware Aurora R10 is designed with several key features to enhance your computing and gaming experience:

• Күчтүү процессор: Equipped with an AMD Ryzen 7 3700X (8-Core, 32MB L3 Cache, max boost clock of 4.4GHz) processor, providing robust performance for multitasking and demanding applications.
• Өркүндөтүлгөн графика: Features an AMD Radeon RX 5700 XT 8GB GDDR6 graphics card, delivering high frame rates and immersive visuals for modern games.
• PCI-Express 4.0 Technology: The first Alienware machine to feature PCI-Express 4.0, doubling the bandwidth available to graphics cards and other components for enhanced overall performance.
• Оптимизацияланган аба агымы: The Legend Industrial Design incorporates an improved airflow pattern, efficiently reducing CPU temperatures and allowing for more stable performance and higher overclocking potential.
• Hybrid Storage Solution: A combination of a 512GB M.2 PCIe NVMe SSD for fast boot times and application loading, paired with a 1TB 7200 RPM SATA 6 Gb/s HDD for ampле сактоо сыйымдуулугу.
• Tool-Less Entry: Designed for easy access to internal components, simplifying upgrades and maintenance.

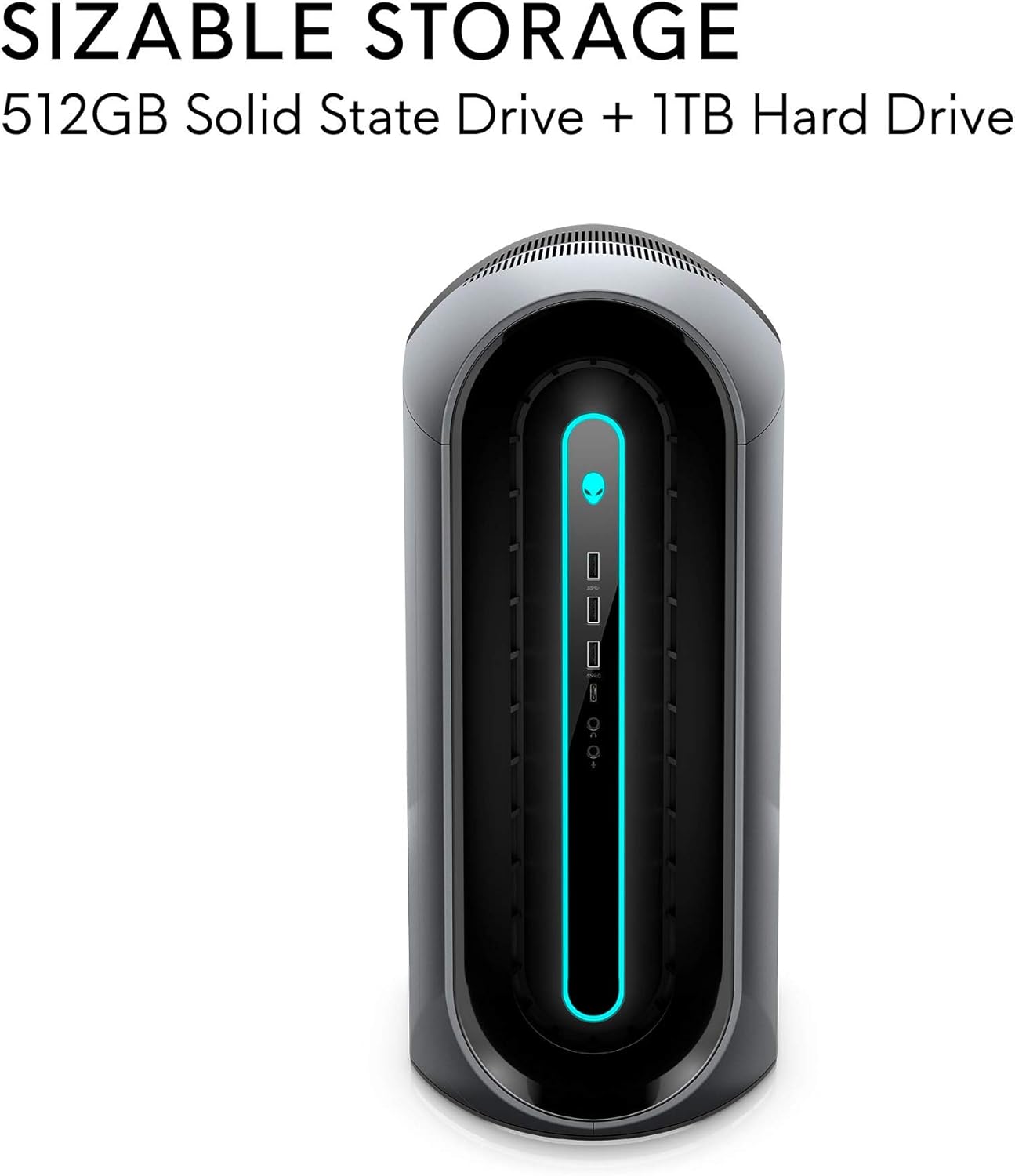

Figure 4: Illustration of the sizable storage configuration, combining SSD and HDD for speed and capacity.

Figure 5: The tool-less entry design of the desktop, allowing for convenient internal access.

Figure 6: Visual representation of the optimized airflow within the Aurora R10 chassis.

Figure 7: The AMD Radeon RX 5700 XT graphics card, a core component for high-performance gaming.

5. Техникалык тейлөө

Regular maintenance helps ensure the longevity and optimal performance of your Alienware Aurora R10.

• Чаңды тазалоо: Periodically clean the exterior and ventilation grilles with a soft, dry cloth. For internal components, use compressed air to gently remove dust from fans and heatsinks. Ensure the system is powered off and unplugged before cleaning.
• Программалык камсыздоо жаңыртуулары: Regularly check for and install updates for Windows 10, graphics drivers (AMD Radeon Software), and Alienware Command Center. These updates often include performance improvements, security patches, and bug fixes.
• Кабелдик башкаруу: Ensure all cables are neatly organized and not obstructing airflow.
• Системалык диагностика: Utilize the diagnostic tools available through Alienware Command Center or Dell SupportAssist to check for hardware issues.

8-сүрөт: Каптал view of the desktop, highlighting the large ventilation grilles crucial for maintaining optimal temperatures.

6. Кыйынчылыктарды

This section provides basic troubleshooting steps for common issues. For more complex problems, refer to the Alienware support webсайтка же техникалык колдоо менен байланышыңыз.

• Кубат жок:
  • Электр кабелинин жумушчу столдун жана электр розеткасынын экөөнө тең бекем туташтырылганын текшериңиз.
  • Башка аспапка сайып, розетка иштеп жатканын текшериңиз.
  • Check the power supply unit (PSU) for any indicator lights or unusual noises.
• Дисплей жок:
  • Confirm the monitor is powered on and connected to the correct display port on the graphics card.
  • Башка дисплей кабелин же бар болсо мониторду колдонуп көрүңүз.
  • Ensure the graphics card is properly seated in its slot (requires opening the chassis).
• Системанын жайлоосу/өндүрүшүнүн көйгөйлөрү:
  • Керексиз фон колдонмолорун жабуу.
  • Check for and install all available Windows updates and driver updates.
  • Monitor system temperatures using Alienware Command Center to ensure components are not overheating.
  • Зыяндуу программалык камсыздоону же вирустарды толук текшерүүнү иштетиңиз.
• адаттан тыш үндөр:
  • Loud fan noise may indicate dust buildup or high temperatures. Clean the fans and ensure proper airflow.
  • Clicking or grinding noises from the hard drive may indicate a failing drive. Back up your data immediately and contact support.

7. Техникалык шарттар

8. Кутуда эмне бар

Your Alienware Aurora R10 Gaming Desktop package includes:

• Alienware Aurora R10 оюн иш тактасы
• Баскычтоп
• Чычкан
• Электр кабели

9. Кепилдик жана колдоо

Your Alienware Aurora R10 Gaming Desktop comes with a standard manufacturer's warranty. For detailed warranty information, technical support, and service requests, please visit the official Alienware support website or Dell's customer service portal.

Көбүрөөк маалымат жана колдоо булактарын таба аласыз Amazon'догу Alienware дүкөнү.
