Introduction
This manual provides essential information for the safe and efficient use of your BarcaLounger Blair Power Recliner. Please read it thoroughly before assembly, operation, or maintenance to ensure proper function and longevity of your product.
The BarcaLounger Blair Power Recliner is a stately winged pub back recliner featuring power headrest and power recline. It is designed for comfort, especially for taller individuals, with a 45-inch high back and an automatic 3-inch footrest extension. The design includes kneed back rolled arms and pocketed coil pad over chaise seating, accented with nail head trim. The power controller is equipped with a USB port, auto-close function, and a memory preset button for personalized comfort.
Коопсуздук маалыматы
Маанилүү коопсуздук чаралары:
- Ensure the recliner is placed at least 9 inches (23 cm) from walls or other furniture to prevent tipping and allow full recline motion.
- Do not exceed the recommended weight capacity of the recliner. Refer to specifications for details.
- Keep children and pets away from the moving parts of the recliner, especially during operation.
- Avoid placing hands or feet near the reclining mechanism to prevent injury.
- Always unplug the recliner from the power outlet before cleaning or performing any maintenance.
- Do not operate the recliner if the power cord is damaged or frayed. Contact customer support for assistance.
Орнотуу жана чогултуу
Your BarcaLounger Blair Power Recliner comes partially assembled. Follow these steps for quick and easy setup.
- Пакеттен чыгаруу: Бардык компоненттерди таңгактан этияттык менен алып салыңыз. Бардык бөлүктөр бар экенин текшериңиз.
- Арткы таянычты бекитүү: Align the metal brackets on the backrest with the corresponding receivers on the seat base. Push down firmly until the backrest locks into place. You should hear a click.
- Туташуу кубаты: Locate the power cord extending from the recliner mechanism. Connect it to the power adapter, then plug the adapter into a standard wall outlet.
- Позициялоо: Place the recliner in its desired location, ensuring there is at least 9 inches (23 cm) of clearance from any wall or obstruction to allow for full recline.
Сүрөт 1: Алдыңкы view of the BarcaLounger Blair Power Recliner. This image shows the overall design, including the winged pub back, rolled arms, and nail head trim.
Figure 2: Product dimensions of the recliner. The chair measures 39.8 inches in depth, 38.5 inches in width, and 41.3 inches in height, indicating its suitability for taller individuals.
Иштөө нускамалары
The BarcaLounger Blair Power Recliner features intuitive power controls for personalized comfort.
Figure 3: The power control panel, located on the side of the recliner, features buttons for adjusting the recline and headrest, a USB charging port, an auto-close button, and a memory preset button.
- Күчтүү: Use the recline buttons on the control panel to smoothly adjust the backrest and footrest to your desired position. Press and hold to continuously recline or incline.
- Power Headrest: The headrest can be independently adjusted using its dedicated buttons on the control panel. This allows for optimal neck and head support in any reclined position.
- USB кубаттоо порту: A USB port is integrated into the control panel for convenient charging of your electronic devices.
- Автоматтык жабуу функциясы: Press the auto-close button to return the recliner to its upright, closed position automatically.
- Эстутумдун алдын ала жөндөөсү: The memory preset button allows you to save your favorite reclining position for quick recall. Consult the full manual for detailed instructions on setting and recalling presets.
Figure 4: The recliner shown in its fully reclined state, demonstrating the extended footrest and the comfortable angle of the backrest, ideal for relaxation.
Техникалык тейлөө жана кам көрүү
Proper care will ensure the longevity and appearance of your BarcaLounger Blair Power Recliner.
- Тазалоо: Жалпы тазалоо үчүн, булгаары бетин жумшак, d менен сүртүңүзamp cloth. For spills or stains, use a mild soap solution and immediately wipe dry. Avoid harsh chemicals or abrasive cleaners. The manufacturer recommends "Spot Wash" for product care.
- Териге кам көрүү: Periodically condition the leather to keep it supple and prevent cracking. Use a leather conditioner specifically designed for furniture.
- Mechanism Lubrication: The reclining mechanism is designed for long-term use and typically does not require lubrication. If you notice any unusual noises or stiffness, contact customer support.
- Электр кабели: Regularly inspect the power cord for any signs of damage. If damaged, discontinue use and contact customer support for replacement.

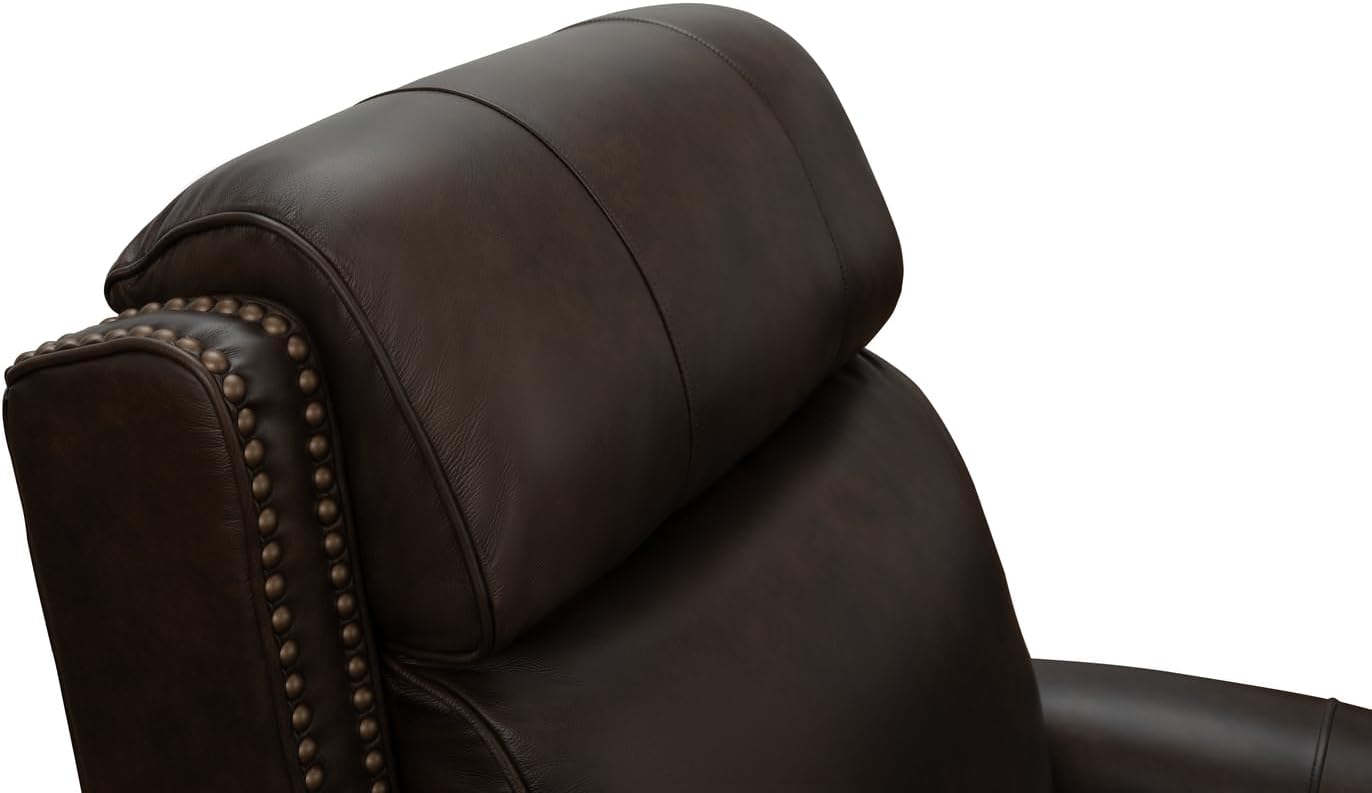

Figure 5: Detail of the power headrest, showcasing the quality of the leather and the stitching. Regular cleaning and conditioning will help maintain its appearance.
Проблемаларды чечүү
If you encounter any issues with your recliner, refer to the following common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кресло иштебейт. | Электр байланышы жок. | Ensure the power cord is securely plugged into the wall outlet and the recliner. Check the wall outlet with another device. |
| Кресло адаттан тыш үндөрдү чыгарат. | Loose components or mechanism friction. | Check for any loose bolts or screws. If noises persist, contact customer support. Do not attempt to lubricate the mechanism yourself. |
| Footrest or backrest is stuck. | Obstruction in mechanism or power issue. | Check for any objects obstructing the mechanism. Unplug the recliner for 5 minutes, then plug it back in and try again. |
| USB порту кубатталбай жатат. | Device compatibility or power issue. | Ensure the recliner is powered on. Try a different USB cable or device. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact BarcaLounger customer support.
Продукт спецификациялары
| Бренд | BarcaLounger |
| Модель аты | Блэр |
| Элемент моделинин номери | 9PH-3354-5625-87 |
| Түс | Ashford-Walnut |
| Продукциянын өлчөмдөрү (D x W x Y) | 39.8"D x 38.5"W x 41.3"H |
| Элемент Салмагы | 136 фунт |
| Эмерек бүтүрүү | Тери |
| Материалды толтуруу | көбүк |
| Артка стили | Pub Back |
| Arm Style | Прокат |
| Жаткан позициясынын саны | Чексиз |
| Өзгөчө өзгөчөлүк | Automatic, Power Recline, Power Headrest, USB Port |
| Сунушталган Колдонуулар | Эс алуу |
| Продукцияга кам көрүү боюнча нускамалар | Spot Wash |
| UPC | 850005342786 |
Кепилдик жана колдоо
For information regarding product warranty, please refer to the documentation included with your purchase or visit the official BarcaLounger website. Specific warranty details are not provided in this manual.
For customer support, technical assistance, or to inquire about replacement parts, please contact BarcaLounger directly through their official channels. You can often find contact information on the manufacturer's website or on the product's original packaging.
Note: This manual provides general guidance. For specific issues or detailed warranty claims, always refer to the manufacturer's official resources.
