Fender Passport Event Series 2 PA системасынын колдонуучу колдонмосу

Модель: 6943000000

1. Киришүү

The Fender Passport Event Series 2 is a portable audio system designed for amplifying voices, instruments, and background music. It features full-range speakers, a powered mixer with front-panel controls, and 375 watts of power. This system is suitable for various applications including educational settings, sporting events, worship services, meetings, presentations, and small live performances. Connectivity options include combination XLR/¼” jacks.

2. Продукт бүтүп калдыview

2.1 Негизги өзгөчөлүктөрү

2.2 Камтылган компоненттер

Fender Passport Event Series 2 PA System, fully assembled with mixer and two speakers

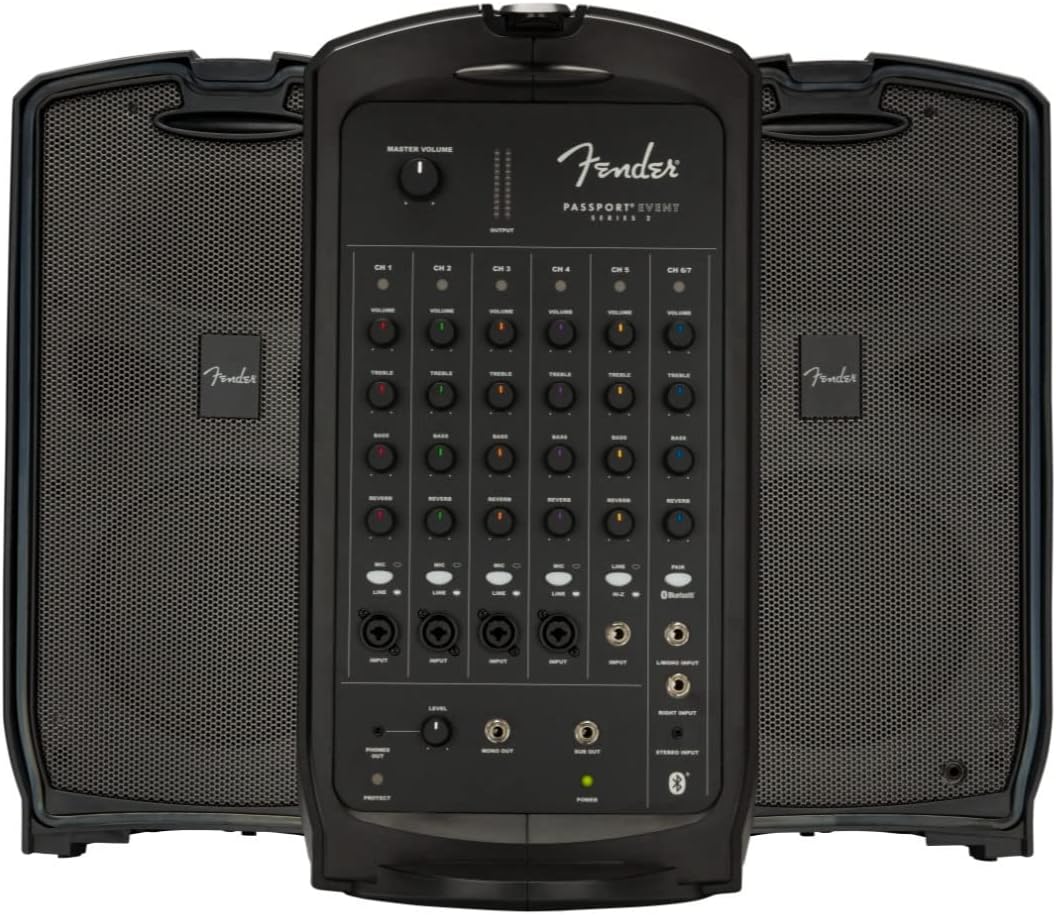

Figure 1: The Fender Passport Event Series 2 PA System in its assembled configuration, showcasing the central mixer unit flanked by two speakers.

3. Орнотуу

3.1 Таңгактан чыгаруу жана чогултуу

The Passport Event Series 2 is designed for easy transport and quick setup. The two speakers detach from the central mixer unit for deployment. To separate the components, release the latches securing the speakers to the mixer. Place the mixer on a stable surface and position the speakers as desired, ensuring they are connected to the mixer using appropriate speaker cables (not included).

Fender Passport Event Series 2 PA System with speakers detached from the central mixer unit

Figure 2: The Passport Event Series 2 with its speakers detached from the central mixer, ready for setup.

3.2 Туташтыруучу компоненттер

  1. Кубат туташуу: Connect the power cable to the AC inlet on the rear of the mixer and then to a suitable power outlet.
  2. Динамик туташуу: Connect the left and right speakers to the corresponding speaker outputs on the mixer using standard speaker cables.
  3. Киргизүү түзмөктөрү: Connect microphones, instruments, or other audio sources to the available input channels on the front panel. The system supports XLR, ¼” instrument/line, and stereo inputs.
  4. Subwoofer (Optional): If using an external powered subwoofer, connect it to the dedicated sub output on the mixer.
Fender Passport Event Series 2 PA System in its compact, closed form for transport

Figure 3: The Passport Event Series 2 in its compact, closed configuration, ideal for transport and storage.

4. Операция

4.1 Күйгүзүү/өчүрүү

After all connections are made, locate the power switch on the rear panel of the mixer. Flip the switch to the 'ON' position to power on the system. Ensure the master volume is set to a low level before powering on to prevent sudden loud noises. To power off, set the master volume to minimum and then flip the power switch to 'OFF'.

4.2 Киргизүү каналдары

The mixer features seven input channels, each with independent volume, treble, bass, and reverb controls. Adjust these controls to achieve the desired sound for each connected device.

4.3 Volume and Tone Controls

Each channel has dedicated controls for volume, treble, bass, and reverb. The master volume control adjusts the overall output level of the system. Experiment with these controls to find the optimal sound balance for your environment and audio sources.

4.4 Bluetooth байланышы

To stream audio via Bluetooth, activate Bluetooth on your device and select the Passport Event Series 2 from the list of available devices. The system will indicate a successful connection. Adjust the Bluetooth volume on your device and the mixer's Channel 7 volume for optimal playback.

5. Техникалык тейлөө

To ensure the longevity and optimal performance of your Fender Passport Event Series 2 PA System, follow these maintenance guidelines:

6. Кыйынчылыктарды

If you encounter issues with your Passport Event Series 2, refer to the following common troubleshooting steps:

If problems persist after attempting these steps, contact Fender customer support for further assistance.

7. Техникалык шарттар

ӨзгөчөлүкСпецификация
Монтаж түрүКабат туруктуу
Модель атыОкуя
Динамик түрүFull-range (Subwoofer output available)
Өзгөчө өзгөчөлүкBass Boost
Сунушталган КолдонууларMusic, Public Address
Шайкеш түзмөктөрSmartphone, Microphones, Instruments
Бирдик саны1.0 Count (System includes 2 speakers and 1 mixer)
ТүсКара
Камтылган компоненттерПортативдик PA системасы
Продукциянын өлчөмдөрү24.7"D x 31.6"W x 14.5"H
Суу өткөрбөйтЖАЛГАН
Элементтердин саны5 (System components)
Башкаруу ыкмасыManual (Front Panel)
Power SourceЭлектр зымдары
UPC885978347315
ӨндүрүүчүFender Audio
Элемент Салмагы51 фунт
ASINB084Q98R29
Элементтин моделинин номери6943000000
Дата биринчи жеткиликтүү14-февраль, 2020-жыл
Туташтыргыч түрүXLR, 1/4 inch, 1/8 inch
Баяндамачы Ampлификация түрүАктивдүү
Чыгуу Wattage375 Ватт
Frequency Response20 KHz
Байланыш технологиясыXLR, Bluetooth
Аудио чыгаруу режимиСтерео

8. Кепилдик жана колдоо

8.1 Кепилдик маалыматы

The Fender Passport Event Series 2 PA System typically includes a 2-Year Warranty. Additional protection plans, such as a 3-Year Protection Plan or a monthly Complete Protect plan, may be available for purchase to extend coverage. Please refer to your purchase documentation for specific warranty terms and conditions.

8.2 Кардарларды колдоо

For technical assistance, service, or any questions regarding your Fender Passport Event Series 2, please contact Fender customer support. You can find contact information on the official Fender webсайтында же продуктуңуздун каттоо материалдары аркылуу.

For information regarding returns or shipping, please refer to the policies of your retailer, such as Austin Bazaar, which handles shipping and returns for this product.
