Денвер SHA-150 акылдуу сигнализация системасынын колдонуучу колдонмосу

1. Киришүү

This user manual provides detailed instructions for the installation, configuration, and operation of your Denver SHA-150 Smart Alarm System. This system is designed to enhance the security of your home or property with its comprehensive set of devices and smart features.

The Denver SHA-150 kit offers flexible options to customize your security setup. It supports integration with smart home platforms like Alexa and Google Assistant for convenient control. The dedicated Denver application for iOS and Android allows for remote access, monitoring, and management of your system, including access to video camera feeds if integrated. In emergency situations, the system features a robust notification system capable of sending emergency SMS messages or making calls to up to five pre-configured recipients.

2. Продукт бүтүп калдыview жана компоненттер

The Denver SHA-150 Smart Alarm System typically includes the following components:

• Main Control Panel (Hub)
• PIR Кыймыл сенсору
• Door/Window Contact Sensor
• Баскычтоп
• Алыстан башкаруу
• Power Adapter for Hub

Figure 2.1: ашыкview of the Denver SHA-150 Smart Alarm System components.

Сүрөт 2.2: Алдыңкы view of the system keypad.

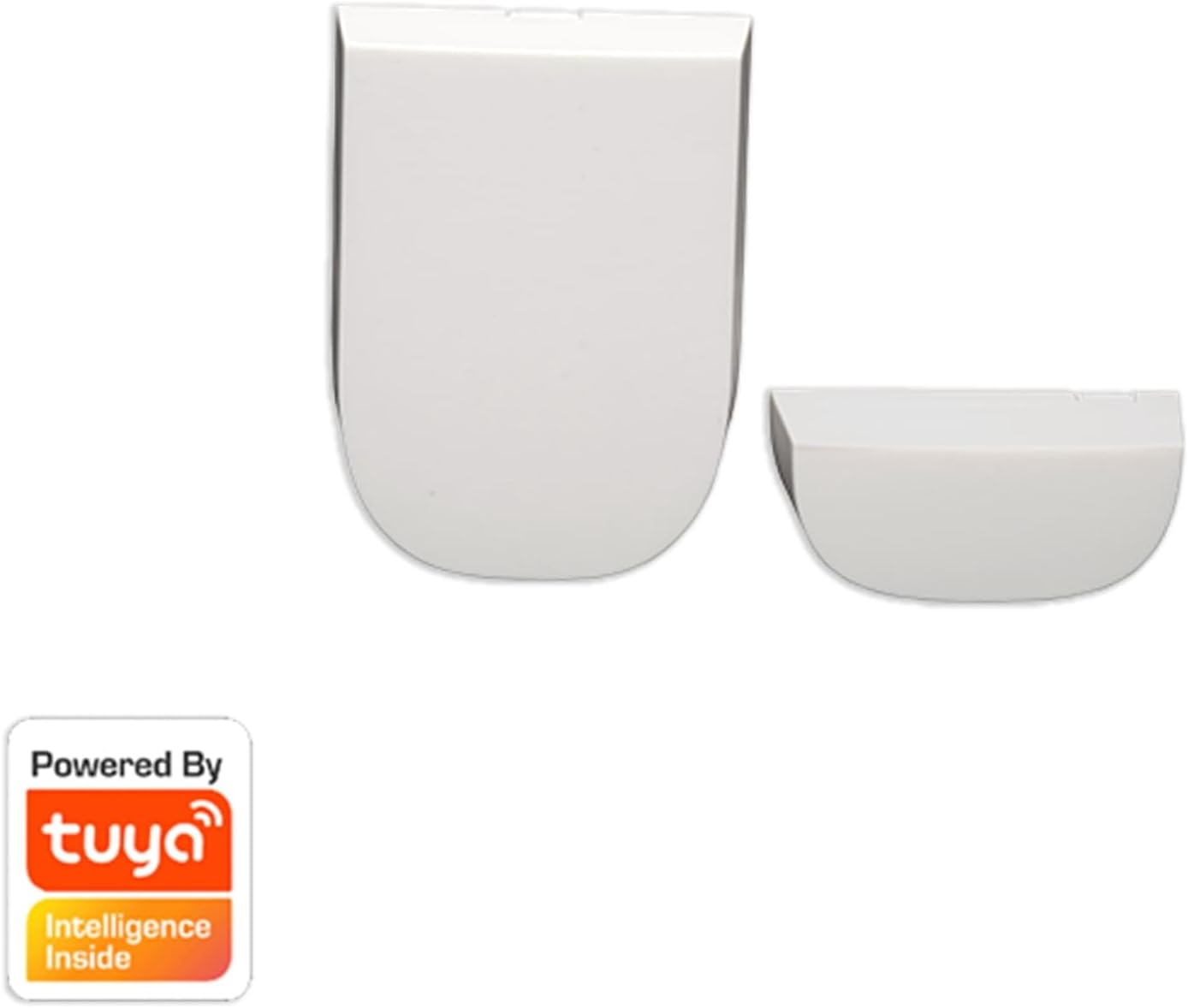

Figure 2.3: Door/Window Contact Sensor.

Figure 2.4: Remote Control for the alarm system.

3. Орнотуу нускамалары

1. Кутудан чыгаруу жана алгачкы текшерүү: Carefully unpack all components and verify that all items listed in the product overview бар жана бузулбаган.
2. Powering the Main Control Panel: Connect the main control panel (hub) to a power outlet using the provided power adapter. Ensure it powers on correctly.
3. Батарея орнотуу: Install the included AA batteries into the PIR motion sensor, keypad, and remote control as per their individual instructions. Refer to Figure 3.1 for an example of a sensor's battery compartment.


   3.1-сүрөт: Арткы view of a PIR motion sensor, indicating battery placement.

4. Download the Denver App: Download the official Denver application from the App Store (iOS) or Google Play Store (Android) on your smartphone or tablet.
5. Account Creation and Hub Pairing: Open the app, create an account, and follow the on-screen instructions to pair your main control panel with the app. This typically involves scanning a QR code or entering a device ID.
6. Adding Sensors and Accessories: Once the hub is paired, use the app to add each sensor (motion, door/window) and accessory (keypad, remote control) to the system. Follow the app's prompts for pairing each device.
7. Сенсорлорду жайгаштыруу:
   • Кыймыл сенсорлору: Install in corners of rooms, ensuring a clear line of sight to cover entry points and high-traffic areas. Avoid placing near heat sources or direct sunlight.
   • Эшик/терезе сенсорлору: Mount the two parts of the sensor on the door/window frame and the moving part of the door/window, ensuring they are aligned and within 1 cm of each other when closed.
8. Smart Assistant Integration (Optional): If desired, integrate your system with Alexa or Google Assistant by following the instructions provided within the Denver app or your smart assistant's application.

4. Иштөө нускамалары

The Denver SHA-150 system can be operated via the mobile application, keypad, or remote control.

• Системаны куралдандыруу:
  • Колдонмо аркылуу: Open the Denver app and select the "Arm" function.
  • Баскычтоп аркылуу: Enter your security code and press the "Arm" button (often represented by a lock icon).
  • Алыстан башкаруу аркылуу: Press the "Arm" button on the remote control.

  A confirmation sound or light indicator will confirm the system is armed.

• Системаны өчүрүү:
  • Колдонмо аркылуу: Open the Denver app and select the "Disarm" function.
  • Баскычтоп аркылуу: Enter your security code and press the "Disarm" button (often represented by an unlocked lock icon).
  • Алыстан башкаруу аркылуу: Press the "Disarm" button on the remote control.

  The system will provide a confirmation indicating it is disarmed.
• SOS функциясы: In an emergency, press the "SOS" button on the keypad or remote control. This will immediately trigger the alarm and send emergency notifications to your pre-configured contacts.
• Шашылыш билдирүүлөр: When an alarm is triggered, the system will automatically send SMS messages or make calls to up to 5 designated phone numbers. Ensure these contacts are correctly configured in the Denver app.
• Алыстан байкоо: Use the Denver app to monitor the status of your sensors, view event logs, and access any integrated video cameras remotely.

5. Техникалык тейлөө

• Батареяны алмаштыруу:

  Sensors and accessories (PIR motion sensor, keypad, remote control) are powered by AA batteries. The system will typically notify you via the app when battery levels are low. Replace batteries promptly to ensure continuous operation. Use high-quality alkaline batteries for optimal performance.

• Тазалоо:

  Wipe the surfaces of all components with a soft, dry cloth. Avoid using abrasive cleaners or solvents, which can damage the devices. Ensure sensors are free from dust and obstructions for accurate detection.
• Программалык камсыздоо жаңыртуулары:

  Regularly check the Denver app for available firmware updates for your main control panel and other connected devices. Updates often include performance improvements and security enhancements. Follow the app's instructions for performing updates.

• Системалык тестирлөө:

  Periodically test your alarm system to ensure all sensors are functioning correctly and emergency notifications are being sent. Inform your emergency contacts before conducting a test.

6. Кыйынчылыктарды

• Система жооп бербейт:

  Check if the main control panel is properly connected to power and its indicator lights are on. Verify your home's Wi-Fi connection if the hub relies on it for communication. Restart the main control panel by unplugging it for 30 seconds and then plugging it back in.

• Sensor Not Detecting:

  Ensure the sensor's batteries are not depleted. Check for any physical obstructions blocking the sensor's field of view (for motion sensors) or preventing proper contact (for door/window sensors). Re-pair the sensor with the main control panel via the app if necessary.

• Билдирмелер алынган жок:

  Verify that the emergency contact numbers are correctly entered in the Denver app. Check your phone's settings to ensure app notifications are enabled. Confirm that your main control panel has a stable network connection (Wi-Fi or cellular, depending on model capabilities).
• Keypad/Remote Not Working:

  Replace the batteries in the keypad or remote control. Ensure they are within range of the main control panel. If issues persist, attempt to re-pair them with the system through the Denver app.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, please refer to the documentation included with your purchase or contact your retailer. Denver provides customer support for product inquiries and technical assistance.

For further assistance, please visit the official Denver website or contact their customer service department. Contact details can typically be found on the product packaging or the Denver brand store page.

This manual is subject to change without notice. Please refer to the latest version available online.
