Streamlight TLR-8 X тактикалык курал жарыгы колдонуучусунун колдонмосу

Introduction

The Streamlight 69414 TLR-8 X is a compact and durable tactical weapon light with an integrated red aiming laser, designed for enhanced performance in various environments. It provides 500 lumens of LED brightness and a 5,000 candela peak beam intensity, ensuring superior visibility and precise targeting. This manual provides detailed instructions for the safe and effective use, installation, and maintenance of your TLR-8 X.

Коопсуздук маалыматы

ЭСКЕРТҮҮ:

Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.

Always ensure the firearm is unloaded and safe before installing, removing, or performing any maintenance on the TLR-8 X. Keep fingers clear of the muzzle.

The laser is rated Class 3R, 640-660nm with an output of <5mW. Avoid direct eye exposure to the laser beam.

Пакеттин мазмуну

• TLR-8 X Flashlight with Integrated Red Aiming Laser
• 1x CR123A батарейкасы
• High and Low Switches (pre-installed or included as options)
• Mounting Kit (includes various keys: UNIV-1, UNIV-2, UNIV-3, 1913-1, 1913-2, 1913-3, 1913-4, and any 1913 key)
• Ачкыч кутучасы жана куралы
• Колдонуучунун колдонмосу (бул колдонмо)

Жайгашуу

1. Батареяны орнотуу

The TLR-8 X uses one CR123A battery. To install or replace the battery:

1. Ок атуучу куралдын бошотулганын жана коопсуз экенин текшериңиз.
2. Unscrew the face cap of the light by rotating it counter-clockwise.
3. Insert the CR123A battery with the positive (+) end facing towards the light head.
4. Screw the face cap back on clockwise until it is finger-tight.

Image: The TLR-8 X with its face cap unscrewed, showing the battery compartment and a CR123A battery ready for insertion.

2. Ок атуучу куралга орнотуу

The TLR-8 X features a robust rail clamp system for secure attachment and detachment without tools. Verify compatibility and fitment with your specific handgun model before purchase and installation.

1. Ок атуучу куралдын бошотулганын жана коопсуз экенин текшериңиз.
2. Select the appropriate key from the mounting kit that matches your firearm's rail type (e.g., UNIV-1 for most Glock models, 1913-1 for Sig Sauer 320 Compact).
3. Рельс clamp screw on the TLR-8 X.
4. Align the TLR-8 X with the firearm's accessory rail and slide it into position.
5. Рельс clamp screw until the light is securely fastened to the rail. Do not overtighten.

Image: A Streamlight TLR-8 X shown from the front-right angle, illustrating its compact design and rail clamp system for attachment to a firearm.

Сүрөт: бир тарап view of the Streamlight TLR-8 X, highlighting its profile and the integrated laser emitter.

3. Rear Switch Options

The TLR-8 X comes with interchangeable rear paddle switches (high and low options) to suit user preference and firearm ergonomics. The default switches are typically the "high" profile.

1. To change switches, ensure the unit is off and detached from the firearm.
2. Carefully remove the existing paddle switches.
3. Install the desired high or low profile switches by aligning them with the slots and pressing firmly until they click into place.

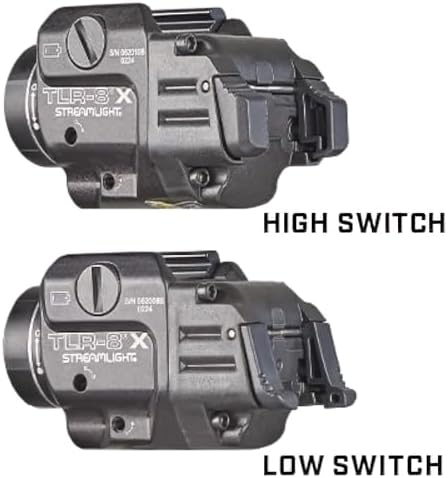

Image: A comparison showing the "High Switch" and "Low Switch" options for the TLR-8 X, illustrating the difference in their paddle profiles.

Иштөө нускамалары

1. Күйгүзүү/өчүрүү жана режимди тандоо

The TLR-8 X offers three primary modes: LED Light Only, LED Light & Laser, and Laser Only. Switching between modes is intuitive using the ambidextrous rear paddle switches.

• Убактылуу активдештирүү: Калакча которгучтарынын бирин басып, кармап туруңуз. Өчүрүү үчүн коё бериңиз.
• Дайыма күйүк: Press and release either paddle switch quickly. Press again to turn off.
• Которуу режимдери: With the unit on, press and hold one paddle switch, then tap the other paddle switch to cycle through the modes (Light Only → Light & Laser → Laser Only).

Image: The Streamlight TLR-8 X shown with its red aiming laser activated, projecting a visible red dot.

2. Строб режими

The TLR-8 X features a user-enabled strobe mode for tactical situations.

• To activate strobe: From the "Constant On" mode, quickly double-tap either paddle switch.
• To deactivate strobe: Press either paddle switch once.

3. Коопсуз өчүрүү функциясы

The Safe Off feature prevents unintentional activation, conserving battery life and ensuring readiness. To engage Safe Off, rotate the face cap approximately 1/4 turn counter-clockwise until the light no longer activates. To disengage, rotate clockwise until it is finger-tight.

4. Laser Zeroing (Sighting In)

To ensure accurate aiming, the integrated red laser needs to be zeroed to your firearm. This process typically involves adjusting the laser's point of impact to match your firearm's point of aim.

1. Ок атуучу куралдын бошотулганын жана коопсуз экенин текшериңиз.
2. Mount the TLR-8 X securely to your firearm.
3. Using the small hex wrench provided in the mounting kit, locate the windage (horizontal) and elevation (vertical) adjustment screws on the side and bottom of the unit.
4. Make small adjustments to the screws. Turning the screw clockwise typically moves the laser in one direction, and counter-clockwise in the opposite. Test adjustments at a safe range.
5. Fire a few rounds at a target to determine the point of impact relative to the laser dot. Adjust the laser until the point of impact aligns with the laser dot at your desired zeroing distance.
6. Эскертүү: Be careful not to strip the adjustment screws. Use a properly sized hex wrench.

Сүрөт: арткы view of the Streamlight TLR-8 X, indicating the location of the windage and elevation adjustment screws for the laser.

Техникалык тейлөө

• Тазалоо: жумшак колдонуу, damp cloth to clean the exterior of the light. For the lens, use a lens cleaning cloth and solution designed for optics. Avoid abrasive materials.
• Батареяны алмаштыруу: Replace the CR123A battery when the light output diminishes or the laser becomes dim. Always use high-quality batteries.
• O-шакектери: Periodically inspect the O-rings for wear and tear. Lubricate with silicone grease if necessary to maintain water resistance.
• Сактагыч: When storing the TLR-8 X for extended periods, remove the battery to prevent leakage and damage. Engage the Safe Off feature.

Проблемаларды чечүү

Техникалык шарттар

• Модел: 69414
• Жарык чыгаруу: 500 Lumens
• Жогорку нурлардын интенсивдүүлүгү: 5000 Кандела
• Beam Distance: 141 метр
• Runtime (Light Only): 1.5 саат
• Лазердик түрү: Red Aiming Laser (Class 3R, 640-660nm, <5mW output)
• Кубат булагы: 1x CR123A Battery (included)
• Материал: Anodized Machined Aluminum
• Суу каршылык: IPX4 (Сууга туруктуу)
• Өлчөмдөрү: 2.58"D x 1.18"W x 1.5"H
• Салмагы: 2.56 унция (0.16 фунт)
• Түсү: Кара
• Монтаждоо: Rail Clamp System (compatible with UNIV-1, UNIV-2, UNIV-3, 1913-1, 1913-2, 1913-3, 1913-4, and any 1913 key)

Кепилдик жана колдоо

The Streamlight TLR-8 X is backed by a Чектелген Өмүр бою Кепилдик. For warranty claims, technical support, or service, please contact Streamlight customer service directly. Refer to the official Streamlight webэң акыркы байланыш маалыматы жана кепилдик маалыматы үчүн сайт.

Сиз ошондой эле кошумча ресурстарды жана колдоо таба аласыз Amazon'догу Streamlight дүкөнү.
