Introduction
This manual provides essential information for the safe and effective operation, maintenance, and care of your Streamlight Flipmate 500-Lumen USB Rechargeable Multi-Function Compact Work Light. Please read this manual thoroughly before using the product.
1-сүрөт: The Streamlight Flipmate 500-Lumen USB Rechargeable Work Light, showcasing its compact design and LED panel.
Жайгашуу
Аппаратты заряддоо
The Streamlight Flipmate is equipped with a rechargeable lithium-ion battery. Before initial use, fully charge the device.
- Locate the USB charging port on the side of the device.
- Connect the provided USB cable to the charging port and a compatible USB power source (e.g., wall adapter, computer USB port).
- The indicator light will turn red during charging. Once fully charged, the indicator light will turn green.
2-сүрөт: USB charging port on the Streamlight Flipmate.
Толук кубаттоо, адатта, болжол менен 4.5 саатты талап кылат.
Иштөө нускамалары
Power On/Off and Light Modes
The Flipmate features multiple light modes and a versatile design for various applications.
- Кубат баскычы: Жарык режимдери аркылуу айлануу үчүн кубат баскычын басыңыз.
- Cool White LEDs:
- High: 500 Lumens (approx. 2.5 hours runtime)
- Low: 250 Lumens (approx. 5.75 hours runtime)
- 90 CRI LEDs (Color-Rite Technology): For identifying color differences in paint or wires.
- High: 400 Lumens (approx. 2.5 hours runtime)
- Low: 200 Lumens (approx. 6 hours runtime)
- To switch between Cool White and 90 CRI modes, press and hold the power button for approximately 2 seconds.
Ар тараптуу позициялоо
The Flipmate offers multiple ways to position the light for hands-free operation:
- 270 градуска айлануу: The light head can rotate 270 degrees, allowing you to direct illumination precisely where needed.
- Магниттик база: The flat base contains strong magnets for attaching the light to metallic surfaces.
- Stowable Hook: A retractable hook is integrated into the base for hanging the light.
3-сүрөт: Demonstration of the 270-degree rotating head for flexible lighting angles.
4-сүрөт: The magnetic base provides hands-free attachment to metal surfaces.

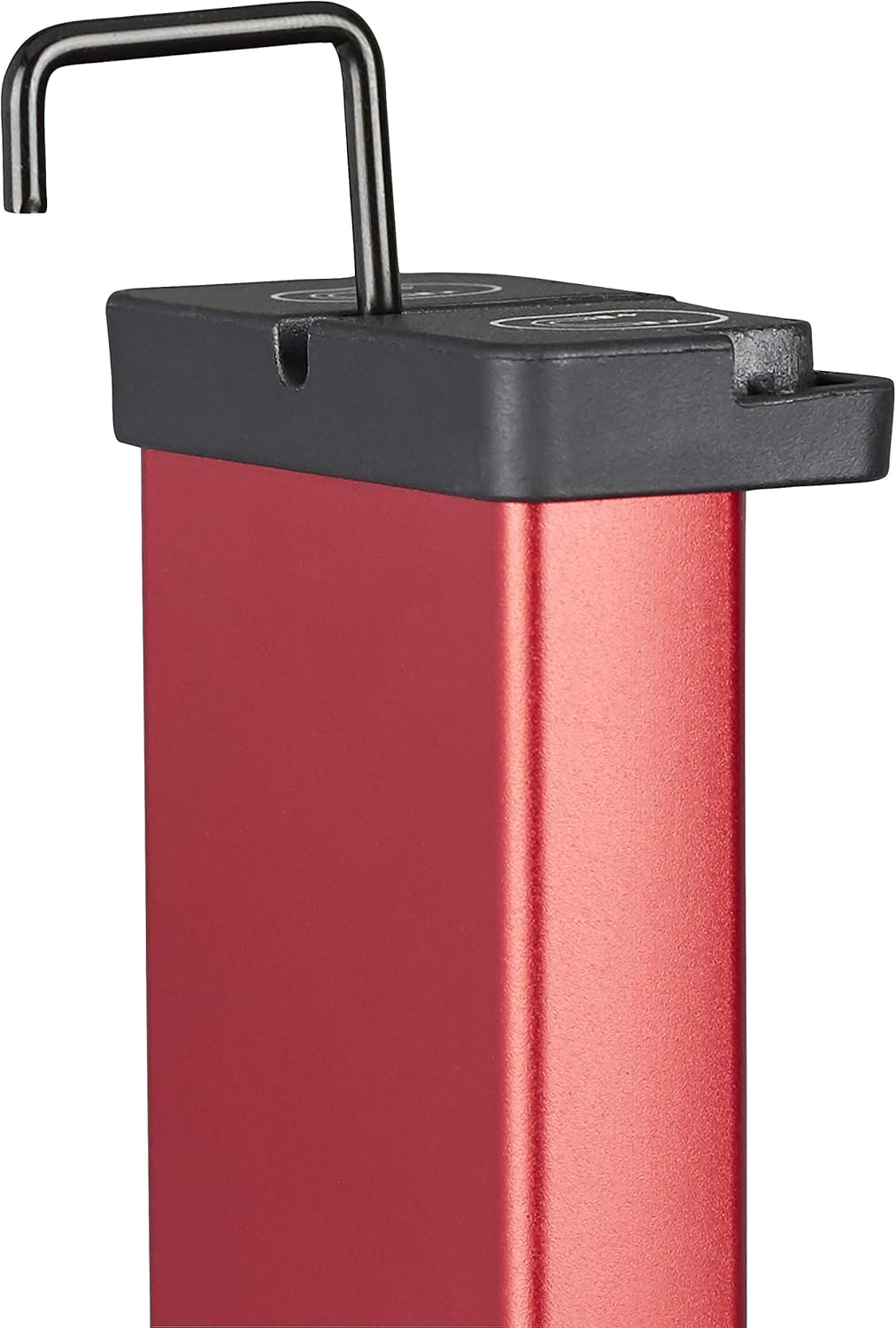

5-сүрөт: The stowable hook allows for convenient hanging.
6-сүрөт: The Flipmate providing illumination in an engine bay.
7-сүрөт: The Flipmate used to light a car's interior, highlighting its compact size for confined areas.
Техникалык тейлөө
- Тазалоо: Жарнак менен түзмөктү тазалаңызamp кездеме. Катуу химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
- Батареяга кам көрүү: For optimal battery life, avoid fully discharging the battery frequently. Recharge when the indicator light shows low battery.
- Сактагыч: Store the Flipmate in a cool, dry place when not in use.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Батарея түгөнүп калды. | Берилген USB кабели аркылуу аппаратты заряддаңыз. |
| Жарык күңүрт. | Батарея аз же туура эмес режим. | Recharge the battery. Cycle through modes to ensure high brightness is selected. |
| Заряддоо индикатору күйбөйт. | Бузук USB кабели же кубат булагы. | Try a different USB cable or power source. Ensure connections are secure. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 61501 |
| Light Output (Cool White) | High: 500 Lumens; Low: 250 Lumens |
| Light Output (90 CRI) | High: 400 Lumens; Low: 200 Lumens |
| Power Source | Кайра заряддалуучу литий-иондук батарейка |
| Заряддоо убактысы | Болжол менен 4.5 саат |
| Суу каршылык | IPX4 (Сууга туруктуу) |
| Таасирге каршылык | 2 Meter Tested |
| Курулуш материалы | Anodized Aluminum, Polycarbonate Lens |
| Өлчөмдөр | 7.94"D x 2.56"W x 1.3"H |
| Салмагы | 0.48 унция |
Кепилдик маалымат
The Streamlight Flipmate 500-Lumen USB Rechargeable Work Light is covered by a Чектелген Өмүр бою Кепилдик. For specific terms and conditions, please refer to the official Streamlight webсайтка же кардарларды колдоо менен байланышыңыз.
Колдоо жана кошумча ресурстар
For further assistance, product registration, or to explore other Streamlight products, please visit the official Streamlight webсайт же алардын Amazon бренд дүкөнү:
Продукт видеолору
Streamlight Work Lights Overview
Video Description: This official Streamlight video provides an overview of various work lights, including the Flipmate, highlighting their features such as portability, chemical resistance, and battery life. It demonstrates how these lights are used in automotive repair and other tasks requiring precise illumination.
