1. Продукт бүтүп калдыview
This manual provides essential information for the installation, operation, and maintenance of your Zehnder Thermostat SH M 30 x 1.5, Model 819080. This elegant thermostat features a built-in liquid sensor for precise temperature control. It is tested according to EN215 standards and offers an adjustable temperature range from 7 to 28 degrees Celsius, including a zero position for complete shut-off. The thermostat is designed with a chrome-plated union nut and a standard M 30 x 1.5 thread connection for easy integration with compatible radiator valves.

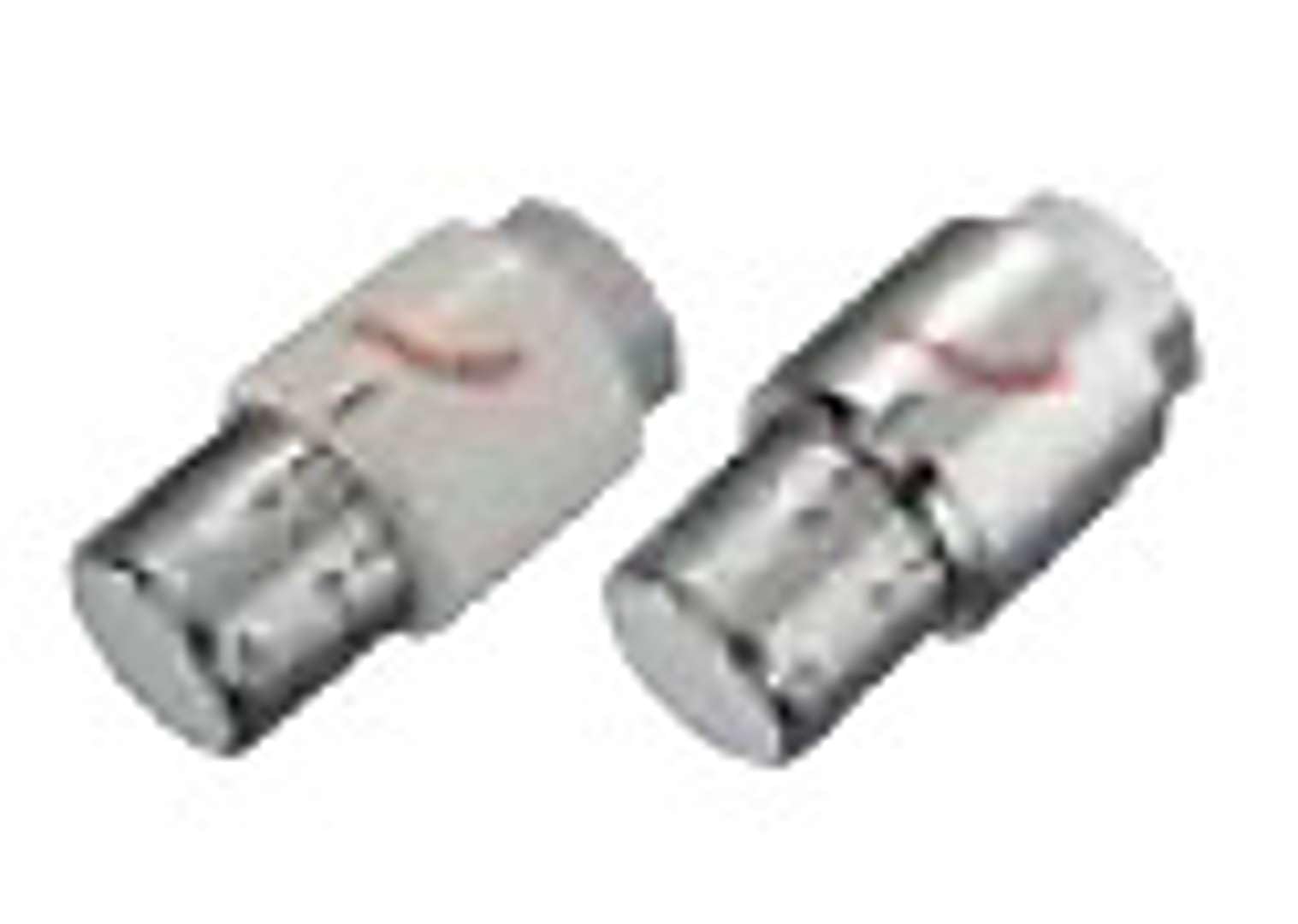

Сүрөт 1.1: Алдыңкы view of the Zehnder Thermostat SH M 30 x 1.5, Model 819080 in white. This image shows the compact design and the temperature setting dial.
2. Коопсуздук маалыматы
- Орнотуудан жана колдонуудан мурун бардык нускамаларды кылдат окуп чыгыңыз.
- Ensure the heating system is depressurized and cooled down before attempting installation or maintenance.
- Installation should only be performed by qualified personnel if you are unsure about the process.
- Do not attempt to modify the thermostat or its components.
- Таңгактоочу материалдарды балдардан алыс кармаңыз.
3. Пакеттин мазмуну
Пакетте төмөнкү нерсе болушу керек:
- 1 x Zehnder Thermostat SH M 30 x 1.5, Model 819080 (White)
- Integrated chrome-plated union nut for mounting
4. Орнотуу жана орнотуу
This thermostat is designed for easy installation on radiator valves with an M 30 x 1.5 thread connection.
Орнотуу кадамдары:
- Prepare the Radiator Valve: Ensure the existing thermostatic head (if any) is removed. If installing on a new valve, ensure it is properly fitted to the radiator and plumbing system.
- Position the Thermostat: Align the Zehnder thermostat with the M 30 x 1.5 thread of the radiator valve.
- Термостатты бекитиңиз: Hand-tighten the chrome-plated union nut onto the valve thread. Do not overtighten, as this can damage the valve or thermostat. A firm hand-tightening is usually sufficient to create a secure connection.
- Туруктуулукту текшерүү: Ensure the thermostat is firmly seated and does not wobble.
For optimal performance, ensure the thermostat is not obstructed by curtains or furniture, which could affect its ability to sense room temperature accurately.
5. Иштөө нускамалары
The Zehnder Thermostat allows you to control the heat output of your radiator by setting the desired room temperature.
Температураны жөндөө:
- The thermostat has an adjustable range from 7 градустан 28 градуска чейин жылуу.
- Rotate the dial on the thermostat head to select your desired temperature. The numbers or markings on the dial correspond to different temperature settings.
- Нөл позициясы: The thermostat includes a zero position (often marked with an asterisk or '0'). Turning the dial to this position will completely close the valve, shutting off the heat to the radiator. This is useful for rooms that do not require heating or during warmer months.
- The built-in liquid sensor will react to the ambient room temperature, opening or closing the valve to maintain the set temperature.
6. Техникалык тейлөө
The Zehnder Thermostat is designed for long-term, reliable operation with minimal maintenance.
- Тазалоо: Wipe the thermostat head with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз, анткени алар бетке зыян келтириши мүмкүн.
- Функцияны текшерүү: Periodically check that the dial turns smoothly and that the temperature changes in the room correspond to the settings.
- Valve Pin Movement: If a radiator remains cold even when the thermostat is set to a high temperature, the valve pin might be stuck. Gently press the pin on the radiator valve (after removing the thermostat head) to ensure it moves freely.
7. Кыйынчылыктарды
If you encounter issues with your Zehnder Thermostat, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Радиатор муздак бойдон калууда | Thermostat set too low or in zero position; valve pin stuck; air in radiator. | Increase temperature setting; check if valve pin moves freely; bleed the radiator. |
| Бөлмө өтө ысык | Thermostat set too high; thermostat sensing incorrect room temperature (e.g., near a heat source). | Decrease temperature setting; ensure thermostat is not obstructed or near other heat sources. |
| Difficulty turning the dial | Ички механизмдин бузулушу же бузулушу. | Do not force the dial. If it's stiff, check for external obstructions. If the issue persists, contact support. |
| Water leakage around the valve | Loose connection or damaged valve. | Tighten the union nut (do not overtighten). If leakage continues, contact a qualified plumber. |
8. Техникалык шарттар
- Бренд: Zehnder
- Модель номери: 819080
- Бөлүмдүн номери: 819080
- Продукциянын өлчөмдөрү: 8 x 4.7 x 4.7 см (L x W x Y)
- Салмагы: 150 г
- Түсү: Ак
- Температура диапазону: 7 градустан 28 градуска чейин жылуу
- Сенсор түрү: Built-in liquid sensor
- Жипти туташтыруу: M 30 x 1.5
- Стандарт: Tested according to EN215
- Батареялар талап кылынат: Жок
9. Кепилдик жана колдоо
For warranty information and technical support, please refer to the official Zehnder website or contact your local Zehnder dealer. Keep your proof of purchase for any warranty claims.
