Einhell TE-VE 550/2A Workshop Vacuum Extraction System User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation of your Einhell TE-VE 550/2A Workshop Vacuum Extraction System. Please read these instructions carefully before initial use and keep them for future reference.

The Einhell TE-VE 550/2A is designed to effectively remove dust and wood chips from your workspace, ensuring a cleaner environment and prolonging the life of your tools. It features a silent induction motor and an automatic socket for integrated operation with power tools.

An overview of the Einhell TE-VE 550/2A extraction system, showing the main unit with its collection bag and a variety of included suction adapters.

A graphic icon illustrating wheels and a handle, signifying the easy transport feature of the extraction system.

2. Коопсуздук нускамалары

Жалпы коопсуздук эскертүүлөрү

• Always wear appropriate personal protective equipment (PPE), including eye protection and hearing protection, when operating the extraction system or connected tools.
• Электр энергиясы продуктунун этикеткасындагы спецификацияларга дал келишин текшериңиз.
• Do not operate the system in wet conditions or in the presence of flammable liquids or gases.
• Балдарды жана уруксаты жок адамдарды операциялык аймактан алыс кармаңыз.
• Disconnect the power plug before performing any maintenance, cleaning, or when changing accessories.
• Do not use the system to extract hot materials, sparks, or fine dust that could cause an explosion.

3. Пакеттин мазмуну

Verify that all items listed below are present upon unpacking:

• Einhell TE-VE 550/2A Extraction System Main Unit
• Коллекциялык сумка
• Сорох шланг
• Multi Adapter Set (Ø 36–100 mm)
• Suction Adapter (2 x 36 mm to 100 mm)
• User Manual

А деталдуу view of the multi-adapter set, including various sizes and shapes of adapters for connecting to different workshop tools. Dimensions are indicated for each adapter.

4. Орнотуу

4.1 Ассамблея

1. Бардык компоненттерди таңгактан чыгарып, туруктуу, тегиз жерге коюңуз.
2. Assemble the main unit according to the diagrams provided in the separate assembly guide (if applicable). Ensure all fasteners are securely tightened.
3. Attach the collection bag to the designated area on the main unit. Ensure it is properly sealed to prevent dust leakage.
4. Connect the suction hose to the inlet port of the extraction system.

The Einhell TE-VE 550/2A extraction system positioned next to a workbench, actively collecting dust from a power tool being operated by a person wearing a mask.

4.2 Connecting to Power Tools

1. Select the appropriate adapter from the multi-adapter set that fits your power tool's dust extraction port.
2. Connect the selected adapter to the free end of the suction hose.
3. Plug your power tool into the automatic socket located on the extraction system.
4. Plug the extraction system's power cord into a suitable wall outlet.

А деталдуу view of the automatic power socket on the extraction system, designed for connecting power tools. The socket cover is open, revealing the electrical contacts.

A graphic icon illustrating an automatic socket with the text 'AUTOMATIC SOCKET MAX. 2400 W', highlighting a key feature of the system.

5. Иштөө нускамалары

5.1 Starting the System

The Einhell TE-VE 550/2A features an automatic start function when a power tool is connected to its integrated socket.

1. Ensure the extraction system is plugged into a power source and your power tool is plugged into the system's automatic socket.
2. Turn on the main switch of the extraction system.
3. When you switch on your connected power tool, the extraction system will automatically start.
4. After switching off the power tool, the extraction system will continue to run for a short period to clear any remaining dust from the hose, then shut off automatically.

5.2 Кол менен иштетүү

For continuous extraction without a connected power tool, you can operate the system manually using the main switch.

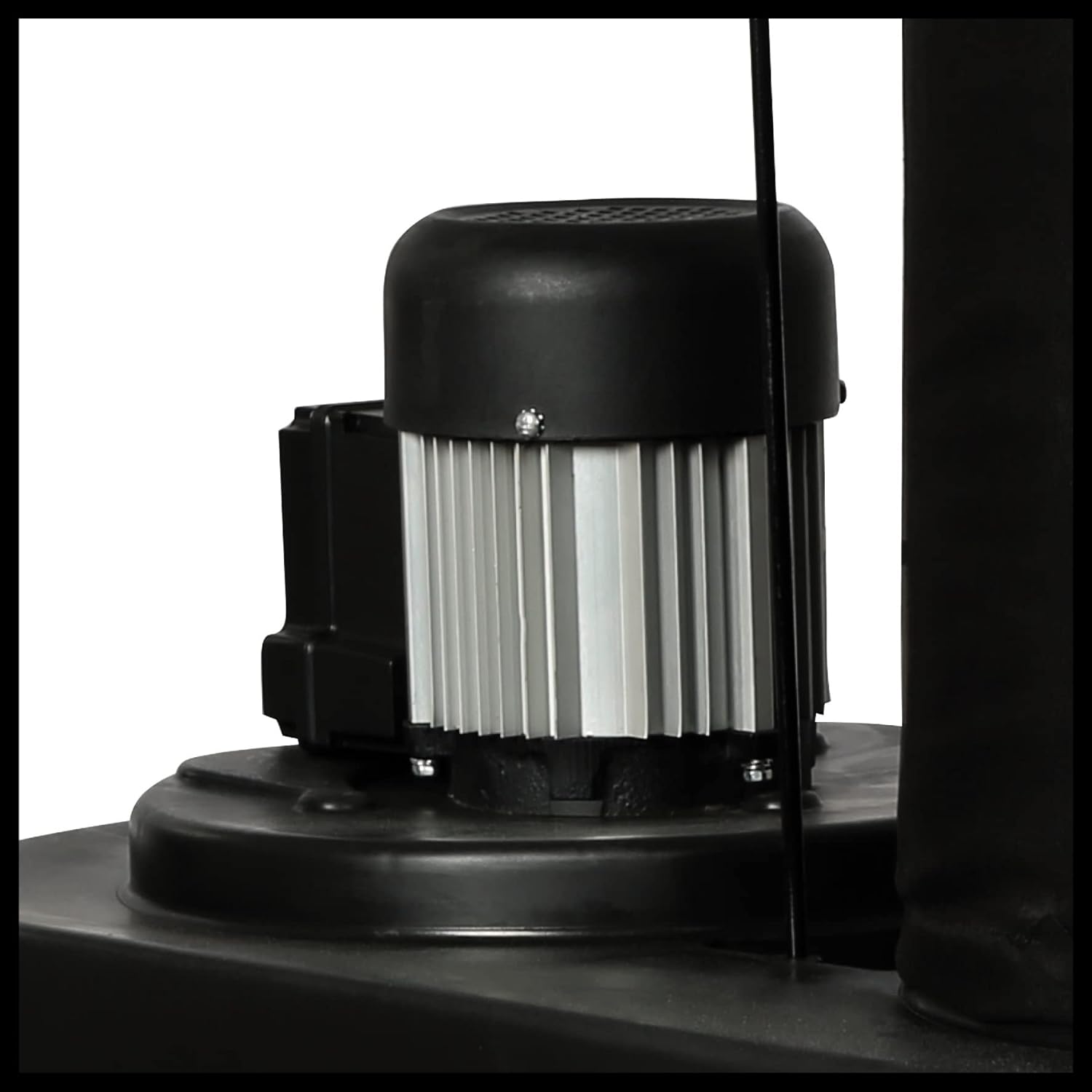

А деталдуу view of the robust and quiet induction motor, which powers the extraction system.

6. Техникалык тейлөө

6.1 Emptying the Collection Bag

Regularly check the fill level of the collection bag. Empty it before it becomes completely full to maintain optimal suction performance.

1. Disconnect the extraction system from the power supply.
2. clamps or fasteners holding the collection bag in place.
3. Carefully remove the full collection bag and dispose of its contents responsibly.
4. Install a new or emptied collection bag, ensuring it is securely fastened and sealed.

Жакын план view of the transparent collection bag, showing its attachment mechanism and the collected dust and chips inside.

6.2 Тазалоо

• Жарнама менен блоктун сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Periodically check the suction hose and adapters for blockages and clear them as necessary.
• Ensure the filter (if applicable, though the system primarily uses a collection bag) is clean and free of excessive dust buildup.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

Кепилдик жөнүндө маалымат алуу, продуктуну каттоо же техникалык колдоо алуу үчүн, расмий Einhell компаниясына кайрылыңыз. webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
