1. Киришүү жана коопсуздук маалыматы
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Einhell TC-TS 2225 U Table Saw. Please read all instructions carefully before using the tool. Keep this manual for future reference.
1.1 Жалпы коопсуздук эскертүүлөрү
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коопсуздук көз айнектерин, угууну коргоону жана чаң маскасын кийиңиз.
- Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.
- Балдарды жана жанындагы адамдарды операция аймагынан алыс кармаңыз.
- d-де арааны иштетпеңизamp же нымдуу шарттар.
- Жөндөөлөрдү жасоодон, бычактарды алмаштыруудан же техникалык тейлөө иштерин жүргүзүүдөн мурун ар дайым электр кубатынан ажыратыңыз.
- Use only blades recommended for this saw and suitable for the material being cut.
- Never reach over or around the saw blade while it is running.
- Utilize the push stick for narrow cuts to keep hands away from the blade.
1.2 Продукт бүттүview
The Einhell TC-TS 2225 U Table Saw is a powerful tool designed for precise cutting of various materials. It features a 2,200-watt motor, adjustable cutting height, and extendable work surfaces for handling larger workpieces.
Figure 1: ашыкview of the Einhell TC-TS 2225 U Table Saw with its extendable side tables and sturdy stand.
2. Орнотуу жана чогултуу
Careful assembly and initial setup are crucial for safe and accurate operation.
2.1 Таңгактан чыгаруу жана текшерүү
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Inspect all parts for any damage that may have occurred during transit. Do not operate the saw if any parts are damaged.
- Verify that all listed components are present. The saw is supplied as a bare tool, so ensure you have the necessary accessories.
2.2 Стендди чогултуу
The stable lower frame is designed to provide a comfortable working height of 870 mm. Assemble the stand according to the diagrams provided in the separate assembly guide. Ensure all fasteners are securely tightened.
2.3 Attaching Extendable Side Tables
The saw includes extendable side tables and a rear extension to increase the support surface for wide and long workpieces. Attach these extensions as per the assembly instructions, ensuring they are level with the main table surface.

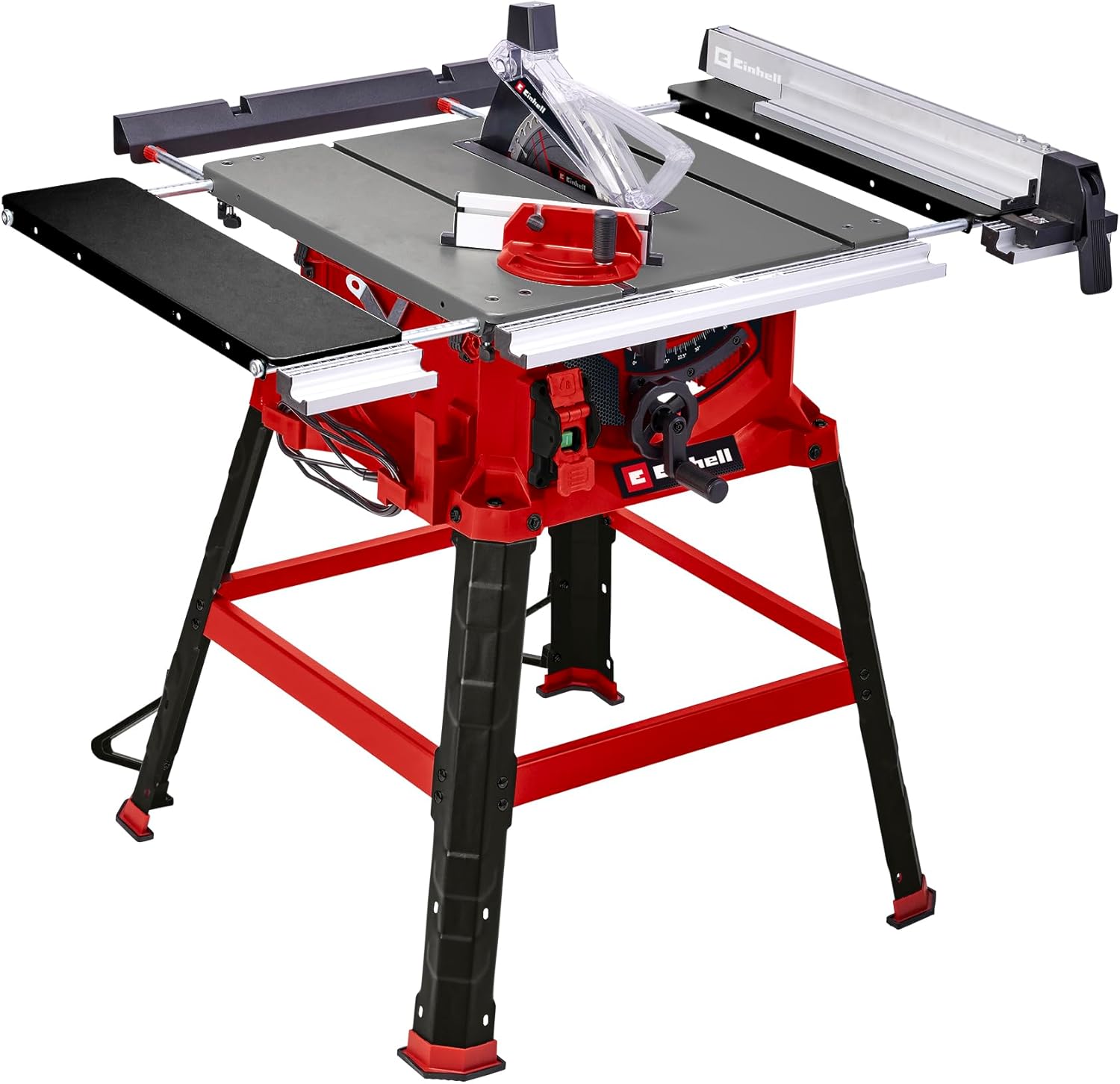

Figure 2: The table saw features adjustable blade height and angle, along with extendable side tables for increased workpiece support.
2.4 Tool Storage
The saw's housing includes various brackets for storing included stops, tools, the sliding stick, and the power cord. Utilize these for organized storage.

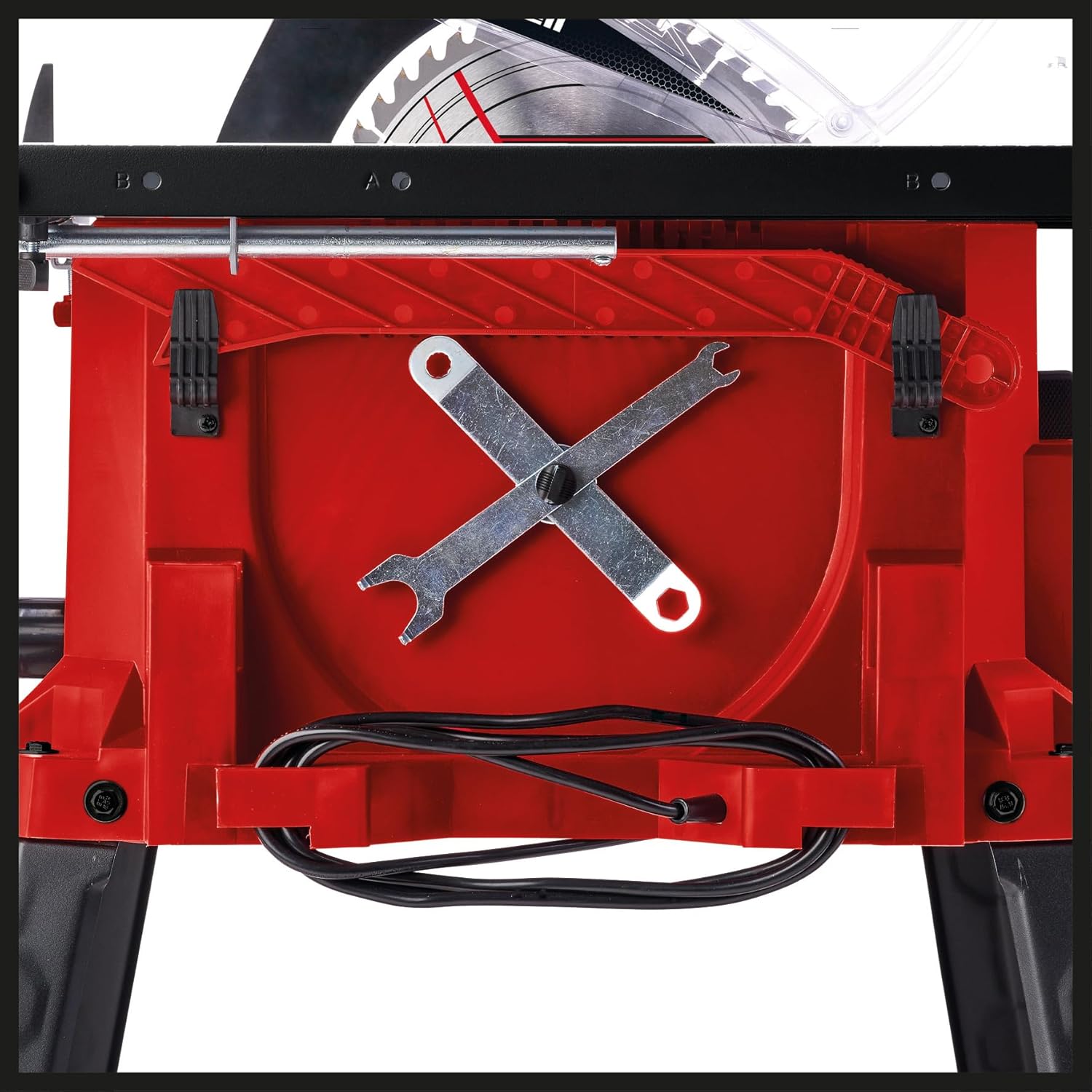

Figure 3: Integrated storage for tools and accessories located beneath the saw table.
3. Операция
Follow these guidelines for safe and effective operation of your table saw.
3.1 Кубат туташтыруу
Connect the saw to a 240 Volt power supply. The powerful motor includes a built-in soft start feature to protect the motor and electrical fuses during startup.
3.2 Бышактын бийиктигин жана бурчун тууралоо
The cutting height can be adjusted continuously up to 80 mm. The saw blade can also be tilted for angular cuts. Refer to the adjustment mechanisms on the front and side of the saw to set the desired height and angle.

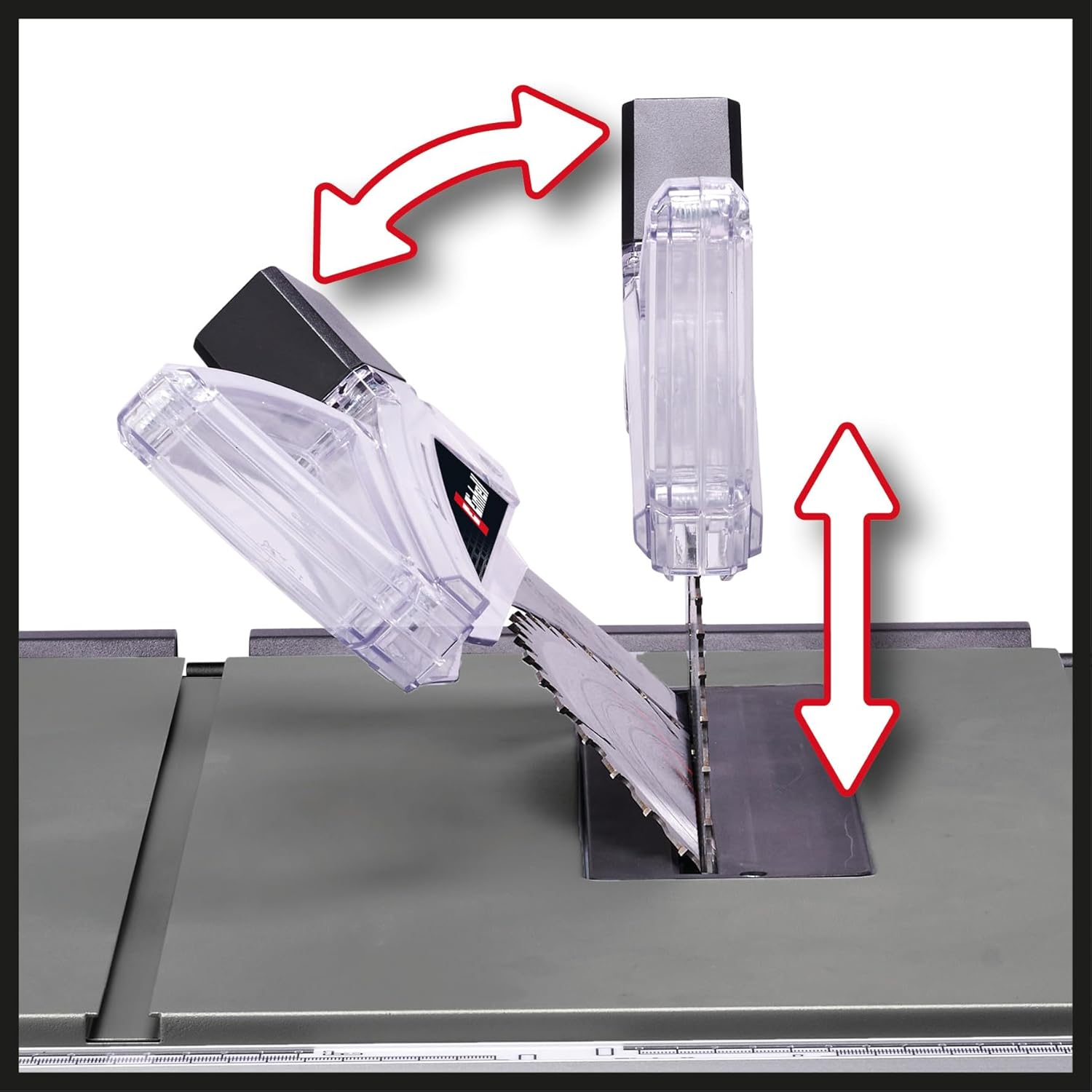

Figure 4: The saw blade guard and mechanism for adjusting blade tilt and height.
3.3 Using the Parallel Guide Stop
The parallel guide stop features high stability with attachment on both sides, allowing for precise rip cuts. Position the stop to the desired width and secure it firmly.

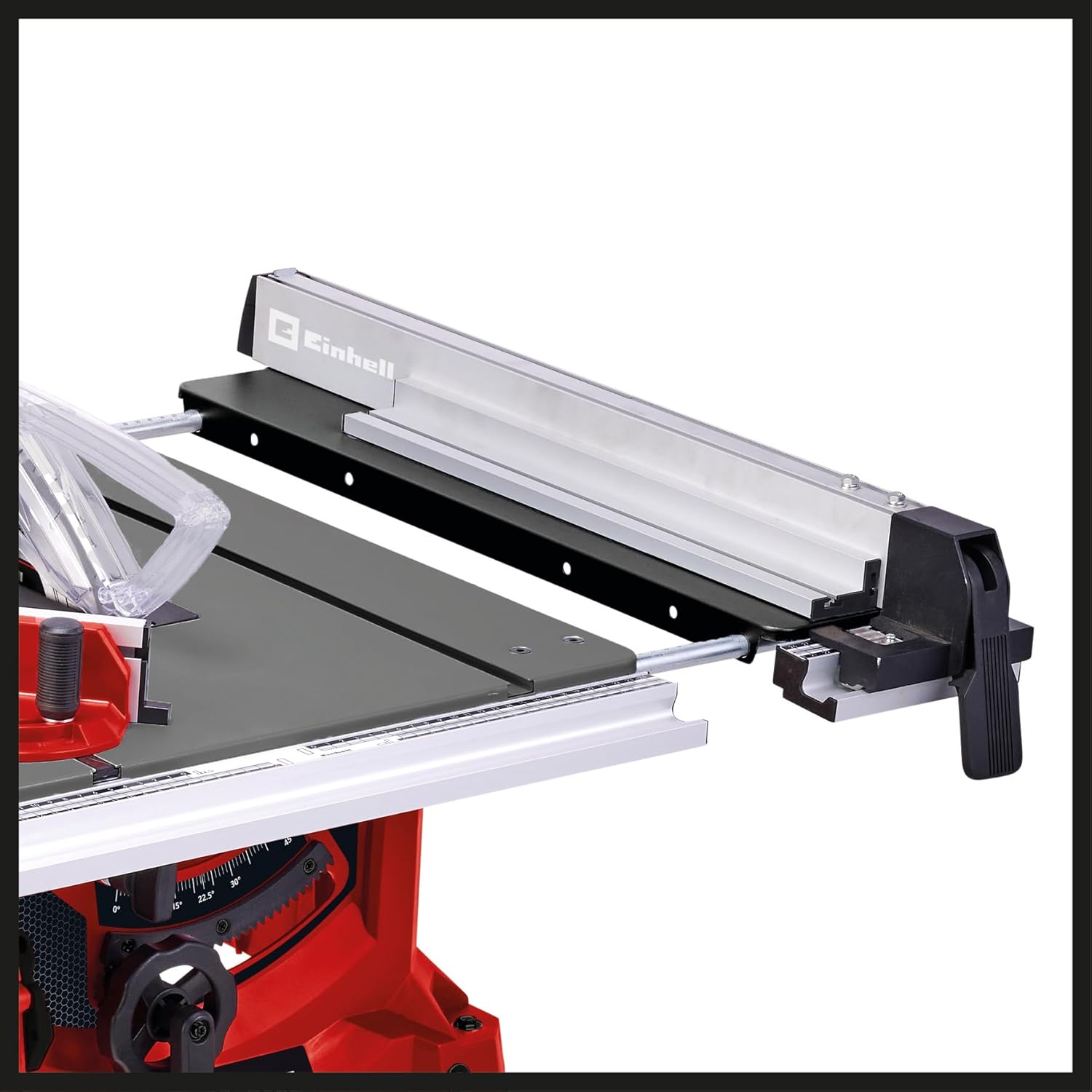

Figure 5: The parallel guide stop, designed for stable and accurate rip cuts.
3.4 Using the Angle Stop
The transverse stop also functions as an angle stop, adjustable up to +/- 45 degrees, for making precise miter cuts.
3.5 Кесүү
- Ensure the workpiece is properly supported and the blade is set to the correct height and angle.
- Turn on the saw. Allow the blade to reach full speed before beginning the cut.
- Feed the workpiece slowly and steadily into the blade, maintaining firm contact with the table and the guide.
- Use a push stick for narrow cuts to keep hands clear of the blade.
Figure 6: A user demonstrating the proper technique for cutting a wooden plank on the Einhell Table Saw.
4. Техникалык тейлөө
Үзгүлтүксүз тейлөө үстөл арааңыздын узак жана коопсуз иштешин камсыздайт.
4.1 Тазалоо
- Тазалоодон мурун ар дайым электр менен жабдууну ажыратыңыз.
- Regularly clean dust and debris from the saw, especially around the blade and motor housing.
- The saw features a connection for chip suction located in the housing and in the protection of the saw blade. Connect a suitable dust extraction system to minimize sawdust accumulation.
Figure 7: The dust extraction port located on the saw's housing for connecting a vacuum system.
4.2 Blade алмаштыруу
Refer to the manufacturer's instructions for safe blade replacement. Ensure the new blade is compatible with the saw's specifications and is installed correctly.
4.3 Жалпы текшерүү
Periodically check all screws, nuts, and other fasteners for tightness. Inspect the power cord for any damage.
5. Кыйынчылыктарды
Бул бөлүмдө үстөл арааңызда кездешүүсү мүмкүн болгон жалпы маселелер каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сау башталбайт | Электр менен камсыздоо жок; Бузук өчүргүч; Ашыкча жүктөмдөн коргоо иштетилген | Check power connection; Inspect switch; Allow motor to cool down and reset overload if applicable |
| Blade акырын байлайт же кесилет | Dull blade; Incorrect blade type for material; Improper feed rate; Misaligned fence | Replace blade; Use appropriate blade; Adjust feed rate; Realign fence |
| Ашыкча термелүү | Loose blade; Damaged blade; Unstable stand | Tighten blade; Replace damaged blade; Ensure stand is stable and all fasteners are secure |
| Туура эмес кесүүлөр | Misaligned fence or miter gauge; Blade not perpendicular to table | Calibrate fence and miter gauge; Adjust blade angle |
If you encounter problems not listed here or if solutions do not resolve the issue, contact customer support.
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Эйнхелл |
| Модель номери | 4340515 |
| Power Source | Электр зымдары |
| Ватtage | 2200 ватт |
| Тtage | 240 вольт |
| Max. Cutting Height (90°) | 80 мм |
| Max. Cutting Height (45°) | 55 мм |
| Кесүү бурч | 0—45 градус |
| Blade Length (Note: Typically blade diameter for circular saws) | 80 сантиметр |
| Тиштердин саны | 48 |
| Бычактын материалы | Жогорку ылдамдыктагы болот |
| Blade Shape (Note: Typically circular for saw blades) | Төрт бурчтуу |
| Продукциянын өлчөмдөрү (L x W x Y) | 35.83" x 34.84" x 38.19" |
| Элемент Салмагы | 50.6 фунт |
| Камтылган компоненттер | Жылаңач курал |
| Өзгөчө өзгөчөлүк | Lightweight (as listed) |
| Surface Recommendation | Metal (as listed, typically for wood) |
7. Кепилдик маалыматы
This Einhell product is covered by a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and registration, please refer to the warranty card included with your product or visit the official Einhell webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
8. Кардарларды колдоо кызматы
For technical assistance, spare parts, or service inquiries, please contact Einhell customer support. Contact details can typically be found on the Einhell official webсайтында же продуктуңуз менен кошо берилген документтерде.
Өндүрүүчү: Carantee
Бөлүмдүн номери: 4340515
