Weiser Elements Square Single Cylinder Deadbolt Instruction Manual

Introduction

The Weiser Elements Square Single Cylinder Deadbolt is designed for use on exterior doors where key and security are required. This deadbolt can be locked or unlocked by a key on the outside or by the thumbturn on the inside. It features SmartKey re-key technology, allowing you to re-key the lock quickly and easily. This product is ANSI/BHMA Grade 3 certified, includes an adjustable latch for standard door preparations, and has a 1-inch deadbolt throw. Its universal door handling fits both right and left-handed doors, and it is ADA Compliant. It fits door thicknesses from 1 3/8" to 1 3/4" and comes in a Matte Black finish.

Пакеттин мазмуну

Сураныч, орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• Exterior Deadbolt Assembly (with key cylinder)
• Interior Deadbolt Assembly (with thumbturn)
• Дедболт Latch
• Strike Plate
• Монтаждоо бурамалар
• 2 х ачкычтар
• SmartKey кайра ачкыч куралы

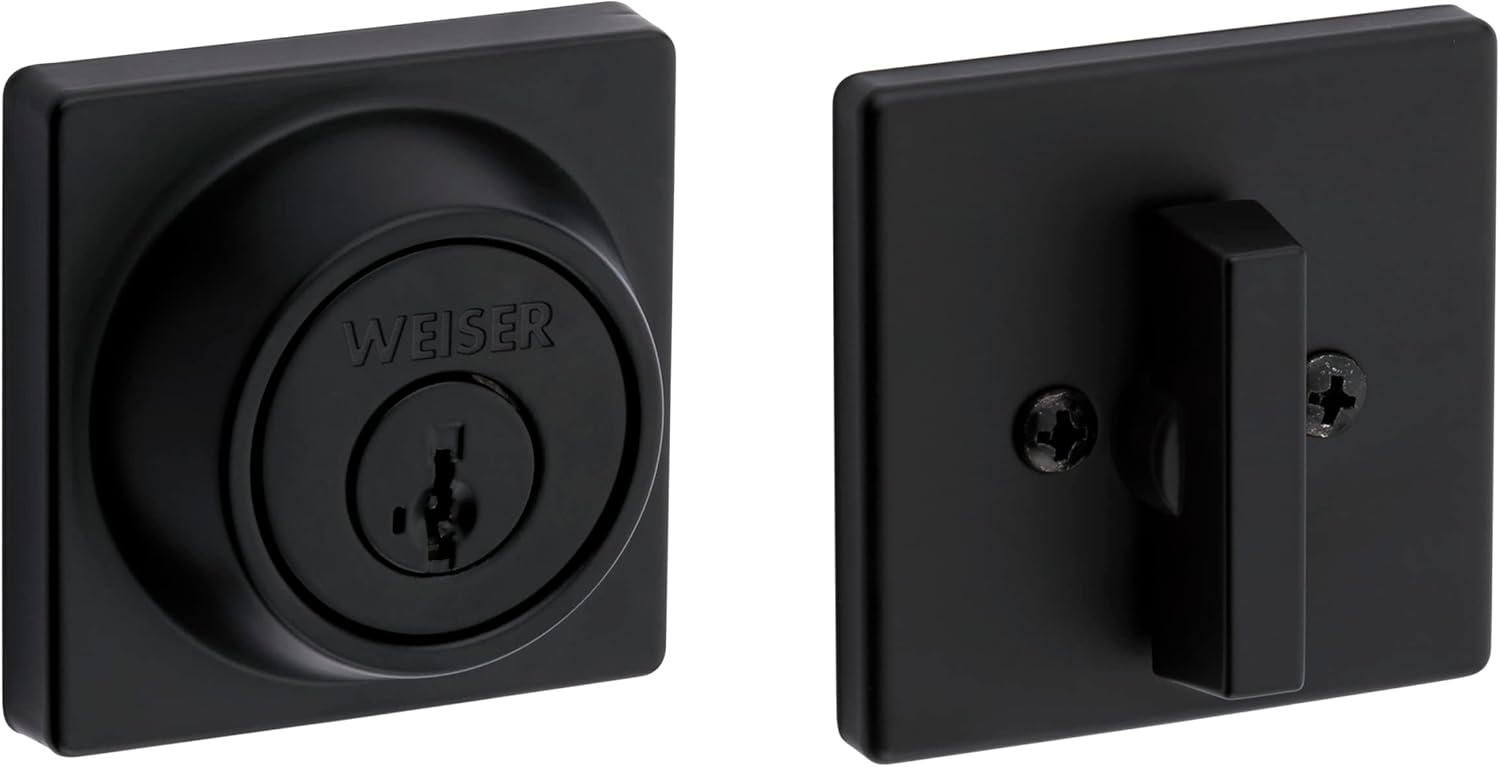

Image showing the exterior and interior components of the Weiser Elements Square Single Cylinder Deadbolt, including the key cylinder and thumbturn.

Орнотуу жана орнотуу

This section provides step-by-step instructions for installing your Weiser Elements Square Single Cylinder Deadbolt. Ensure you have the necessary tools before starting.

Керектүү куралдар

• Филлипс бурагыч
• Өлчөө лентасы
• Карандаш

Эшик даярдоо

1. Ensure your door thickness is between 1 3/8" (35mm) and 1 3/4" (44mm).
2. Verify the backset measurement (distance from door edge to center of bore hole) is either 2-3/8" (60mm) or 2-3/4" (70mm). Adjust the latch if necessary.

Latch орнотуу

1. Insert the latch into the door edge, ensuring the bolt faces the correct direction for your door swing. The word "TOP" on the latch should face upwards.
2. Secure the latch with the provided screws.

Сырткы жыйынды орнотуу

1. Align the exterior deadbolt assembly with the bore hole, ensuring the tailpiece passes through the latch mechanism.
2. Position the exterior assembly flush against the door.

Image showing the exterior side of the deadbolt with the keyhole and Weiser branding, ready for installation.

Ички жыйынды орнотуу

1. Place the interior mounting plate over the tailpiece and secure it to the exterior assembly with the provided screws.
2. Attach the interior thumbturn assembly to the mounting plate, ensuring the thumbturn engages with the tailpiece.

Image showing the interior side of the deadbolt with the thumbturn lever, which controls the lock from inside.

Strike Plate орнотуу

1. Align the strike plate with the latch bolt on the door frame. Mark and chisel out the area for the strike plate if necessary to ensure a flush fit.
2. Secure the strike plate with the provided screws. Test the deadbolt operation to ensure smooth locking and unlocking.

Иштөө нускамалары

Дедболтту кулпулоо

• From the exterior: Insert the key into the keyway and turn it clockwise until the bolt extends fully into the strike plate. Remove the key.
• From the interior: Rotate the thumbturn lever clockwise until the bolt extends fully into the strike plate.

Deadbolt кулпусун ачуу

• From the exterior: Insert the key into the keyway and turn it counter-clockwise until the bolt retracts fully. Remove the key.
• From the interior: Rotate the thumbturn lever counter-clockwise until the bolt retracts fully.

SmartKey кайра ачкыч технологиясы

The SmartKey re-key technology allows you to re-key the lock quickly and easily by yourself. This feature is useful if you have recently moved, lost keys, or wish to use one key for multiple Weiser SmartKey locks.

1. Insert your functioning key and turn it 90 degrees clockwise.
2. SmartKey куралын SmartKey тешигине толук жана бекем киргизиңиз.
3. SmartKey куралын жана иштеп жаткан баскычты алып салыңыз.
4. Insert your new key fully and firmly into the keyway.
5. Turn the new key 180 degrees counter-clockwise. Your lock is now re-keyed.

Diagram showing the steps for using SmartKey technology to re-key the deadbolt, including where to insert the reset tool and the key.

Техникалык тейлөө

• Кулпуну мезгил-мезгили менен жумшак, d менен тазалап туруңузamp кездеме. Абразивдүү тазалагычтардан, эриткичтерден же катуу химиялык заттардан алыс болуңуз, алар финишке зыян келтириши мүмкүн.
• Do not lubricate the cylinder with oil-based lubricants. If lubrication is necessary, use a graphite-based lubricant sparingly.
• Periodically check and tighten all mounting screws to ensure the deadbolt remains securely installed and operates smoothly.

Проблемаларды чечүү

Техникалык шарттар

• Бренд: Weiser
• Модель аты: Elements Square Deadbolt with SmartKey, Matte Black
• Бөлүмдүн номери: 9GDC94710-063
• Бүтүрүү: Matte Black
• Материал: Металл
• Кулпу түрү: Key Lock (Single Cylinder)
• Эшик калыңдыгы шайкештиги: 1 3/8" (35mm) to 1 3/4" (44mm)
• Тастыктоо: ANSI/BHMA 3-даражадагы сертификатталган
• Өзгөчөлүктөр: SmartKey Technology, Universal Fitment (reversible for right/left-handed doors), ADA Compliant, Limited Lifetime Warranty
• Элементтин өлчөмдөрү (L x W x Y): 4.52 x 4.52 x 9.05 дюйм (болжолдуу пакеттин өлчөмдөрү)
• Элемент Салмагы: 1.4 фунт

Кепилдик маалымат

The Weiser Elements Square Single Cylinder Deadbolt is backed by a Limited Lifetime Warranty. This warranty covers mechanical and finish defects under normal use. For complete details regarding warranty coverage, terms, and conditions, please refer to the official Weiser website or contact their customer support department directly.

Кардарларды колдоо

For further assistance, technical support, or to inquire about replacement parts for your Weiser Elements Square Single Cylinder Deadbolt, please utilize the following resources:

• Официалдуу Webсайт: Visit www.weiserlock.com for product information, FAQs, and support documentation.
• Байланыш маалыматы: Вейзерге кайрылыңыз website for regional customer service phone numbers and email contact options.
