Genesis SEABORG 350 Racing Wheel User Manual

1. Киришүү

Thank you for choosing the Genesis SEABORG 350 Racing Wheel. This manual provides essential information for setting up, operating, and maintaining your racing wheel to ensure optimal performance and longevity. The SEABORG 350 is designed for an immersive racing experience across multiple platforms, including PC, PlayStation 3, PlayStation 4, Xbox One, Xbox 360, and Nintendo Switch.

2. Продукт бүтүп калдыview жана компоненттер

The Genesis SEABORG 350 Racing Wheel system includes the following main components:

• Жарыш дөңгөлөк бирдиги
• Педаль бирдиги (тездеткич жана тормоз)
• Gear Shifter (integrated)
• Cling Clamp

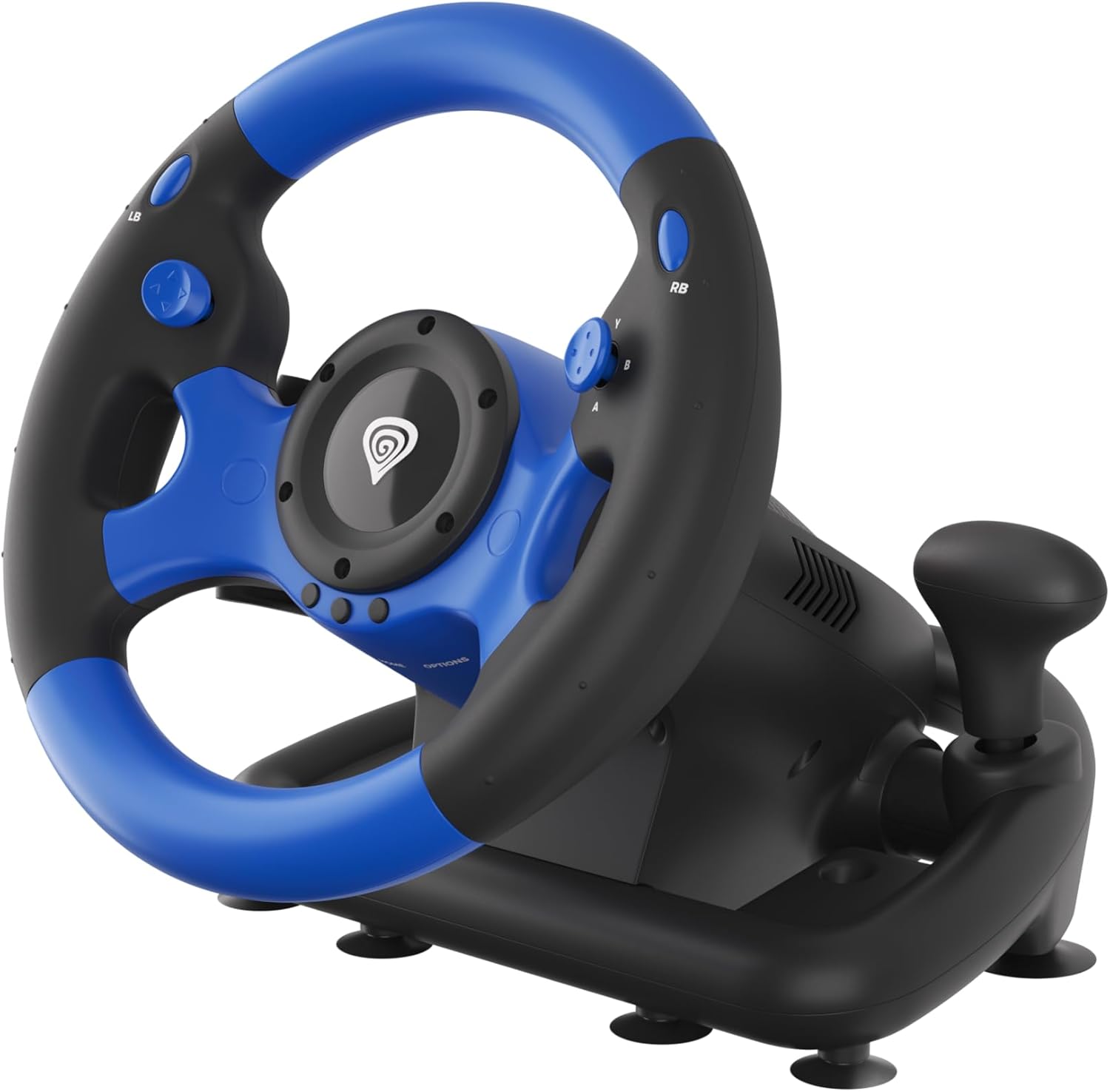

2.1-сүрөт: The Genesis SEABORG 350 Racing Wheel, featuring a black and blue design with an integrated gear shifter on the right side. The wheel is positioned on its base unit, which includes suction cups for stability.

2.2-сүрөт: The complete Genesis SEABORG 350 setup, showing the racing wheel unit alongside the separate two-pedal unit (accelerator and brake). Both components are black.

2.3-сүрөт: Жакын план view of the black pedal unit, which includes two pedals for acceleration and braking. The unit has a wide base for stability during use.

2.4-сүрөт: The black mounting clamp accessory, designed to secure the racing wheel to a desk or table. It features a screw mechanism for tightening.

2.5-сүрөт: А деталдуу view of the steering wheel's grip area, highlighting the textured black material for secure handling and the blue buttons (LB, RB, X, Y, A, B) and D-pad on the wheel face.

3. Орнотуу

3.1 Педаль блогун туташтыруу

Connect the cable from the pedal unit to the designated port on the back of the racing wheel unit. Ensure the connection is secure.

3.2 Mounting the Racing Wheel

The SEABORG 350 offers two mounting options for stability:

1. Сорохтор: The base of the racing wheel unit is equipped with 6 strong suction cups. Place the unit on a clean, smooth, flat surface (e.g., a desk or table) and press down firmly to engage the suction cups.
2. Cling Clamp: For enhanced stability, attach the included mounting clamp to the front underside of the racing wheel unit. Position the clamp over the edge of your desk or table and tighten the screw until the wheel is securely fastened.

3.3 Системаңызга туташуу

The Genesis SEABORG 350 connects via a USB cable. Plug the USB connector from the racing wheel unit into an available USB port on your desired gaming platform.

• PC: Connect the USB cable to any available USB port on your computer. Drivers should install automatically.
• PlayStation 3/4, Xbox One/360, Nintendo Switch: Connect the USB cable to an available USB port on your console. The wheel should be recognized automatically.

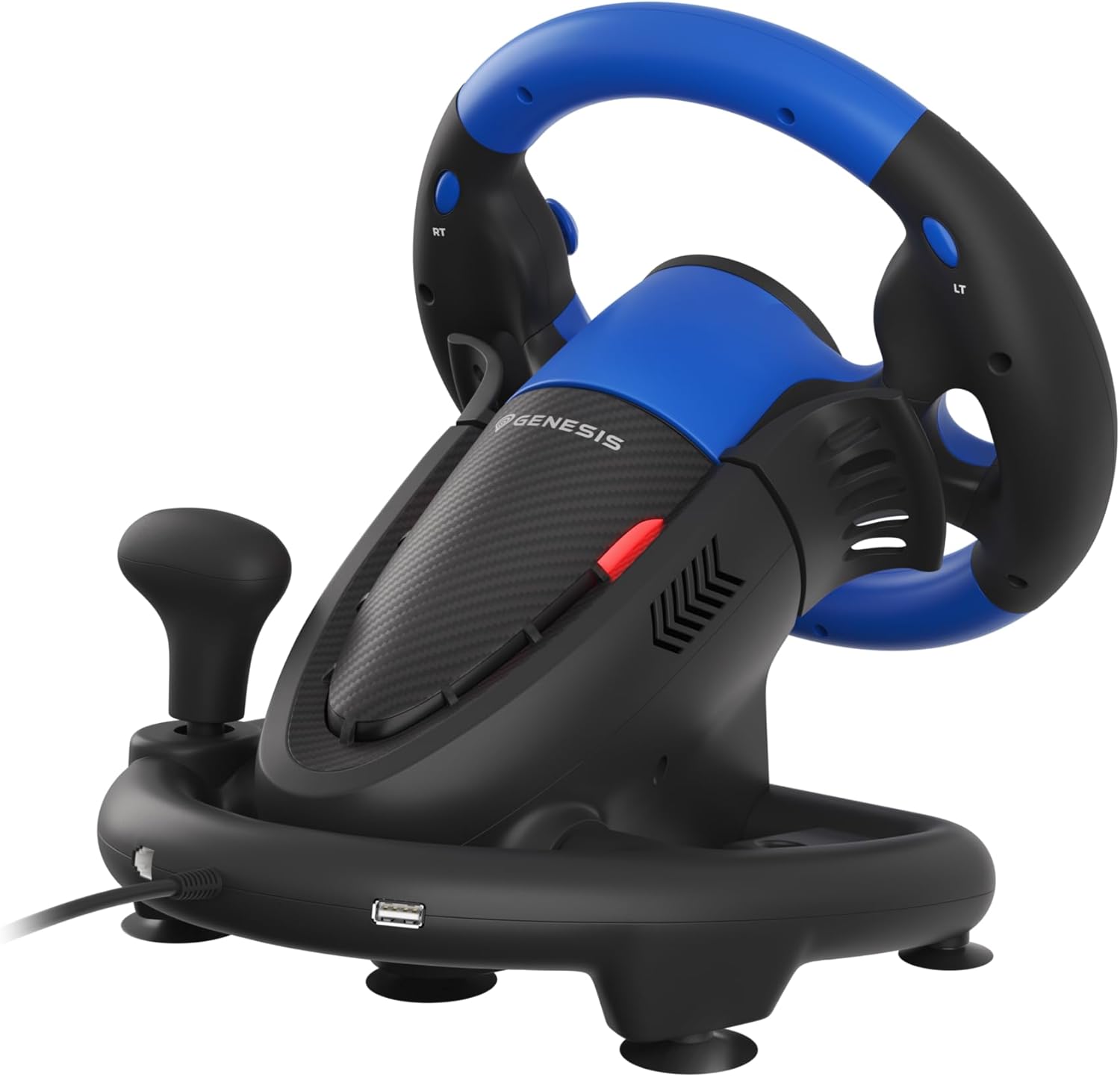

3.1-сүрөт: арткы view of the racing wheel unit, illustrating the integrated USB cable for connection to gaming platforms and the port for the pedal unit.

4. Иштөө нускамалары

4.1 Негизги башкаруу каражаттары

• Руль: Руль дөңгөлөгүн так башкаруу үчүн 180 градус айлануу мүмкүнчүлүгүн камсыз кылат.
• Педальдар: The left pedal functions as the brake, and the right pedal functions as the accelerator. Both pedals offer realistic spring resistance.
• Редуктор: Use the integrated gear knob for manual gear changes in compatible games.

4.2 Баскыч функциялары

The SEABORG 350 features 15 buttons, including an 8-way D-pad, providing comprehensive control for various in-game actions. Button mapping may vary depending on the game and platform.

4.3 Вибрациялык кайтарым байланыш

The racing wheel is equipped with powerful vibration motors that provide realistic force feedback, simulating road conditions, collisions, and other in-game events. This feature enhances immersion and responsiveness during gameplay.

4.4 Button Configuration

The SEABORG 350 allows for configuration of its buttons to suit your preferences. Refer to your game's control settings or the specific platform's accessory settings for detailed instructions on remapping buttons.

5. Техникалык тейлөө

To ensure the longevity and optimal performance of your Genesis SEABORG 350 Racing Wheel, follow these maintenance guidelines:

• Тазалоо: Use a soft, dry cloth to wipe down the racing wheel, pedals, and base unit. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the internal components. Avoid abrasive cleaners or solvents.
• Сактагыч: When not in use, store the racing wheel in a clean, dry place away from direct sunlight and extreme temperatures. Disconnect all cables to prevent damage.
• Кабельге кам көрүү: Avoid bending or kinking cables excessively. Do not pull on the cables to disconnect them; always grasp the plug.

6. Кыйынчылыктарды

If you encounter issues with your Genesis SEABORG 350 Racing Wheel, refer to the following common problems and solutions:

7. Техникалык шарттар

8. Кепилдик жана колдоо

For information regarding warranty coverage and technical support for your Genesis SEABORG 350 Racing Wheel, please refer to the official Genesis webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
