1. Продукт бүтүп калдыview
The Fein 4-1/2" Compact Angle Grinder (Model CG 10-115 PDE) is a high-performance power tool designed for efficient grinding, cutting, and deburring tasks. It features a powerful 1,140W motor and incorporates advanced safety features and dust protection for versatile applications in metalworking.
Image: The Fein CG 10-115 PDE Compact Angle Grinder, showcasing its orange and black body with the grinding wheel and side handle attached.
- High-Performance 1,140W Motor: Provides powerful performance for efficient grinding, cutting, and deburring tasks, enabling faster work completion even in demanding metalworking applications.
- Кеңири коопсуздук функциялары: Equipped with a paddle switch that includes a dead-man function, requiring continuous hand pressure to operate, preventing accidental startups and enhancing user safety during use.
- Compact Design with Rotating Drive Head: Features a solid metal drive head that rotates in 90-degree increments for optimal positioning.
- Dust Protection Grille: Built-in dust protection grille shields the motor and components from abrasive dust particles, enhancing durability and helping to maintain the grinder's performance.
- Куралсыз аксессуарларды өзгөртүү: Comes with a safety guard that can be adjusted quickly without tools, allowing fast modifications to suit different tasks, increasing convenience and maintaining essential safety standards.
2. Коопсуздук маалыматы
Always prioritize safety when operating power tools. Read and understand all instructions before use. Failure to follow safety warnings and instructions may result in electric shock, fire, and/or serious injury.
Жалпы коопсуздук эрежелери:
- Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коопсуздук көз айнектерин, угууну коргоону жана кол каптарды кийиңиз.
- Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.
- Куралды иштетип жатканда карап тургандарды, балдарды жана конокторду алыс кармаңыз.
- Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
- Оңдоолорду жасоодон, аксессуарларды алмаштыруудан же аспапты сактоодон мурда ар дайым электр сайгычын кубат булагынан ажыратыңыз.
- Иштеп жаткан учурда аспапты эки колуңуз менен бекем кармап туруңуз.
Product-Specific Safety Features:
- Paddle Switch with Dead-Man Function: The tool will only operate when continuous pressure is applied to the paddle switch, immediately stopping if the switch is released. This prevents accidental startup and enhances user safety.
- Dust Protection Grille: Helps protect internal components from abrasive dust, contributing to safer and more reliable operation over time.
Сунуш 65 Эскертүү: Бул өнүмдүн курамында Калифорния штаты ракка жана тубаса кемтиктерге же башка репродуктивдик зыяндарга алып келүүчү химиялык заттар болушу мүмкүн.
3. Камтылган компоненттер
The Fein 4-1/2" Compact Angle Grinder typically includes the following components:
- 1 x Guard for hubbed wheels
- 1 x Pair of flanges
- 1 x Кошумча тутка
- 1 х ачкыч
4. Орнотуу жана чогултуу
Before first use, ensure all components are present and undamaged. Follow these steps for basic setup:
- Attach the Additional Handle: Screw the additional handle securely into one of the designated mounting points on the grinder. Ensure it is tightened firmly for safe operation.
- Install the Safety Guard: The safety guard is designed for tool-free adjustment. Position the guard to provide maximum protection for your specific application and secure it firmly.
- Mount the Grinding Wheel/Accessory: Place the inner flange onto the spindle, then position the desired grinding wheel or accessory. Secure it with the outer flange and tighten using the provided wrench. Always ensure the accessory is compatible with the grinder's specifications and properly seated.

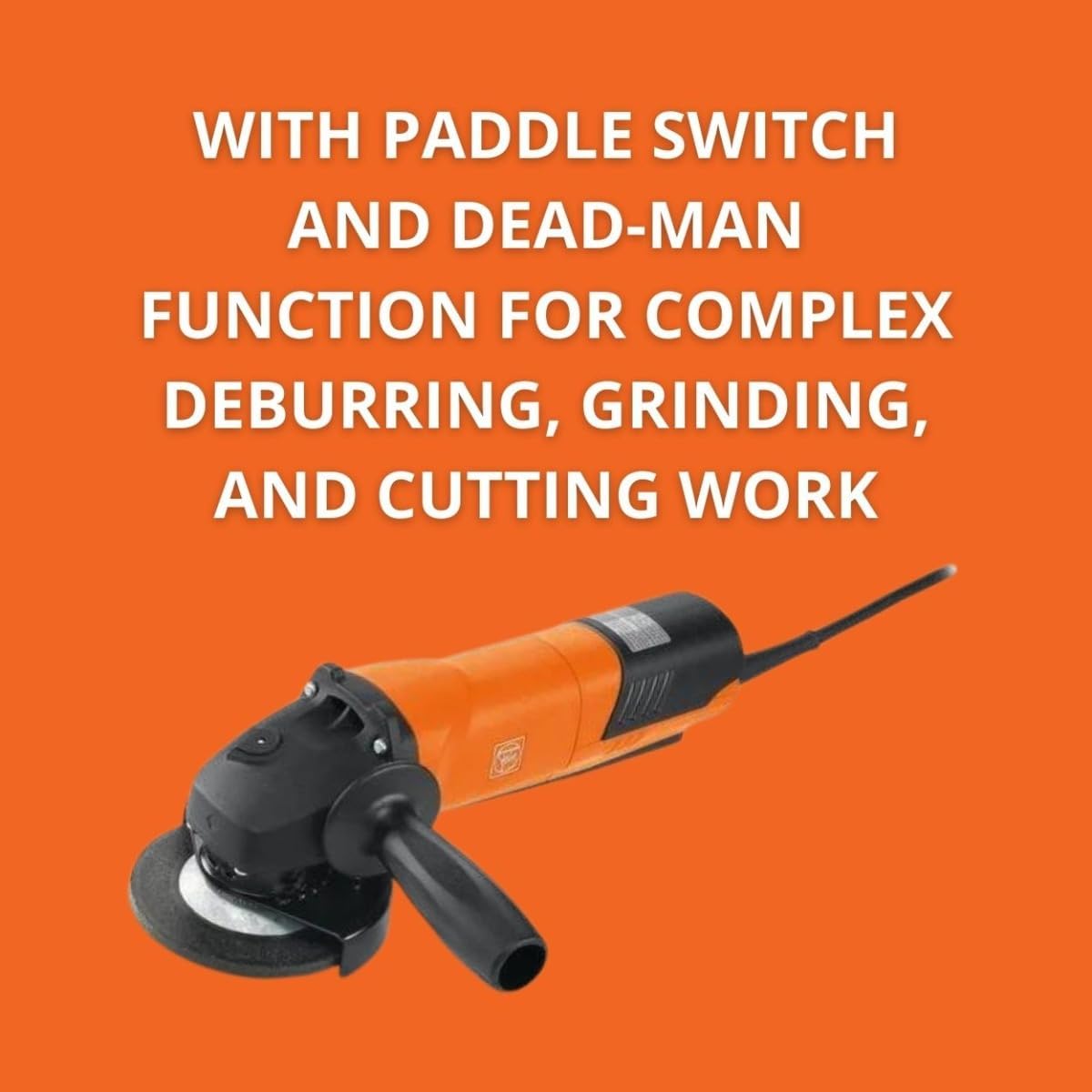

Image: Close-up of the Fein Angle Grinder, highlighting the paddle switch and its compact design, suitable for complex deburring, grinding, and cutting work.
5. Иштөө нускамалары
This section provides general guidance for operating your Fein Angle Grinder. Always refer to specific accessory instructions for detailed usage.
- Кубат туташуу: Connect the grinder to a suitable 120V power outlet. Ensure the power cord is not damaged and is positioned safely to avoid tripping hazards.
- Куралды баштоо: To start the grinder, firmly press and hold the paddle switch. The tool will only operate as long as the switch is depressed.
- Куралды токтотуу: Release the paddle switch to immediately stop the grinder. Allow the grinding wheel to come to a complete stop before setting the tool down.
- Grinding and Cutting: Apply steady, even pressure to the workpiece. Avoid excessive force, which can lead to kickback or damage to the tool/accessory. Always work with the appropriate accessory for the material and task.
- Жумушчу бөлүгүнүн коопсуздугу: Иштеп жаткан учурда кыймылга жол бербөө үчүн даярдоо бөлүгүн ар дайым бекем бекитиңиз.
Демонстрациялык видео:
Video: An official product video from Fein demonstrating the angle grinder's use for versatile grinding and cutting applications. This video highlights the tool's performance and safety features in a workshop environment.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your Fein Angle Grinder.
- Тазалоо: After each use, clean the tool thoroughly. Use a dry cloth to wipe down the exterior. Periodically clean the dust protection grille to ensure proper airflow and prevent motor overheating.
- Текшерүү: Regularly inspect the power cord for any signs of damage. Check the grinding wheel and other accessories for wear or damage before each use. Replace worn or damaged parts immediately.
- Сактагыч: Store the grinder in a dry, secure location out of reach of children and unauthorized users.
7. Кыйынчылыктарды
If you encounter issues with your Fein Angle Grinder, consider the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал башталбайт. | No power supply; Paddle switch not fully depressed; Damaged power cord. | Check power outlet and connection; Ensure paddle switch is fully engaged; Inspect power cord for damage and replace if necessary. |
| Иш учурунда ашыкча титирөө. | Improperly mounted accessory; Worn or damaged grinding wheel. | Ensure accessory is correctly and securely mounted; Replace the grinding wheel if it is worn or damaged. |
| Курал өтө ысып кетет. | Blocked dust protection grille; Continuous heavy use. | Clean the dust protection grille; Allow the tool to cool down during prolonged use. |
For issues not listed here or if problems persist, contact Fein customer support.
8. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Fein |
| Модел | CG 10-115 PDE |
| Бөлүмдүн номери | 72226060120 |
| Материал | Пластик, металл |
| Power Source | Электр |
| Тtage | 120 вольт |
| Ватtage | 1140 Ватт |
| Максималдуу айлануу ылдамдыгы | 10500 RPM |
| Элемент Салмагы | 7.61 фунт |
| Продукциянын өлчөмдөрү | 21 x 13 x 5 дюйм |
9. Кепилдик жана колдоо
Fein products are known for their quality and durability. For specific warranty details, please refer to the warranty card included with your product or visit the official Fein webсайт.
For customer support, technical assistance, or to find authorized service centers, please visit the Amazon'догу Fein дүкөнү or the official Fein webсайт.
