Weiser Halo WiFi Smart Lock with Touchscreen

Introduction

The Weiser Halo WiFi Smart Lock with Touchscreen offers advanced security and convenient access control for your home. This smart lock connects directly to your existing home Wi-Fi network, eliminating the need for a separate hub. With the Weiser app, you can operate, manage, and monitor your lock remotely from anywhere with an internet connection. This manual provides detailed instructions to help you install, set up, operate, and maintain your Weiser Halo Smart Lock.

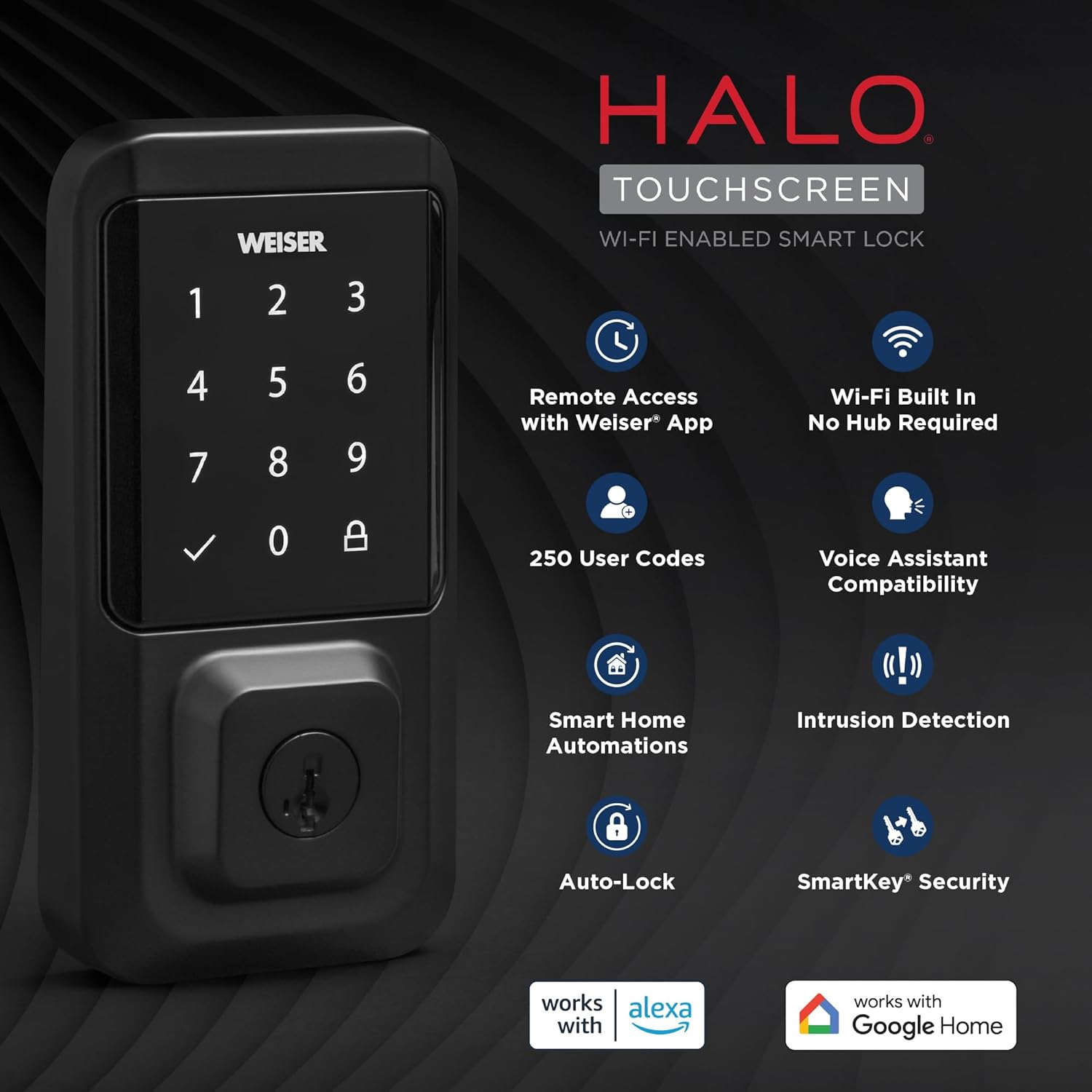

Figure 1: Weiser Halo WiFi Smart Lock (Exterior and Interior Units)

кутучанын мазмуну

Орнотууну баштоодон мурун, пакетиңизде бардык компоненттер бар экенин текшериңиз:

• Interior Assembly Unit
• Exterior Assembly Unit
• Жөнгө салынуучу кулпу
• Strike Plate
• Монтаждоо плитасы
• Адаптер шакеги
• 4 x AA батарейкалар
• Батарея лоток
• SmartKey® Tool
• 2 Weiser® Keys
• Бурамалар (ар кандай өлчөмдөгү)
• Орнотуу боюнча нускамалар (бул колдонмо)

2-сүрөт: Камтылган компоненттер

Орнотуу боюнча колдонмо

The Weiser Halo Smart Lock is designed for easy installation, typically requiring only a screwdriver. It fits most standard doors 1-3/8" to 1-3/4" thick with an adjustable backset (2-3/8" or 2-3/4").

1. эшикти даярдоо: Ensure your door is properly prepped for a deadbolt. Check the bore hole and backset dimensions.
2. Latch орнотуу: Insert the adjustable latch into the door edge. Ensure the latch is oriented correctly with the 'UP' arrow facing upwards.
3. Тышкы жыйынды орнотуу: Place the exterior keypad assembly onto the door, feeding the cable through the bore hole.
4. Монтаждоо плитасын орнотуу: Secure the mounting plate to the door using the provided screws, ensuring it aligns with the exterior assembly.
5. Ички ассамблеяны орнотуу: Connect the cable from the exterior assembly to the interior assembly. Carefully tuck the excess cable into the recess. Attach the interior assembly to the mounting plate with the remaining screws.
6. Батареяны орнотуу: Insert the 4 AA batteries into the battery tray and slide the tray into the interior assembly.
7. Perform Door Handing: After installation, the lock will automatically perform a door handing process to learn the orientation of your door. Follow the prompts on the lock or in the Weiser app.

Figure 3: Easy Installation Process

Орнотуу жана туташуу

The Weiser Halo Smart Lock connects directly to your home Wi-Fi network for remote access and smart home integration.

1. Download the Weiser App: Издөө the 'Weiser App' on the Apple App Store or Google Play Store and install it on your smartphone.
2. Каттоо эсебин түзүү: Колдонмону ачып, жаңы колдонуучу каттоо эсебин түзүү үчүн экрандагы нускамаларды аткарыңыз.
3. Add Your Lock: In the Weiser app, select the option to add a new device. Follow the in-app prompts to connect your Halo Smart Lock to your home's Wi-Fi network. This process typically involves putting the lock into pairing mode and entering your Wi-Fi credentials.
4. Алыстан кирүү: Once connected, you can lock and unlock your door remotely from your smartphone using the Weiser app, from anywhere with an internet connection.

Figure 4: Control Your Lock From Anywhere

Операция

Кулпуну ачуу жана кулпулоо

• Баскычтоп: Enter your valid user code on the touchscreen keypad, then press the checkmark button to unlock. To lock, simply press the lock icon on the keypad.
• Ачкыч: Use the physical key provided to manually unlock or lock the deadbolt.
• Weiser App: Use the lock/unlock function within the Weiser app on your smartphone.
• Баш бармактын айлануусу: From the interior, manually turn the thumb turn to lock or unlock the deadbolt.

Managing User Codes

The Weiser Halo Smart Lock can store up to 250 unique user codes. You can create permanent, one-time, or scheduled entry codes through the Weiser app.

• Adding Codes: In the Weiser app, navigate to the 'Access Codes' section and follow the instructions to add new codes. You can assign names to codes for easy identification.
• Deleting Codes: Codes can be deleted at any time through the app.
• Scheduling Codes: Set specific days and times for codes to be active, ideal for guests or service providers.

Figure 5: Share Guest Access

Автоматтык кулпу өзгөчөлүгү

The auto-lock feature automatically locks your door after a set duration following entry or exit, providing hands-free locking and enhanced peace of mind. This duration can be customized within the Weiser app.

6-сүрөт: Auto-Lock Functionality

Smart Home интеграциясы

The Weiser Halo Smart Lock is compatible with popular voice assistants like Amazon Alexa and Google Assistant (functionality primarily from Android devices). This allows for voice control and integration into smart home routines.

• Үн менен башкаруу: Use voice commands to lock your door (e.g., "Alexa, lock the front door.").
• Автоматташтыруулар: Set up custom automations, such as locking the door at a specific time each night or turning on lights when the door is unlocked.

Figure 7: Smart Home Integration

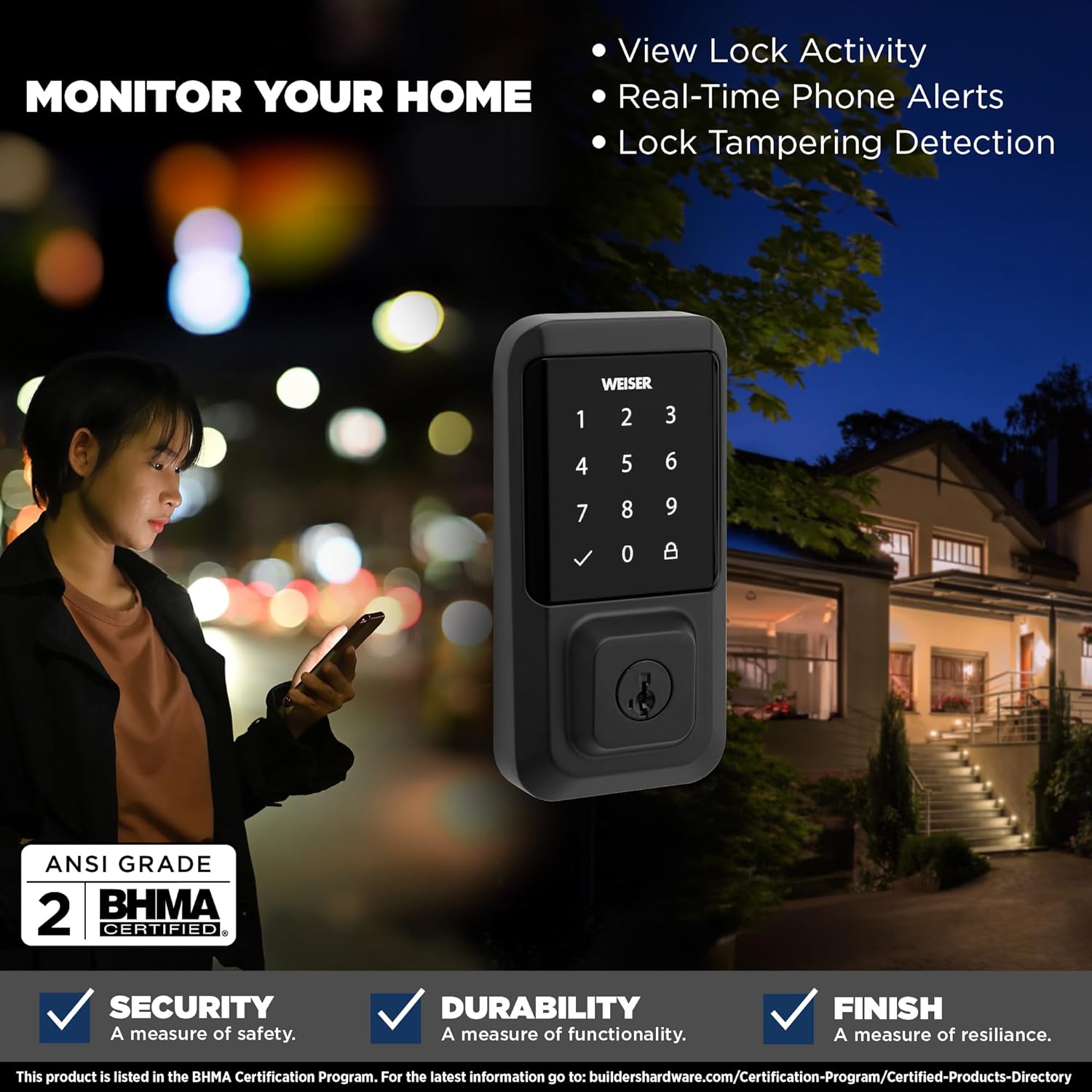

Мониторинг жана эскертүүлөр

The Weiser app provides real-time monitoring and alerts for your lock's activity.

• View Lock Activity: Access a detailed history of lock and unlock events, including who accessed the door and when.
• Real-Time Phone Alerts: Receive instant notifications on your smartphone for various events, such as lock/unlock actions or tampаракет кылуу.
• Кулпу Тampering Detection: The lock is equipped with features to detect and alert you to potential tampring.

Figure 8: Monitor Your Home

SmartKey Security

The Weiser Halo Smart Lock features SmartKey Security, allowing you to re-key the lock yourself in seconds. This is useful if you've recently moved, lost keys, or wish to use a single key for multiple Weiser SmartKey compatible locks.

1. Insert Existing Key: Insert your currently working key fully into the keyhole.
2. ачкыч: Turn the key 90 degrees clockwise (to the horizontal position).
3. SmartKey куралын киргизүү: While holding the key in the horizontal position, insert the SmartKey tool firmly into the small hole next to the keyway.
4. Remove Keys: Remove the SmartKey tool first, then remove the existing key.
5. Жаңы ачкыч киргизүү: Insert your new key fully into the keyhole.
6. Turn New Key: Turn the new key 90 degrees counter-clockwise (back to the vertical position).
7. Жаңы ачкычты сыноо: Remove the new key and test it to ensure the re-keying process was successful.

Figure 9: SmartKey Security Re-keying

Техникалык тейлөө

To ensure optimal performance and longevity of your Weiser Halo Smart Lock, follow these maintenance guidelines:

• Батареяны алмаштыруу: The lock requires 4 AA batteries. When the battery level is low, you will receive notifications through the Weiser app and potentially visual/audible alerts from the lock itself. To replace batteries, slide open the battery cover on the interior assembly, remove the old batteries, and insert new ones, ensuring correct polarity.
• Тазалоо: Сенсордук экранды жана сырткы беттерди жумшак, damp кездеме. Финишке зыян келтирүүчү абразивдүү тазалагычтардан же эриткичтерден качыңыз.
• Эшик тегиздөө: Periodically check that your door and frame are properly aligned. Misalignment can cause the deadbolt to bind, leading to increased battery drain and reduced performance.

Проблемаларды чечүү

If you encounter issues with your Weiser Halo Smart Lock, refer to the following common problems and solutions:

For further assistance, refer to the Weiser app's help section or contact Weiser customer support.

Техникалык шарттар

Кепилдик жана колдоо

Weiser products are designed for durability and reliability. For specific warranty information regarding your Weiser Halo WiFi Smart Lock, please refer to the warranty card included with your product or visit the official Weiser website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Weiser customer service through their official channels.
