Roborock H6 Cordless Stick Vacuum Cleaner

Introduction

Thank you for choosing the Roborock H6 Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and keep it for future reference.

The Roborock H6 combines powerful suction with a lightweight, versatile design, featuring a long-lasting LiPo battery for extended cleaning sessions. Its advanced filtration system ensures a cleaner home environment.

Пакеттин мазмуну

Before assembly, please verify that all components are present in your package:

• 1 x H6 Vacuum Cleaner (Main Unit)
• 1 x Mini Motorized Brush
• 1 x Carpet Brush
• 1 x Чаң сүртүүчү щетка
• 1 х жарака куралы
• 1 х ийкемдүү түтүк
• 1 x Узартуу таякчасы
• 1 х кубат адаптери
• 1 x Wall-mounted Charging Dock

Image: All components included with the Roborock H6 vacuum cleaner, laid out for inspection.

Орнотуу жана орнотуу

Ассамблея

1. Кеңейтүүчү таякчаны негизги вакуумдук блокко ал жерге чыкмайынча бекитиңиз.
2. Connect the desired cleaning head (e.g., Carpet Brush or Multi-surface Floor Brush) to the other end of the extension wand.
3. Колго кармоо үчүн, аксессуарларды түздөн-түз негизги блокко бекитиңиз.

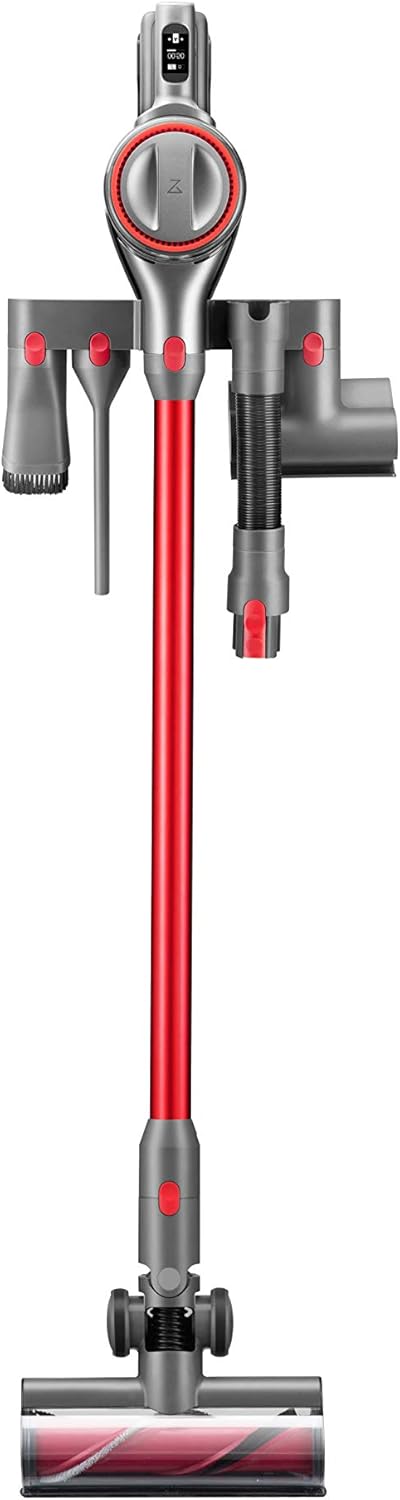

Image: The Roborock H6 assembled and stored on its wall-mounted charging dock with various accessories.

Заряддоо

Before first use, fully charge the vacuum cleaner. Connect the power adapter to the charging dock and plug it into a wall outlet. Place the vacuum cleaner onto the charging dock. The OLED display will indicate charging status.

• Expected Charging Time: Толук кубаттоо үчүн болжол менен 4 саат.
• Батарея түрү: Li-Po (Lithium-Polymer) battery.

Иштөө нускамалары

Күйгүзүү/өчүрүү

Чаң соргучту иштетүү же өчүрүү үчүн туткадагы кубат баскычын басыңыз.

Иштөө режимдери

The Roborock H6 offers multiple cleaning modes to suit different needs:

• Эко режими: Provides up to 90 minutes of runtime, ideal for light cleaning and extended use.
• Макс режими: Delivers maximum suction power (150 AW) for deep cleaning, with approximately 10 minutes of runtime.
• Стандарттык режим: Күнүмдүк тазалоо үчүн тең салмактуу режим.

Switch between modes using the mode selection button on the main unit.

Тиркемелерди колдонуу

Тазалоо ишиңиз үчүн тиешелүү тиркемени тандаңыз:

• Килем щеткасы: Designed for effective cleaning on carpets and rugs.
• Мини моторлуу щетка: Excellent for removing pet hair and dust from upholstery and mattresses.
• Жарака куралы: Perfect for reaching narrow gaps, corners, and tight spaces, such as car interiors.
• Чаң тазалоочу щетка: Ideal for delicate surfaces, curtains, and shelves.
• Ийкемдүү түтүк: Provides extended reach and flexibility for awkward angles.

Image: The Roborock H6 with the crevice tool attachment being used to clean between car seats.

Image: The main motorized floor brush of the Roborock H6 effectively cleaning debris from a carpeted floor.

OLED дисплей

The bright OLED display provides critical information at a glance, including:

• Батарея деңгээли
• Калган иштөө убактысы
• Selected cleaning mode
• Тейлөө эскертүүлөрү

Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your Roborock H6.

Таштанды кутусун бошотуу

Empty the dustbin regularly, especially when the debris reaches the MAX fill line. The dustbin capacity is 13.5 oz (0.4 liters).

1. Аны негизги блоктон ажыратуу үчүн чаң челекти чыгаруу баскычын басыңыз.
2. Open the dustbin lid and empty contents into a trash bin.
3. Close the lid and reattach the dustbin to the main unit.

Фильтрди тазалоо

The Roborock H6 features a five-stage air purification system. Clean the filters periodically to maintain suction power and air quality.

1. Remove the dustbin and locate the filters.
2. Tap off loose dust from the pre-filter and cyclone assembly.
3. Rinse the washable filters under running water. Ensure they are completely dry (allow 24 hours) before reinstallation.
4. The HEPA filter should be cleaned as needed, typically by tapping out dust. Avoid washing the HEPA filter unless specified by the manufacturer.

Brush Bar тазалоо

Periodically check the brush bars for tangled hair or debris. Use scissors to cut away any tangled hair and remove it.

Батареяга кам көрүү

Батареянын иштөө мөөнөтүн узартуу үчүн:

• Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
• Чаң соргучту колдонбогондо салкын, кургак жерде сактаңыз.
• Эгер батарейканы узак убакытка сактасаңыз, аны болжол менен 50% га чейин кубаттап, бир нече ай сайын кайра заряддап туруңуз.

Проблемаларды чечүү

If you encounter issues with your Roborock H6, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Roborock customer support.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Roborock webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

Roborock Official Webсайт: us.roborock.com
