SmartHeart Talking Blood Pressure Monitor User Manual

Продукт бүттүview

The SmartHeart Talking Blood Pressure Monitor is an automatic device designed for easy and accurate blood pressure measurement at home. It features one-touch operation, a wide-range arm cuff, and clear voice instructions in English, Spanish, or French. This monitor provides fast, accurate readings of systolic, diastolic, and pulse rates, displayed on a large digital screen with date and time. It supports up to four users, storing 99 readings per user, and calculates the average of the last three results. A color-coded Hypertension Indicator helps interpret readings according to WHO guidelines.

Image: The SmartHeart Blood Pressure Monitor with its wide-range arm cuff, showing the digital display and control buttons.

Коопсуздук маалыматы

Please read and understand all safety information before using the SmartHeart Blood Pressure Monitor.

• Measurement results should be discussed with your physician or healthcare professional; never self-diagnose or attempt treatment as this may be dangerous.
• Чоңдор үчүн гана арналган; бул аппарат ымыркайлар же балдар үчүн колдонууга уруксат берилген эмес.
• Балдар жетпеген жерде сактаңыз.
• Do not use the unit if it has any damaged parts (including power cord or plug and cuff), if it has been submersed in water or dropped.
• Эгерде кандайдыр бир аномалия пайда болсо, аппарат текшерилип, оңдолгонго чейин колдонууну токтотуңуз.
• Only use included attachments and parts; do not use attachments from other brands or models as these may not be properly calibrated for use with this device and may result in measurement error.
• Do not disassemble the unit or attempt to repair it; substitution of a component different from that supplied may result in measurement error and will void manufacturer warranty.
• Always follow local regulations for proper disposal of the monitor, cuff, and batteries.

Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This device is for informational purposes only and should not replace professional medical advice.

Орнотуу жана баштапкы колдонуу

1. Мониторду жайгаштыруу: Place the monitor on a flat, stable surface where the digital display is clearly visible.
2. Манжетаны туташтыруу: Insert the cuff tubing connector firmly into the port located on the left side of your monitor.
3. Arm Positioning: Rest your elbow on a solid surface with your palm facing upward. Elevate your arm so that the cuff is at the same level as your heart. Relax your hand.
4. Күйгүзүү: басыңыз START/STOP button to turn the unit on. The unit will briefly perform a self-test. A voice tone will indicate when the unit is ready for testing.

   Note: The unit will not function if residual air from previous testing is present in the cuff. The LCD may flash until pressure is stabilized.
5. Манжета инфляциясы: The cuff will automatically inflate to approximately 180mmHg. You will observe the numbers increasing on the display screen, and the heart icon may flash.
6. Deflation and Reading: Once optimal inflation is reached, the display will show decreasing pressure as the cuff deflates. When the measurement is complete, your blood pressure (systolic and diastolic) and pulse rate will be displayed simultaneously on the screen, accompanied by a voice broadcast.
7. Гипертониянын көрсөткүчү: The Hypertension Indicator on the left side of the display will show your reading range. Refer to the "Understanding Your Readings" section for interpretation.
8. Туруктуу эмес жүрөктүн кагышын аныктоо: If an irregular heartbeat is detected during the reading, the Irregular Heartbeat Detector indicator will appear on the display.
9. Эстутум сактагыч: The reading will automatically be stored in the selected memory bank, up to 99 readings per user.
10. Өчүрүү: Басыңыз START/STOP to turn the unit off and conserve energy. The unit will automatically shut off after 3 minutes of inactivity.
11. Сактагыч: Disconnect the cuff and tubing prior to storing the device.

Image: The SmartHeart Blood Pressure Monitor with its cuff connected, illustrating its compact design for home use.

Important: Avoid smoking, eating, taking medication, alcohol consumption, or physical activity 30 minutes prior to taking a reading to ensure accurate results.

Мониторду иштетүү

Бир тийүү операциясы

The SmartHeart monitor is designed for simplicity. A single press of the START/STOP button initiates the measurement process, including automatic inflation and deflation. This ensures a fast, easy, and accurate reading every time.

Talking Trilingual Audio

The monitor provides clear voice instructions and result broadcasts in English, Spanish, or French. This feature enhances user experience, especially for those with visual impairments. Volume control and mute settings are available for personalized use.

• To change the language or adjust volume, refer to the detailed instructions in the included guidebook.

4-User Memory Bank

The device supports up to four individual users, storing up to 99 readings for each user (396 total readings). This allows multiple family members to track their blood pressure history independently. The memory bank also includes a date/time stamp for each reading and calculates the average of the last three readings for effective tracking.

• басыңыз M button to cycle through the readings history from newest to oldest for the currently selected user.
• To switch between users, consult the full instruction manual.

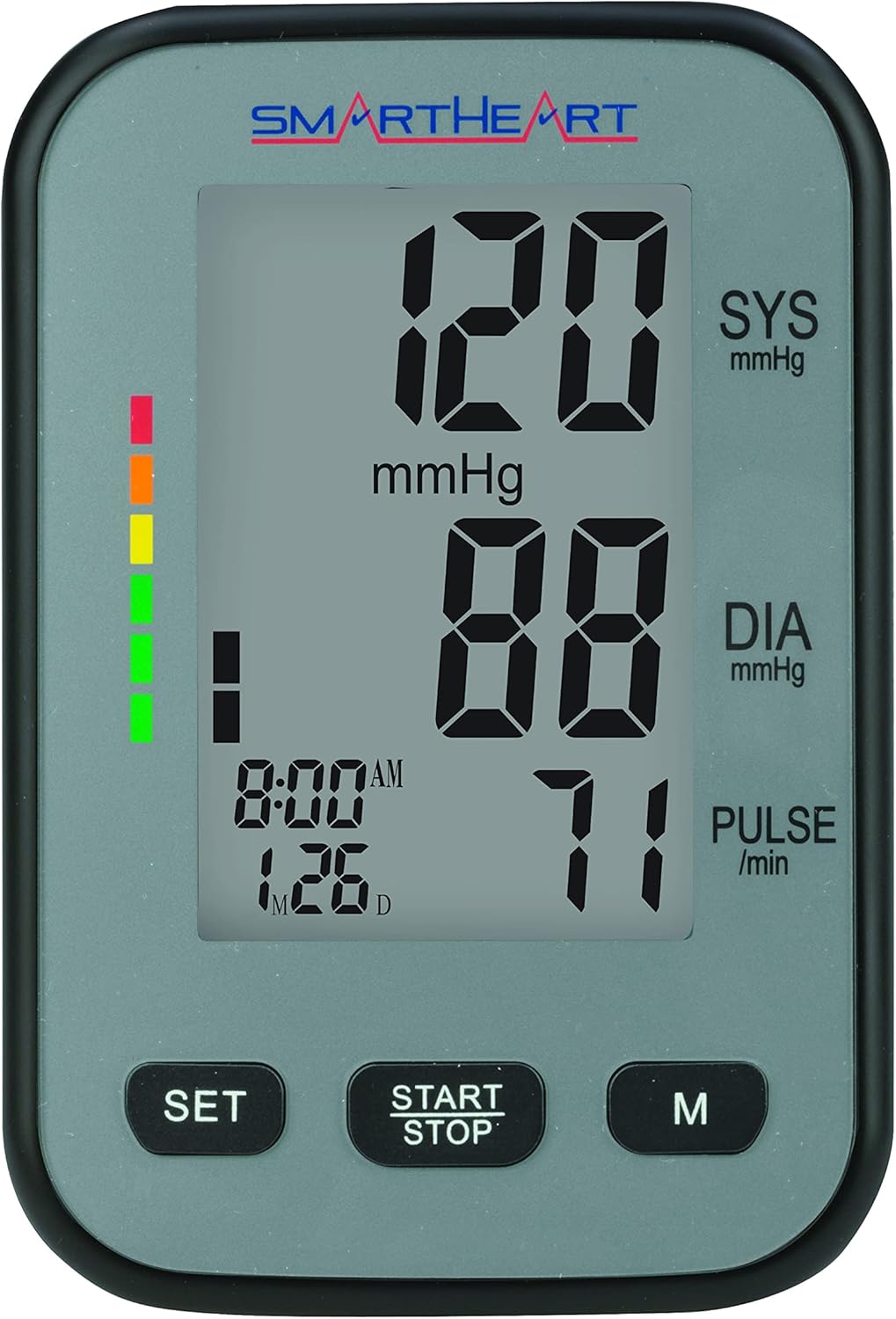

Image: Close-up of the SmartHeart monitor's digital display, showing systolic, diastolic, pulse readings, and the date/time stamp.

Гипертония Көрсөткүч

A color-coded bar on the display instantly indicates where your reading falls based on World Health Organization (WHO) guidelines. This visual aid helps users quickly understand their blood pressure status.

Note: This table provides a general example. Always consult your healthcare professional for personalized interpretation of your blood pressure readings.

Wide-Range Arm Cuff

The monitor includes a comfortable, adjustable wide-range arm cuff designed to fit most adult arm sizes (8.6 - 16.5 inches / 22 - 42 cm). This ensures a secure and accurate fit for a broad range of users. The cuff features a traditional D-ring style for easy application and soft fabric with a secure hook & loop closure. It is not made with natural rubber latex.

To determine the proper cuff size, measure the circumference of your left upper arm at the point halfway between the bend at your elbow and your shoulder. Choose a cuff with the range that best accommodates your arm size measurement. Using an incorrect cuff size can lead to inaccurate readings. Only approved SmartHeart brand cuffs will accurately work with this model.

Техникалык тейлөө жана кам көрүү

• Тазалоо: Wipe the monitor and cuff with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
• Сактагыч: Store the monitor and cuff in the provided storage case in a cool, dry place, away from direct sunlight and extreme temperatures. Disconnect the cuff tubing before storage.
• Батареяны алмаштыруу: When the low battery indicator appears on the display, replace all four AA batteries with new ones. Ensure correct polarity.

Проблемаларды чечүү

If you encounter issues with your SmartHeart Blood Pressure Monitor, please refer to the following common solutions:

• Кубат жок/Дисплей өчүк:
  • Check if batteries are inserted correctly and are not depleted. Replace if necessary.
  • Ensure the monitor is not in auto-shutoff mode (after 3 minutes of inactivity). Press START/STOP to reactivate.
• Туура эмес окуулар:
  • Ensure the cuff is applied correctly and is the appropriate size for your arm.
  • Verify the cuff tubing is securely connected to the monitor.
  • Avoid talking, moving, or consuming food/drink/alcohol/medication 30 minutes before measurement.
  • Ensure your arm is positioned correctly at heart level and you are relaxed.
  • If readings are consistently unusual, consult your physician.
• Манжета туура толтурулбаган/өчүрүлгөн эмес:
  • Check for any kinks or blockages in the air tubing.
  • Ensure the cuff is securely wrapped around the arm.
  • If the cuff contains residual air from a previous test, the unit may not function until pressure stabilizes.
• Voice Prompts Not Working:
  • Үндүн жөндөөлөрүн текшериңиз.
  • Ensure the mute function is not activated.
  • Refer to the full guidebook for language and volume adjustment instructions.

For further assistance, please refer to the comprehensive troubleshooting section in the full user manual or contact customer support.

Техникалык шарттар

Кепилдик жана колдоо

The SmartHeart Talking Blood Pressure Monitor comes with a 5 жылдык чектелген кепилдик, анын сапаты жана аткарылышы боюнча жан тынчтыгын камсыз кылуу.

For warranty claims, technical support, or any inquiries, please refer to the contact information provided in your product packaging or visit the official SmartHeart webсайт. Кепилдик максатында сатып алуунун далили катары сатып алуу дүмүрчөгүңүздү сактап коюңуз.

Сиз да зыярат кылсаңыз болот SmartHeart Store on Amazon көбүрөөк маалымат жана продукт ресурстары үчүн.
