Introduction
The JOYO JAM Buddy is a versatile and portable guitar amplifier designed for practice and on-the-go use. It integrates a speaker, Bluetooth connectivity, and built-in delay effects, offering a comprehensive solution for guitarists. This manual provides detailed instructions for its setup, operation, and maintenance to ensure optimal performance.
Продукт бүттүview
Familiarize yourself with the main components and controls of your JAM Buddy ampөмүрлүү.
Сүрөт: бурчтуу view of the JOYO JAM Buddy ampкөтөргүч, көрсөтүүчүasing анын компакттуу конструкциясы жана башкаруу панели.
Image: Detailed close-up of the JAM Buddy's control panel, highlighting knobs and switches.
Жайгашуу
1. Пакеттен чыгаруу жана мазмуну
Carefully remove all items from the packaging. The box should contain:
- JAM Buddy Amplifier Body
- Электр камсыздоо
2. Батареяны заряддоо
The JAM Buddy features a built-in rechargeable Lithium Polymer battery. Before first use, fully charge the unit.
- Connect the provided power supply to the DC 9V input port on the side of the ampөмүрлүү.
- Электр кубатын кадимки розеткага сайыңыз.
- Заряддоо индикаторунун жарыгы күйөт.
- Charging time is approximately 3-4 hours. A full charge provides 8-13 hours of working time, depending on usage.

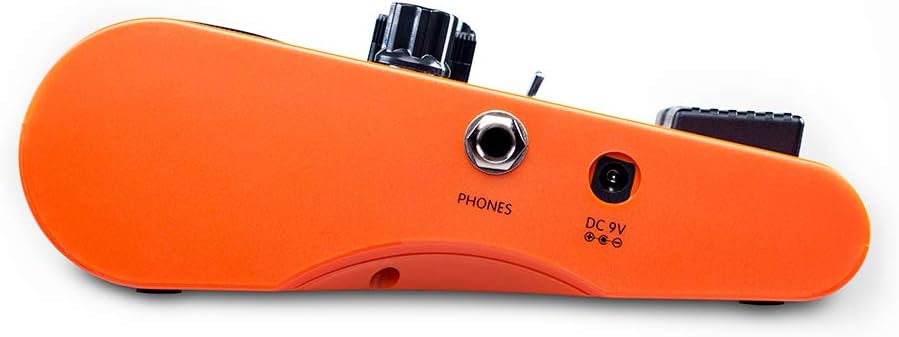

Сүрөт: каптал view of the JAM Buddy, illustrating the DC 9V power input and Phones output jack.
3. Күйгүзүү / Өчүрүү
Locate the POWER switch on the control panel. Flip the switch to the 'ON' position to power on the unit. Flip it to 'OFF' to power down.
4. Гитараңызды туташтыруу
Plug your guitar cable into the input jack located on the side of the JAM Buddy.
5. Наушник туташтыруу
For silent practice, connect standard 1/4-inch headphones to the 'PHONES' output jack on the side of the unit. This will mute the internal speaker.
Иштөө нускамалары
1. Control Panel Overview
The JAM Buddy features several controls for shaping your sound:
- КЕЧИКТИРҮҮ АРАС: Adjusts the wet/dry balance of the delay effect.
- F.BACK (Feedback): Кечиктирүү кайталоолорунун санын көзөмөлдөйт.
- TIME: Кечигүү убактысын орнотот.
- МАСТЕР КӨЛӨМҮ: Overall output volume control.
- ОБОН: Adjusts the overall tonal character (treble/bass balance).
- DRIVE GAIN: Controls the amount of gain for the Overdrive channel.
- CLEAN GAIN: Controls the amount of gain for the Clean channel.
- POWER которуштуруу: Агрегатты күйгүзөт же өчүрөт.
- BLUETOOTH Switch: Bluetooth жупташтыруу режимин иштетет.
- DRIVE MODE Switch: Toggles between CLASSIC OD and HI GAIN modes for the Overdrive channel.
- КАНАЛ которуштуруу: Selects between CLEAN and DRIVE channels.
2. Канал тандоо
колдонуу КАНАЛ footswitch to toggle between the CLEAN and DRIVE channels. The corresponding LED will indicate the active channel.
3. Overdrive Modes
When the DRIVE channel is active, use the DRIVE РЕЖИМ footswitch to select between two distinct overdrive sounds:
- CLASSIC OD: Provides a traditional overdrive tone.
- САЛАМ GAIN: Offers a more aggressive, higher-gain distortion.
4. Delay Effect
The JAM Buddy includes a built-in delay effect with a maximum delay time of 500ms. Adjust the DELAY MIX, F. BACK, жана TIME knobs to customize the delay to your preference.
5. Bluetooth байланышы
To connect a Bluetooth audio device (e.g., smartphone or tablet) for playing backing tracks:
- Ensure the JAM Buddy is powered on.
- Flip the BLUETOOTH switch to the 'ON' position. The Bluetooth indicator light will blink, indicating pairing mode.
- On your audio device, search for Bluetooth devices and select 'JAM BUDDY'.
- Once paired, the Bluetooth indicator light will become solid. You can now play audio through the JAM Buddy's speaker.

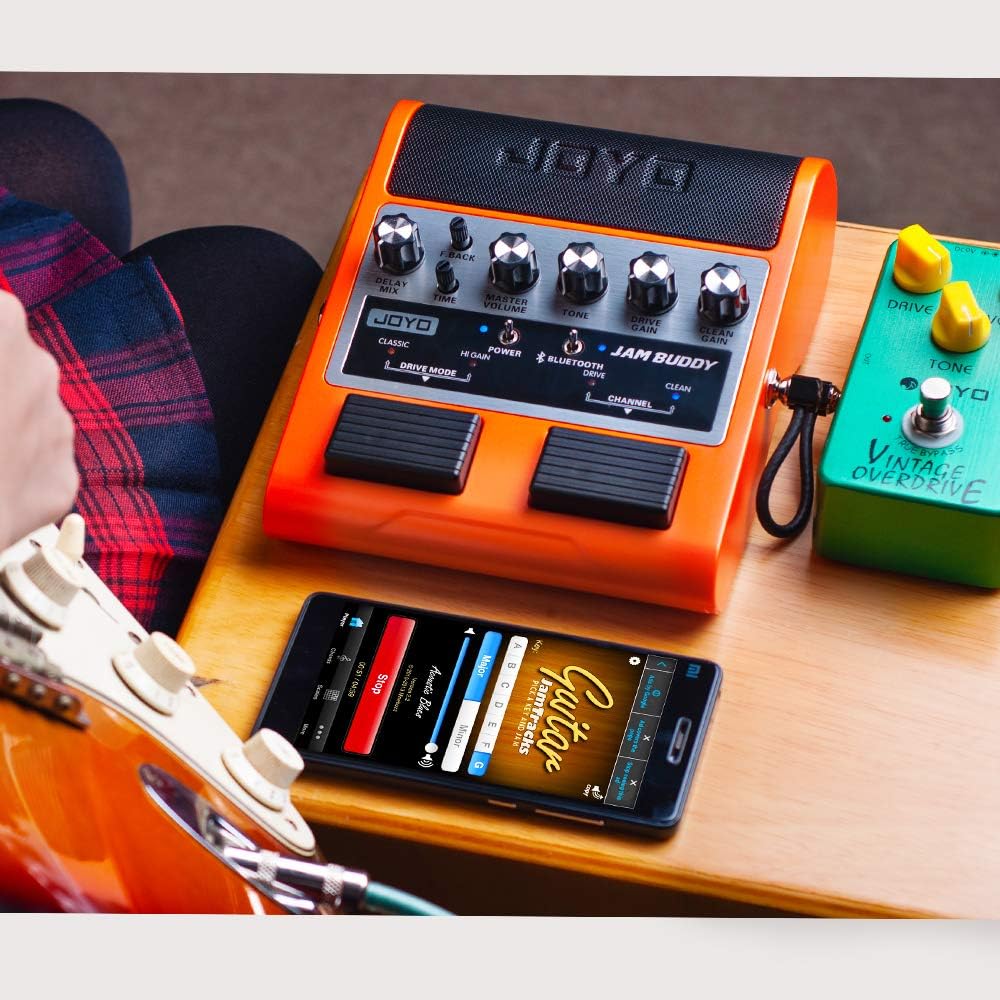

Image: The JAM Buddy in use, connected to a guitar and a smartphone for Bluetooth audio playback.
6. Using as a Pedal (External Amplifier Connection)
The JAM Buddy can also function as a guitar pedal, allowing you to utilize its effects and channels through a larger amplifier. Connect the JAM Buddy's output (guitar input jack) to the input of your external ampөмүрлүү.

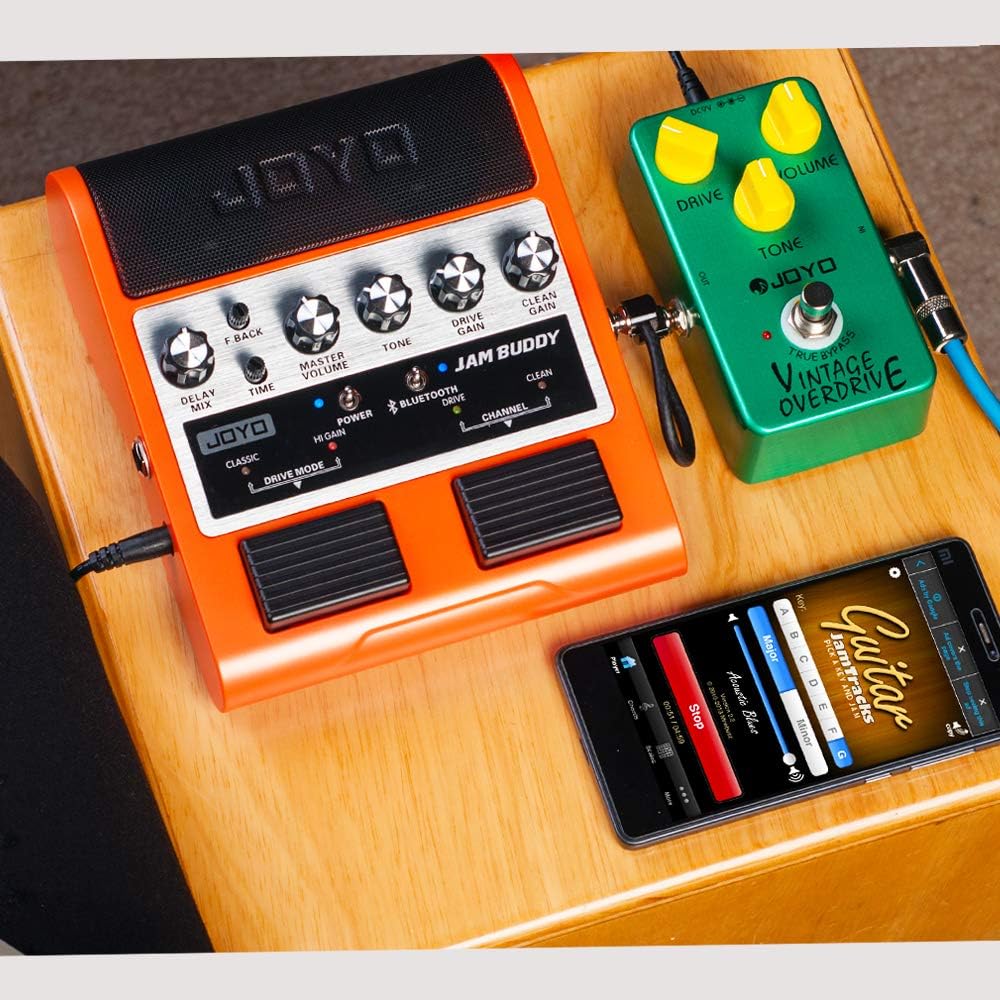

Image: The JAM Buddy integrated into a setup with an external overdrive pedal and a smartphone.
Техникалык тейлөө
- Тазалоо: Агрегаттын сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Сактагыч: Store the JAM Buddy in a cool, dry place away from direct sunlight and extreme temperatures.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, бат-баттан батарейканы толук зарядсыздандырбаңыз. Узак мөөнөткө сактасаңыз, батарейканы бир нече ай сайын болжол менен 50%га чейин заряддаңыз.
- Нымдуулуктан качыңыз: Аппаратты сууга же ашыкча нымдуулукка дуушар кылбаңыз.
Проблемаларды чечүү
- Үн жок:
- Ensure the JAM Buddy is powered on and the MASTER VOLUME knob is turned up.
- Check all cable connections (guitar, headphones).
- If using headphones, ensure they are fully plugged into the 'PHONES' jack.
- Гитаранын үн баскычы күйгүзүлгөнүн текшериңиз.
- Low Volume on Clean Channel:
- Adjust the CLEAN GAIN knob.
- Ensure the MASTER VOLUME is adequately set.
- Bluetooth жупташтыруу маселелери:
- Ensure the BLUETOOTH switch is in the 'ON' position and the indicator light is blinking.
- Turn off and on the Bluetooth function on your audio device.
- Move your audio device closer to the JAM Buddy.
- If previously paired, try 'forgetting' the device on your audio device and re-pairing.
- Батарея заряддалбай жатат:
- Verify the power supply is correctly connected to both the JAM Buddy and a working power outlet.
- Ensure you are using the original JOYO power supply.
Техникалык шарттар
| Элемент Салмагы | 1.5 фунт |
| Продукциянын өлчөмдөрү | 2.95 x 6.14 x 7.2 дюйм |
| Элемент моделинин номери | JAM BUDDY |
| Батареялар | 1 Литий Полимердик батарейка талап кылынат (киргизилген) |
| Дене материалы | ABS пластик |
| Шайкеш түзмөктөр | Effect Pedal, Guitar, Guitar Ampөмүрлүү |
| Туташтыргыч түрү | 6.35 мм Jack |
| Аппараттык интерфейс | Bluetooth 4.0 |
| Чыгуу Wattage | 8 Ватт |
| Батарея түрү | Полимер |
| Power Source | Электр зымдары, аккумуляторлор |
Image: Diagram illustrating the dimensions of the JAM Buddy amplifier (7.2" x 6.1" x 3").
Кепилдик жана колдоо
The JOYO JAM Buddy is provided directly by JOYO Technology Co., LTD, established in 2006. For any product-related issues or inquiries, please contact the seller through your order details. JOYO is committed to resolving issues within 24 hours and providing the best service.
