1. Киришүү
Thank you for choosing the JOYO JP-05 Rechargeable Guitar Effect Pedal Power Supply. This device is designed to provide stable and isolated power to your guitar effect pedals, featuring a built-in rechargeable battery for portable use and a USB output for charging other devices. Please read this manual thoroughly to ensure proper use and optimal performance.
2. Коопсуздук маалыматы
- Аппаратты жамгырга, нымдуулукка же экстремалдык температурага дуушар кылбаңыз.
- Аппаратты жылуулук булактарынын жанына же тике күн нуруна коюудан алыс болуңуз.
- Кубаттоо үчүн көрсөтүлгөн кубат адаптерин гана колдонуңуз.
- Агрегатты ажыратууга же өзгөртүүгө аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Туура полярдуулукту жана томду камсыз кылууtage settings for your pedals to prevent damage.
- Балдар жетпеген жерде сактаңыз.
3. Продукт бүтүп калдыview
The JOYO JP-05 is a versatile power supply for guitar effect pedals, offering both AC-powered and battery-powered operation. It features multiple isolated outputs to ensure clean power delivery to your pedals.
Image 3.1: The JOYO JP-05 power supply unit with its accessories, including power cables and adapter.
Негизги өзгөчөлүктөрү:
- Камтылган кайра заряддалуучу батарея: Equipped with a 7.4V/4400mAh lithium battery for portable use.
- Бир нече туруктуу токтун чыгыштары: 8 isolated DC output jacks for various pedal requirements.
- Variable Voltage Чыгуу: One output jack is switchable between 9V, 12V, and 18V.
- USB кубаттоо порту: A 5V/1A USB output for charging mobile devices.
- LED көрсөткүчтөрү: Bright blue LEDs for pedal board lighting and green/red LEDs for battery level and short circuit indication.
- Кыска туташуулардан коргоо: Independent short-circuit protection for each output ensures other outputs continue to function if one experiences a fault.
4. Компоненттер жана башкаруу элементтери
Familiarize yourself with the various inputs, outputs, and controls on your JP-05 unit.
Image 4.1: Detailed diagram illustrating the various ports and controls on the JOYO JP-05.
- DC 9V IN: Input jack for connecting the included 9V/2A power adapter to charge the unit or power it directly.
- DC 5V 1A OUT (USB): USB port for charging external devices like smartphones or tablets.
- DC Outputs 1-3: Three 9V DC outputs, each providing 500mA current. Suitable for high-current digital pedals.
- DC Outputs 4-7: Four 9V DC outputs, each providing 100mA current. Suitable for standard analog pedals.
- DC чыгаруу 8: One adjustable output jack, switchable between 9V, 12V, and 18V, providing 100mA current.
- LED Indicator Switch: Toggles the blue LED lights for pedal board illumination on or off.
- Батарея деңгээлинин көрсөткүчү: LEDs indicating the remaining battery charge.
- Кубат которгучу: Turns the unit on or off. Located on the back of the unit.

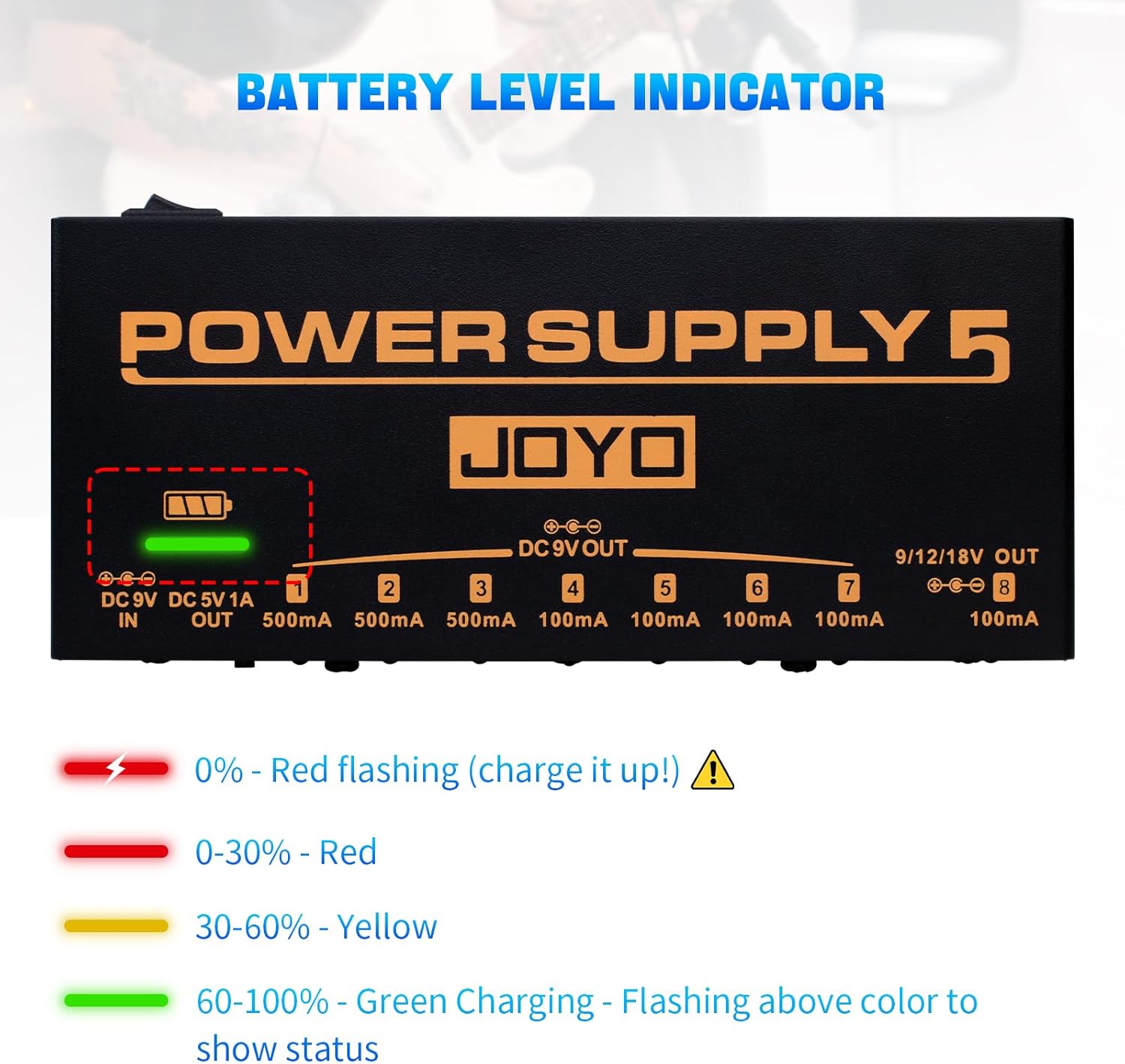

Image 4.2: The battery level indicator on the JOYO JP-05, showing a green light for sufficient charge.
Image 4.3: The switch for selecting 9V, 12V, or 18V output on the JOYO JP-05.
5. Орнотуу
5.1. Кутуда эмне бар
- JOYO JP-05 Power Supply Unit
- DC 9V/2A Power адаптери
- DC Power Cables (various lengths)
- Reversed Polarity Cable (for pedals requiring center positive)
5.2. Баштапкы заряддоо
Before first use, it is recommended to fully charge the JP-05. Connect the included DC 9V/2A power adapter to the 'DC 9V IN' jack on the unit and plug the adapter into a wall outlet. The battery level indicator LEDs will show charging status. A full charge typically takes about 2.5 hours.
5.3. Педалдарды бириктирүү
- Ensure the JP-05 is turned off.
- Көлөмдү аныктооtage and current requirements for each of your effect pedals.
- Connect your pedals to the appropriate DC output jacks using the provided DC power cables.
- Use outputs 1-3 (9V 500mA) for high-current digital pedals.
- Use outputs 4-7 (9V 100mA) for standard analog pedals.
- For pedals requiring 12V or 18V, use output 8 and adjust the voltage switch accordingly. Ensure the switch is set before connecting the pedal.
- If a pedal requires center positive polarity, use the included reversed polarity cable. Most guitar pedals are center negative.
- Once all pedals are connected, turn on the JP-05 using the power switch.
Image 5.1: Connection diagram for the JOYO JP-05, showing how to connect multiple pedals and charge a mobile device.
6. Операция
6.1. Powering Pedals
After connecting your pedals, turn on the JP-05 using the power switch. The blue LEDs will illuminate, indicating power is being supplied to the outputs. You can toggle these blue LEDs on or off using the dedicated LED indicator switch.
Image 6.1: The JOYO JP-05 with its blue LEDs active, providing power to connected pedals on a pedalboard.
6.2. Батареянын иштөө мөөнөтү
The built-in 4400mAh battery provides extended usage time. Expect approximately 2 hours of operation with high-current digital effect pedals or over 10 hours with 8 analog pedals. Actual battery life may vary depending on the total current draw of your connected pedals.
Image 6.2: Visual representation of battery life, indicating 2 hours for high-current digital pedals and over 10 hours for 8 analog pedals.
6.3. USB кубаттоо
The 5V/1A USB output port can be used to charge compatible portable devices such as smartphones or tablets. Simply connect your device's USB charging cable to this port.
6.4. Батарея деңгээлинин көрсөткүчү
The battery level indicator LEDs provide a visual cue of the remaining charge:
- Жашыл (катуу): 60-100% charge.
- Сары: 30-60% charge.
- Кызыл: 0-30% charge.
- Кызыл (Жалтылдап): 0% charge, requires immediate recharging.
When charging, the LEDs will flash according to the current charge level until fully charged, at which point they will remain solid green.
7. Техникалык тейлөө
- Агрегатты жумшак, кургак чүпүрөк менен тазалаңыз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Аппаратты күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- If not used for an extended period, charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
8. Кыйынчылыктарды
- Педальдарга күч жок:
- Кубат өчүргүч 'ON' абалында экенин текшериңиз.
- Check the battery level indicator. If red or flashing red, recharge the unit.
- Verify that the DC power cables are securely connected to both the JP-05 and the pedals.
- Confirm that the pedal's voltage and current requirements match the output used.
- Noise in Audio Signal:
- While the JP-05 features isolated outputs to minimize noise, ensure all audio cables are properly shielded and in good condition.
- Check for ground loops in your overall setup.
- Some pedals are inherently noisy; try isolating the source by connecting pedals one by one.
- One Output Not Working:
- The JP-05 has independent short-circuit protection. If an output is short-circuited, its indicator LED will turn off (or change color, depending on the specific model's indicator design) while others remain functional. Disconnect the problematic pedal and cable from that output.
- Кабелдин бузулганын текшериңиз.
- Ensure the pedal is not drawing more current than the output can provide.

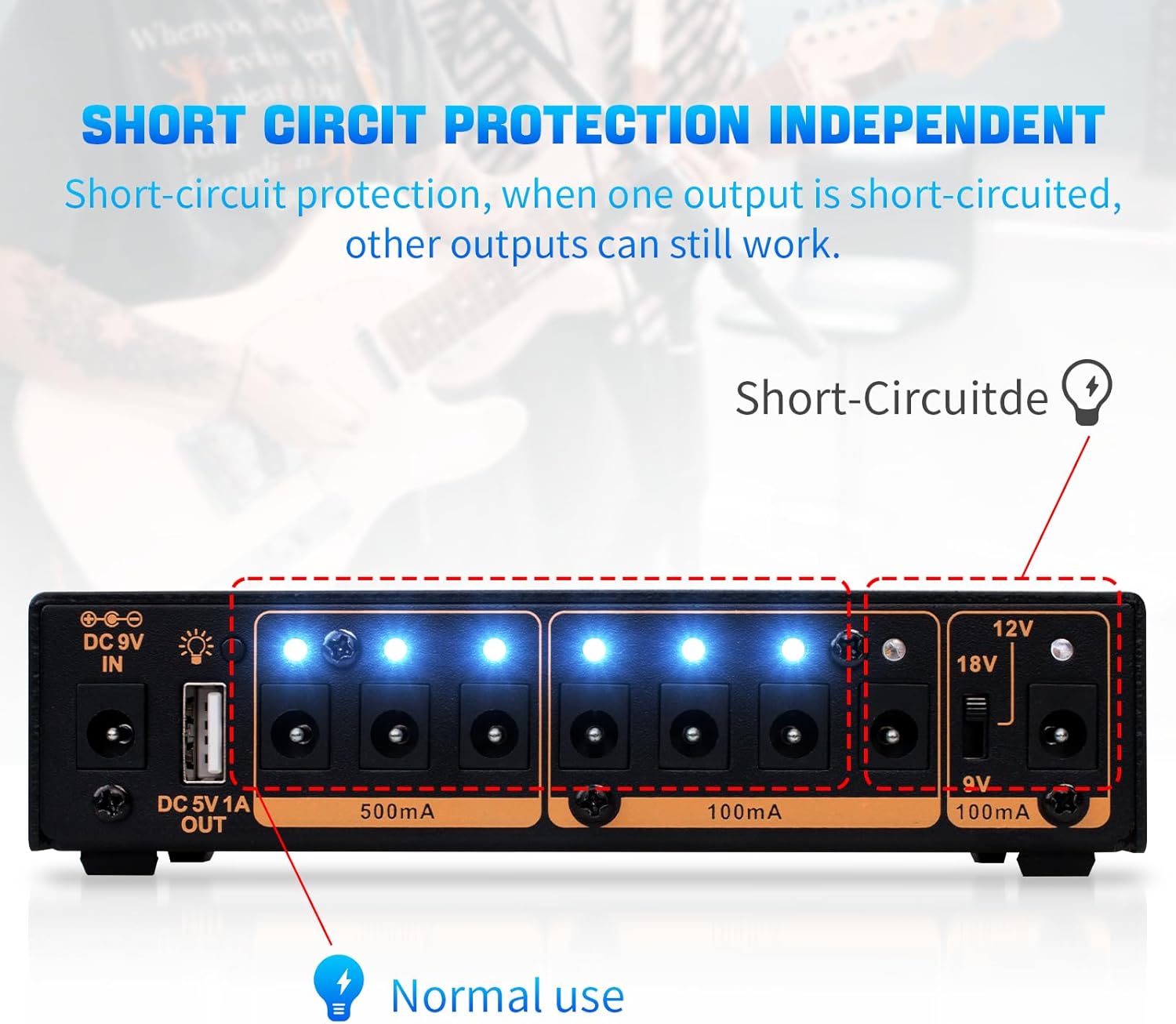

Image 8.1: Illustration of the independent short-circuit protection feature, where a fault in one output does not affect others.
9. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | JP-05 |
| Батарея сыйымдуулугу | 7.4V/4400mAh литий-ион |
| Заряддоо убактысы | Болжол менен 2.5 саат |
| DC Output 1-3 | 9V DC, 500mA (each) |
| DC Output 4-7 | 9V DC, 100mA (each) |
| DC чыгаруу 8 | 9V/12V/18V DC, 100mA (switchable) |
| USB чыгышы | 5V DC, 1A |
| Өлчөмдөр | 5.75 x 2.56 x 1.38 дюйм (14.6 x 6.5 x 3.5 см) |
| Салмагы | 1.37 фунт (620 грамм) |
| Материал | Металл, пластик |
10. Кепилдик жана колдоо
JOYO Technology provides a limited warranty for its products. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official JOYO webсайт.
If you encounter any issues or require technical assistance, please contact JOYO customer support. You can typically find contact information on the official JOYO website or through your purchase platform's seller messaging system. When contacting support, please provide your product model (JP-05) and a detailed description of the issue.
JOYO Technology is committed to providing professional digital products for music education and strives to offer the best service to its customers.
