1. Киришүү

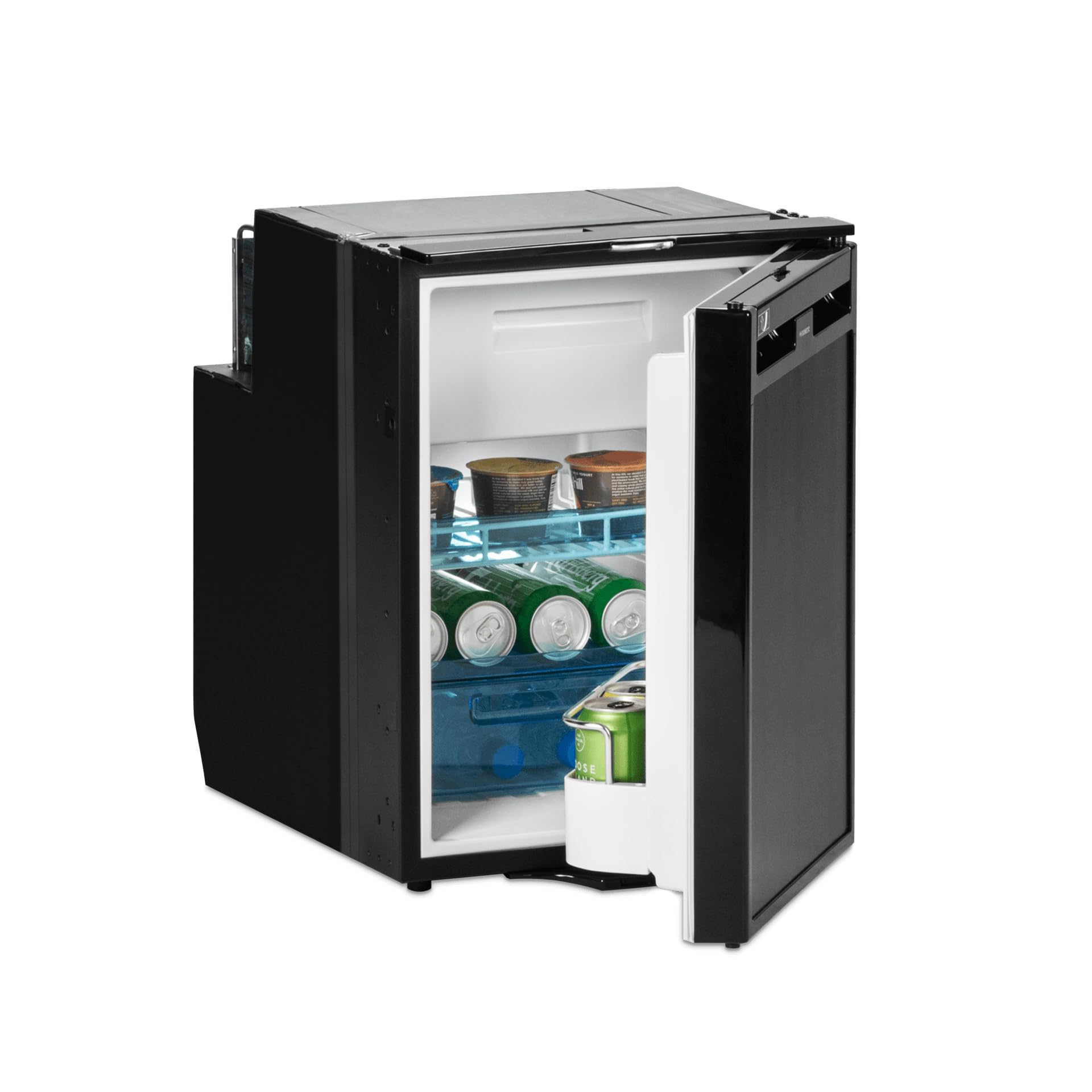

This user manual provides essential information for the safe and efficient operation of your Dometic CoolMatic CRX 50-45L refrigerator. Please read these instructions carefully before installation and use, and keep them for future reference. The Dometic CoolMatic CRX series offers versatile cooling solutions, featuring a patented removable freezer compartment for flexible storage options.
2. Коопсуздук нускамалары
Observe all safety warnings and instructions to prevent injury or damage. Improper installation, use, or maintenance can lead to hazards.
- Шайманды квалификациялуу персонал жергиликтүү эрежелерге ылайык орнотууну текшериңиз.
- кубат менен камсыз кылуу Voltage шаймандын этикеткасындагы баалоо менен дал келет.
- Шайман көрүнгөн бузулуп калса иштетпеңиз.
- Вентиляция тешиктерин тоскоолдуктардан алыс кармаңыз.
- Do not store explosive substances or aerosols with flammable propellants in the appliance.
- Тазалоодон же техникалык тейлөөдөн мурун электр кубатынан ажыратыңыз.
- Оңдоону ыйгарым укуктуу тейлөө кызматкерлери гана жүргүзүшү керек.
3. Продукт бүтүп калдыview
3.1 Негизги өзгөчөлүктөрү
- Patented removable freezer compartment for flexible use as a fridge, freezer, or both.
- Soft-touch control panel with integrated LED light for easy temperature adjustment.
- Energy-efficient compressor with speed control, reducing power consumption by up to 25%.
- Bevelled edge design on the backside for optimized space utilization in vehicles or boats.
- Minimal noise operation due to automatic fan speed adjustment based on ambient temperature.
3.2 Компоненттер
The Dometic CoolMatic CRX 50-45L refrigerator typically includes:
- Refrigerator cabinet with door
- Алынуучу тоңдургуч бөлүм
- Жөнгө салынуучу текчелер
- Door bins/racks
- Soft-touch control panel (integrated into the inner wall)
- LED ички жарык
- Power cable (DC)
4. Орнотуу
4.1 Орнотуу
- Жайгашкан жери: Choose a location that is level, stable, and provides adequate ventilation around the appliance. Ensure sufficient space for the door to open fully.
- Вентиляция: Maintain clear airflow around the compressor unit. Blocked vents can lead to reduced efficiency and increased power consumption.
- Кубат туташуу: Connect the refrigerator to a suitable DC power source (12/24V) as specified in the technical data. Ensure the wiring is correctly sized and fused.
- Эшиктин артка айлануусу (кошумча): If desired, the door hinge can be reversed to open from the opposite side. Refer to the detailed installation guide for specific instructions.
4.2 Алгачкы колдонуу
- After installation, wait at least 1 hour before connecting the appliance to power. This allows refrigerants to settle.
- Жарнак менен интерьерди тазалаңызamp cloth and mild detergent before first use.
- Connect the refrigerator to the power supply. The interior LED light should illuminate when the door is opened.
- Set the desired temperature using the control panel. Allow several hours for the refrigerator to reach the set temperature before loading with food.
5. Иштөө нускамалары
5.1 Башкаруу панели
The soft-touch control panel is located flush within the inner wall of the refrigerator. It allows you to:
- Шайманды күйгүзүңүз/өчүңүз.
- Температура жөндөөсүн тууралаңыз.
- View учурдагы температура.
Refer to the detailed operating instructions for specific button functions and display indicators.
5.2 Температура орнотуулары
Press the temperature adjustment button on the control panel to cycle through available temperature settings. The LED display will indicate the selected setting. For optimal food preservation, a temperature between 3°C and 7°C (37°F and 45°F) is generally recommended for the refrigerator compartment.
5.3 Removable Freezer Compartment
The Dometic CoolMatic CRX 50-45L features a patented removable freezer compartment, offering flexibility:
- Fridge Only: Remove the freezer compartment to maximize refrigeration space.
- Freezer Only: If the entire unit is set to a freezing temperature, the main compartment acts as a freezer.
- Fridge and Freezer: Keep the freezer compartment installed for dual-zone functionality.
To remove the freezer compartment, gently pull it out from its housing. Ensure the appliance is switched off before performing this action.
6. Техникалык тейлөө
6.1 Тазалоо
Regular cleaning helps maintain hygiene and efficiency. Always disconnect the power supply before cleaning.
- Clean the interior and exterior surfaces with a soft cloth and a mild, non-abrasive detergent.
- Avoid using harsh chemicals, abrasive cleaners, or sharp objects that could damage surfaces.
- Эшиктин пломбаларынын бекем жабылышын камсыз кылуу үчүн аларды үзгүлтүксүз сүртүп туруңуз.
- Clean the condenser coils (located at the back or bottom) periodically with a soft brush or vacuum cleaner to remove dust and debris, which improves cooling efficiency.
6.2 Эритүү
The Dometic CoolMatic CRX 50-45L features an automatic defrost system for the refrigerator compartment. However, if ice builds up excessively in the freezer compartment, manual defrosting may be required:
- Шайманды өчүрүп, аны электр кубатынан ажыратыңыз.
- Бардык азыктарды алып салыңыз жана муздаткычка салыңыз.
- Leave the door open to allow ice to melt naturally. Do not use sharp objects or heating devices to speed up defrosting.
- Эриген сууну чүпүрөк менен сүртүңүз.
- Once defrosted and dry, reconnect power and return food items.
7. Кыйынчылыктарды
If you experience issues with your refrigerator, consult the following table before contacting service.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман күйбөйт. | Электр энергиясы жок; күйгүзүлгөн сактагыч; Бошоң байланыш. | Check power connection; Inspect fuse; Secure connections. |
| Муздаткыч жетиштүү муздабай жатат. | Door not closed properly; Excessive food load; Poor ventilation; High ambient temperature; Incorrect temperature setting. | Ensure door is sealed; Reduce load; Clear vents; Adjust temperature setting. |
| Appliance is too noisy. | Unit not level; Objects vibrating against the unit; Fan obstruction. | Ensure unit is level; Remove vibrating objects; Check for fan obstructions. |
| Ашыкча энергия керектөө. | Poor ventilation; Frequent door openings; High ambient temperature; Dirty condenser coils. | Ensure adequate ventilation; Minimize door openings; Clean condenser coils. |
8. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Dometic |
| Модель номери | CRX0050T |
| Продукциянын өлчөмдөрү | 60.45 x 52.4 x 124.46 cm; 17 kg (or 96.8D x 127.1W x 135.5H Centimetres) |
| Кубаттуулугу | 4.4 Liters (Freezer Storage) |
| Конфигурация | Үстүндөгү компакттуу тоңдургуч |
| Түс | Silver |
| Өзгөчө өзгөчөлүк | Алынуучу текче |
| Орнотуу түрү | бурун |
| Эритүү системасы | Автоматтык |
| Аяктоо түрү | Metallic |
| Өндүрүүчү | ИЧКИ |
Эскертүү: Техникалык мүнөздөмөлөр эскертүүсүз өзгөртүлүшү мүмкүн. Эң так маалымат алуу үчүн продукттун этикеткасын караңыз.
9. Кепилдик жана колдоо
Кепилдик маалыматы үчүн продуктуңузга кошулган кепилдик картасын караңыз же расмий Dometicке баш багыңыз website. If you require technical assistance, spare parts, or service, please contact Dometic customer support directly. Have your model number (CRX0050T) and purchase details ready when contacting support.
Dometic расмий Webсайт: www.dometic.com
