Продукт бүттүview
The Delta In2ition 2-in-1 Dual Hand Held Shower Head offers a versatile showering experience with its integrated design. It features a main shower head and a detachable hand shower, allowing for independent or simultaneous use. This model incorporates Delta's H2Okinetic PowerDrench Spray technology for enhanced coverage, intensity, and warmth, along with MagnaTite Docking for secure hand shower placement and Touch-Clean spray holes for easy maintenance.
Image: The Delta In2ition 2-in-1 Dual Hand Held Shower Head in chrome finish, showing the main shower head and the detachable hand shower with its hose.
Негизги өзгөчөлүктөрү
- 2-ин-1 Функциясы: Use the main shower head and the detachable hand shower independently or together.
- H2Okinetic PowerDrench спрейи: Provides 3X more coverage than a standard shower head for increased warmth and intensity.
- 5 Spray Settings: Includes H2OKinetic PowerDrench, full body, massaging, soft waterfall, and pause.
- MagnaTite Docking: A powerful integrated magnet securely holds the hand shower in place.
- Тийип тазалоочу чачыраткыч тешиктер: Allows for easy removal of mineral buildup with a simple wipe.
- 60-82 inch Stretchable Metal Hose: Included for flexible use of the hand shower.
Image: Visual representation of the Delta In2ition shower head demonstrating multiple spray patterns available.
Орнотуу жана орнотуу
This shower head is designed for wall-mounted installation. Basic plumbing knowledge and tools are required. If you are unsure about any steps, it is recommended to consult a qualified plumber.
Керектүү материалдар (кошумча):
- Plumber's tape (thread seal tape)
- Жөнгө салынуучу ачкыч
- Жумшак кездеме
Орнотуу кадамдары:
- аймакты даярдоо: Ensure the water supply to your shower is turned off. Remove your existing shower head by unscrewing it counter-clockwise from the shower arm. Clean any old plumber's tape or debris from the shower arm threads.
- Сантехниктин лентасын колдонуу: Wrap plumber's tape clockwise around the threads of the shower arm 3-4 times.
- Attach the Shower Mount: Screw the main shower head assembly onto the shower arm by hand until snug. Use an adjustable wrench to tighten it an additional 1/4 to 1/2 turn. Do not overtighten, as this can damage the threads.
- Шлангды туташтыруу: Attach one end of the metal hose to the hand shower and the other end to the designated connection point on the main shower head assembly. Hand-tighten both connections, then use a wrench for a final snug turn.
- Агышуу үчүн сыноо: Turn on the water supply and check for any leaks at the connections. If leaks occur, tighten slightly more or reapply plumber's tape.
Image: The Delta In2ition shower head installed, showing the main shower head spraying and the hand shower detached and in use.
Иштөө нускамалары
Your Delta In2ition shower head offers multiple spray functions and the flexibility of a 2-in-1 design.
Selecting Spray Settings:
Rotate the dial on the face of the main shower head to cycle through the 5 available spray settings:
- H2Okinetic PowerDrench спрейи: A powerful, sculpted spray for maximum coverage and warmth.
- Бүт денеге арналган спрей: A traditional, invigorating spray.
- Massaging Spray: A focused, pulsating spray for muscle relief.
- Soft Waterfall Spray: A gentle, wide spray.
- Тыныгуу: Reduces water to a trickle, conserving water during tasks like lathering or shaving.
Image: Icon representing the Pause spray setting, which temporarily reduces water flow.
Using the 2-in-1 Functionality:
- Detaching the Hand Shower: Gently pull the hand shower from the main shower head. The MagnaTite docking system will release it smoothly.
- Re-docking the Hand Shower: Guide the hand shower back towards the main shower head. The integrated magnet will pull it securely into place.
- Агымды башкаруу: A diverter lever or button on the main unit allows you to switch water flow between the main shower head only, the hand shower only, or both simultaneously. Refer to the markings on your specific unit for exact operation.
Image: Close-up of the Delta In2ition shower head demonstrating the MagnaTite Docking feature, showing the magnetic connection point.
Техникалык тейлөө
Regular cleaning will ensure optimal performance and appearance of your Delta In2ition shower head.
Cleaning the Spray Holes (Touch-Clean):
The soft rubber Touch-Clean spray holes are designed for easy maintenance. To remove mineral residue (calcium and lime buildup), simply wipe the spray holes with your finger or a soft cloth. No chemical cleaners or soaking are typically required.
Image: Illustration highlighting the Touch-Clean spray holes feature for easy mineral removal.
Жалпы тазалоо:
- Хром каптамасын жумшак, d менен тазалаңызamp кездеме.
- Абразивдүү тазалагычтардан, катаал химиялык заттардан же жуугучтан алыс болуңуз, анткени алар финишке зыян келтириши мүмкүн.
- Кыйшайган тактар үчүн жумшак самын жана суу эритмесин колдонуңуз, андан кийин жакшылап чайкап, жумшак чүпүрөк менен кургатыңыз.
Проблемаларды чечүү
Эгерде сиз душ башы менен көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу агымы | Mineral buildup in spray holes; partially closed water valve; clogged screen washer. | Clean spray holes using Touch-Clean feature. Ensure water supply valves are fully open. Check and clean the screen washer at the shower arm connection. |
| Байланыштарда агып кетүү | Loose connections; insufficient plumber's tape; damaged washer. | Tighten connections. Reapply plumber's tape if necessary. Inspect washers for damage and replace if worn. |
| Hand Shower Not Docking Securely | Debris on magnetic surface; magnet issue. | Clean the magnetic surfaces on both the hand shower and the main unit. Ensure no obstructions. If the issue persists, contact customer support. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Delta |
| Модель номери | 58620-25-PK |
| Аяктоо түрү | Chrome |
| Материал | Дат баспаган болот |
| Орнотуу түрү | Дубалга орнотулган |
| Flow Rate | Мүнөтүнө 2.5 Галлон (GPM) |
| Spray орнотууларынын саны | 5 |
| Шлангдын узундугу | 60-82 Inches (stretchable) |
| Продукциянын өлчөмдөрү | 6.25"L x 5"W (Shower Head) |
| Элемент Салмагы | 3.19 фунт |
| Өзгөчөлүктөр | H2Okinetic PowerDrench Showers, MagnaTite Docking, Touch-Clean spray holes, Pause setting |

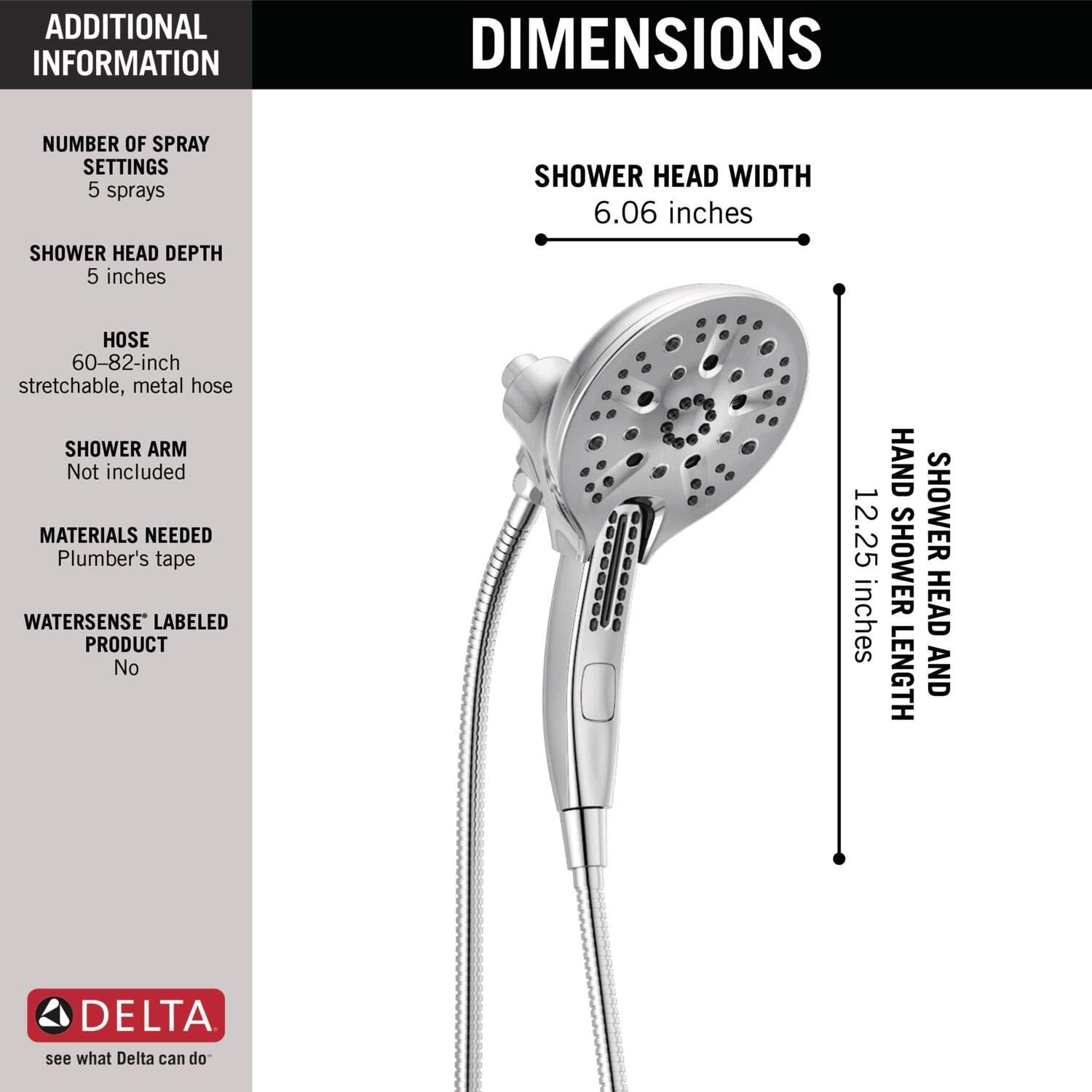

Image: Diagram illustrating the dimensions of the Delta In2ition shower head and hand shower.
Кепилдик жана колдоо
Кепилдик маалыматы:
Бул Delta Faucet продуктусу төмөнкүлөр тарабынан колдоого алынат: Өмүр бою кран жана бүтүрүү Өмүр бою чектелген кепилдик. This warranty covers defects in material and manufacturing workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed. For full warranty details, please refer to the official Delta Faucet webсайтка же кардарларды колдоо менен байланышыңыз.
Кардарларды колдоо:
For further assistance, technical support, or warranty claims, please visit the official Delta Faucet webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Байланыш маалыматы, адатта, өндүрүүчүнүн сайтынан тапса болот webсайт же продукт таңгак.
