Продукт бүттүview
The Elitech EK-3010 is a digital temperature controller designed for managing temperature in various applications, including cold storage or heating equipment. It provides temperature measurement, display, and control functionalities. Key features include temperature calibration, over-temperature alarms, sensor failure alarms, and a one-key recovery for factory default settings. The device incorporates a touch key design with a key lock function for secure operation. It features a single sensor input for cabinet temperature and a single control output for refrigeration or heating equipment.
Сүрөт 1: Алдыңкы view of the Elitech EK-3010 Digital Temperature Controller, showing the display and control buttons.

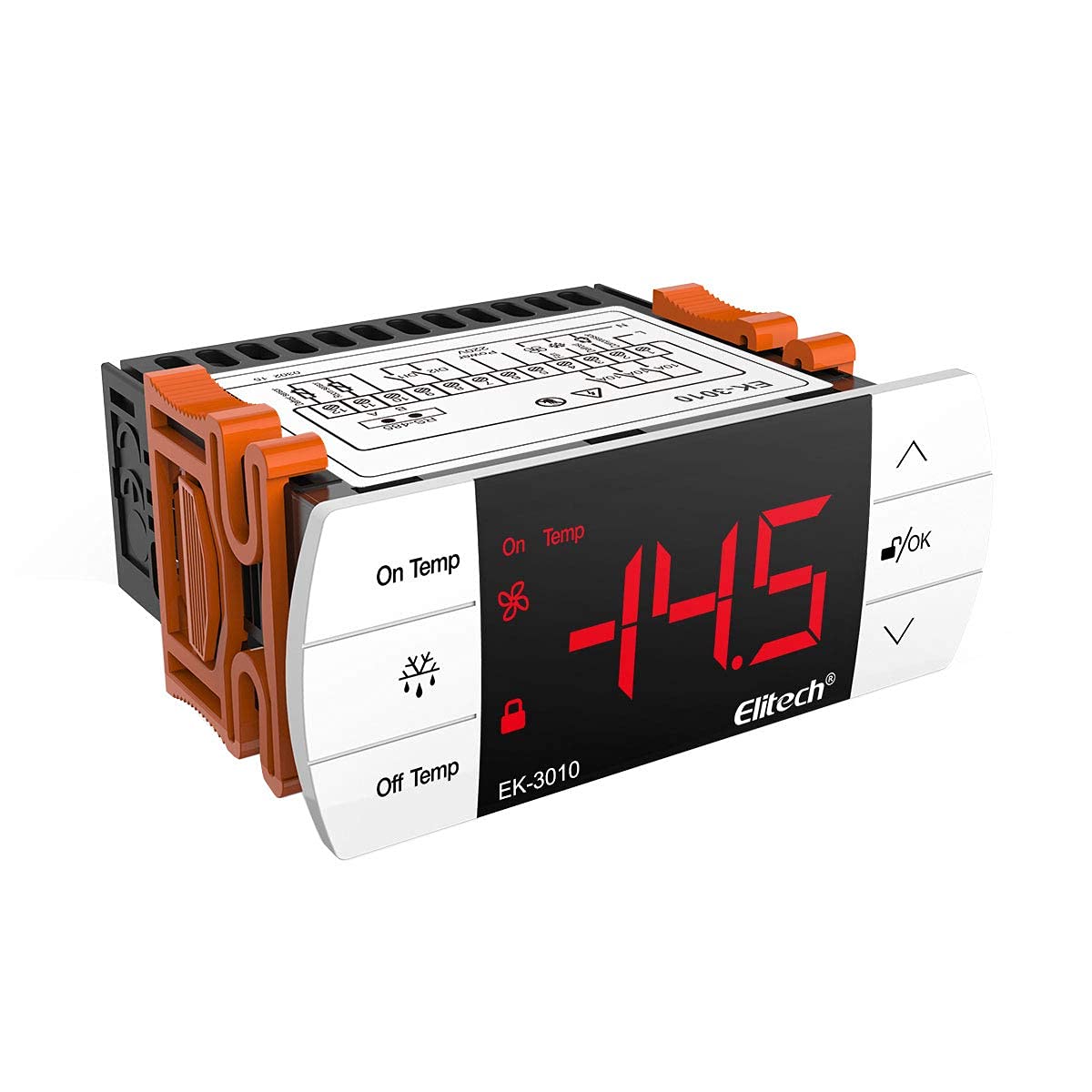

2-сүрөт: Бурчтуу view of the Elitech EK-3010, highlighting its compact design and display.
Негизги өзгөчөлүктөрү
- Six touch keys for quick parameter setting and easy operation.
- Ability to preset a group of parameters with a one-key recovery function.
- Display panel shows three digits, one status indicator (key lock), and two parameter indicators (ON temp, OFF temp).
- Under normal running status, all descriptors are off. When entering menu setting mode, the corresponding parameter descriptor lights up. If there is an output under normal running status, "ON" lights up.
Орнотуу жана орнотуу
Коопсуздук чаралары
Always disconnect power before installation or maintenance. Ensure wiring is performed by qualified personnel according to local electrical codes. Avoid installing the device in areas with excessive moisture, dust, or corrosive gases.
Монтаждоо
The controller is designed for panel mounting. Ensure the mounting hole dimensions are 71mm x 29mm. Secure the controller firmly in place.
Зымдар диаграммасы
Түзмөктө берилген зым схемасын караңыз casing or in the packaging for correct electrical connections. The controller operates on 110V AC, 50/60Hz. Connect the temperature probe to the designated sensor input. Connect the refrigeration or heating equipment to the control output terminals.
3-сүрөт: Арткы view of the Elitech EK-3010, showing the wiring terminals for power, sensor, and control output.
Баштапкы кубаттуулук
After completing all wiring, apply power to the controller. The display should illuminate, showing the current temperature. If the display does not light up, check power connections.
Иштөө нускамалары
Дисплей интерфейси
The main display shows the current temperature. Indicators for 'On Temp' and 'Off Temp' show set points. A key lock indicator signifies if the keys are locked. The 'ON' indicator illuminates when the control output is active.
Температура параметрлерин орнотуу
Press and hold the 'Set' key (typically indicated by a symbol like 'OK' or a gear icon) to enter parameter setting mode. Use the Up and Down arrow keys to navigate through parameters and adjust values. Press 'Set' again to confirm and save changes. Refer to the detailed parameter list in the full manual for specific codes and their functions.
Негизги функциялар
- Жебе ачкычы: Increases values, navigates up.
- Ылдый жебе ачкычы: Decreases values, navigates down.
- OK / Set Key: Enters parameter setting, confirms selection, saves changes.
- Кулпу ачкычы: Locks/unlocks the keypad to prevent accidental changes.
Техникалык тейлөө
Тазалоо
Wipe the controller's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no liquid enters the device.
Sensor Care
Keep the temperature probe clean and free from debris. Avoid bending or damaging the probe cable. Periodically check the probe's connection for secure contact.
Проблемаларды чечүү
Жалпы маселелер жана чечимдер
- Температуранын туура эмес көрсөткүчү: Check if the temperature probe is correctly connected and undamaged. Verify the temperature calibration settings. If the issue persists, the probe may need replacement.
- Дисплей иштебей жатат: Ensure the power supply is connected and active. Check for loose wiring. If the display remains blank, contact customer support.
- Control Output Not Activating: Verify the set temperature parameters. Check if the 'ON' indicator is lit. Ensure the connected equipment is functioning correctly. Inspect wiring to the control output.
- Баскычтоп жооп бербейт: Check if the key lock function is active (indicated by the lock icon). Unlock the keypad if necessary.
Техникалык мүнөздөмөлөр
| Спецификация | Нарк |
|---|---|
| Өлчөө диапазону | -40℃ ~ 99℃ |
| Controlling Range | -40℃ ~ 85℃ |
| Тактык | -30℃~50℃, ±1℃±0.5dig; others, ±2℃±0.5dig |
| Резолюция | 0.1℃ / 1℃ |
| Монтаждоо өлчөмү | 71мм x 29мм |
| Электр камсыздоо | 110V AC, 50/60Hz |
| Энергияны керектөө | <5 Вт |
| Иштөө чөйрөсү | -5℃ ~ 60℃, 10% ~ 90% RH |
| Сактоо чөйрөсү | -25℃ ~ 75℃ |
| Сенсор түрү | NTC |
| Sensor Length | 2M |
| Элемент Салмагы | 8.1 унция |
| Пакеттин өлчөмдөрү | 3.7 x 3.03 x 2.83 дюйм |
| Материал | Пластик |
Колдоо жана кепилдик
Кардарларды колдоо
For technical assistance, Elitech offers 24/7 US Technician Support via email and phone. Refer to the product packaging or Elitech's official webбайланыш маалыматы үчүн сайт.
Кепилдик маалымат
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or Elitech's official webбелгилүү бир шарттар жана шарттар үчүн сайт.
