1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your KOHLER Veil K-1381-0 One-Piece Skirted Dual Flush Elongated Toilet. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation and care will ensure optimal performance and longevity of your product.
Image 1.1: The KOHLER Veil K-1381-0 One-Piece Skirted Dual Flush Elongated Toilet.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Risk of personal injury or product damage. Always follow basic safety precautions when installing or servicing plumbing fixtures.
- Wear safety glasses and appropriate personal protective equipment during installation.
- Handle ceramic components with care; they are heavy and can break if dropped.
- Орнотууну баштоодон мурун бардык суу менен камсыздоо линиялары өчүрүлгөнүн текшериңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
- Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.
3. Пакеттин мазмуну
Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- KOHLER Veil One-Piece Skirted Toilet (K-1381-0)
- Узун идиш
- Жай жабылуучу отургуч
- Сол жактагы жылтыратылган Chrome рычагы
Note: Water supply lines are sold separately and are not included in this package.
4. Техникалык шарттар
| Модель номери | K-1381-0 |
| Түс | Ак |
| Продукциянын өлчөмдөрү (D x W x Y) | 33.82" x 23.38" x 31.81" (85.9 см x 59.4 см x 80.8 см) |
| Материал | Айнек сымал Кытай |
| Орнотуу түрү | Полго орнотулган |
| Чыпкалоо түрү | Dual Flush (0.8 gpf / 1.28 gpf) |
| Trapway | Skirted, 2-1/8-inch (54 mm) fully-glazed |
| Отуруучу материал | Пластик |
Image 4.1: Key dimensions of the KOHLER Veil K-1381-0 toilet, including total height, width, and length, with a standard 12-inch rough-in.
Image 4.2: Illustration comparing elongated and round-front toilet bowl shapes. The K-1381-0 features an elongated bowl for added room and comfort.
5. Орнотуу жана орнотуу
Installation of the KOHLER Veil K-1381-0 toilet requires basic plumbing knowledge. If you are not comfortable with plumbing tasks, it is recommended to hire a professional plumber.
- аймакты даярдоо: Ensure the water supply to the bathroom is turned off. Remove the old toilet if applicable and clean the flange area thoroughly.
- Мом шакекчесин орнотуу: Place a new wax ring around the toilet flange on the floor.
- Даараткананы жайгаштыруу: Carefully lift and lower the one-piece toilet onto the wax ring and flange bolts. Ensure the toilet is level and stable.
- Туалетти камсыз кылуу: Install washers and nuts onto the flange bolts and tighten them evenly until the toilet is secure. Do not overtighten to avoid cracking the ceramic.
- Суу менен камсыздоону туташтыруу: Connect the water supply line (sold separately) to the toilet's fill valve. Hand-tighten first, then use a wrench for a quarter turn.
- Turn On Water: Slowly turn on the water supply and check for leaks. Flush the toilet several times to ensure proper operation and fill.
- Орнотуу: Attach the slow-close seat according to the instructions provided with the seat.
Image 5.1: The KOHLER Veil K-1381-0 toilet installed in a modern bathroom, showcasing анын кооз дизайны.
6. Иштөө нускамалары
The KOHLER Veil K-1381-0 features a dual-flush system designed for water conservation.
- Full Flush (1.28 gpf): Press the trip lever down completely for a full flush, suitable for solid waste.
- Light Flush (0.8 gpf): Push the trip lever up for a light flush, ideal for liquid waste. This option can save up to 6,000 gallons of water annually compared to traditional 1.6 gpf toilets.
- Slow-Close Seat: The included seat features a slow-close mechanism. Gently push the seat or lid down, and it will close quietly and slowly on its own, preventing slams.

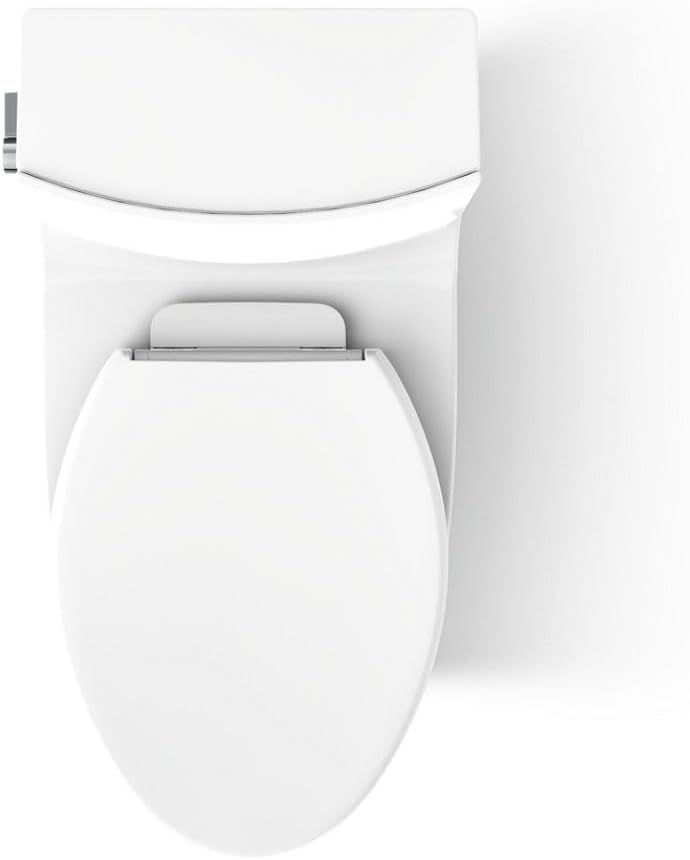

Сүрөт 6.1: жогорудан ылдыйга view of the KOHLER Veil K-1381-0 toilet, highlighting the elongated bowl and integrated design.
Сүрөт 6.2: Алдыңкы view of the KOHLER Veil K-1381-0 toilet, showing its one-piece construction and skirted base.
7. Техникалык тейлөө жана тазалоо
Regular cleaning and maintenance will keep your KOHLER Veil toilet in excellent condition.
- Тышкы тазалоо: Use a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the finish.
- Идишти тазалоо: Use a toilet brush and a toilet bowl cleaner. Follow the cleaner manufacturer's instructions.
- Skirted Trapway: The skirted design makes the exterior easy to wipe clean, as there are no exposed curves or crevices to collect dust and grime.
- Glazed Trapway: The 2-1/8-inch fully-glazed trapway helps prevent clogs and makes cleaning the interior more efficient.
- Seat Care: Clean the slow-close seat with a soft, damp cloth and mild soap. Do not use strong chemical cleaners on the seat.

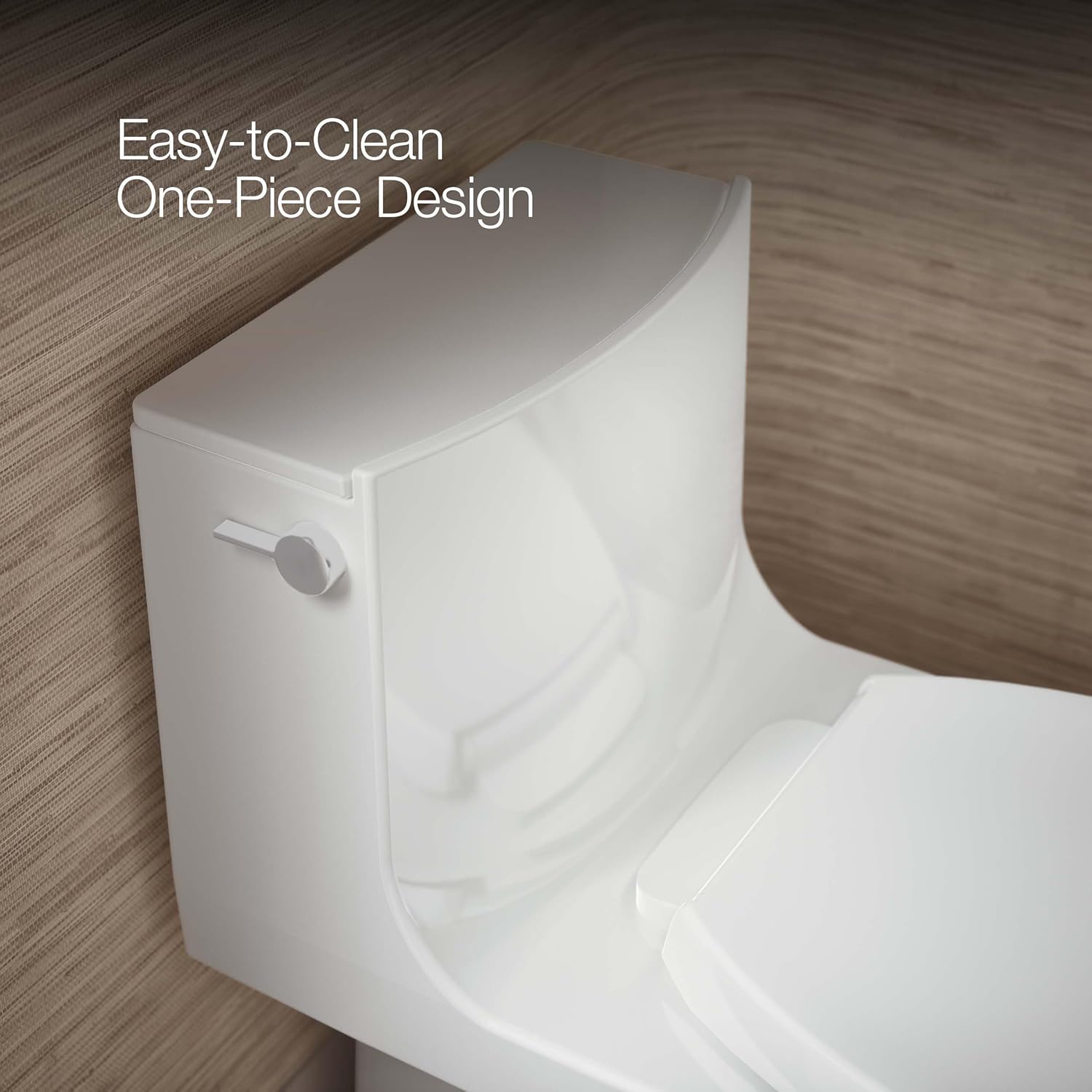

Image 7.1: The easy-to-clean one-piece design of the KOHLER Veil toilet, featuring a smooth, skirted trapway.
Image 7.2: The WaterSense label, indicating that the KOHLER Veil toilet meets EPA criteria for water efficiency without compromising performance.
8. Кыйынчылыктарды
If you encounter issues with your toilet, refer to the following common solutions:
- Toilet Not Flushing Properly: Check the water level in the tank. Ensure the trip lever mechanism is properly connected to the flush valve. Verify that the water supply valve is fully open.
- Үзгүлтүксүз агып жаткан суу: Inspect the flapper or flush valve for proper sealing. Check the fill valve for correct adjustment and ensure the float is not obstructed.
- Агышуулар: Turn off the water supply immediately. Check all connections for tightness, including the water supply line, tank-to-bowl connection (if applicable for other models, though this is one-piece), and the wax ring seal at the floor.
- Slow Fill: Ensure the water supply valve is fully open. Check the fill valve for any obstructions or debris.
For more complex issues, it is advisable to contact KOHLER customer support or a professional plumber.
9. Кепилдик маалыматы
The KOHLER Veil K-1381-0 toilet is covered by the KOHLER Toilets and Seats Limited Warranty. This warranty typically covers defects in material and workmanship under normal use and service.
For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your product or visit the official Колер webсайт.
10. Кардарларды колдоо кызматы
If you require further assistance, have questions about your product, or need to order replacement parts, please contact KOHLER customer support.
расмий сапар Колер webсайт for contact information, FAQs, and additional resources.
Видео 10.1: A review of the KOHLER Veil One-Piece Skirted Elongated Toilet, highlighting its features and compatibility with an elongated bidet seat. This video is provided by a seller.
