Strex 12 LED Universal RCA Reversing Camera User Manual

1. Киришүү

Thank you for choosing the Strex 12 LED Universal RCA Reversing Camera. This manual provides essential information for the proper installation, operation, and maintenance of your new reversing camera. Please read this manual thoroughly before use to ensure optimal performance and safety.

2. Коопсуздук маалыматы

• Always ensure your vehicle is turned off and the parking brake is engaged before attempting any installation or maintenance.
• Disconnect the vehicle's battery before connecting any electrical components to prevent short circuits or damage.
• Ensure all wiring is properly insulated and secured to prevent damage from vibration, heat, or moisture.
• Камеранын эшигине тоскоол болбоңуз view with dirt, snow, or ice. Regularly clean the lens for clear visibility.
• This camera is designed as an aid for reversing and parking. Always check your surroundings visually and use your mirrors.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1x Strex 12 LED Reversing Camera
• 1x Mounting material with 6M RCA cable
• 1x Колдонуучунун колдонмосу

3.1-сүрөт: Пакеттин мазмуну. The image displays the Strex 12 LED reversing camera, the included 6-meter RCA cable and power cable, and the product packaging.

4. Техникалык шарттар

Figure 4.1: Camera Dimensions. This image illustrates the physical dimensions of the Strex reversing camera, including its mounting bracket.

5. Орнотуу жана орнотуу

The Strex 12 LED Reversing Camera is designed for a plug-and-play installation. Follow these general steps:

1. Монтаждоо ордун тандоо: Select a suitable location at the rear of your vehicle, typically above the license plate, ensuring a clear view and that the camera does not obstruct any vehicle lights or features.
2. Камераны орнотуу: Use the provided mounting hardware to securely attach the camera. Ensure it is firmly fixed to prevent movement from vibrations.
3. Туташуу кубаты: Connect the camera's power cable to your vehicle's DC 12V system. It is recommended to connect it to the reverse light circuit so the camera activates automatically when the vehicle is put into reverse.
4. Видео кабелин туташтыруу: Route the 6-meter RCA video cable from the camera to your in-car monitor or head unit. Ensure the cable is routed safely, avoiding moving parts, sharp edges, and excessive heat.
5. Сыноо функциясы: Once all connections are made, turn on your vehicle and engage reverse gear to test the camera's functionality. Adjust the camera angle if necessary for optimal viewing.

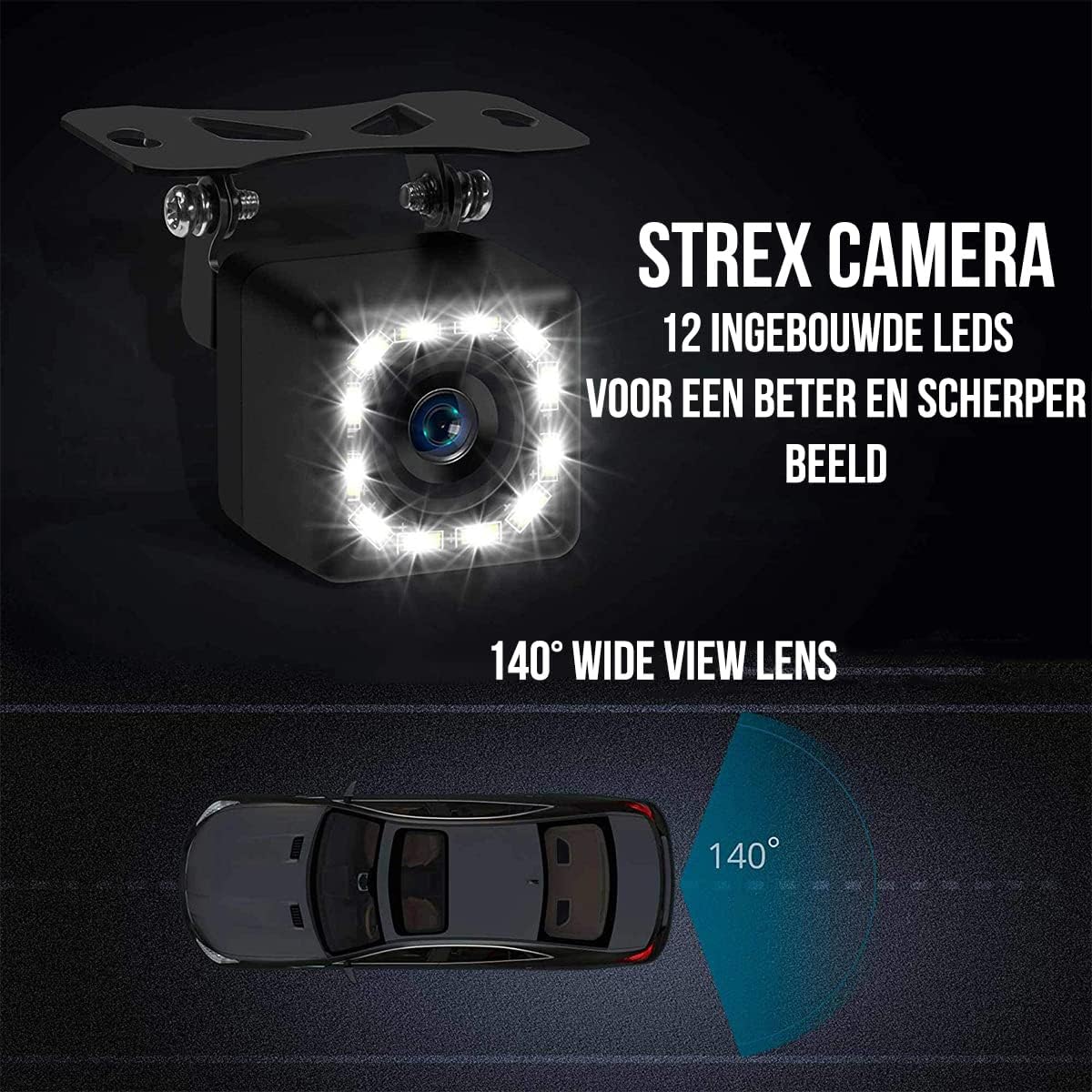

Figure 5.1: Camera Features. This image highlights the 12 built-in LEDs and the 140-degree wide-angle lens of the Strex camera, crucial for installation and operation.

6. Иштөө нускамалары

The Strex 12 LED Reversing Camera provides clear visibility to assist with parking and reversing maneuvers.

• Автоматтык иштетүү: When properly installed, the camera will automatically activate and display the rear view on your connected monitor when you shift your vehicle into reverse gear.
• Таза View: The camera features a 140° wide-angle lens, providing an expansive field of view to detect obstacles and other vehicles.
• Жакшыртылган түнкү көрүнүш: Equipped with 12 powerful LED lights and 720P resolution, the camera ensures a clear image even in low-light or completely dark conditions.

Figure 6.1: Ultra Clear Image. The camera's advanced lens and chip technology ensure a clear image both during the day and at night.

Figure 6.2: Improved Night Vision. This comparison demonstrates the superior clarity and brightness provided by the Strex camera's night vision capabilities.

7. Техникалык тейлөө

To ensure the longevity and optimal performance of your Strex Reversing Camera, follow these maintenance guidelines:

• үзгүлтүксүз тазалоо: Мезгил-мезгили менен камеранын линзасын жумшак, гamp кирди, чаңды жана суу тактарын кетирүү үчүн чүпүрөк колдонуңуз. Линзаны чийип салышы мүмкүн болгон абразивдүү тазалоочу каражаттардан алыс болуңуз.
• Байланыштарды текшерүү: Occasionally inspect all cable connections to ensure they are secure and free from corrosion or damage.
• Аба ырайынын туруктуулугу: The camera features an IP68 waterproof rating, making it resistant to rain, snow, and other extreme weather conditions. However, avoid direct high-pressure water jets on the camera.

Figure 7.1: Robust and Waterproof Design. The image emphasizes the camera's durable construction and IP68 waterproof rating, ensuring reliable performance in all weather conditions.

8. Кыйынчылыктарды

If you encounter issues with your Strex Reversing Camera, refer to the following common problems and solutions:

• Монитордо сүрөт жок:
  • Check all power connections to ensure the camera is receiving 12V power.
  • RCA видео кабелинин камерага да, мониторго да бекем туташтырылганын текшериңиз.
  • Ensure your monitor is set to the correct input source for the camera.
  • Check the vehicle's reverse light circuit for proper function if the camera is wired to it.
• Сүрөттүн сапаты начар:
  • Clean the camera lens to remove any dirt, dust, or moisture.
  • Камеранын талаасында эч кандай тоскоолдуктар жок экенин текшериңиз view.
  • Видео кабелде кандайдыр бир бүктөлүүлөр же бузулуулар бар-жогун текшериңиз.
  • Verify the monitor's display settings (brightness, contrast) are correctly adjusted.
• Үзүлгүс сигнал:
  • Inspect all cable connections for looseness or corrosion.
  • Ensure the power supply to the camera is stable.

Бул кадамдар маселени чечпесе, кардарларды колдоо кызматына кайрылыңыз.

9. Кепилдик жана колдоо

This Strex product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact Strex customer service through the retailer where you purchased the product or visit the official Strex webбайланыш маалыматы үчүн сайт.
