BERG Buddy Blue Pedal Go Kart колдонуу боюнча колдонмосу

1. Киришүү

Welcome to your new BERG Buddy Blue Pedal Go Kart! This manual provides essential information for safe assembly, operation, and maintenance of your go-kart. Please read it thoroughly before first use to ensure a safe and enjoyable experience.

Маанилүү коопсуздук маалыматы

• Always wear a helmet and appropriate safety gear when operating the go-kart.
• Ар дайым чоңдордун көзөмөлү талап кылынат.
• Коомдук жолдордо, автоунаалардын жанында же тик эңкейиштерде колдонбоңуз.
• Ensure all parts are securely fastened and functioning correctly before each use.
• Колдорду жана буттарды кыймылдуу бөлүктөрдөн алыс кармаңыз.

The BERG Buddy Blue Pedal Go Kart, designed for children aged 4-8, features a robust steel frame and pneumatic tires for a smooth ride.

2. Орнотуу жана чогултуу

Your BERG Buddy Go Kart comes partially assembled. Follow these steps for complete setup. Tools required for assembly are included in the package.

Кадамдык Ассамблея:

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Бардык бөлүктөр камтылган бөлүктөрдүн тизмесине каршы бар экендигин текшериңиз.
2. Рамка монтажы: Connect the main frame sections according to the diagrams in the separate assembly guide. Ensure all bolts are tightened securely.
3. Дөңгөлөк тиркемеси: Attach the pneumatic wheels to the axles. Ensure they spin freely and are securely fastened.


The go-kart features lightweight pneumatic tires that absorb bumps and provide excellent grip on various surfaces, ensuring a comfortable ride.

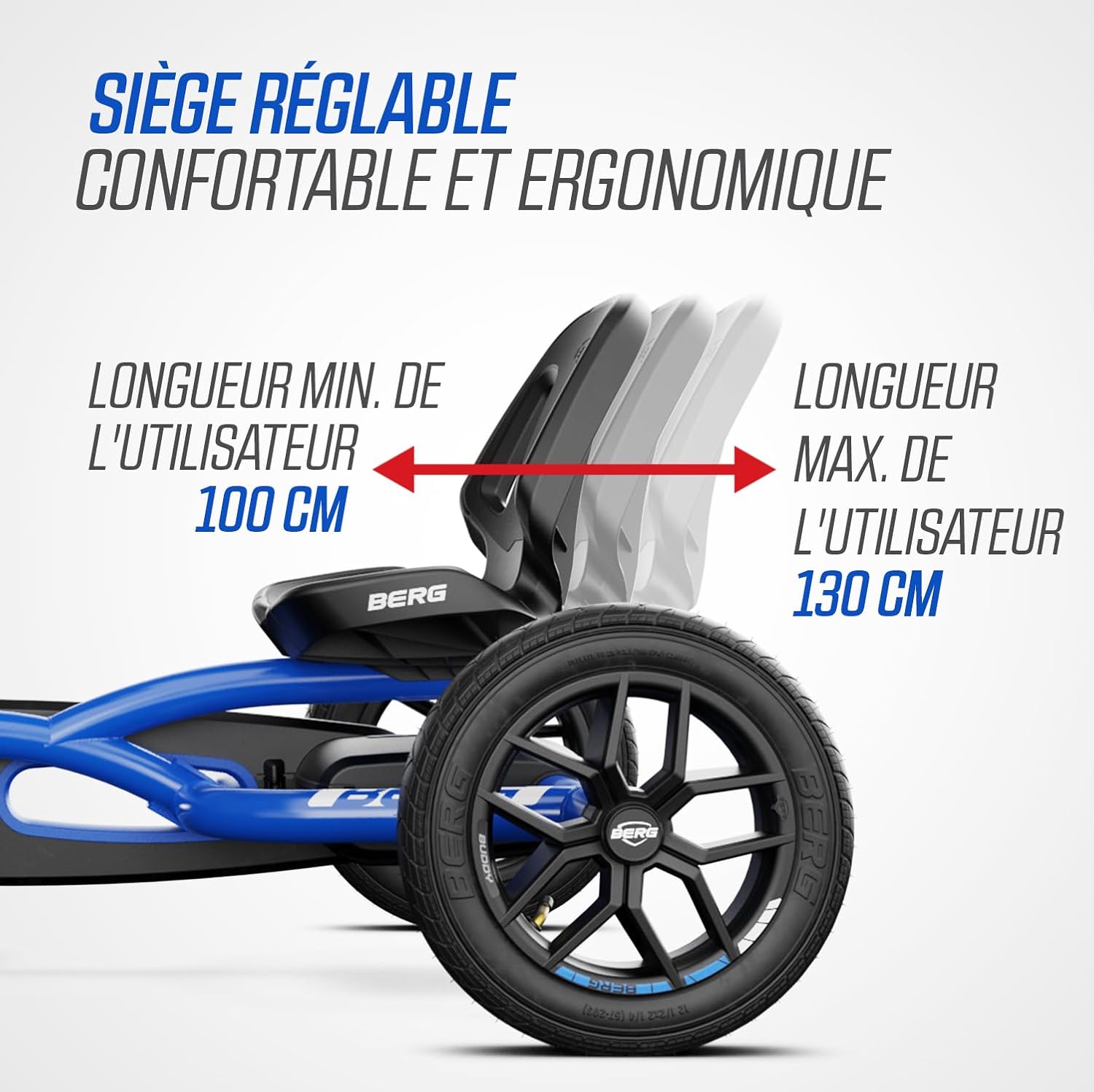

4. Орундукту жөндөө: The seat is adjustable to accommodate different leg lengths. Lift the seat and re-position it into one of the available slots on the frame.


The adjustable seat allows the go-kart to grow with your child, suitable for user lengths between 100 cm and 130 cm, ensuring comfortable pedaling.

5. Steering Wheel Installation: Secure the steering wheel to the steering column.
6. Акыркы текшерүү: Before first use, double-check all connections, bolts, and moving parts to ensure they are secure and functioning correctly.

3. Operating Your Go Kart

BFR System (Brake, Freewheel, Reverse):

The unique BFR system allows for intuitive and safe operation, providing full control over your ride.

• Freewheel: When you stop pedaling, the wheels continue to turn, allowing for coasting without the pedals spinning.
• Тормоз: To brake, simply push the pedals backward. This engages the coaster brake for quick and effective stopping.
• Тескери: After coming to a complete stop, continue pushing the pedals backward to engage reverse gear.

The patented BFR system provides easy control, allowing riders to pedal forward, coast with freewheel, and brake or reverse by pedaling backward.

Steering and Stability:

The BERG Buddy features a responsive steering wheel and a swing axle for optimal stability and maneuverability.

• Swing Axle: This innovative design keeps all four wheels on the ground, even on uneven terrain, providing superior stability and safety during turns.


The swing axle ensures constant ground contact for all four wheels, enhancing stability and safety, especially when navigating rough or uneven paths.

• Agile башкаруу: The steering wheel provides precise control, making it easy to maneuver around obstacles and through turns.


Experience agile steering and four-wheel stability, allowing for confident navigation and sharp turns.

4. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your BERG Buddy Go Kart.

Тазалоо:

• Clean the go-kart regularly with a damp кездеме. Финишке зыян келтирүүчү катаал химиялык заттардан алыс болуңуз.
• The steel frame is protected by an anti-rust coating, but regular cleaning helps maintain its appearance.

Майлоо:

• Periodically lubricate moving parts, such as the chain and pedal mechanism, with a suitable bicycle chain lubricant.

Шина басымы:

• Check tire pressure regularly. Maintain recommended pressure (usually indicated on the tire sidewall) for optimal performance and ride comfort.

Сактагыч:

• Store the go-kart in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
• The go-kart can be stored upright for easy storage in compact spaces.

5. Кыйынчылыктарды

Жалпы маселелер жана чечимдер:

Go-kart is difficult to pedal:

Check tire pressure and inflate if necessary. Inspect the chain for debris or rust and lubricate if needed. Ensure no foreign objects are obstructing the pedal mechanism.

Steering feels loose or unresponsive:

Check the steering column connection and tighten any loose bolts. Inspect the steering linkage for any damage or obstructions.

Go-kart is unstable or tips easily:

Ensure all four wheels are properly inflated and that the swing axle is functioning correctly. Verify all frame connections are secure. Always operate on flat, even surfaces.

6. Техникалык шарттар

The BERG Buddy Blue go-kart dimensions are 115 cm (length), 63 cm (width), and 65 cm (height), suitable for ages 3-8 as per this diagram.

7. Кепилдик жана колдоо

Кепилдик маалыматы:

The BERG Buddy Go Kart comes with a 2 жылдык кепилдик on the frame and parts. An option to extend the warranty to 5 жыл may be available upon product registration. Please refer to the warranty card included with your product for full details, terms, conditions, and registration instructions.

Кардарларды колдоо:

For any questions, technical assistance, or warranty claims, please visit the official BERG webсайтына кириңиз же алардын кардарларды тейлөө кызматына түз кайрылыңыз. Көбүрөөк маалыматты жана өнүмдөрдү бул жерден таба аласыз BERG Store on Amazon.
