1. Киришүү
This manual provides instructions for the installation, operation, and maintenance of the White-Rodgers 1F79-111 Digital Non-Programmable Heat Pump Thermostat. This thermostat is designed for 24 VAC heat pump systems with 2 heat / 1 cool stages. It features a large, lighted digital display for clear temperature readings and easy adjustments.

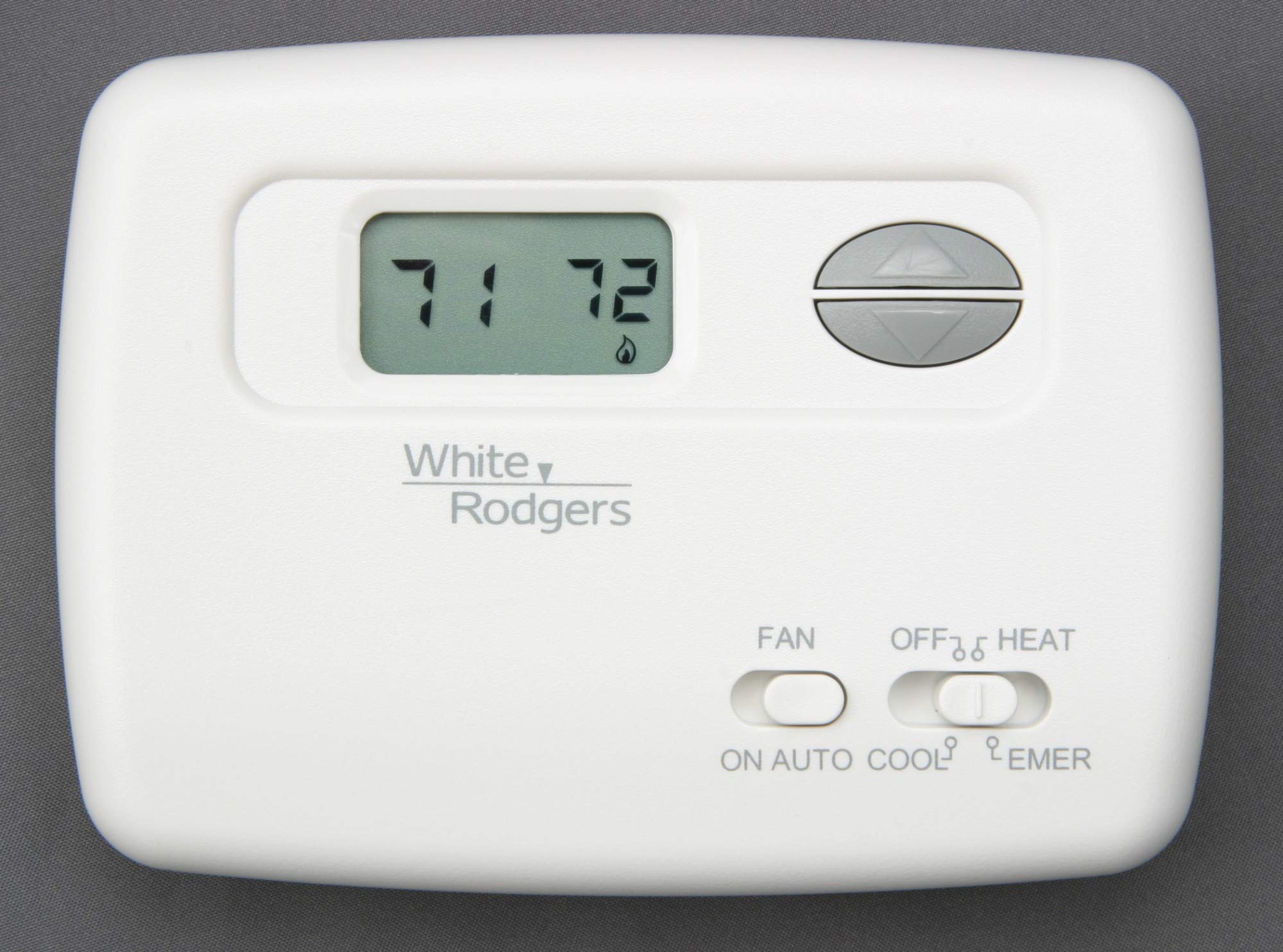

Фронт view of the White-Rodgers 1F79-111 thermostat, showing the digital temperature display, up/down adjustment buttons, and slide switches for fan operation (ON/AUTO) and system mode (OFF/HEAT/COOL/EMER).
2. Коопсуздук маалыматы
- Электр коркунучу: Disconnect power to the heating/cooling system before installing or servicing the thermostat to prevent electrical shock and equipment damage.
- Кесиптик орнотуу: If you are unfamiliar with thermostat wiring, it is recommended to have a qualified HVAC technician install this device.
- Системанын шайкештиги: Ensure this thermostat is compatible with your heat pump system (2 Heat / 1 Cool, 24 VAC) before installation.
- Туура жок кылуу: Dispose of old thermostats and batteries according to local regulations.
3. Орнотуу жана орнотуу
The White-Rodgers 1F79-111 thermostat is designed for wall mount installation and is hardwired into your 24 VAC heat pump system. It includes a backlight and a temperature sensor. The design is intended to cover wall marks left by most mechanical thermostats, potentially eliminating the need for an extra wall plate.
Орнотуу кадамдары (Жалпы көрсөтмө):
- Электр энергиясын өчүрүү: Turn off power to your heating and cooling system at the main circuit breaker or fuse box.
- Эски термостатты алып салуу: Carefully remove the old thermostat from the wall. Note the wiring connections. It is advisable to label each wire with the terminal designation it was connected to.
- Жаңы термостатты орнотуу базасы: Secure the new thermostat's mounting base to the wall using the provided screws. Ensure it is level.
- Зым байланыштары: Connect the system wires to the corresponding terminals on the new thermostat base. Refer to the wiring diagram provided with the product packaging for specific connections. This thermostat supports 2 Heat / 1 Cool heat pump configurations.
- Термостаттын корпусун бекитүү: Once wiring is complete and secure, attach the thermostat body to the mounted base.
- Күчтү калыбына келтирүү: Жылытуу жана муздатуу тутумуңузду кайра күйгүзүңүз.
Эскертүү: If you are unsure about any step of the installation process, consult a qualified HVAC professional.
4. Иштөө нускамалары
The White-Rodgers 1F79-111 thermostat features a digital display and button controls for easy temperature management.
Controls Overview:
- Санариптик дисплей: Shows the current room temperature and the setpoint temperature. The display is lighted for visibility in low-light conditions.
- Өйдө/ылдый баскычтары: Used to adjust the desired temperature setpoint. Press the 'Up' button to increase the temperature and the 'Down' button to decrease it.
- ФАН которуштуруу: This slide switch controls the fan operation.
- КҮЙҮК: Жылытуу же муздатуу системасы активдүү экендигине карабастан, желдеткич тынымсыз иштейт.
- АВТО: Вентилятор жылытуу же муздатуу системасы активдүү иштеп жатканда гана иштейт.
- SYSTEM Mode Switch: This slide switch selects the operating mode for your heating and cooling system.
- ӨЧҮК: Жылытуу жана муздатуу системасын өчүрөт.
- ЖЫЛУУ: Activates the heating function. The thermostat will maintain the setpoint temperature by turning on the heat pump.
- БАРАКЕЛДЕ: Activates the cooling function. The thermostat will maintain the setpoint temperature by turning on the heat pump.
- ШАШЫЛЫШ (Өзгөчө жылуулук): Activates the auxiliary or emergency heating system, bypassing the heat pump compressor. Use this mode only when the heat pump is not functioning or during extreme cold conditions where the heat pump cannot keep up.
Temperature Display Units:
The thermostat allows selection between Celsius and Fahrenheit temperature display. Refer to the full installation manual for instructions on how to change this setting, typically found in the installer setup menu.
5. Техникалык тейлөө
The White-Rodgers 1F79-111 thermostat requires minimal maintenance.
- Тазалоо: Мезгил-мезгили менен термостаттын сыртын жумшак, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Аба агымы: Термостаттын желдеткич тешиктери чаң же таштандылар менен жабылып калбаганын текшериңиз, анткени бул температураны сезүүнүн тактыгына таасир этиши мүмкүн.
- System Filters: Regularly check and replace your HVAC system's air filters as recommended by the system manufacturer to ensure optimal performance and efficiency.
6. Кыйынчылыктарды
If you experience issues with your thermostat, try the following steps before contacting a service professional:
- Дисплей жок/кубат жок:
- Check the circuit breaker for your heating/cooling system.
- Ensure all wiring connections are secure at the thermostat and the HVAC system.
- System Not Responding (Heating/Cooling):
- Verify the SYSTEM mode switch is set to HEAT or COOL.
- Ensure the temperature setpoint is above the current room temperature for heating, or below for cooling.
- Check if the FAN switch is set to AUTO; if so, the fan will only run when the system is actively heating or cooling. Try setting it to ON to test fan operation.
- Allow a few minutes for the system to respond after making changes, as some systems have built-in delays.
- Температураны туура эмес окуу:
- Термостат түз күндүн нуруна, чиймелерге же жылуулук булактарына (мисалы, lampс, приборлор) анын сенсоруна таасир этиши мүмкүн.
- Термостаттын желдеткичтеринен чаңды же таштандыларды тазалаңыз.
- Emergency Heat (EMER) Not Working:
- Confirm the SYSTEM mode switch is firmly in the EMER position.
- Check the circuit breaker for the auxiliary heating system.
If these steps do not resolve the issue, contact a qualified HVAC service technician.
7. Техникалык шарттар
| Бренд | Уайт-Роджерс |
| Модель номери | 1F79-111 |
| Системанын түрү | Heat Pump (2 Heat / 1 Cool) |
| Тtage | 24 Вольт |
| Power Source | Зымдуу электр (зымдуу) |
| Дисплей түрү | Digital, Lighted |
| Башкаруу түрү | Button Control (Push Button) |
| Монтаж түрү | Дубалга орнотуу |
| Түс | Ак |
| Элемент Салмагы | 3 фунт |
| UPC | 786710104565 |
8. Кепилдик жана колдоо
Кепилдик маалыматы:
For detailed warranty information, please refer to the documentation included with your White-Rodgers 1F79-111 thermostat or visit the official White-Rodgers webсайт. Кепилдиктин шарттары жана шарттары ар кандай болушу мүмкүн.
Кардарларды колдоо:
If you require technical assistance, have questions about your thermostat, or need to report a problem, please contact White-Rodgers customer support. Contact information can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
