Introduction

The Donner DED-100 Electronic Drum Set is designed to provide a realistic drumming experience for beginners and experienced players alike. Featuring mesh drumheads, silicone cymbals, and a robust sound module, this set offers a wide range of sounds and practice options. Its collapsible design ensures portability and space-saving storage.

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your DED-100 Electronic Drum Set. Please read it thoroughly before use to ensure proper functionality and longevity of your instrument.

Жайгашуу

Пакеттен чыгаруу жана компоненттерди текшерүү

Carefully unpack all components from the packaging. Verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

Figure 1: Complete Configuration Diagram

The DED-100 set includes the following main components:

• Sound Module (1)
• Cymbals: Hi-Hat, Ride, Crash (2, 3, 4)
• Drums: Tom-toms (3 pcs), Snare Drum (5, 6)
• Hi-Hat Pedal (7)
• Kick Pedal (7)
• Drum Sticks (8)
• Assembly Tools (9)
• Audio Cables (10)

Монтаждоо көрсөтмөлөрү

Assembly of the DED-100 drum set involves fitting the frame components together and attaching the pads and cymbals. While straightforward, it requires careful attention to ensure stability. All necessary tools are included, and parts and cords are labeled for easier identification.

1. Begin by assembling the main iron metal stand. Loosen screws as needed to fit the pipes together, then tighten securely.
2. Attach the drum pads (snare and tom-toms) to the designated mounts on the frame. Ensure they are oriented correctly for comfortable playing.
3. Mount the cymbals (hi-hat, ride, crash) onto their respective stands.
4. Connect the sound module to the main frame. It is recommended to place the module on a lower bar under the tom-toms for easy access and to keep it out of the way.
5. Connect each drum pad and cymbal to the sound module using the provided audio cables. Ensure each cable is connected to its corresponding input on the module.
6. Place the kick pedal and hi-hat pedal on the floor in their playing positions and connect them to the module.
7. Adjust the height and angle of the drum pads and cymbals to your preferred playing position. The stand is designed for stability and adjustability.

Figure 2: Assembled Drum Set

Байланыш

The DED-100 module features a One Eighth Inch Jack for audio output, allowing connection to headphones for silent practice or to an amplifier/speaker system for performance. It also supports connection to MP3 players for play-along practice and has MIDI output capabilities for use with computer software.

Operating the Drum Set

Үн модулу бүттүview

The redesigned DED-100 sound module features an LCD display and provides access to over 200 professional sounds, 20 demo songs, and 20 preset tones. Controls for volume, parameter adjustment, metronome, song selection, recording, and playback are intuitively laid out.

Figure 3: Sound Module Interface

Playing the Drums

The DED-100 features 8-inch all-mesh drumheads for a realistic feel and quiet practice. The 10-inch silicone cymbals offer stable and well-distributed tone response across their surface. The heavy-duty pedals are designed for durability and responsiveness.

Figure 4: Quiet Practice with Mesh Heads

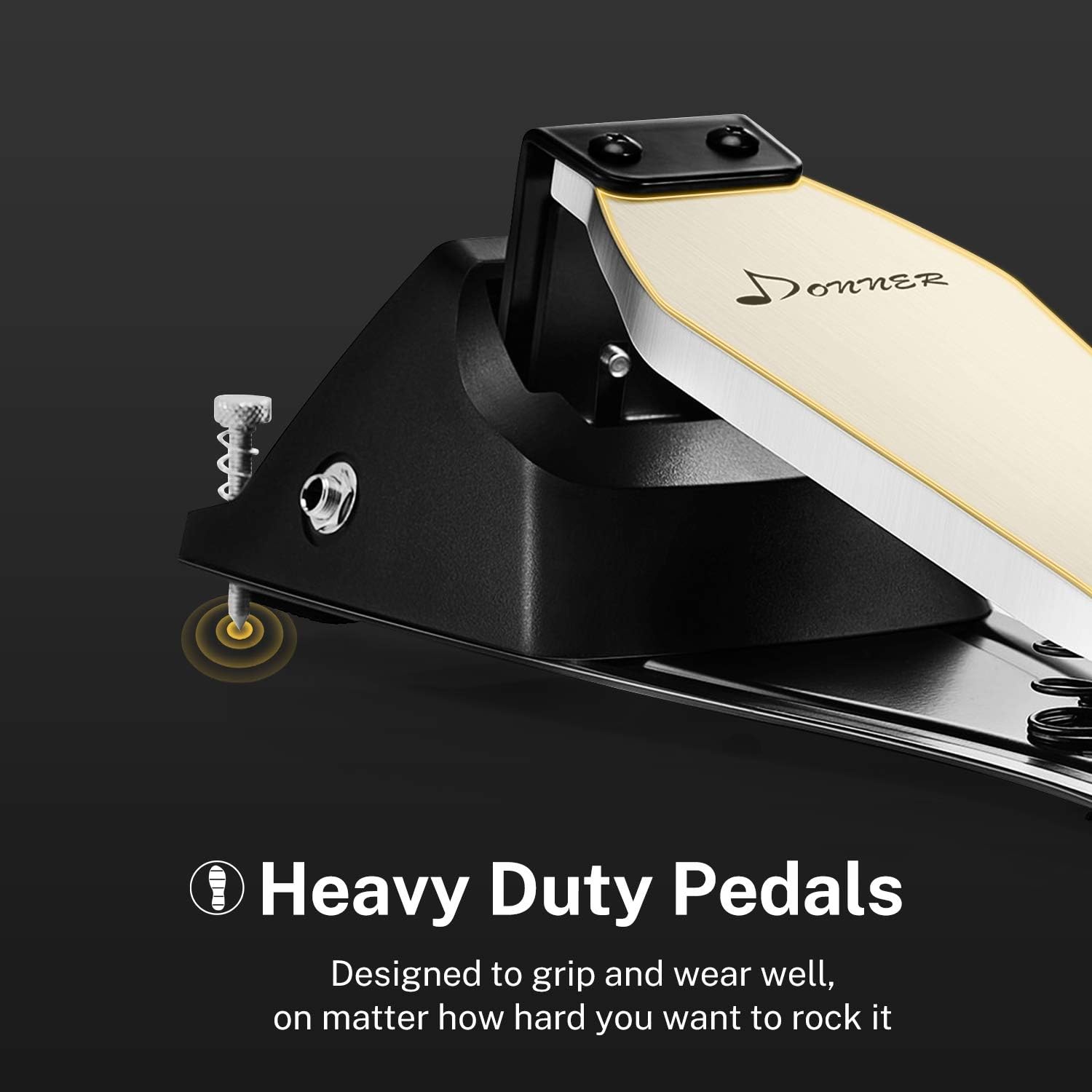

Figure 5: Heavy Duty Pedals

To begin playing:

• Power on the sound module.
• Select a drum kit from the preset tones or customize individual drum sounds.
• Үндү ыңгайлуу деңгээлге тууралаңыз.
• Use the included drumsticks to strike the mesh pads and silicone cymbals. The mesh heads allow for tension adjustment using a drum key, similar to acoustic drums, to achieve a sharper or rounder sound.
• Utilize the metronome function for rhythm practice or select a demo song to play along with.

Машыгуу режимдери

The DED-100 supports various practice methods:

• Наушник режими: Connect headphones to the module's audio output jack for silent practice, ensuring you do not disturb others.
• Play-Along: Connect an MP3 player or other audio device to the module's input to play along with your favorite tracks.
• MIDI туташуусу: The module features a MIDI output, allowing you to connect the drum set to a computer. This enables the use of virtual drum software (e.g., in a Digital Audio Workstation like GarageBand) for an expanded range of sounds and recording capabilities.

Техникалык тейлөө

Proper maintenance will extend the life and performance of your electronic drum set.

• Тазалоо: Use a soft, dry cloth to wipe down the drum pads, cymbals, module, and frame. Avoid using abrasive cleaners or solvents, which can damage surfaces.
• Сактагыч: When not in use, the DED-100 can be folded inward for compact storage, saving space. Store the set in a dry, temperate environment away from direct sunlight and extreme temperatures.
• Кабелдик башкаруу: Ensure all cables are neatly routed and not kinked or strained to prevent damage.
• Тор башынын чыңалуусу: Periodically check the tension of the mesh drumheads. Adjust with a drum key if needed to maintain desired feel and responsiveness.
• Педальга кам көрүү: Keep the kick and hi-hat pedals free of dust and debris. Ensure springs and moving parts operate smoothly.

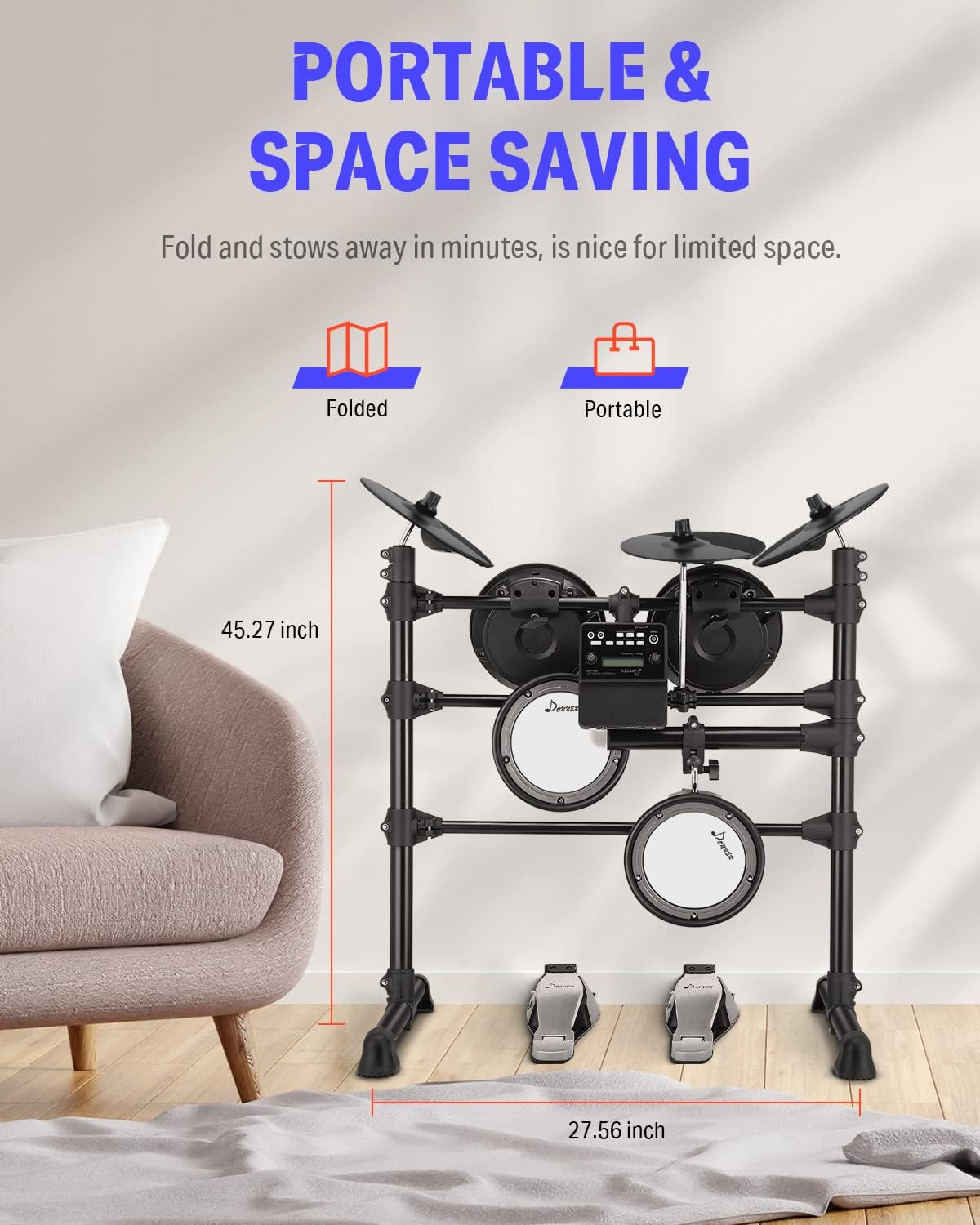

Сүрөт 6: Портативдик жана мейкиндикти үнөмдөөчү дизайн

Проблемаларды чечүү

If you encounter issues with your DED-100 Electronic Drum Set, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Donner customer support for further assistance.

Техникалык шарттар

Кепилдик жана колдоо

Продукциянын гарантиясына байланыштуу маалымат алуу үчүн, сатып алууда камтылган кепилдик картасын караңыз же расмий Donner сайтына баш багыңыз website. For technical support, replacement parts, or any inquiries not covered in this manual, please contact Donner customer service. Keep your purchase receipt as proof of purchase for warranty claims.

Көбүрөөк маалымат жана колдоо булактарын таба аласыз Amazonдагы Donner дүкөнү.
