LIVINGTON SmartChill User Manual

1. Киришүү

Thank you for choosing the LIVINGTON SmartChill. This portable air cooler utilizes Hydro-Chill Technology to provide naturally cooled and humidified air without the use of chemicals. Its compact design and energy-efficient operation make it suitable for various indoor environments. Please read this manual thoroughly before operating the device to ensure safe and optimal performance.

2. Коопсуздук нускамалары

• Always place the unit on a stable, flat surface to prevent tipping and water spillage.
• Агрегатты, электр шнурду же сууга же башка суюктуктарды розеткага салбаңыз.
• кубат менен камсыз кылуу Voltage бирдиктин рейтинг белгисинде көрсөтүлгөн.
• Unplug the unit from the power outlet before filling water, cleaning, or performing any maintenance.
• Keep out of reach of children and pets. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Аба кирүүчү же чыгуучу жерлерди жаап албаңыз.
• Do not use the unit if the power cord or plug is damaged. Contact customer support for assistance.
• Use only clean tap water or distilled water in the tank. Do not add any chemicals, oils, or other substances to the water.
• Аппаратты жылуулук булактарынын жанына же тике күн нуруна коюудан алыс болуңуз.

3. Продукт бүтүп калдыview

The LIVINGTON SmartChill is a compact evaporative air cooler designed for personal cooling. It features a water tank, a washable filter, and adjustable fan speeds.

Компоненттери:

• Негизги бөлүм
• Hydro-Filter (washable)
• Кубаттуу адаптер

Image: The LIVINGTON SmartChill unit, showing the front grille and a visual representation of cool air being emitted.

Image: A diagram illustrating the air intake (red arrow) and cool air output (blue arrow) of the SmartChill unit.

4. Орнотуу

1. Агрегатты таңгактан чыгаруу: Carefully remove the LIVINGTON SmartChill and all accessories from the packaging.
2. Тегиз бетке коюу: Position the unit on a stable, level surface away from direct sunlight and heat sources.
3. Суу резервуарын толтуруңуз: Open the water tank lid and slowly pour clean tap water or distilled water into the tank. Do not exceed the maximum fill line. The tank capacity allows for up to 12 hours of operation on a single fill.

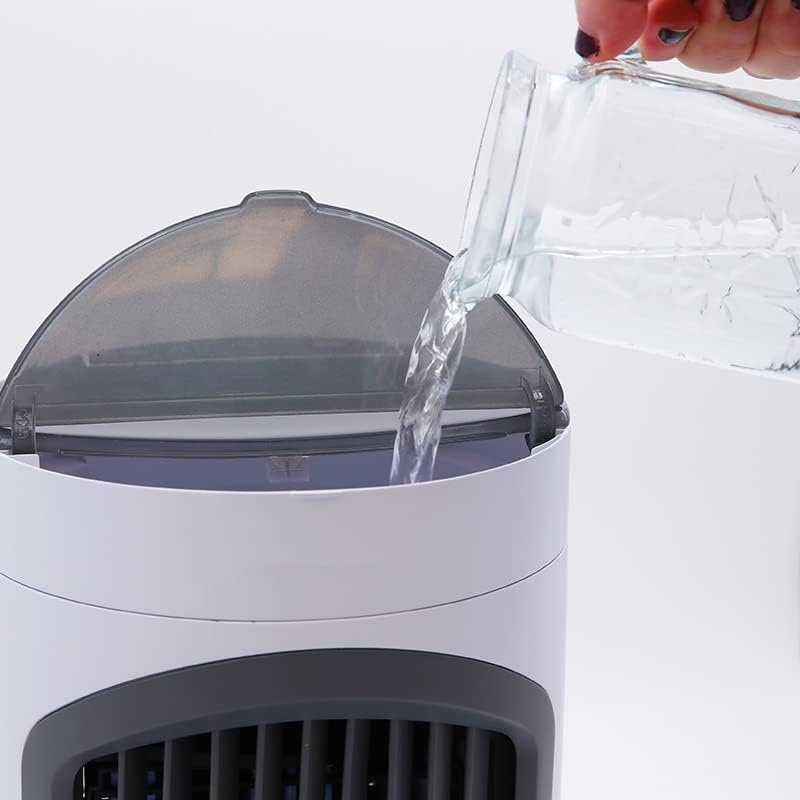

Image: A hand pouring water from a pitcher into the open water reservoir of the SmartChill unit.

4. Туташуу кубаты: Кубат адаптерин түзмөктүн кубат портуна сайыңыз, андан кийин адаптерди стандарттуу электр розеткасына сайыңыз.

5. Иштөө нускамалары

The LIVINGTON SmartChill features intuitive controls for easy operation.

Күйгүзүү/өчүрүү:

• Түзмөктү иштетүү үчүн кубат баскычын бир жолу басыңыз.
• Бирдикти өчүрүү үчүн кубат баскычын кайра басыңыз.

Желдетүүчү ылдамдыгын жөндөө:

• The unit has 3 cooling and speed levels.
• Press the fan speed button repeatedly to cycle through the low, medium, and high settings.

Свинг функциясы:

• Activate the practical swing function to distribute cool air more widely.
• Press the swing button to turn oscillation on or off.

Түнкү жарык:

• The integrated night light function offers two brightness levels.
• Press the light button to activate and adjust the night light.

Image: A family (two adults and two children) relaxing in a living room, with the SmartChill unit placed on a table nearby, illustrating its use in a family setting.

Image: Two children playing on the floor, with the SmartChill unit positioned to provide cooling, demonstrating its effectiveness at lower levels.

Image: A child sleeping peacefully in bed, with the SmartChill unit on a bedside table, highlighting its quiet operation and integrated night light feature.

Image: A man working at a computer desk, with the SmartChill unit providing personal cooling, illustrating its suitability for office or study environments.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and efficiency of your LIVINGTON SmartChill.

Cleaning the Hydro-Filter:

• The Hydro-Filter is washable. It is recommended to clean the filter regularly, depending on usage and air quality.
• Unplug the unit before removing the filter.
• Carefully slide out the filter.
• Rinse the filter under cool running water until clean. Do not use harsh detergents or abrasive materials.
• Фильтрди бөлүккө кайра салуудан мурун аны толугу менен кургатуу үчүн күтүңүз.

Суу багын тазалоо:

• Empty any remaining water from the tank before cleaning.
• Wipe the inside of the tank with a soft cloth. For stubborn deposits, a mild detergent solution can be used, followed by thorough rinsing.
• Ensure the tank is dry before refilling or storing the unit.

Тышкы тазалоо:

• Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме.
• Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Модел: M21159
• Бренд: ЛИВИНГТОН
• Өлчөмдөрү: 21.1 x 21.1 x 30.6 см (болжол менен 8.3 x 8.3 x 12 дюйм)
• Салмагы: 1.45 килограмм (болжол менен 3.2 фунт)
• Тtage: 12 вольт
• Күйөрмандардын ылдамдыгы: 3
• Танк сыйымдуулугу: Up to 12 hours of operation per fill
• Өзгөчөлүктөр: Portable, Hydro-Chill Technology, Washable Smart-Filter, Swing Function, Integrated LED Night Light (2 brightness levels)

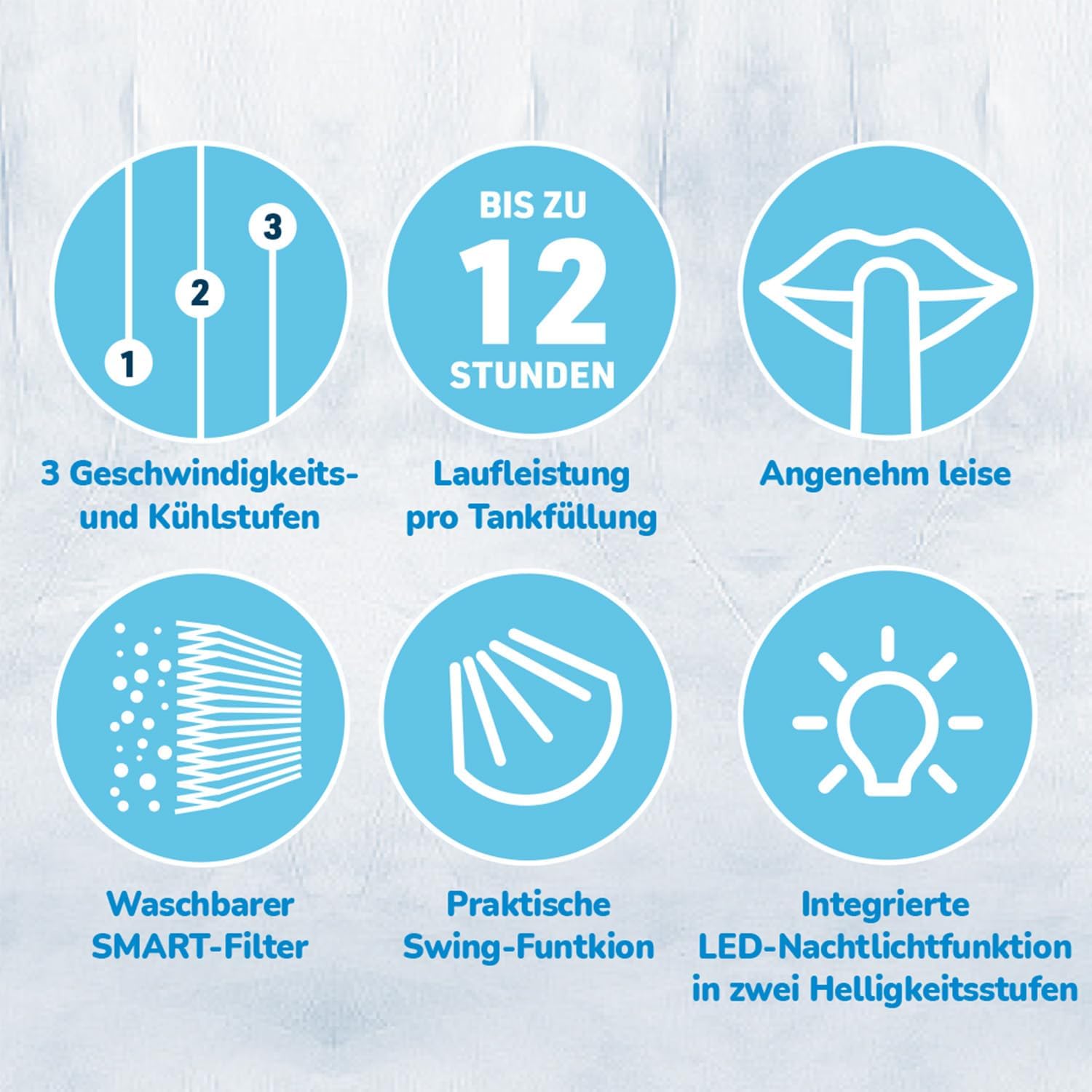

Image: An infographic detailing key features: 3 speed/cooling levels, up to 12 hours run time per tank fill, pleasantly quiet operation, washable SMART-Filter, practical swing function, and integrated LED night light with two brightness levels.

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official LIVINGTON webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.

For further assistance, you may contact the seller MEDIASHOP directly via their Amazon store page: MEDIASHOP Seller Page.
