1. Киришүү
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Viribus Electric Trike. Please read this manual thoroughly before using the tricycle to ensure proper function and to prevent injury or damage.
The Viribus Electric Trike is a 26-inch electric tricycle designed for adults, featuring a 250W brushless motor and a 36V removable battery. It is equipped with a spacious rear basket, LED headlight, and an electric bell for enhanced user experience and safety.
Figure 1.1: Viribus Electric Trike (White)
2. Коопсуздук маалыматы
Your safety is paramount. Adhere to all safety guidelines to prevent accidents and ensure a long lifespan for your electric trike.
- Always wear a helmet that meets safety standards when riding.
- Ар бир колдонуудан мурун, тормозду, дөңгөлөктүн басымын жана батареянын деңгээлин текшерип туруңуз.
- Familiarize yourself with local traffic laws and regulations regarding electric bicycles and tricycles.
- Do not operate the trike under the influence of alcohol or drugs.
- Мингенге чейин бардык компоненттердин бекем бекитилишин текшериңиз.
- Айланаңыздан кабардар болуп, коргонууга өтүңүз.
- Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.
3. Пакеттин мазмуну
Due to its size, your Viribus Electric Trike and its battery will arrive in two separate packages. Please ensure you have received both packages and all components listed below before beginning assembly.
- Electric Trike Frame and Wheels
- 36V Removable Battery
- Батарея заряддагыч
- Арткы себет
- LED фара
- Электрдик коңгуроо
- Assembly Hardware and Tools (basic)
- Колдонуучунун Колдонмосу (бул документ)
4. Орнотуу жана чогултуу
Assembly of the Viribus Electric Trike is required. While intuitive, some steps may require careful attention. It is recommended to have a metric wrench set and other basic bicycle tools available for optimal assembly.
4.1. Таңгактан чыгаруу жана текшерүү
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Inspect all parts for any signs of damage during shipping. Contact customer support immediately if any damage is found.
- Verify all listed package contents are present.
4.2. Жалпы жыйындын кадамдары
- Кадрларды орнотуу: Position the main frame on a stable surface.
- Дөңгөлөктү орнотуу: Attach the front wheel and the two rear wheels. Ensure all axles are properly secured.
- Рулу жана сабы: Install the handlebars into the stem and adjust to a comfortable height and angle. Pay close attention to cable routing to avoid pinching.
- Отуруучу жана ээр: Insert the seat post into the frame and attach the saddle. Adjust the seat height for comfortable pedaling.
- Канаттар: Attach the front and rear fenders. Some bending of tabs may be necessary for proper alignment.
- Арткы себет: Assemble and securely attach the rear basket to the trike frame.
- Педальдар: Install the pedals, noting that they are typically left and right specific (L and R markings).
- Батарея орнотуу: Slide the 36V removable battery into its housing on the frame. Ensure it clicks securely into place.
- Аксессуарларды орнотуу: Mount the LED headlight and electric bell onto the handlebars or designated areas.
Figure 4.1: Electric Trike Dimensions for Assembly Reference
Note: No relevant assembly videos from the seller were found in the provided product data.
5. Иштөө нускамалары
Understanding how to operate your electric trike will ensure a smooth and enjoyable ride.
5.1. Батарея жана заряддоо
The Viribus Electric Trike is powered by a 36V removable battery, allowing for convenient indoor charging.
- To remove the battery, unlock it with the provided key and slide it upwards from its housing.
- Заряддоочу түзүлүштү батареяга, андан кийин стандарттуу розеткага туташтырыңыз.
- A full charge typically takes approximately 5 hours from zero.
- The LCD display on the handlebars allows you to monitor the battery level at all times.

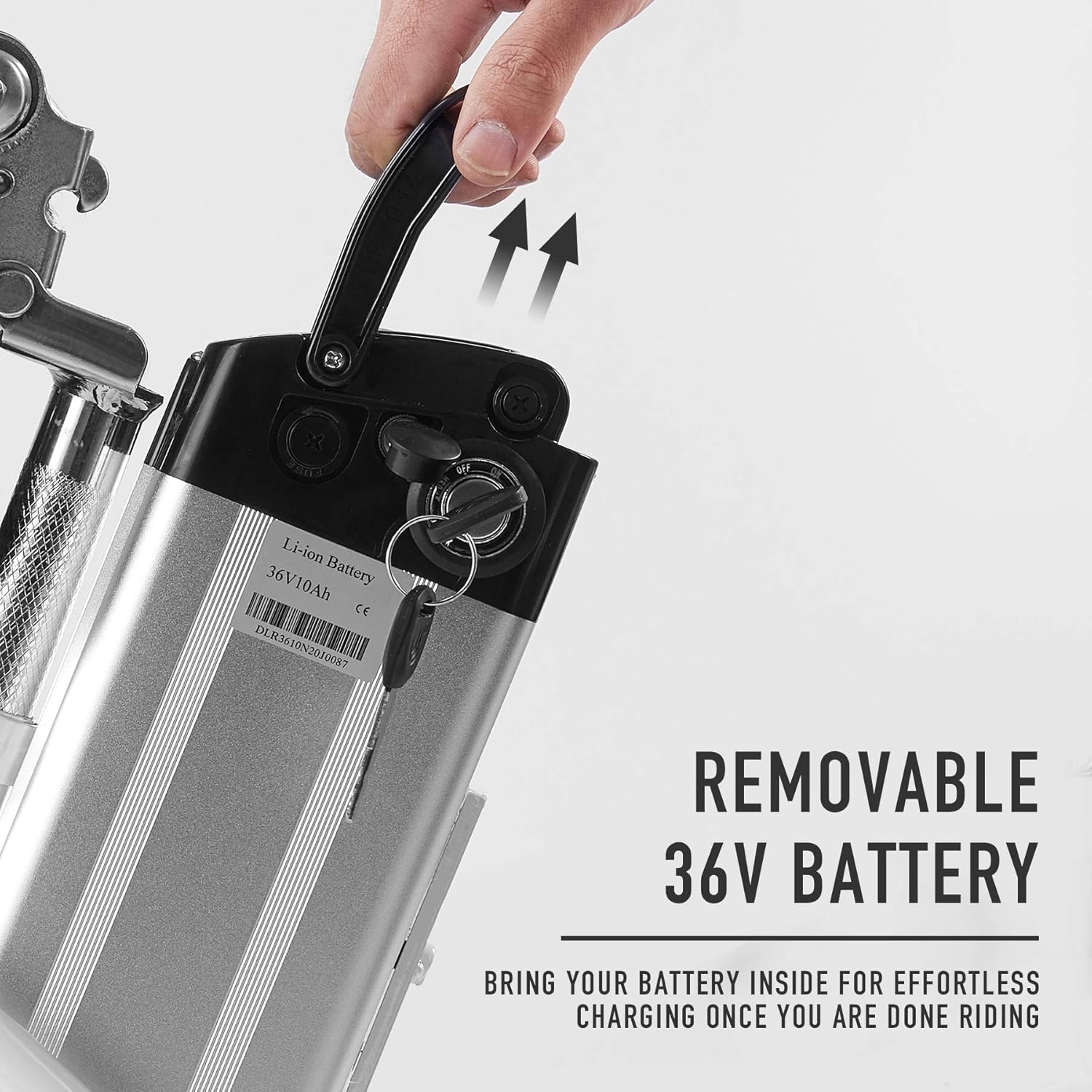

Figure 5.1: Removing the 36V Battery for Charging
5.2. Минүү режимдери
The trike offers three riding modes to suit your preference:
- Электр кыймылдаткычы: Utilizes the 250W brushless motor for full electric propulsion, reaching speeds up to 15.5 mph.
- Педаль жардамчысы (PAS): The motor provides assistance as you pedal, making rides easier, especially uphill.
- Manual Pedaling: The motor is off, and you pedal the trike like a traditional bicycle.
5.2-сүрөт: Үч минүү режими
5.3. Башкаруу элементтери жана өзгөчөлүктөрү
- Рулду башкаруу элементтери: The handlebars feature a battery display, non-slip grips, and buttons for the electric light and electric bell.
- LED фара: Activate the headlight for improved visibility in low-light conditions.
- Электр коңгуроо: Use the electric bell to alert pedestrians and other riders of your presence.
- Тормоздор: The trike is equipped with drum brakes on each wheel for smooth and even stopping.
Figure 5.3: Handlebar Controls
Figure 5.4: LED Headlight and Rear Reflector
6. Техникалык тейлөө
Regular maintenance will extend the life of your Viribus Electric Trike and ensure safe operation.
- Шиналар: Check tire pressure regularly and inflate to the recommended PSI (typically found on the tire sidewall).
- Тормоздор: Periodically inspect brake pads and cables for wear. Adjust brakes as needed to ensure effective stopping power.
- чынжыр: Дат басуунун алдын алуу жана педалдын жылмакай басылышын камсыз кылуу үчүн чынжырды таза жана майланган абалда кармаңыз.
- Батареяга кам көрүү: Store the battery in a cool, dry place. Avoid fully discharging the battery frequently. Charge it regularly, even if not in use, to maintain battery health.
- кадр: The carbon steel frame is durable and designed for years of corrosion-free performance. Clean the frame with a damp кездеме жана жумшак самын. Катуу химиялык заттардан алыс болуңуз.
- Мотор: The 250W brushless motor is designed for low maintenance. Keep the motor area clean and free of debris.
Figure 6.1: 250W Stable Front Hub Motor
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your Viribus Electric Trike.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Motor not engaging/Trike not powering on | Low battery, battery not properly seated, power switch off, loose electrical connection. | Charge battery fully. Ensure battery is securely locked in place. Check all electrical connections. Turn on the main power switch. |
| Brakes feel weak or are not stopping effectively | Brake cables need adjustment, worn brake pads. | Adjust brake cable tension. Replace worn brake pads. If unsure, consult a professional bicycle mechanic. |
| Handlebars slip or rotate | Stem bolts are not tightened sufficiently. | Ensure all stem bolts are tightened securely. Do not overtighten. |
| Чынжыр тайып кетет | Chain tension incorrect, bent chainring/sprocket, pedaling backward. | Adjust chain tension. Avoid pedaling backward forcefully. Inspect chainring and sprockets for damage. |
| Иш учурунда адаттан тыш үндөр | Loose components, lack of lubrication, misaligned parts. | Inspect all bolts and connections for tightness. Lubricate chain and moving parts. Check for any rubbing components (e.g., fenders). |
If you encounter issues not listed here or are unable to resolve a problem, it is recommended to contact Viribus customer support or consult a qualified bicycle repair shop.
8. Техникалык шарттар
Detailed technical specifications for the Viribus Electric Trike.
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | ATB-E026-WT |
| Велосипед түрү | Electric Bike (Tricycle) |
| Жаш аралыгы | бойго жеткен |
| Бренд | Viribus |
| Ылдамдыктын саны | 1 |
| Түс | Ак |
| Wheel Size | 26 дюйм |
| Frame Material | Carbon Steel |
| Суспензия түрү | Катуу |
| Өзгөчө өзгөчөлүк | Basket, Electric |
| Камтылган компоненттер | Basket, Battery, Charger |
| Тормоз стили | барабан |
| Продукт үчүн атайын колдонуу | Жол |
| Элемент Салмагы | 70.5 фунт |
| Power Source | Электр |
| Ватtage | 250 Вт |
| Дөңгөлөк материалы | Carbon Steel |
| Литий Батареясынын Энергия Мазмуну | 360 Ватт саат (36V 10Ah) |
| Максималдуу салмак боюнча сунуш | 220 фунт |
| Ассамблея талап кылынат | Ооба |
| Дата биринчи жеткиликтүү | 10-июль, 2020-жыл |
9. Кепилдик жана колдоо
Viribus is committed to providing quality products and customer satisfaction.
9.1. Кепилдик маалыматы
The Viribus Electric Trike comes with a 1 жылдык кепилдик from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage due to misuse, accidents, normal wear and tear, or unauthorized modifications.
9.2. Кардарларды колдоо кызматы
For any questions, technical assistance, or warranty claims, please contact Viribus customer support. Refer to your purchase documentation for specific contact details.
You can also visit the official Viribus store for more information and support resources: Viribus Store
Колдонуучунун колдонмосунун PDF версиясы да жүктөп алуу үчүн жеткиликтүү: Колдонуучунун колдонмосу (PDF)
