Introduction
Thank you for choosing the BWE Black Shower Faucet Set. This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your new shower system. Please read this manual thoroughly before installation and keep it for future reference to ensure safe and efficient use of the product.
Figure 1: Complete BWE Black Shower Faucet Set components.
Продукт бүттүview жана компоненттер
The BWE Black Shower Faucet Set is designed to provide a luxurious and functional showering experience. It features a matte black finish for durability and a modern aesthetic. Key components include:
- 12-inch Square Rain Shower Head: Made from 304 stainless steel, designed for a wide, natural rainfall experience.
- Handheld Shower Head: Constructed from brass for durability and ease of use.
- 15.75-inch Shower Arm: Solid brass construction for secure mounting of the rain shower head.
- Душ түтүгү: Durable PVC material for flexibility and longevity.
- Shower Holder: Brass construction to securely hold the handheld shower head.
- Water Control Valve: Brass pressure balance valve with 2-function switch for seamless operation.
Figure 2: All included components for the BWE Black Shower Faucet Set.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | BWE |
| Түс | Matte Black |
| Материал | Brass (Valve, Handheld, Holder, Arm), 304 Stainless Steel (Rain Head), PVC (Hose) |
| Аяктоо түрү | Matte Black |
| Туткалардын саны | 1 |
| Жаан чачыраган душтун башынын өлчөмү | 12 дюйм (чарчы) |
| Душ колунун узундугу | 15.75 дюйм |
| Душ шлангынын узундугу | 59 дюйм |
| Connection Threads | Standard 1/2 NPT tapered threads |
| Суунун агымынын ылдамдыгы | 2.5 GPM чейин (мүнөтүнө галлон) |

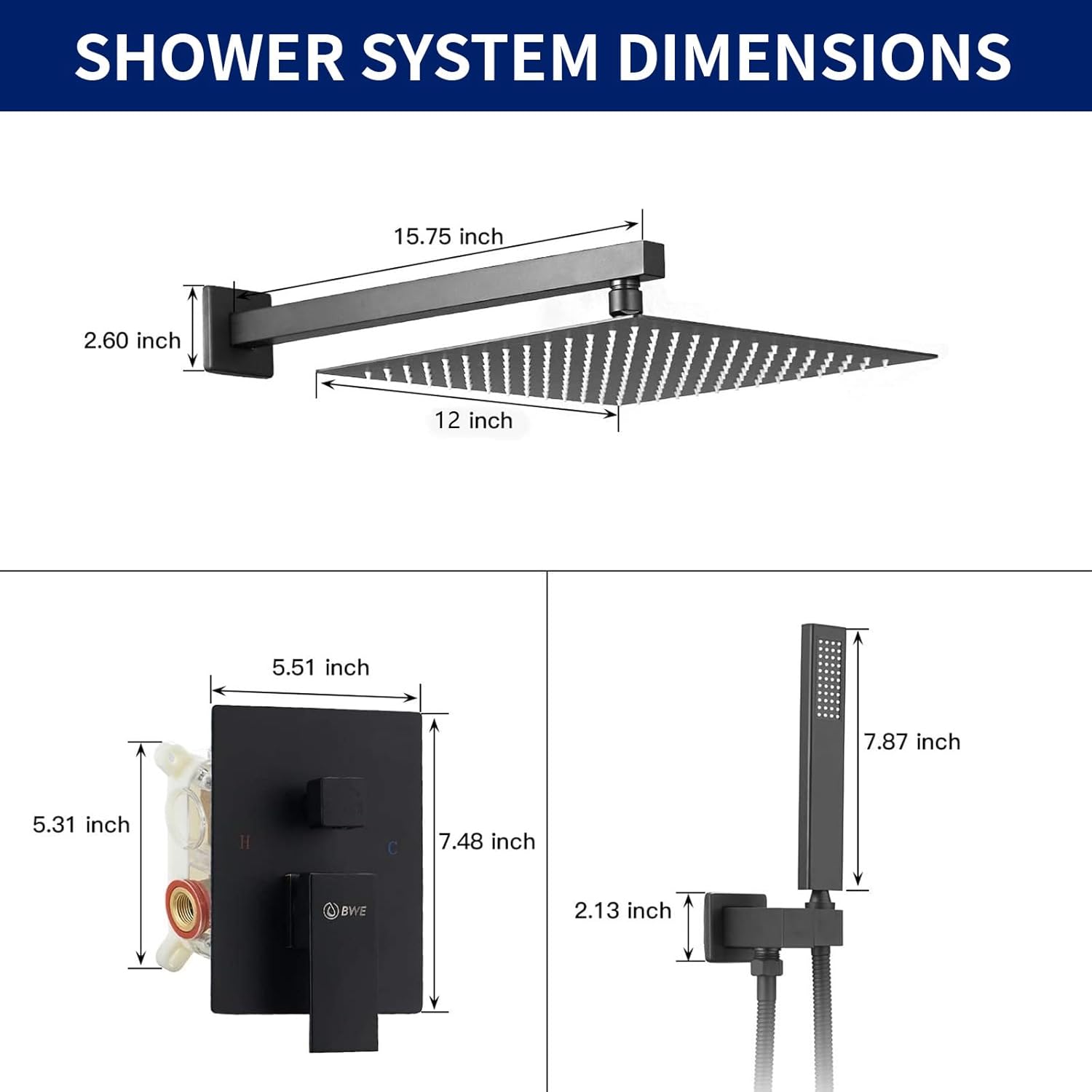

Figure 3: Detailed dimensions of the shower system components.
Орнотуу жана орнотуу
Professional installation is recommended. Ensure all local plumbing codes are followed. Before beginning, turn off the main water supply.
Керектүү куралдар жана материалдар (кошумча эмес):
- Жөнгө салынуучу ачкыч
- Pipe sealant tape (Teflon tape)
- Филлипс бурагыч
- Деңгээл
- Бургулоо (орнотуу үчүн зарыл болсо)
- Коопсуздук көз айнек
Орнотуу кадамдары:
- Дубалды даярдоо: Ensure the wall cavity is ready for the embedded valve. The valve requires an embedded depth of approximately 3.15 inches (80mm).
- Install the Pressure Balance Valve:
- Connect the hot and cold water lines to the designated inlets on the brass valve body (Hot Water Connector and Cold Water Connector, both 1/2 NPT).
- Connect the fixed shower head connector (1/2 NPT) and handheld shower head connector (1/2 NPT) to their respective outlets on the valve.
- Securely mount the valve body within the wall, ensuring it is level and at the correct depth for the trim plate.
Figure 4: Pressure Balance Valve internal connections and dimensions.
- Душ колун орнотуу:
- Apply pipe sealant tape to the threads of the shower arm.
- Thread the shower arm into the wall connection, ensuring it is securely tightened and properly oriented.
- Attach the Rain Shower Head:
- Thread the 12-inch square rain shower head onto the end of the shower arm. Hand-tighten first, then use a wrench to secure, being careful not to overtighten.
- Install the Handheld Shower Holder:
- Mount the brass shower holder to the wall at a comfortable height, connecting it to the dedicated outlet from the valve.
- Connect the Shower Hose and Handheld Shower Head:
- Connect one end of the PVC shower hose to the shower holder outlet.
- Connect the other end of the hose to the handheld shower head.
- Install the Trim Plate and Handle:
- Install the decorative trim plate over the valve body, securing it with the provided screws.
- Attach the control handle to the valve stem, ensuring it operates smoothly.
- Агышуу үчүн сыноо:
- Акырындык менен негизги суу менен камсыз кылуу.
- Check all connections for leaks. If leaks are present, turn off water, tighten connections, and re-test.
Иштөө нускамалары
Your BWE shower system features a single handle for controlling both water temperature and flow, and a diverter for switching between the rain shower head and handheld shower.
Figure 5: Shower Mixer Valve Control operation.
- Turning On/Off Water Flow:
- Lift the main handle to turn on the water flow.
- Push the main handle down to turn off the water flow.
- Суунун температурасын тууралоо:
- Rotate the main handle to adjust the temperature. Rotate towards "H" (Hot) for warmer water and towards "C" (Cold) for cooler water.
- The pressure balance valve maintains consistent water temperature, protecting against sudden changes in hot or cold water pressure.
- Switching Shower Functions:
- The small knob on the valve plate controls the shower output.
- Rotate the knob to select between the rain shower head and the handheld shower head.
Негизги өзгөчөлүктөрү:
- Аба басымынын технологиясы: Injects air into the water stream for a softer, more natural rainfall experience and efficient water usage (up to 2.5 GPM).
- 360° айлануу: Both the rain shower head and handheld shower head offer 360° rotation for adjustable spray angles.
- Easy-Cleaning Silicone Nozzles: The nozzles on both shower heads are made of silicone, allowing for easy cleaning of mineral buildup by simply wiping them.
Figure 6: ашыкview of the 2-function shower system features.
Figure 7: Air Injection Technology explanation.
Figure 8: High Pressure Handheld Shower Head features.
Техникалык тейлөө
Regular cleaning and maintenance will ensure the longevity and optimal performance of your BWE shower system.
- Аягын тазалоо: жумшак колдонуу, damp cloth and mild soap to clean the matte black finish. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Тазалоочу саптамалар: The silicone nozzles on both shower heads are designed for easy cleaning. Periodically rub the nozzles with your finger or a soft brush to dislodge any mineral buildup.
- Суу тактардын алдын алуу: Wipe down the shower system after each use to prevent water spots and mineral deposits, especially in hard water areas.
- Картриджди тейлөө: If you notice a decrease in water flow or inconsistent temperature, the pressure balance cartridge may need cleaning or replacement. Consult a professional plumber for this service.
Проблемаларды чечүү
Бул бөлүмдө душ системаңызда кездешиши мүмкүн болгон кеңири таралган көйгөйлөр каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу агымы | Clogged shower head nozzles; debris in valve cartridge; low water pressure in home. | Clean shower head nozzles. Check for debris in the valve cartridge (professional assistance may be needed). Consult a plumber to check home water pressure. |
| Суунун ыраатсыз температурасы | Басым балансындагы картридж көйгөйү; ысык/муздак суу менен камсыздоонун дисбалансы. | Ensure hot and cold water supplies are fully open. The pressure balance cartridge may need cleaning or replacement. Consult a professional. |
| Байланыштардан агып кетүүлөр | Loose connections; insufficient pipe sealant tape; damaged O-rings/gaskets. | Turn off water supply. Tighten connections. Reapply pipe sealant tape if necessary. Inspect and replace any damaged O-rings or gaskets. |
| Diverter Not Switching Functions | Өткөргүч механизминдеги таштандылар; өткөргүчтүн картриджи эскирген. | Flush the system. If the issue persists, the diverter cartridge may need inspection or replacement by a professional. |
Кепилдик жана колдоо
BWE products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official BWE webсайт.
For customer support, technical assistance, or to inquire about replacement parts, please contact BWE customer service. You can often find contact information on the product packaging or through the brand's official online store.
Кайтаруу саясаты: This product is eligible for a 30-day refund/replacement return policy from the date of purchase. Please retain your proof of purchase for any warranty or return claims.
BWE Store: Көбүрөөк өнүмдөр жана маалымат алуу үчүн, киргиле Official BWE Store on Amazon.
