1. Киришүү
Thank you for choosing YITAMOTOR 6-inch Running Boards. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new running boards. Please read this manual thoroughly before installation and retain it for future reference.
These running boards are designed for specific Dodge Ram models, ensuring a precise fit and enhanced vehicle accessibility. They feature durable stainless steel construction with a polished finish and non-slip step pads for safety and longevity.
2. Унаа шайкештиги
These running boards are compatible with the following vehicle models:
- 2009-2018 Dodge Ram 1500 Crew Cab
- 2019-2024 Ram 1500 Classic
- 2010-2024 Ram 2500/3500
NOTE: Only fits Crew Cab models with 4 full-size doors. Does NOT fit 2019-2025 Ram 1500 New Body models.
Please verify your vehicle's cab size and body style before proceeding with installation. Refer to the images below for visual guidance on compatible and incompatible models.
Image: Visual guide illustrating compatible (Crew Cab, Classic Body) and incompatible (Regular Cab, Quad Cab, Mega Cab, New Body) Dodge Ram models for YITAMOTOR running boards.
Image: Detailed comparison highlighting the visual differences between the 2019-2021 New Body RAM 1500 (6 Lugs) and the 2019-2021 Classic RAM 1500 (5 Lugs), crucial for ensuring correct running board fitment.
3. Пакеттин мазмуну
Before beginning installation, please ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

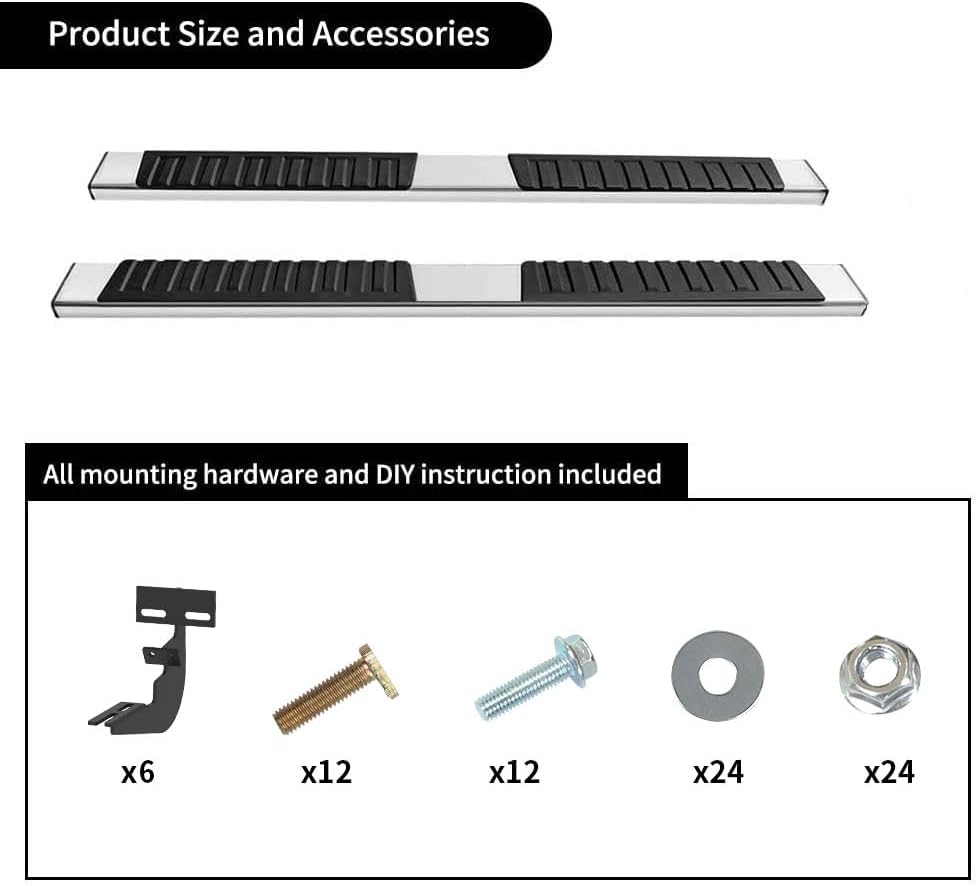

Сүрөт: бүттүview of the YITAMOTOR running board package contents, showing two running boards, six mounting brackets, and various bolts, washers, and nuts.
Камтылган жабдык:
- Running Boards (2)
- Монтаждоо кронштейндери (6)
- M8 Hex Bolts (x12)
- M8 жалпак шайбалар (x24)
- M8 Lock Washers (x24)
- M6 Hex Bolts (x12)
- M6 жалпак шайбалар (x12)
- M6 Lock Washers (x12)
- M6 алты бурчтуу гайкалар (x12)
4. Керектүү куралдар
Орнотуу үчүн төмөнкү куралдар сунушталат:
- Ratchet wrench set (10mm, 13mm, 14mm, 16mm, 17mm sockets recommended)
- Момент ачкычы
- Рулетка
- Safety gloves (included)
WARNING: Do not use air guns or other power tools for fastening, as this may damage the hardware or vehicle frame. Professional installation is recommended.
5. Орнотуу боюнча нускамалар
Follow these steps for a successful bolt-on installation. No drilling is required as all factory holes are designed to align with the mounts.
5.1. Унааны даярдаңыз
- Унааны тегиз, жалпак жерге токтотуңуз.
- Тормозду иштетиңиз.
- For safety, consider placing wheel chocks around the tires.
- Locate the factory mounting points on the underside of the vehicle's frame. These are typically hexagonal holes.
5.2. Монтаждык кашааларды орнотуңуз
The mounting method is the same for all brackets. Ensure the brackets are oriented correctly (facing forward) before fastening.
Video: Demonstrates the installation of the mounting brackets onto the vehicle's frame. It shows how to insert the small brackets into the hexagonal holes and then secure the main mounting bracket using M8 hex bolts, flat washers, and lock washers. The video emphasizes fastening screws with a wrench.
- Insert the small, threaded brackets into the factory hexagonal holes on the vehicle's frame.
- Align a main mounting bracket with the threaded inserts.
- Secure the main mounting bracket using M8 Hex Bolts, M8 Flat Washers, and M8 Lock Washers. Hand-tighten initially.
- Repeat for all three mounting points on one side of the vehicle.
5.3. Attach Running Boards
Video: Illustrates the process of attaching the running board to the previously installed mounting brackets. It shows how to align the running board with the brackets and secure it using M8 hex bolts, flat washers, and lock washers. The video also shows a person stepping onto the installed running board.
- Carefully lift one running board and align its mounting channels with the installed brackets.
- Insert M6 Hex Bolts, M6 Flat Washers, M6 Lock Washers, and M6 Hex Nuts through the running board's channels and into the mounting brackets.
- Adjust the position of the running board as desired (forward/backward, in/out) to achieve optimal alignment with the vehicle's body.
- Once satisfied with the position, securely fasten all bolts and nuts using a torque wrench to the manufacturer's recommended specifications (refer to your vehicle's manual for specific torque values if available, otherwise tighten firmly).
- Repeat the entire process for the other side of the vehicle.
Ensure all connections are tight and secure before driving the vehicle.
6. Иштетүү жана колдонуу
YITAMOTOR running boards provide a stable and convenient step for entering and exiting your truck. The 6-inch wide non-slip injection step pad ensures secure footing in various weather conditions.
- Салмак сыйымдуулугу: Each side of the running board can support up to 450 lbs (204 kg). Do not exceed this weight limit.
- Footing: Always step firmly onto the non-slip pads. Avoid stepping on the polished chrome sections to prevent slipping and maintain the finish.
Сүрөт: Жакын план view of the 6-inch wide non-slip step pad, highlighting its textured surface designed for safety and comfort when stepping into or out of the vehicle.
Image: A graphic depicting an elephant sitting on a running board, visually representing the 450 lb weight capacity of the YITAMOTOR Nerf Bars.
7. Техникалык тейлөө
Regular maintenance will help preserve the appearance and functionality of your running boards.
- Тазалоо: Wash the running boards regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the polished finish or non-slip pads.
- Текшерүү: Periodically check all mounting bolts and nuts for tightness. Re-tighten if necessary to prevent loosening due to vehicle vibration or road conditions.
- Коррозияны алдын алуу: The stainless steel construction is rust-resistant, but regular cleaning, especially after exposure to salt or harsh weather, will help maintain its integrity.
Image: A comparison showing the YITAMOTOR running board made of rust-resistant stainless steel with a polished finish, contrasted with an ordinary steel bar that is prone to rust and fading.
Image: An apple resting on the highly polished stainless steel surface of the running board, demonstrating the smooth and reflective quality of the material.
Image: A graphic depicting a truck equipped with YITAMOTOR running boards driving through snowy conditions, with an overlay indicating "One-piece Cast Anti-corrosion" to emphasize the product's durability against harsh elements.
8. Кыйынчылыктарды
If you encounter any issues with your YITAMOTOR running boards, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Running board feels loose or rattles. | Loose mounting bolts or nuts. | Inspect all mounting hardware and re-tighten to ensure secure fitment. |
| Difficulty aligning running board during installation. | Incorrect orientation of mounting brackets or insufficient adjustment. | Ensure brackets are facing forward. Utilize the adjustable slots on the running board to fine-tune positioning before final tightening. |
| Corrosion or rust spots appear on the running board. | Exposure to harsh elements (e.g., road salt) without regular cleaning. | Clean regularly with mild soap and water. For stubborn spots, use a non-abrasive stainless steel cleaner. |
If the issue persists or is not listed here, please contact YITAMOTOR customer support for further assistance.
9. Техникалык шарттар
- Бренд: YITAMOTOR
- Модел: NPJ0K6V
- Материал: Дат баспаган болот
- Тышкы жасалгалоо: Жылмаланган
- Түсү: Chrome
- Продукциянын өлчөмдөрү (L x W x Y): 208.28 x 15.24 x 5.08 см (82 x 6 x 2 дюйм)
- Элемент Салмагы: 20.4 кг (45 фунт)
- Салмак чеги: 450 Pounds per side
- OEM бөлүктүн номери: 82211702AE
- UPC: 840265251874
- Автоунаага ылайыктуу түрү: Унаанын өзгөчө ылайыктуулугу
10. Кепилдик жана колдоо
For warranty information, product support, or to report any issues, please refer to the contact information provided with your purchase or visit the official YITAMOTOR webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
