Walfront Chainsaw Carburetor Replacement Manual

Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Walfront die-cast aluminum chainsaw carburetor. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

This carburetor is designed as a direct replacement part for various chainsaw models, ensuring optimal performance and durability. It is compatible with 5200, 4500, 5800, 52CC, 45CC, and 58CC chainsaws.

Image: Walfront chainsaw carburetor, illustrating its intended use in a chainsaw.

Продукт бүттүview

The Walfront chainsaw carburetor is a high-quality replacement component engineered for reliability and performance. It features a durable die-cast aluminum construction and an anodized surface for enhanced wear resistance.

• Материал: High-quality die-cast aluminum, ensuring durability and resistance to damage.
• Беттик дарылоо: Anodized for good wear resistance, allowing reliable operation in adverse conditions.
• Шайкештик: Specifically designed to fit 5200, 4500, 5800, 52CC, 45CC, and 58CC chainsaw models.
• Орнотуу: Lightweight and simple construction facilitates easy installation and direct replacement of existing carburetors.
• Аткаруу: Engineered to help your chainsaw achieve higher operational performance.

Сүрөт: деталдуу view of the Walfront chainsaw carburetor highlighting its features and compatibility.

Please note that due to manufacturing updates, new and old models of the carburetor may be shipped randomly. Both types are fully compatible and functionally identical for the specified chainsaw models.

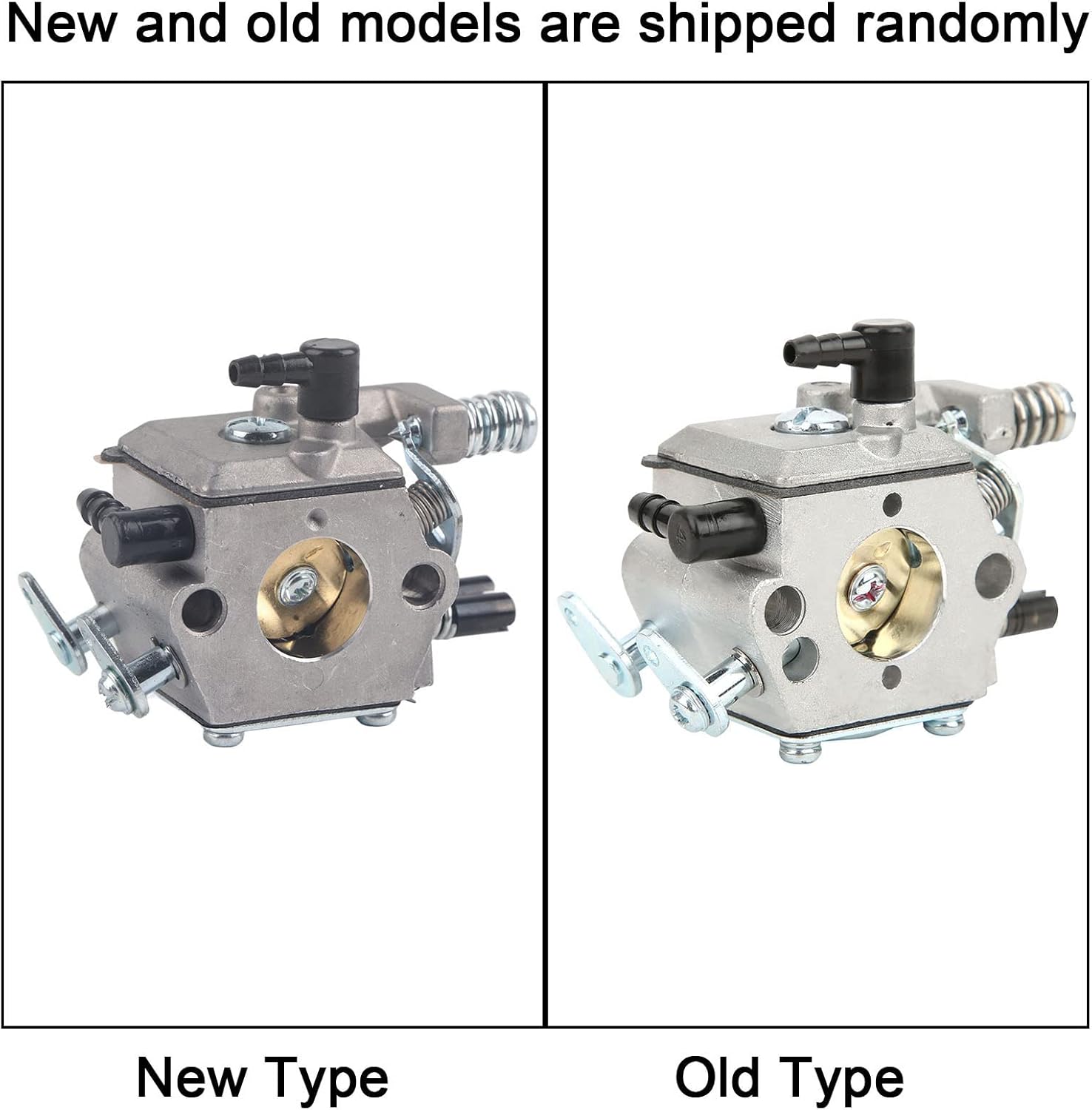

Image: Comparison of new and old carburetor models, showing minor aesthetic differences but identical functionality.

Коопсуздук маалыматы

Always prioritize safety when working with power tools and fuel systems. Failure to follow safety instructions can result in serious injury or property damage.

• Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коргоочу көз айнектерди, кол каптарды жана угууну коргоону кийиңиз.
• Ensure the chainsaw is turned off, the spark plug cap is disconnected, and the engine is cool before beginning any work.
• Work in a well-ventilated area, away from open flames or sparks, especially when handling fuel.
• Refer to your chainsaw's original manufacturer manual for specific safety guidelines related to your model.
• Балдарды жана жанында жүргөндөрдү жумуш аймагынан алыс кармаңыз.

Орнотуу жана орнотуу

Replacing a chainsaw carburetor requires basic mechanical knowledge. If you are unsure about any step, it is recommended to seek professional assistance.

Керектүү куралдар:

• Бурагычтар топтому (жалпак баштуу жана Филлипс)
• Розетка ачкычынын топтому
• Кычкач
• Таза чүпүрөктөр
• Fuel-resistant sealant (optional, for fuel lines)

Орнотуу кадамдары:

1. Даярдоо: Ensure the chainsaw is off, cool, and the spark plug wire is disconnected. Drain any fuel from the tank.
2. Карбюраторго кирүү: Remove the air filter cover and air filter. Depending on your chainsaw model, you may need to remove additional covers or components to gain full access to the carburetor.
3. Күйүүчү май линияларын ажыратыңыз: Carefully disconnect the fuel lines from the old carburetor. Be prepared for residual fuel to leak. Note the routing of the fuel lines for reinstallation.
4. Дроссель байланышын ажыратуу: Detach the throttle linkage and any choke linkages from the old carburetor. Take a photo or make a diagram if necessary to remember the connections.
5. Эски карбюраторду алып салуу: Unscrew the mounting bolts or nuts holding the carburetor in place. Carefully remove the old carburetor, along with any gaskets.
6. Таза орнотуу аймагы: Clean the mounting surface on the engine to ensure a good seal with the new carburetor. Remove any old gasket material.
7. Жаңы карбюратор орнотуу: Place new gaskets (if provided or required) onto the mounting studs. Position the new Walfront carburetor onto the studs.
8. Кайра туташтыруучу шилтемелер: Reattach the throttle and choke linkages to the new carburetor. Ensure they move freely and correctly.
9. Күйүүчү май түтүктөрүн кайра туташтыруу: Reconnect the fuel lines to the appropriate ports on the new carburetor. Ensure connections are secure to prevent leaks.
10. Коопсуз карбюратор: Tighten the mounting bolts or nuts evenly to secure the carburetor. Do not overtighten.
11. Кайра чогултуу: Аба чыпкасын, аба чыпкасынын капкагын жана бөлүктөргө ажыратуу учурунда алынып салынган башка компоненттерди кайра орнотуңуз.

Сүрөт: алдыңкы view of the Walfront carburetor, illustrating its components for installation.

Иштөө нускамалары

After installation, proper starting and operation procedures are crucial for optimal performance and longevity of your chainsaw and its new carburetor.

Алгачкы ишке киргизүү:

1. Refuel: Fill the chainsaw fuel tank with the correct fuel mixture as specified by your chainsaw manufacturer.
2. Прайм (эгер бар болсо): If your chainsaw has a primer bulb, press it several times until fuel is visible in the return line.
3. Муунгучтар: Engage the choke lever to the "Full Choke" position.
4. Баштоо: Pull the starter cord firmly until the engine "pops" or attempts to start. Do not pull more than 3-5 times on full choke.
5. Жарым муунтуу: Move the choke lever to the "Half Choke" or "Run" position (depending on your model).
6. Кайра баштоо: Кыймылдаткыч иштеп, иштегенге чейин стартер шнурун кайра тартыңыз.
7. Кызытуу: Allow the engine to warm up for a minute or two before engaging the throttle fully.

Carburetor Adjustment (if necessary):

Your new carburetor is typically pre-set from the factory. However, minor adjustments may be needed for optimal performance based on altitude, temperature, and fuel type. Consult your chainsaw's original manual for specific adjustment procedures. Generally, carburetors have three adjustment screws:

• L (Low Speed Mixture): Adjusts fuel mixture at idle and low RPMs.
• H (High Speed Mixture): Adjusts fuel mixture at high RPMs.
• T (Idle Speed): Кыймылдаткычтын бош жүрүү ылдамдыгын жөнгө салат.

Adjustments should be made incrementally (e.g., 1/8 turn at a time) with the engine running, listening for smooth operation and proper acceleration. Incorrect adjustments can damage the engine.

Image: Close-up of the carburetor, indicating potential adjustment points.

Техникалык тейлөө

Regular maintenance of your chainsaw and its carburetor will ensure long-term reliability and performance.

• Аба чыпкасы: Regularly clean or replace the air filter to prevent dirt and debris from entering the carburetor. A clogged air filter can cause poor engine performance.
• Күйүүчү май чыпкасы: Inspect and replace the fuel filter periodically. A dirty fuel filter can restrict fuel flow to the carburetor.
• Күйүүчү май линиялары: Check fuel lines for cracks, leaks, or hardening. Replace damaged lines promptly.
• Свеча: Inspect and clean or replace the spark plug as recommended by your chainsaw manufacturer. A fouled spark plug can affect combustion.
• Карбюратор тазалоо: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This is an advanced task and should only be performed by experienced individuals.

Проблемаларды чечүү

Here are some common issues and their potential solutions related to carburetor function:

If these troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information or technical support regarding your Walfront chainsaw carburetor, please refer to the retailer's return policy or contact Walfront customer service directly through their official channels. Keep your purchase receipt as proof of purchase.
