EXCEL Tankless Gas Water Heater User Manual

1. Продукт бүтүп калдыview

The EXCEL Tankless Gas Water Heater is designed to provide instant hot water for various applications, including small apartments, lofts, flats, RVs, and mobile homes. This unit operates on Propane (LPG) and features exclusive low water pressure startup technology, requiring only 2 PSI of water pressure to activate. Its vent-free design eliminates the need for complex and costly flue installations, making it a convenient and energy-efficient solution for on-demand hot water.

1.1-сүрөт: алдыңкы жана каптал view of the EXCEL Tankless Gas Water Heater, showcasing анын компакттуу конструкциясы жана башкаруу туткалары.

Негизги өзгөчөлүктөрү:

• Propane Gas (LPG) Unit: Designed for use with liquid propane gas.
• Low Water Pressure Startup: Activates with as little as 2 PSI of water pressure, ideal for areas with fluctuating water supply. This is achieved through a magnetic water flow sensor, unlike older units that rely on rubber diaphragms requiring higher pressure.
• Vent-Free Technology: Does not require a traditional flue or ductwork for exhaust. Equipped with an Oxygen Depletion Safety (ODS) shutoff and an exclusive 20-minute safety shutoff feature for indoor installation with proper ventilation.
• Компакт өлчөмү: Dimensions are approximately 12.8 inches (front width) x 8 inches (depth) x 18.75 inches (height), allowing for flexible installation.
• Автоматтык от алдыруу: Powered by 2 D-size batteries (included) for automatic ignition upon water flow.
• Энергияны жана сууну үнөмдөө: Delivers hot water instantly, reducing waste.

2. Коопсуздук маалыматы

Read and understand all safety warnings and instructions before installing, operating, or performing maintenance on this appliance. Failure to follow these instructions could result in property damage, personal injury, or death.

Жалпы коопсуздук чаралары:

• This appliance must be installed by a qualified professional in accordance with all local codes and regulations.
• Ensure adequate ventilation when installing the unit indoors due to its vent-free design.
• Бензинди же башка күйүүчү бууларды жана суюктуктарды ушул же башка шайманга жакын жерде сактабаңыз же колдонбоңуз.
• Check for gas leaks using a soapy water solution after installation and during maintenance. Never use an open flame.
• The unit is equipped with an Oxygen Depletion Safety (ODS) shutoff system and a 20-minute safety shutoff feature. Do not bypass or tampбул коопсуздук шаймандары менен.
• Ensure proper battery installation for automatic ignition. Use new, high-quality D-size alkaline batteries.
• Protect the unit from freezing temperatures. Drain the unit if it will be exposed to freezing conditions (see Maintenance section).
• Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келүүчү химиялык заттарды камтыйт (65 эскертүүсү).

3. Орнотуу жана орнотуу

Proper installation is critical for the safe and efficient operation of your EXCEL Tankless Gas Water Heater. Refer to the diagrams below for connection points.

Компоненттин идентификациясы:

Figure 3.1: Connection points at the bottom of the unit.

Figure 3.2: Location of the Winter Drain and Battery Box.

Орнотуу кадамдары:

1. Монтаждоо: Securely mount the unit to a wall using appropriate hardware. Ensure the mounting surface can support the weight of the unit when filled with water.
2. Суу байланыштары:
   • муздак суу менен камсыз кылуу линиясын туташтырыңыз Муздак суу куюучу жай.
   • Connect the hot water output line to the Ысык суу чыгаруу.
   • Ensure all water connections are tight and leak-free. Use appropriate sealing tape or compound.
3. Газ туташуу:
   • Connect the Propane (LPG) gas supply line to the Газ киргизүү. The unit includes an LPG Brass Fitting for a ⅜" Flare connection.
   • Verify all gas connections are secure and test for leaks using a soapy water solution.
4. Батарея орнотуу: Open the battery box and insert two D-size batteries. Ensure correct polarity. These batteries power the automatic ignition system.
5. Вентиляция: For indoor installations, ensure the area has adequate ventilation as this is a vent-free appliance.

3.3-сүрөт: Ички view highlighting the magnetic water flow sensor, which enables low water pressure startup.

4. Иштөө нускамалары

Follow these steps to operate your EXCEL Tankless Gas Water Heater.

Алгачкы ишке киргизүү:

1. Ensure all water and gas connections are properly made and leak-free.
2. Негизги газ берүүчү клапанды ачыңыз.
3. Open a hot water faucet in your system. The unit will detect water flow (as low as 2 PSI) and automatically ignite.
4. Allow water to run for a few moments to purge any air from the lines.

Күнүмдүк операция:

• To get hot water, simply open any hot water faucet connected to the unit. The heater will automatically ignite and begin heating water as it flows through.
• The unit is designed for a temperature rise of approximately 45°F, delivering 1.6 Gallons Per Minute (GPM).
• While suitable for multiple points of use, it is recommended to use no more than one point of use at a time for optimal performance.
• For incoming cold water temperatures below 50°F (down to 40°F), you may need to reduce the water flow rate using the control knob to achieve desired hot water temperature.
• The unit features a 20-minute safety shutoff. If hot water is continuously drawn for more than 20 minutes, the unit will automatically shut off. To restart, close the hot water faucet and then reopen it.

5. Техникалык тейлөө

Үзгүлтүксүз тейлөө суу жылыткычыңыздын узак мөөнөттүү жана натыйжалуу иштешин камсыздайт.

Күнүмдүк текшерүүлөр:

• Батареяны алмаштыруу: Replace the two D-size batteries annually, or if the ignition becomes inconsistent. Use high-quality alkaline batteries.
• агып текшерүү: Periodically check all water and gas connections for leaks. For gas leaks, use a soapy water solution.
• Тышкы тазалоо: Агрегаттын сыртын жумшак, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

Winterization (Freezing Protection):

If the unit will be exposed to freezing temperatures, it is crucial to drain all water from the system to prevent damage.

1. Агрегатты газ менен камсыз кылууну өчүрүңүз.
2. Turn off the cold water supply to the unit.
3. Open a hot water faucet in your system to relieve pressure.
4. табыңыз Winter Drain valve at the bottom of the unit (refer to Figure 3.2). Open this valve to drain the water from the heat exchanger.
5. Once drained, close the drain valve.

5.1-сүрөт: Ички view of the copper heat exchanger, which should be drained to prevent freezing damage.

6. Кыйынчылыктарды

This section provides solutions to common issues you might encounter with your water heater.

Эгер бул чечимдерди колдонгондон кийин маселе чечилбесе, квалификациялуу тейлөө техникине кайрылыңыз.

7. Техникалык шарттар

Technical specifications for the EXCEL Tankless Gas Water Heater.

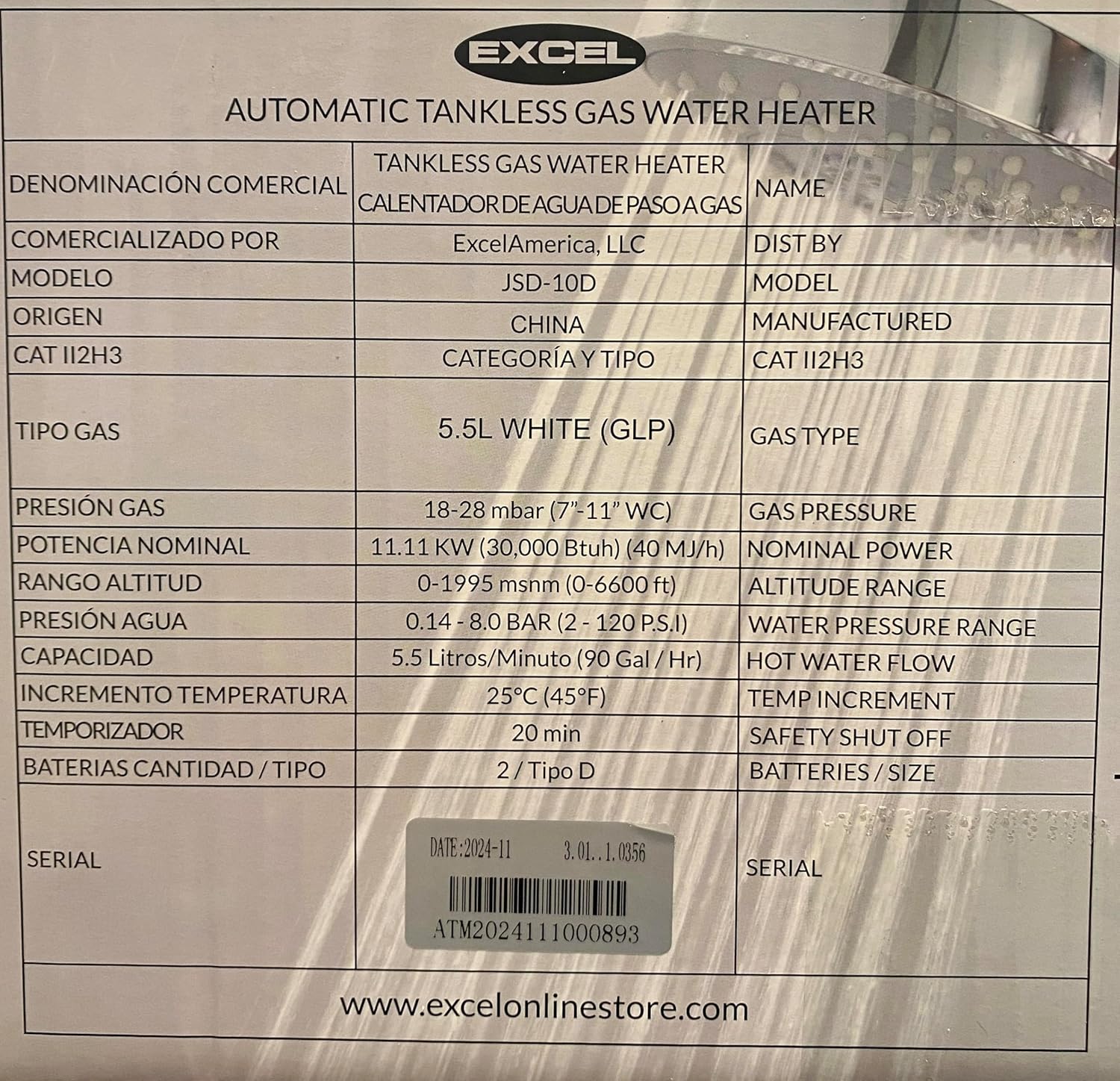

Figure 7.1: Product label with detailed specifications.

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation included with your purchase or contact the seller directly. The seller for this product is typically Energy-Store.

For additional resources and product information, you may visit the official EXCEL webсайт: www.excelonlinestore.com
